Table 2. Validation results for the CGLOPS lakes with in situ data for AATSR.

Index	Name/Country	CGLOPS Buoy ID	Lat	Lon	Location	Time Series	Time Series detailed	LSWT CGLOPS vs LSWT IS in situ	LSWT CGLOPS - LSWT IS vs LSWT IS	N matches	Median difference	Robust STD difference	Mean difference	STD difference

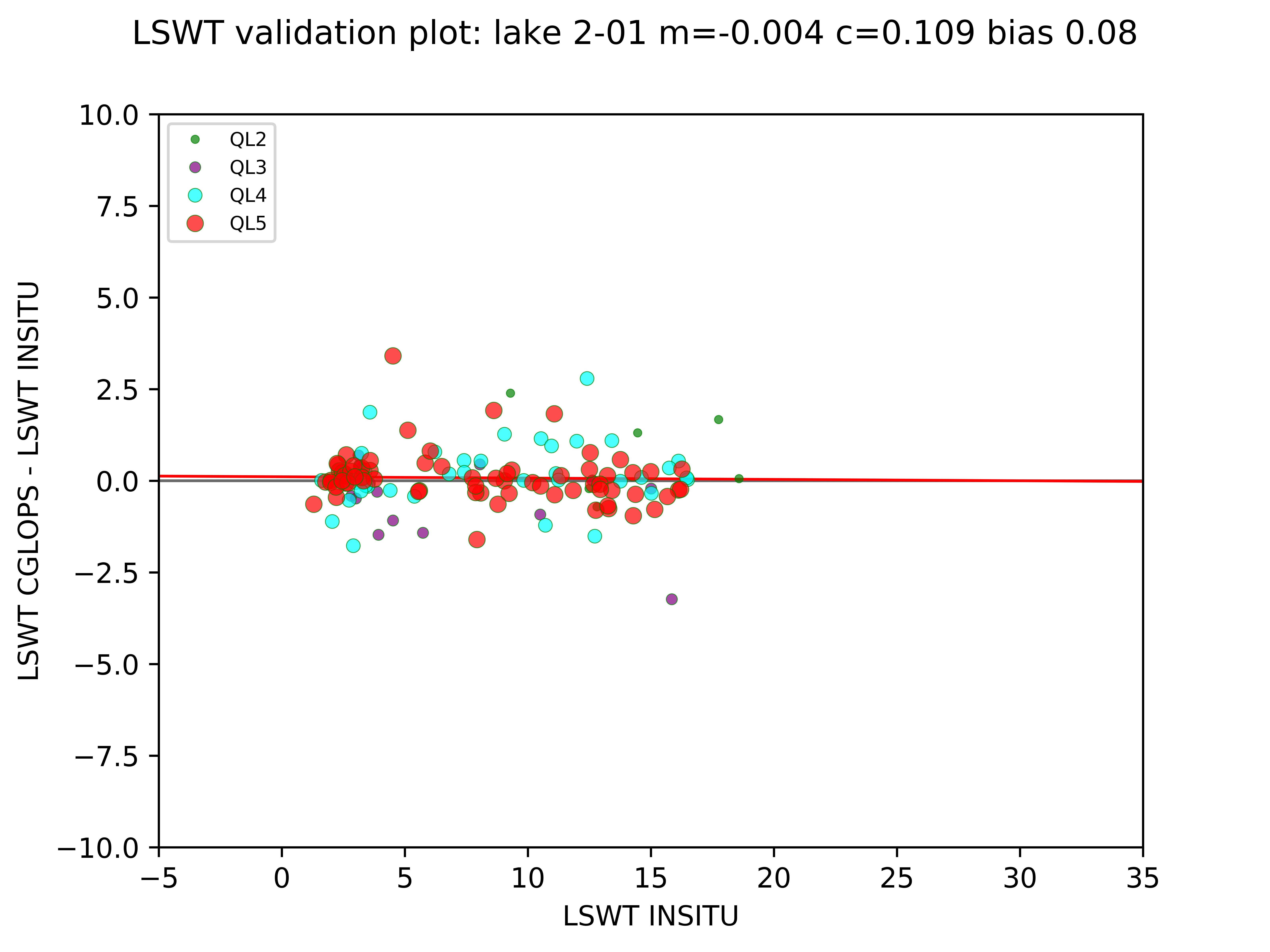

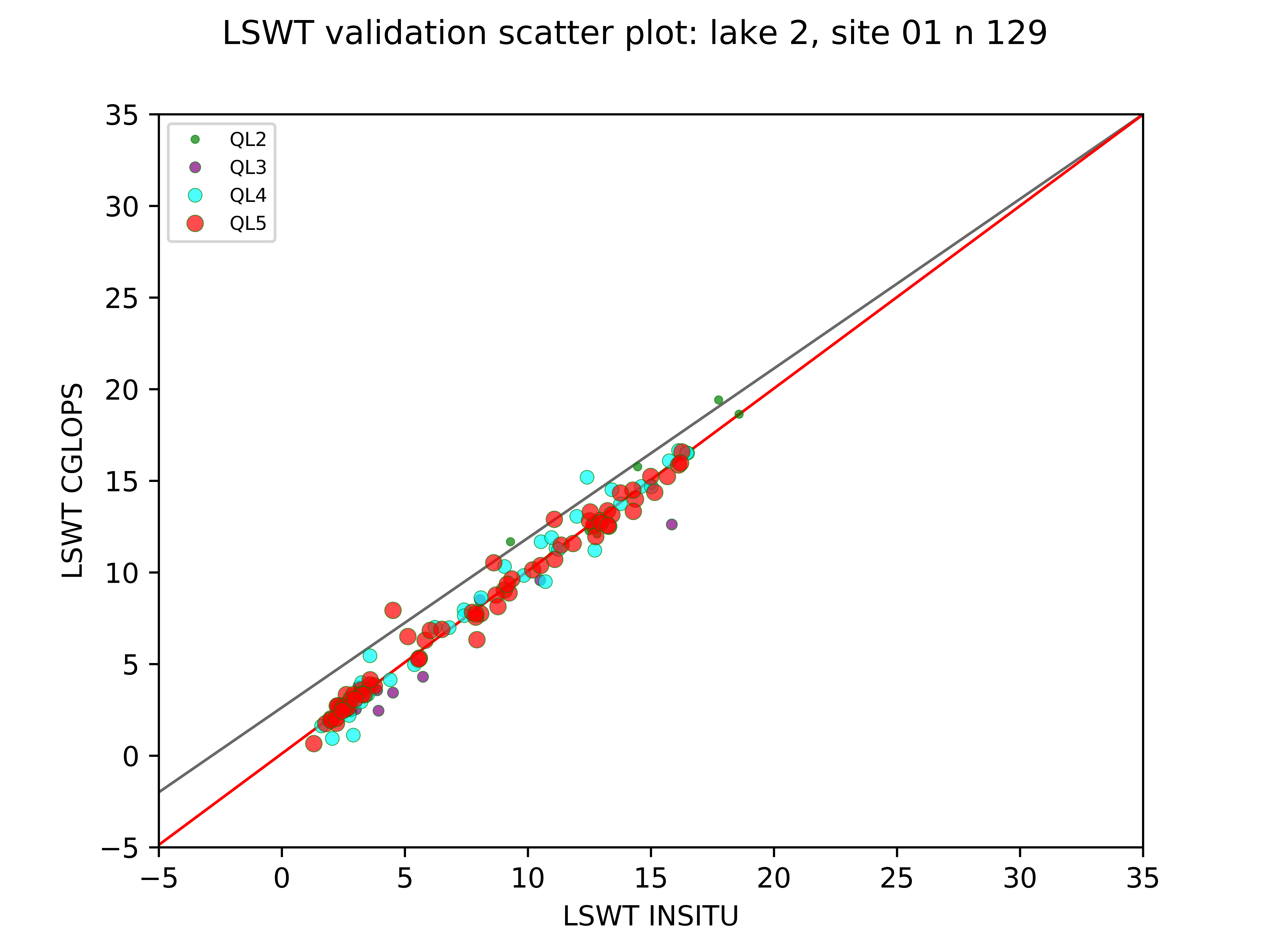

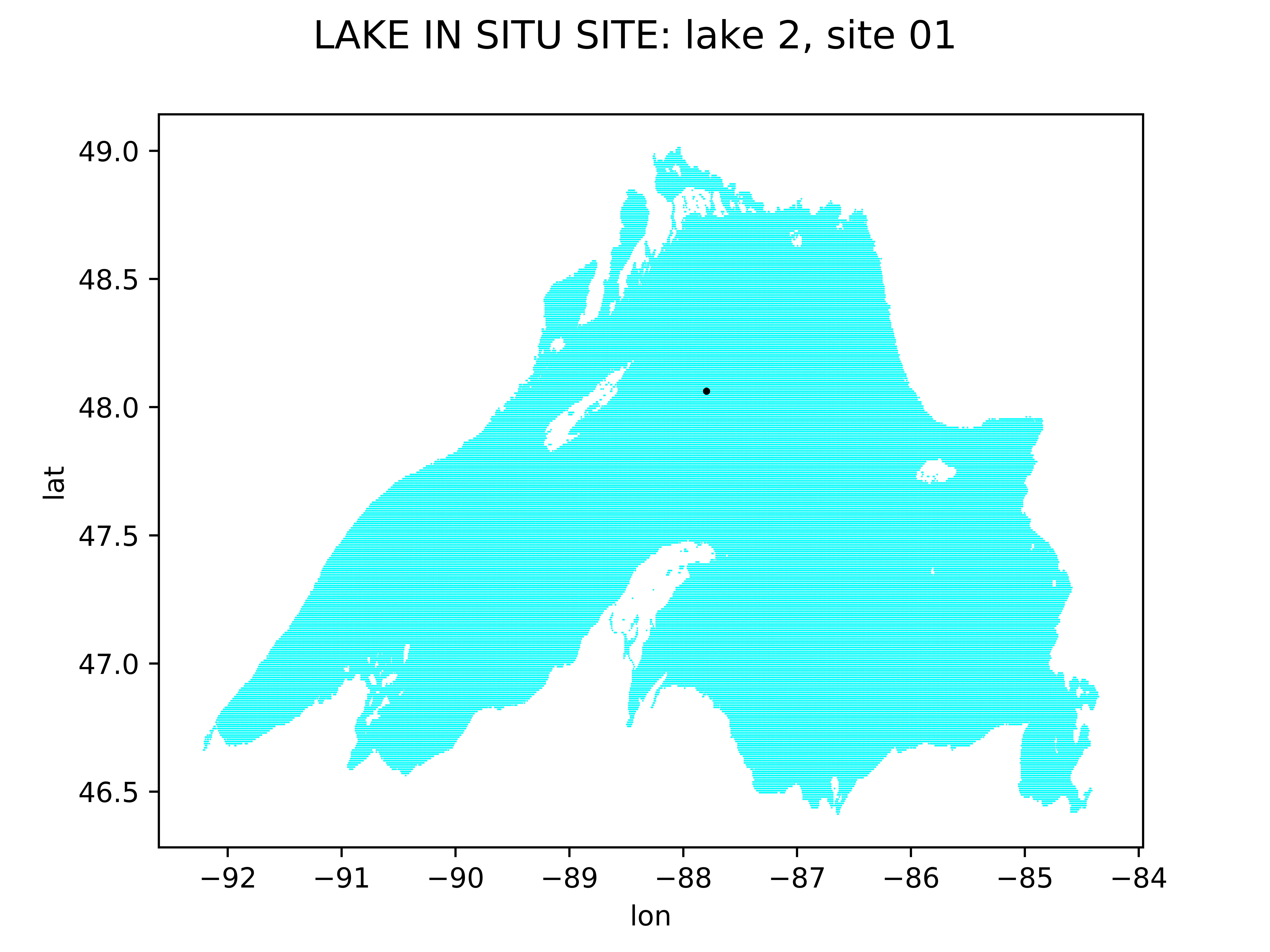

2	Superior/Canada - USA	000002_01	48.061	-87.793						129	0.02	0.48924	0.0795	0.8351

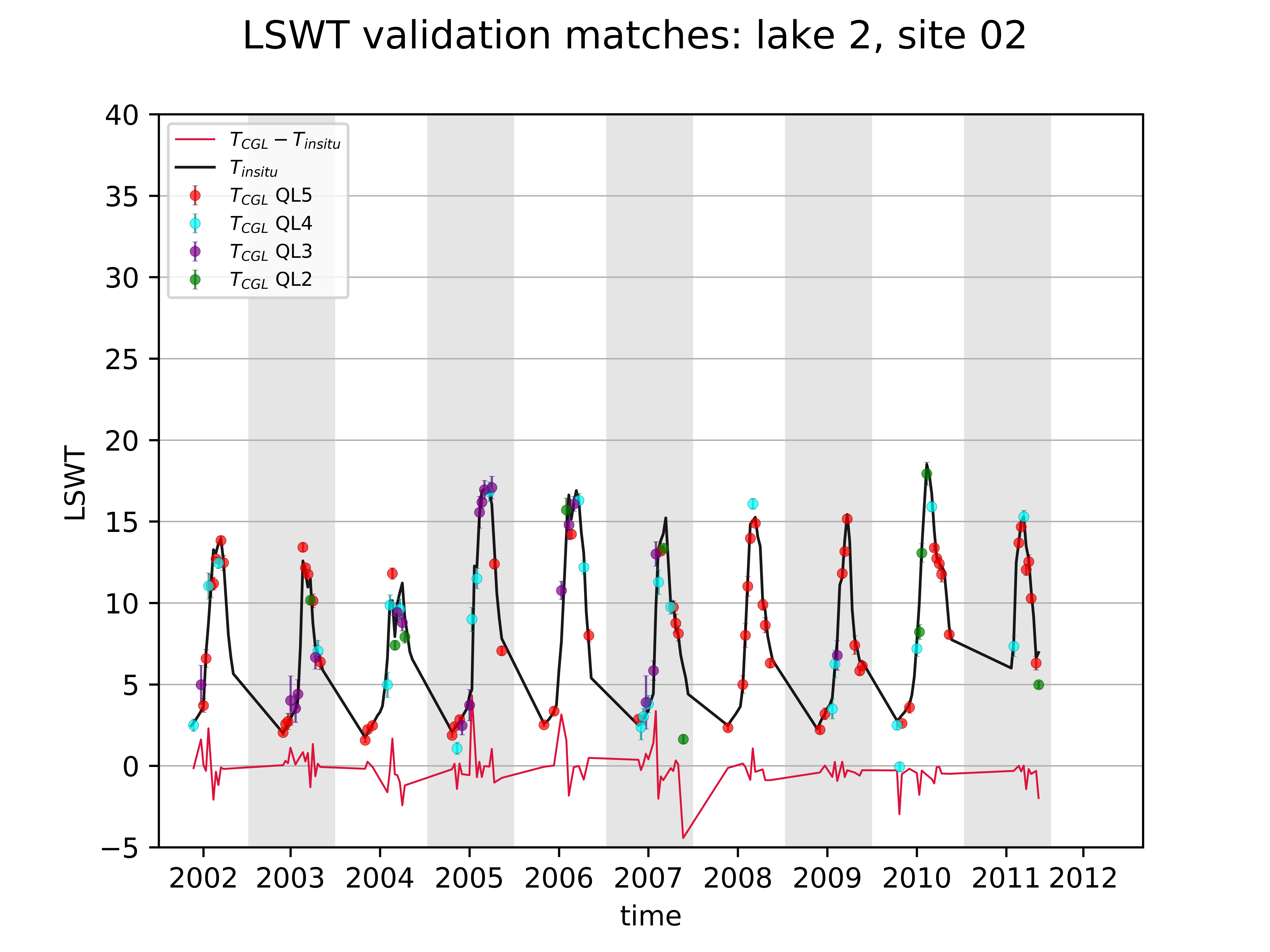

		000002_02	47.585	-86.585						120	-0.215	0.54857	-0.206	1.0825

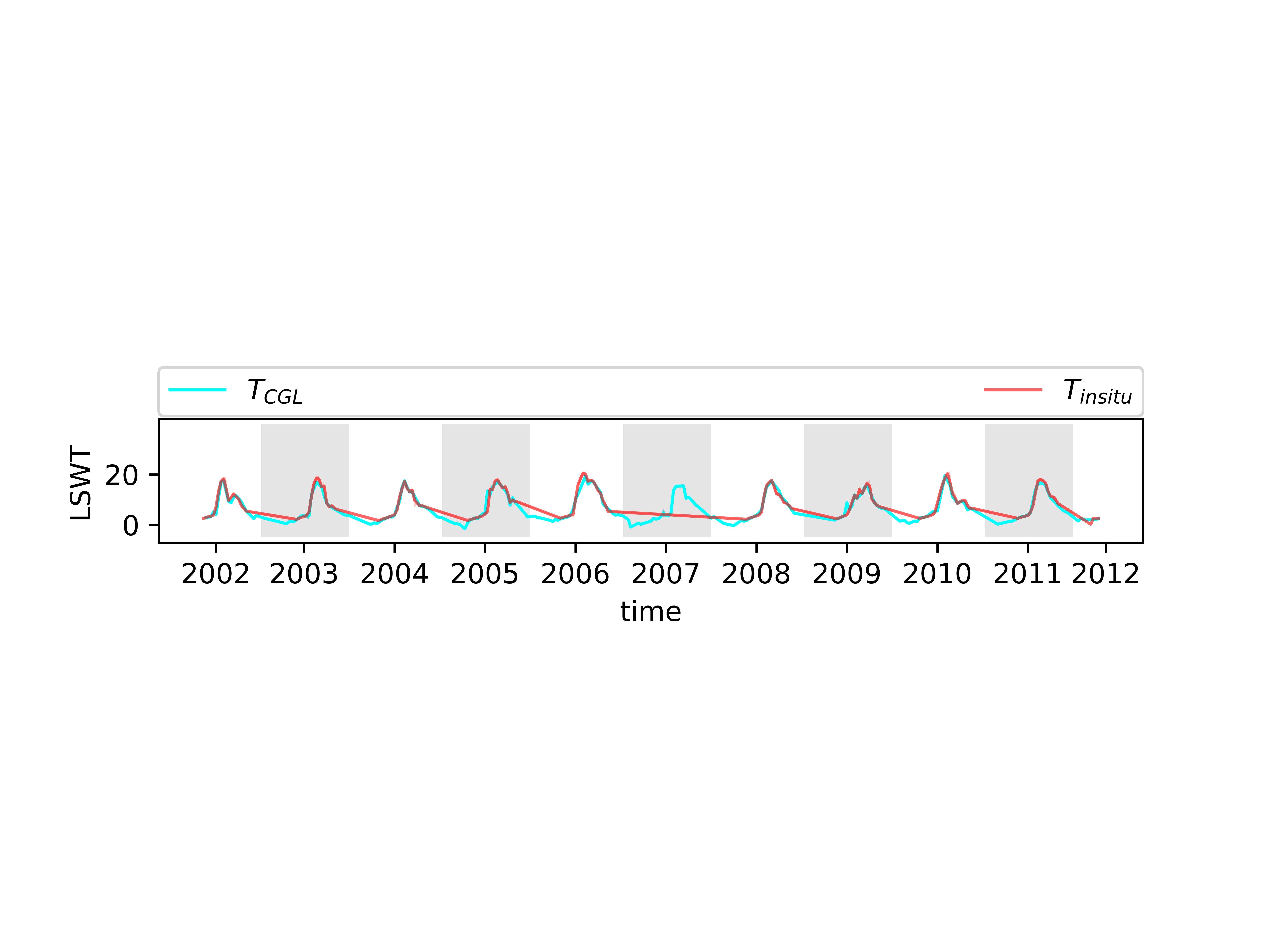

		000002_03	47.335	-89.793						121	-0.18	0.68198	-0.2216	1.2888
		000002_04	48.53	-86.95						124	-0.255	0.74871	-0.3158	0.9755

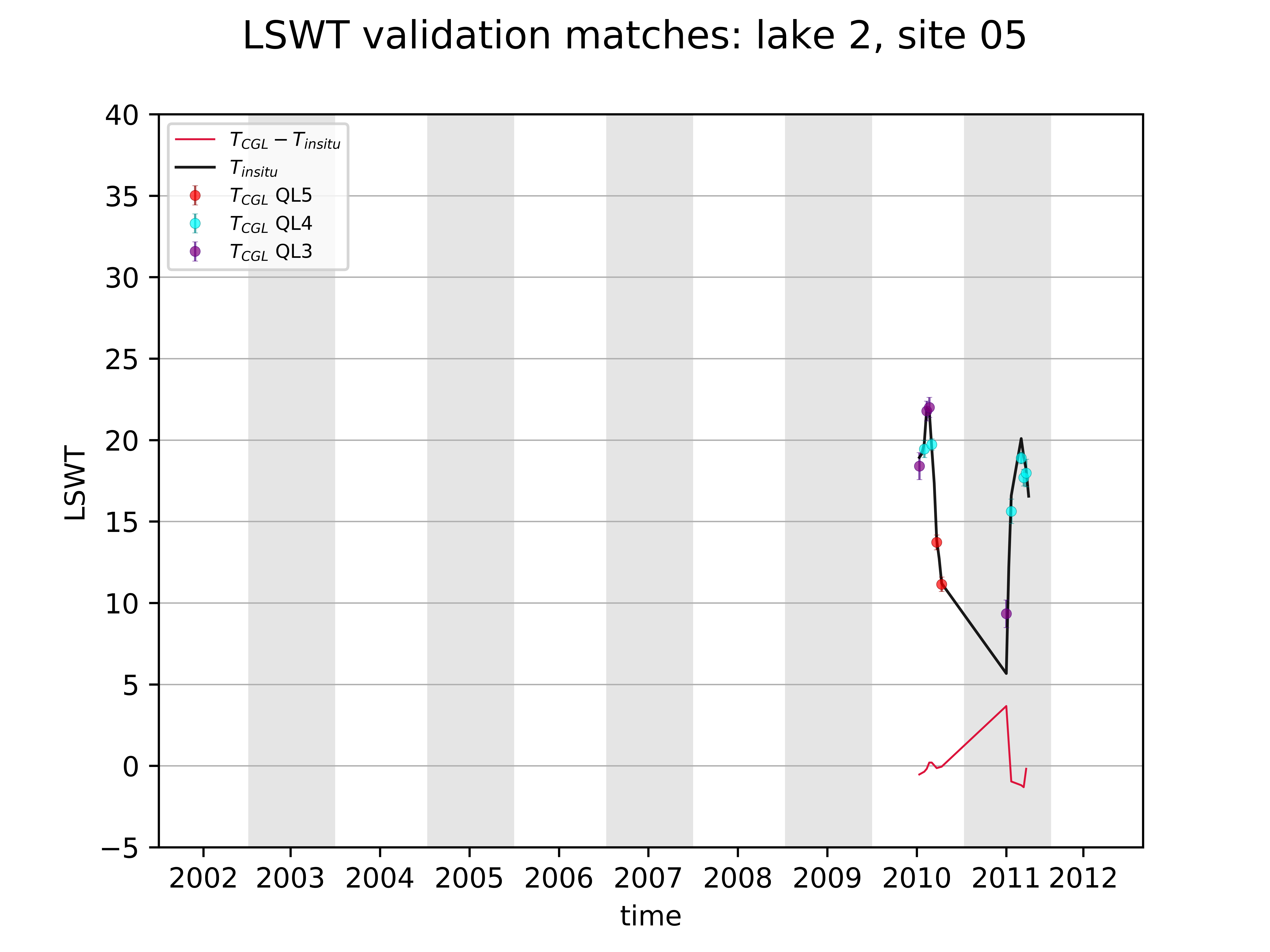

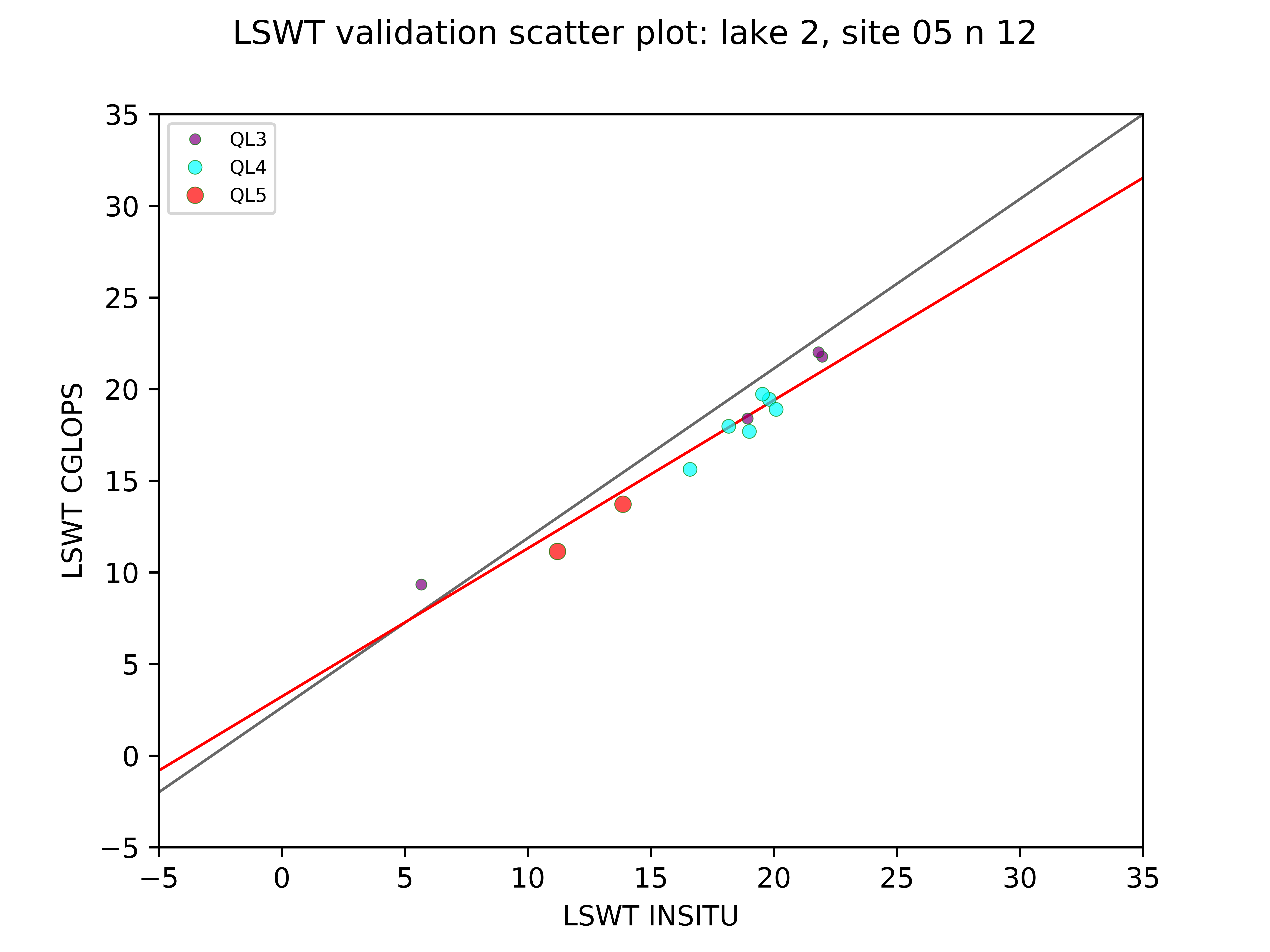

		000002_05	47.27	-88.607						12	-0.18	0.54116	-0.0692	1.2262

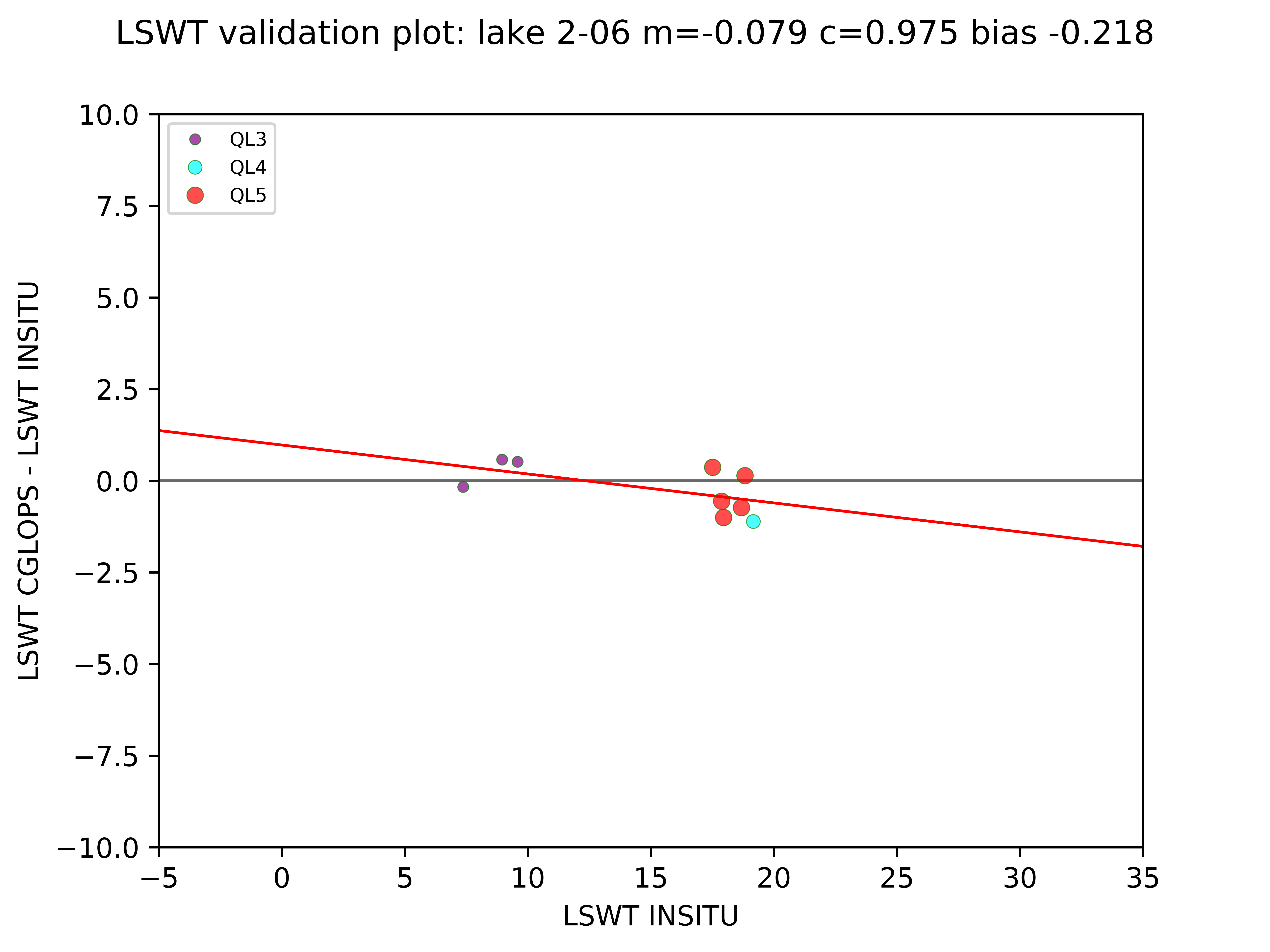

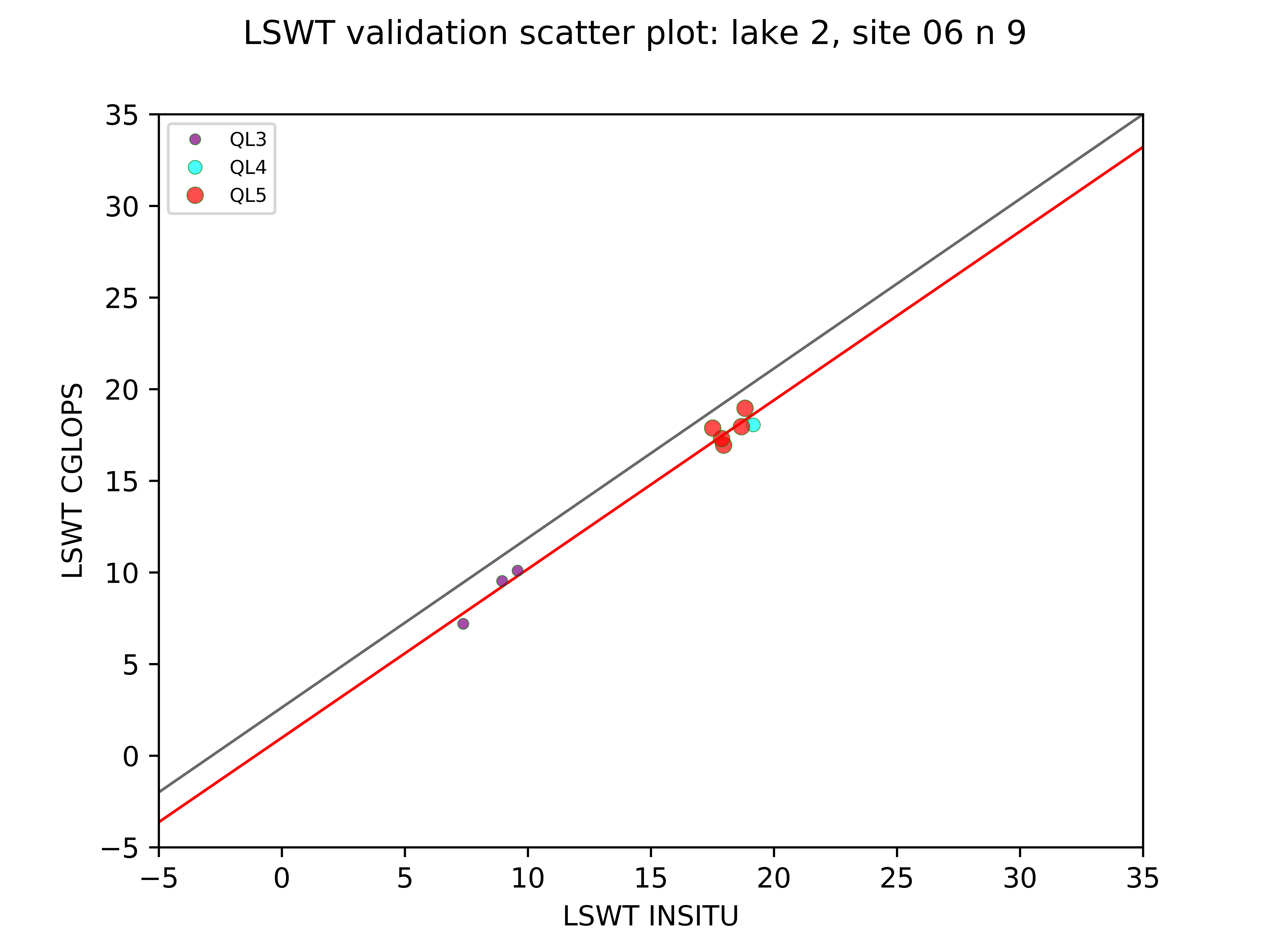

		000002_06	46.969	-88.398						9	-0.17	0.83026	-0.2178	0.6186

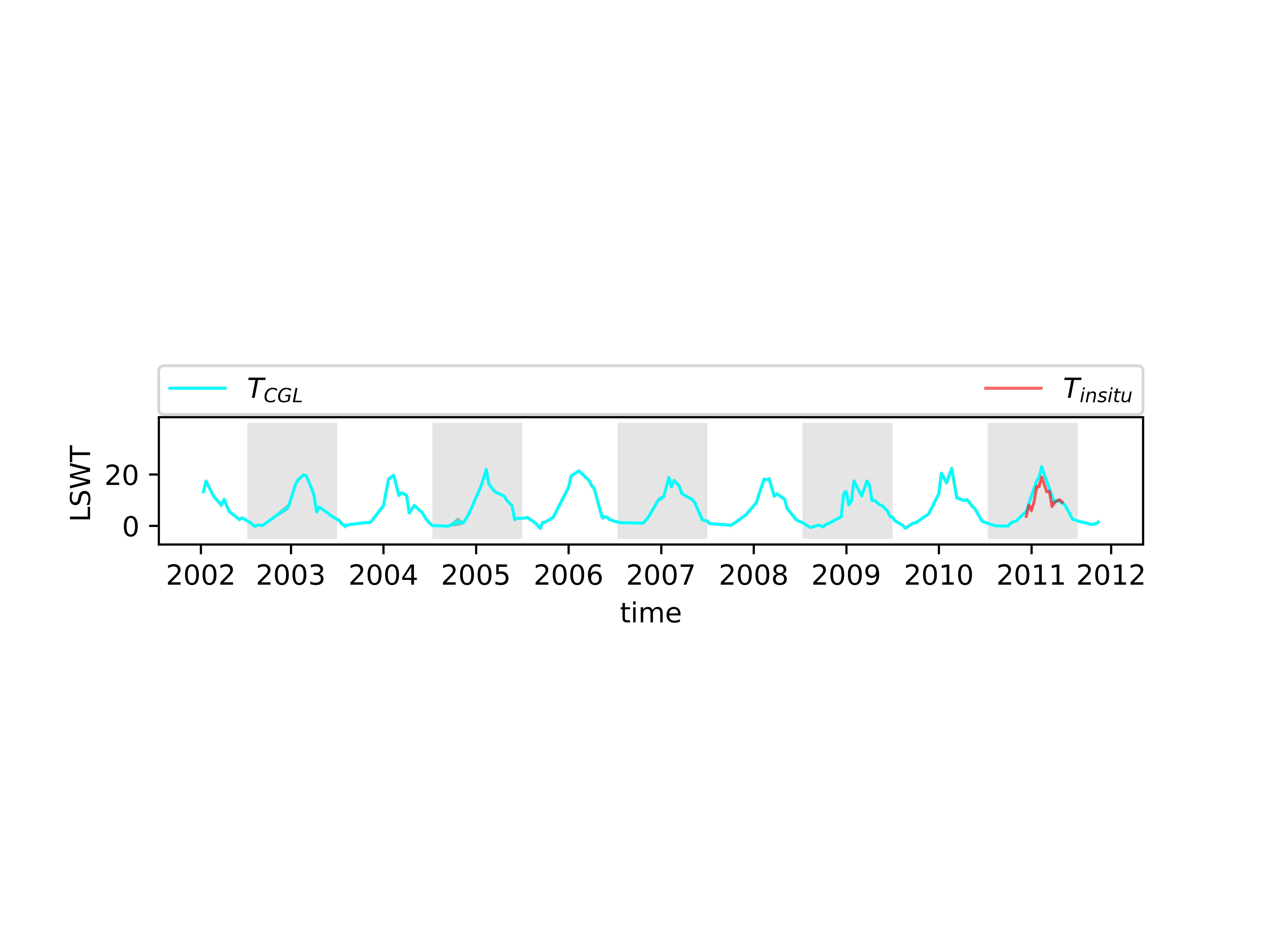

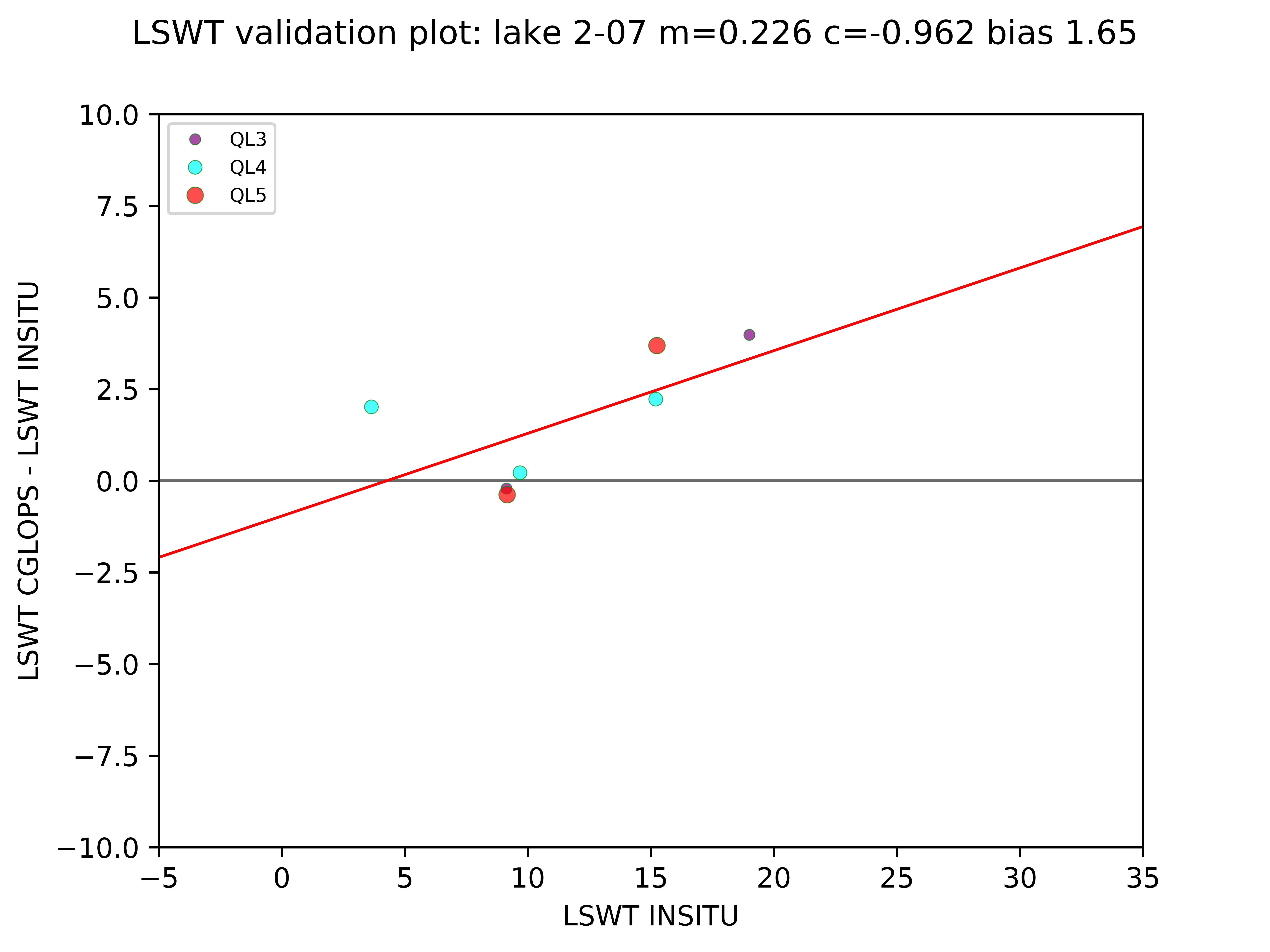

		000002_07	46.861	-91.932						7	2.02	2.66869	1.65	1.6771

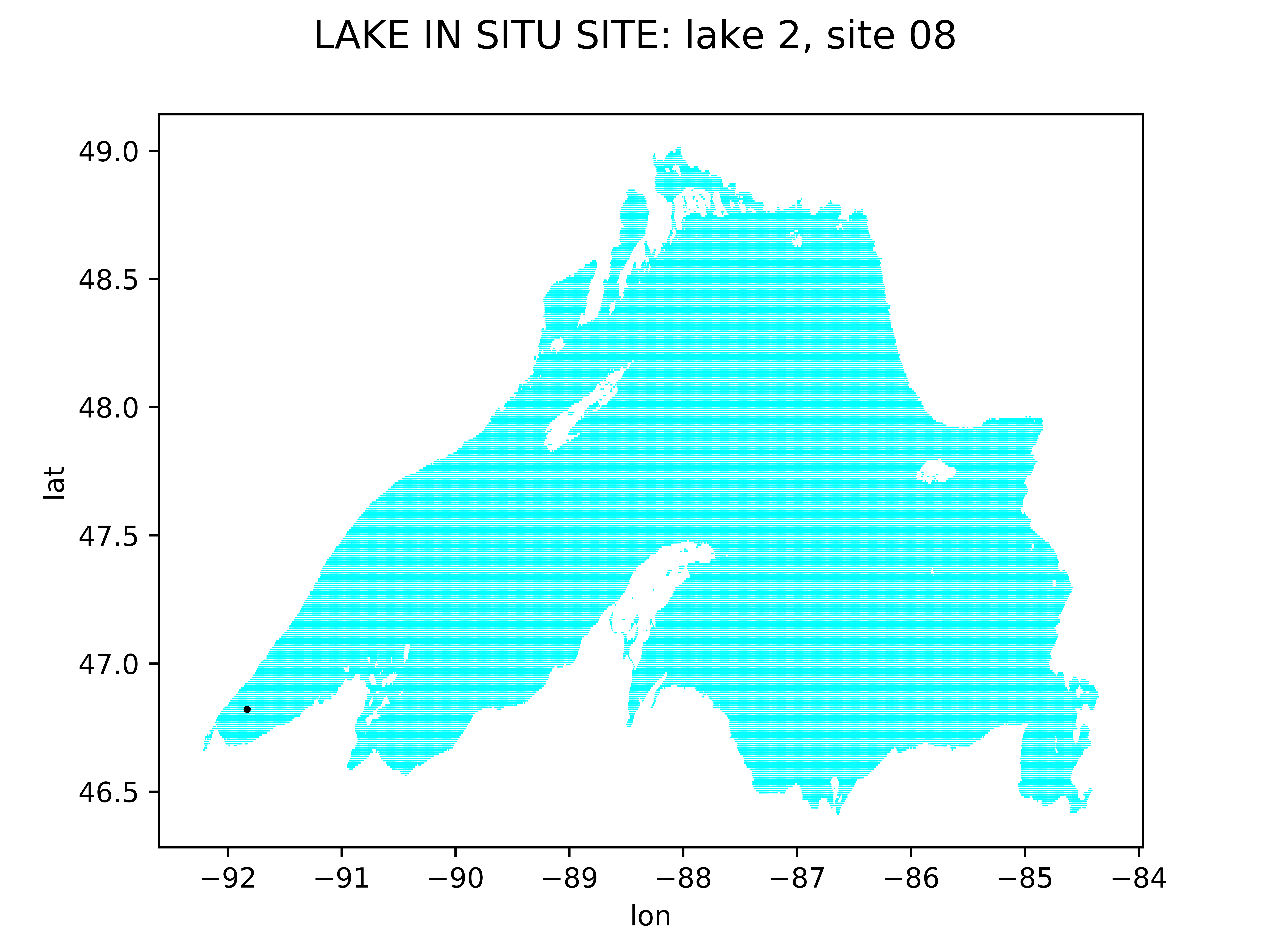

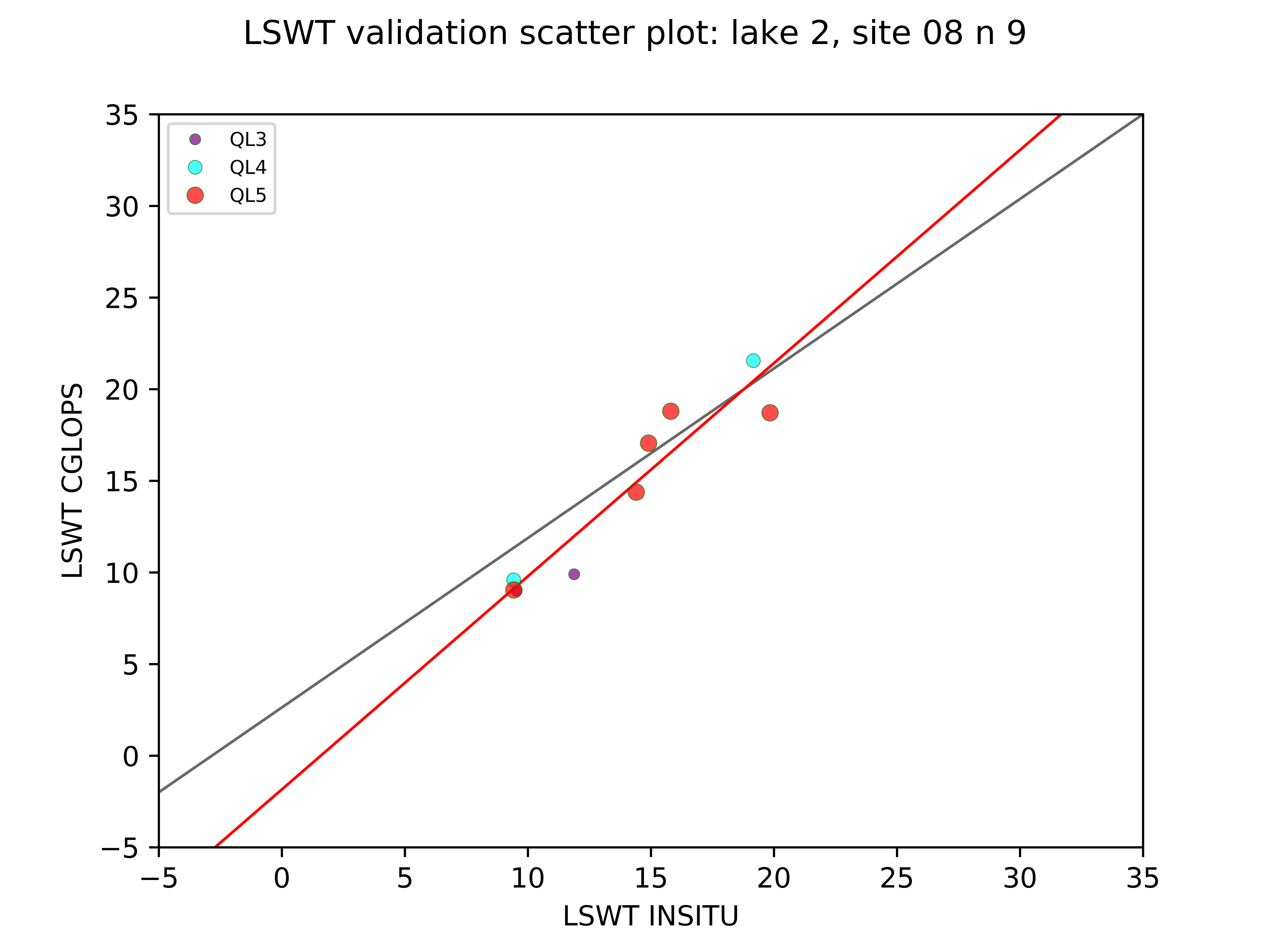

		000002_08	46.818	-91.828						9	-0.02	1.64571	0.4078	1.6175

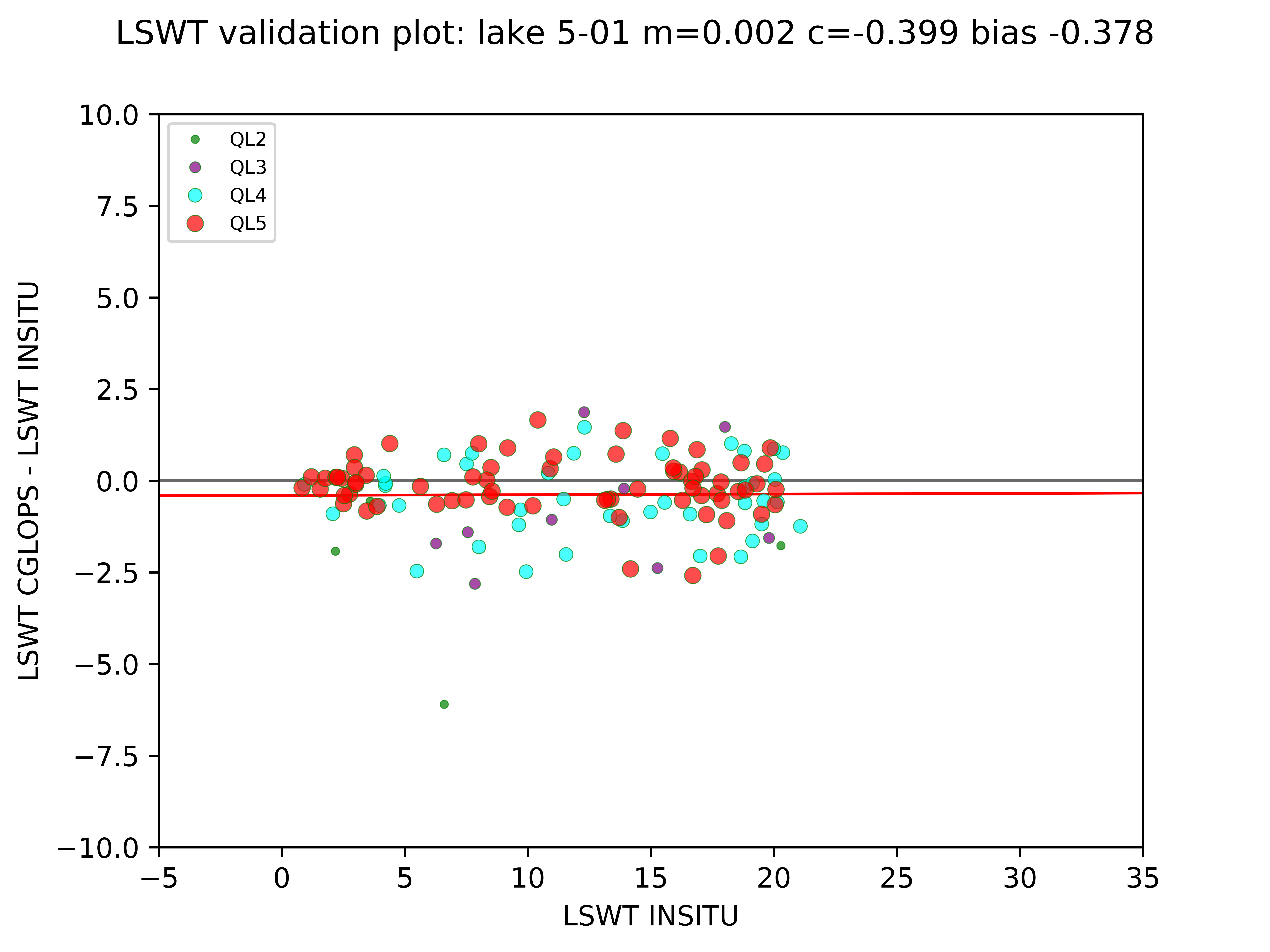

5	Huron/Canada - USA	000005_01	45.351	-82.84						123	-0.25	0.81544	-0.3776	1.0854

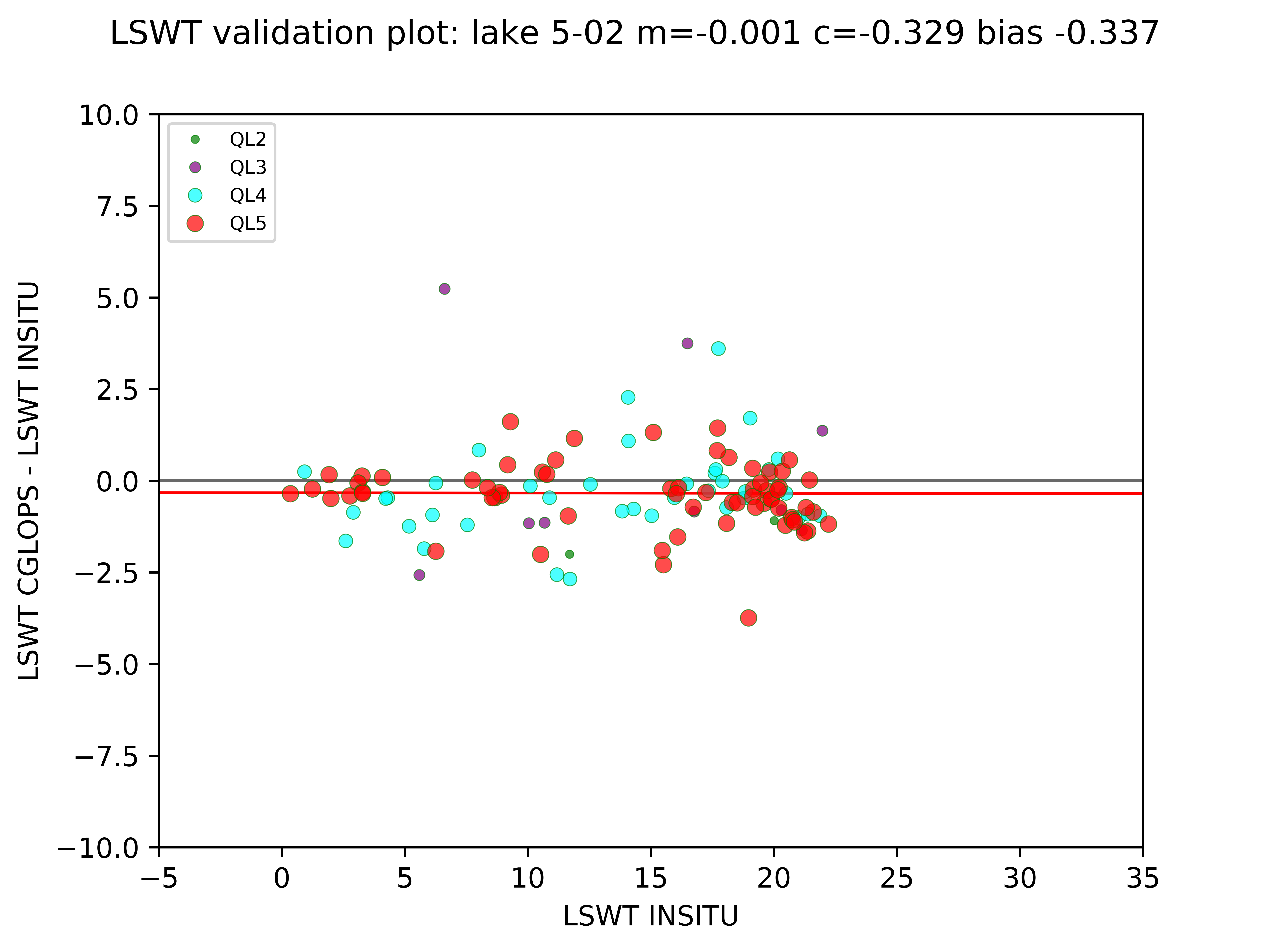

		000005_02	44.283	-82.416						115	-0.41	0.8006	-0.3369	1.1976

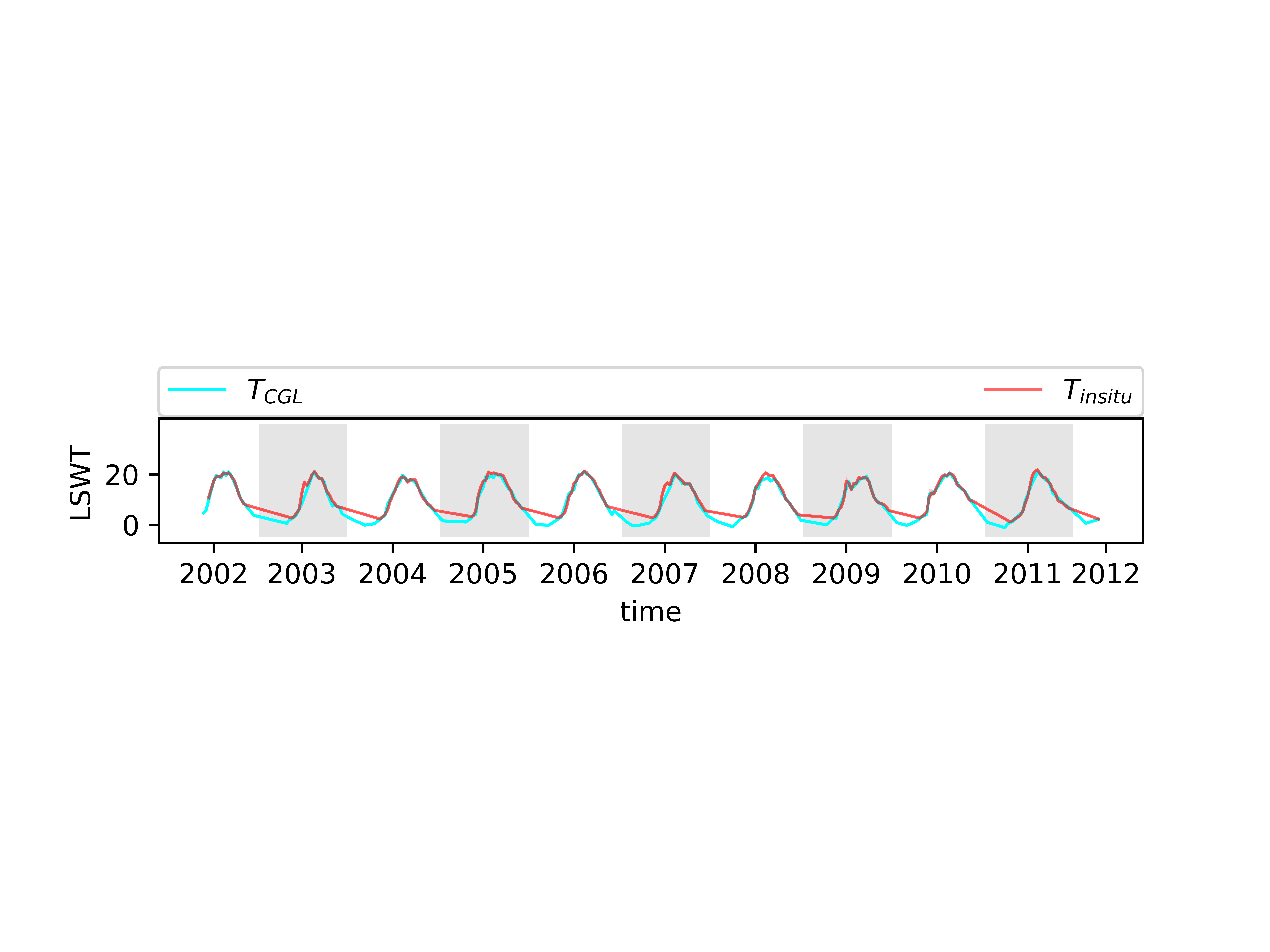

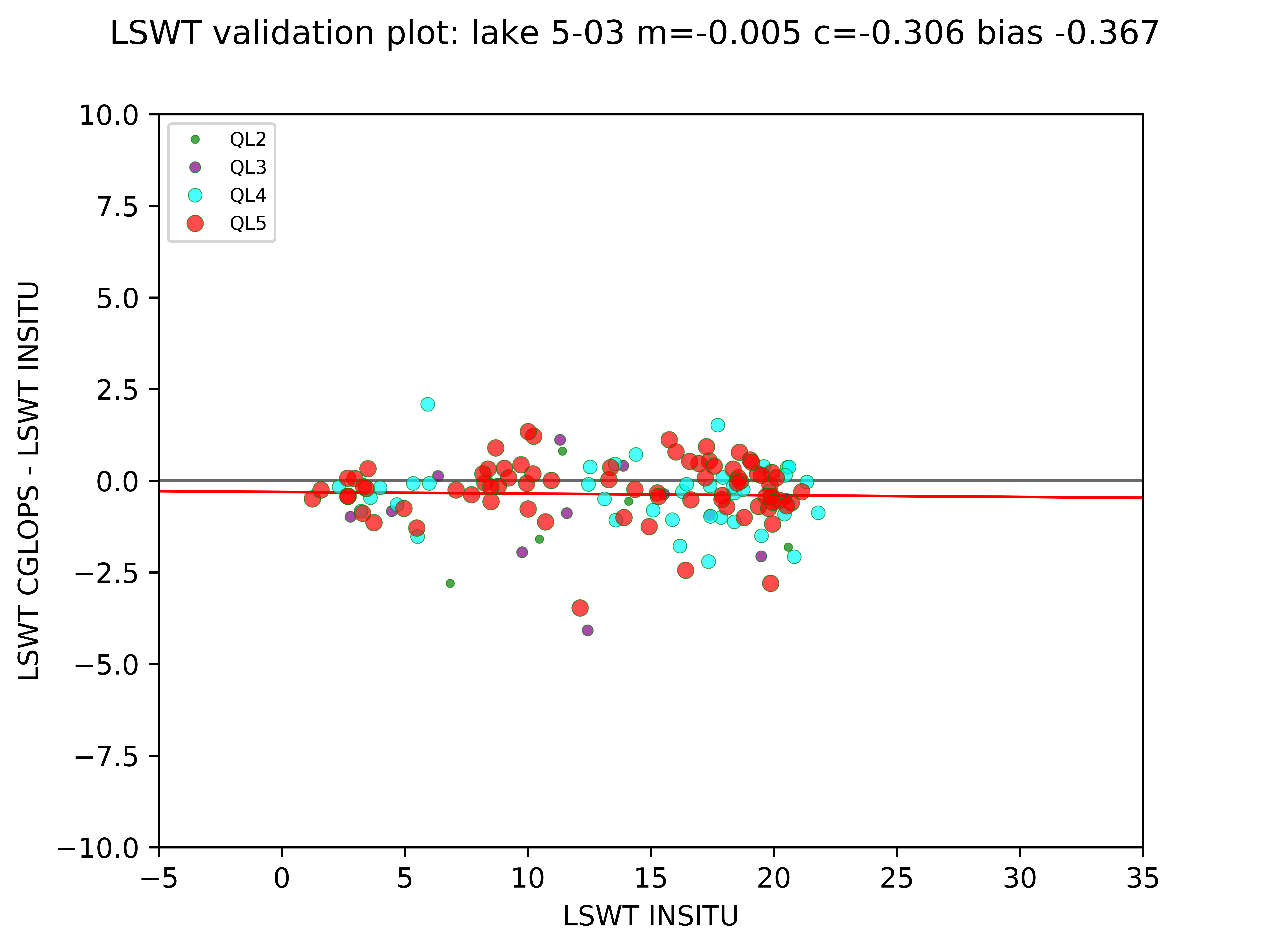

		000005_03	45.54	-81.02						135	-0.25	0.74128	-0.3671	0.9178

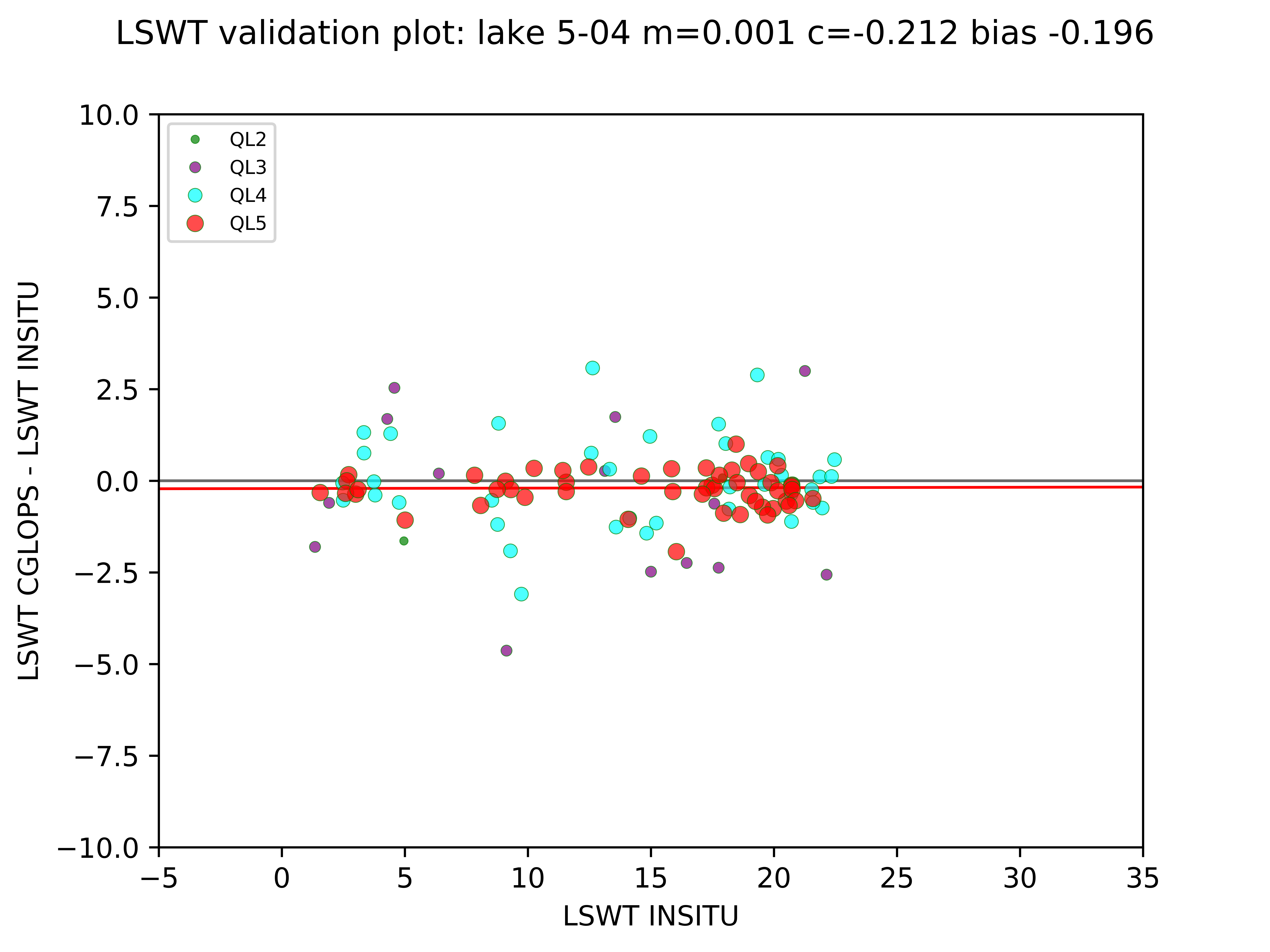

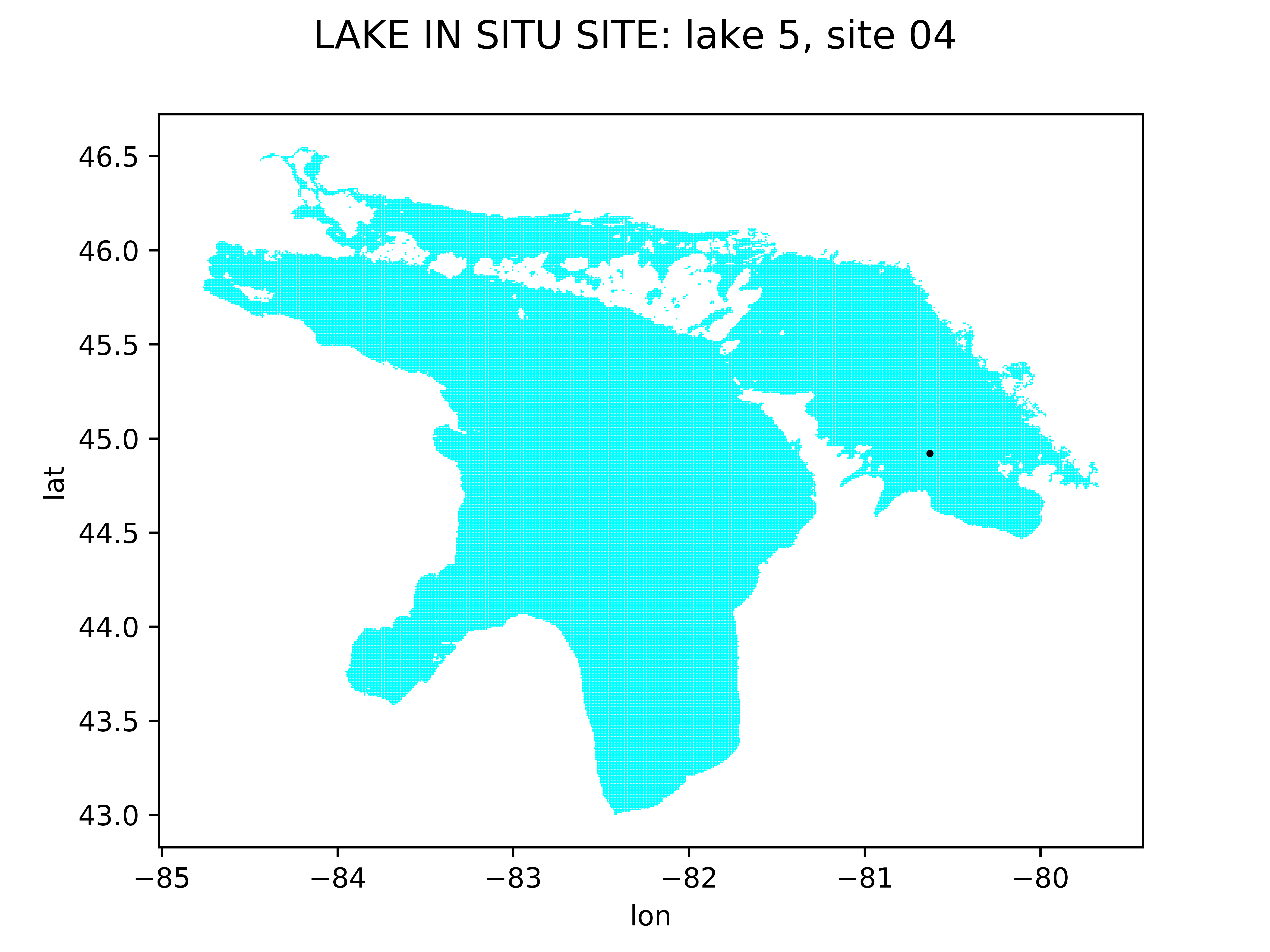

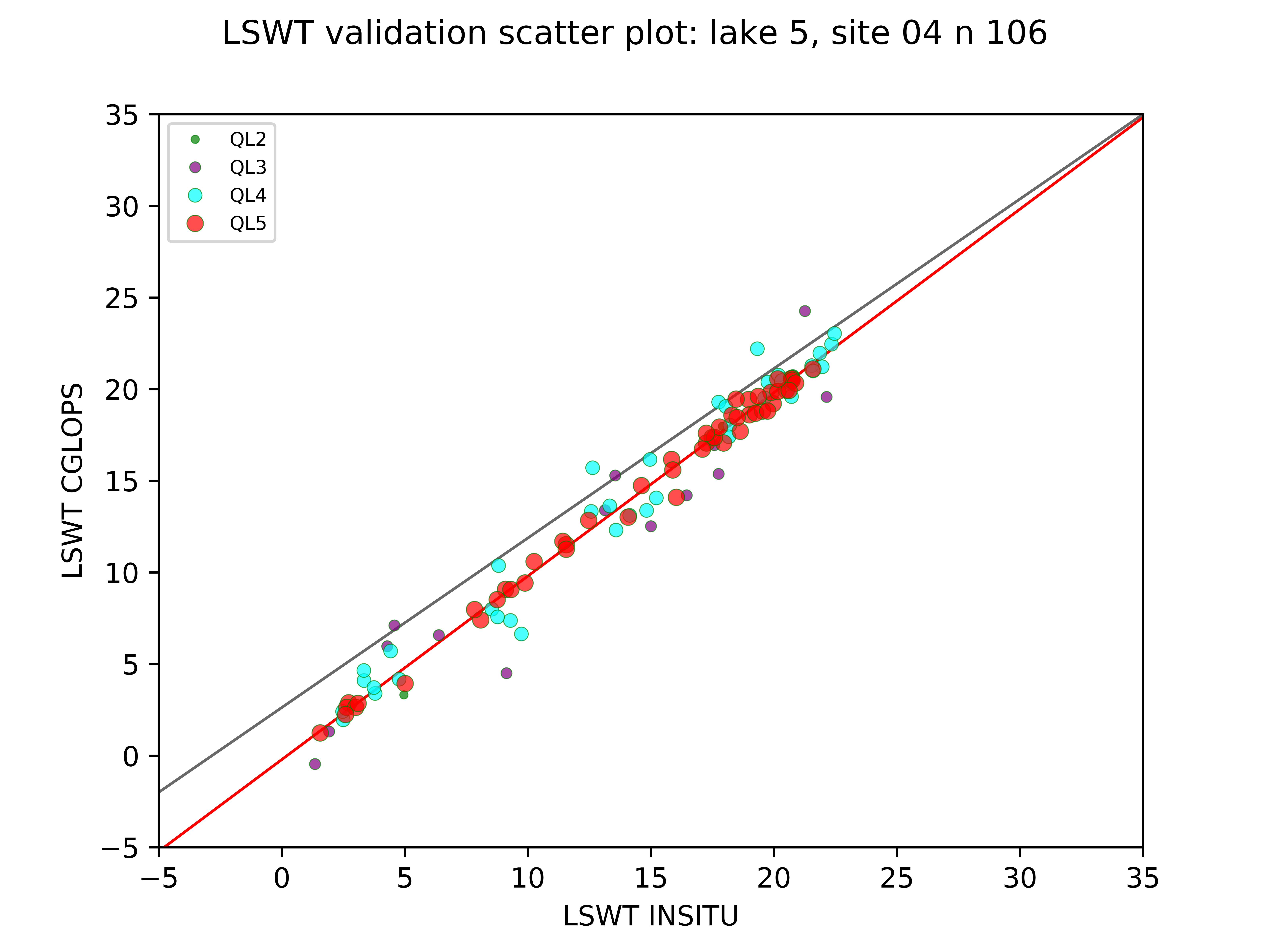

		000005_04	44.92	-80.63						106	-0.22	0.71164	-0.1961	1.148

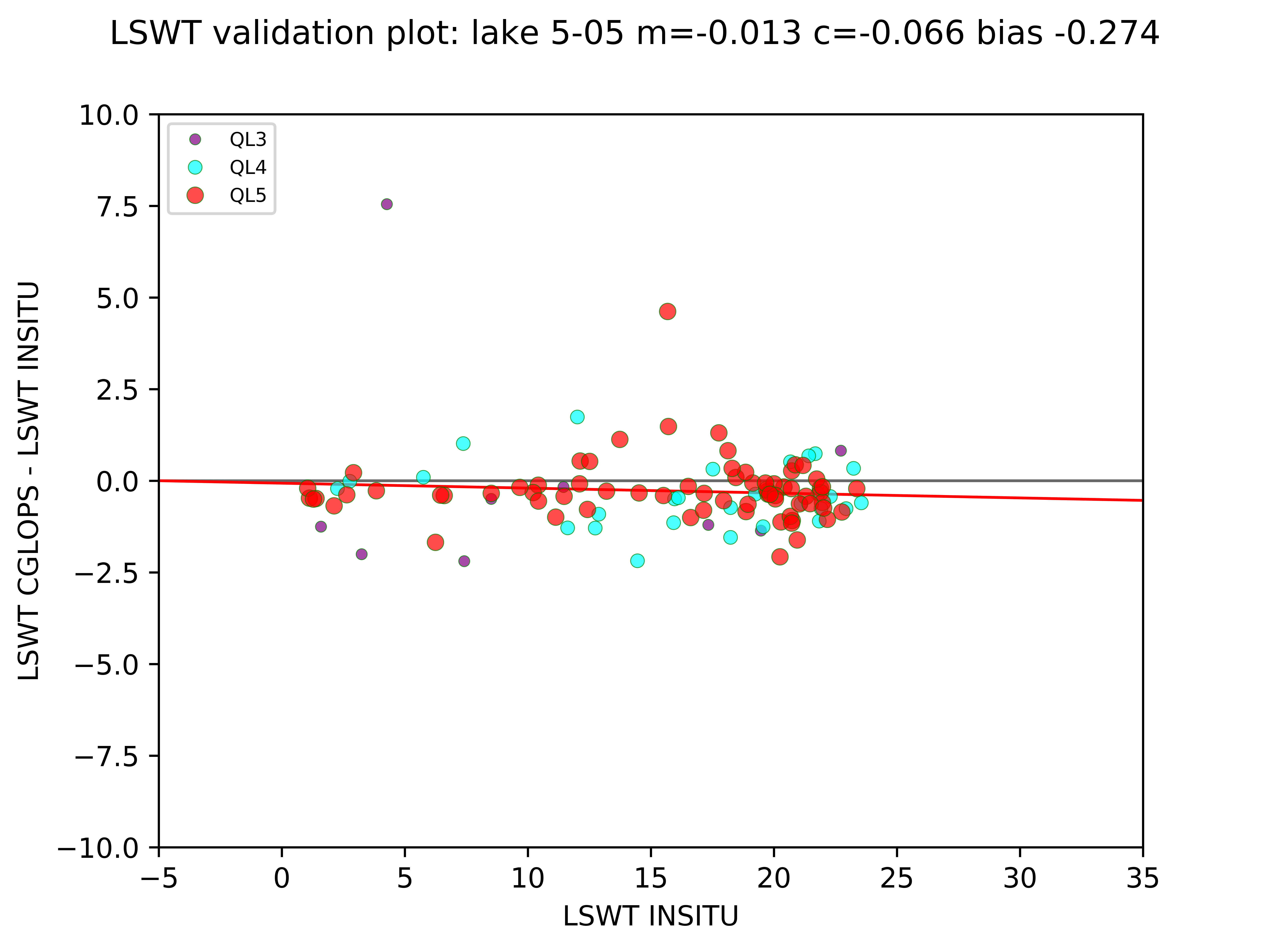

		000005_05	43.54	-82.07						109	-0.38	0.54855	-0.274	1.1449

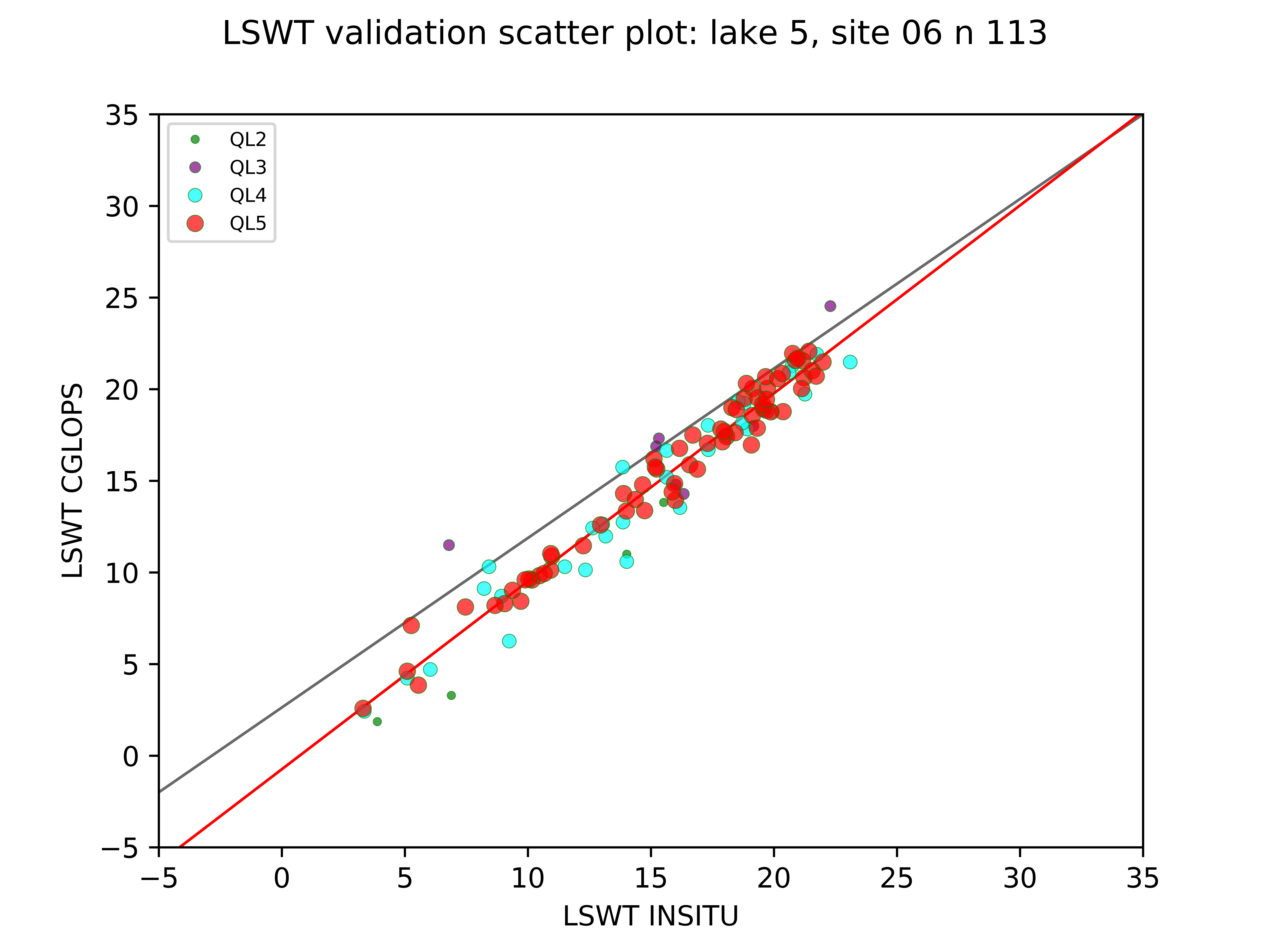

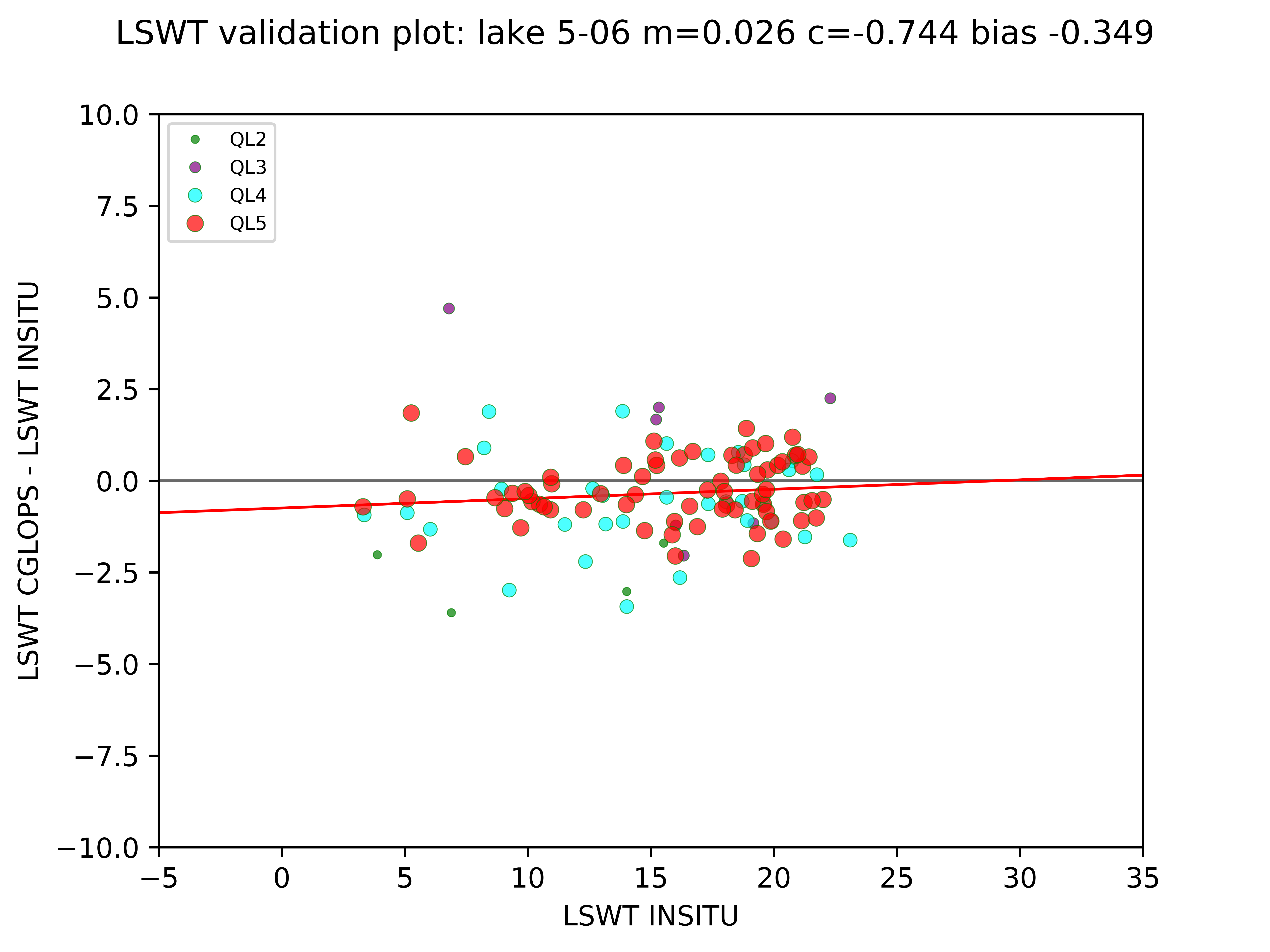

		000005_06	46.05	-82.64						113	-0.49	1.12678	-0.3491	1.2263

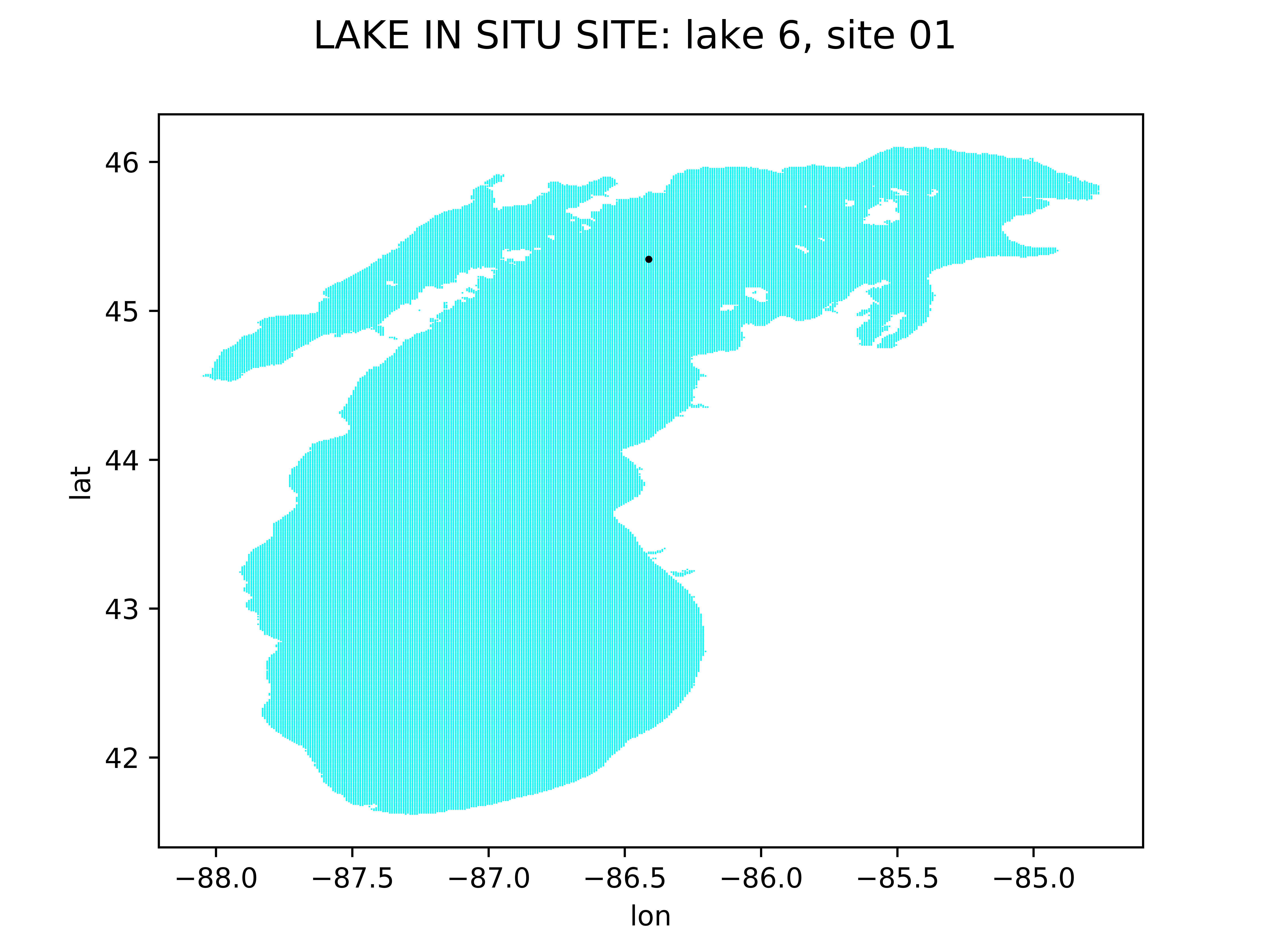

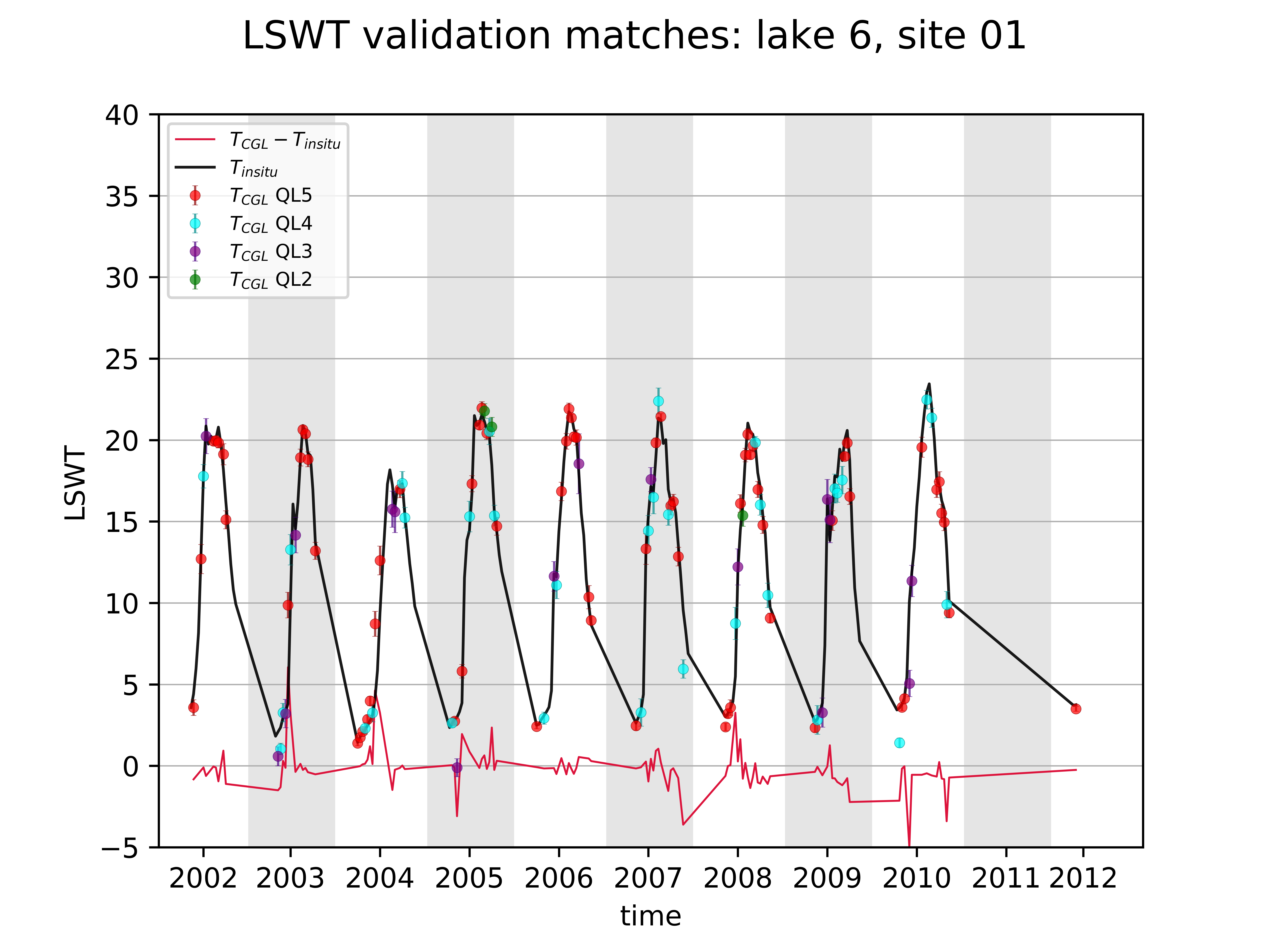

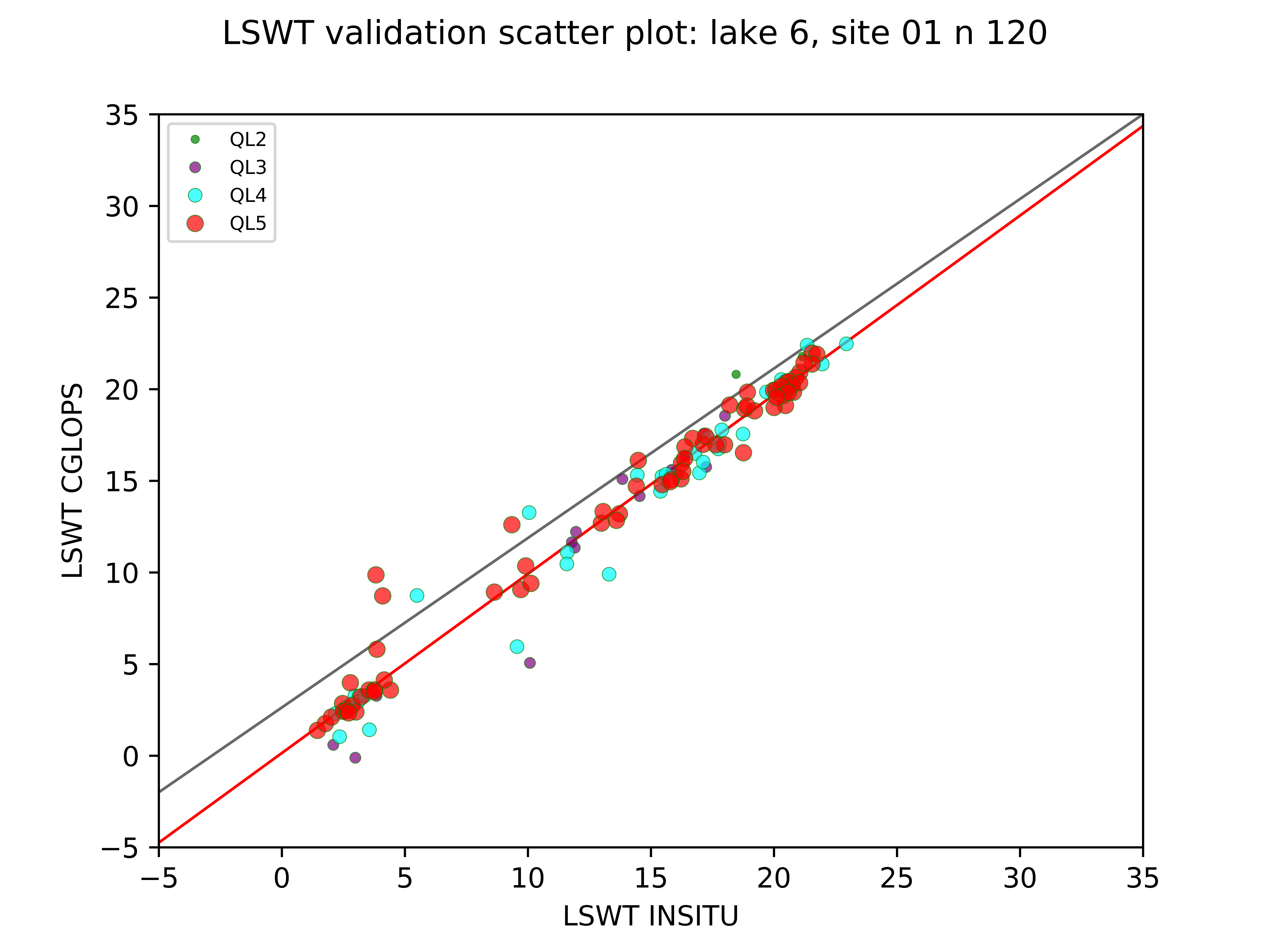

6	Michigan/USA	000006_01	45.344	-86.411						120	-0.16	0.67457	-0.1537	1.3211

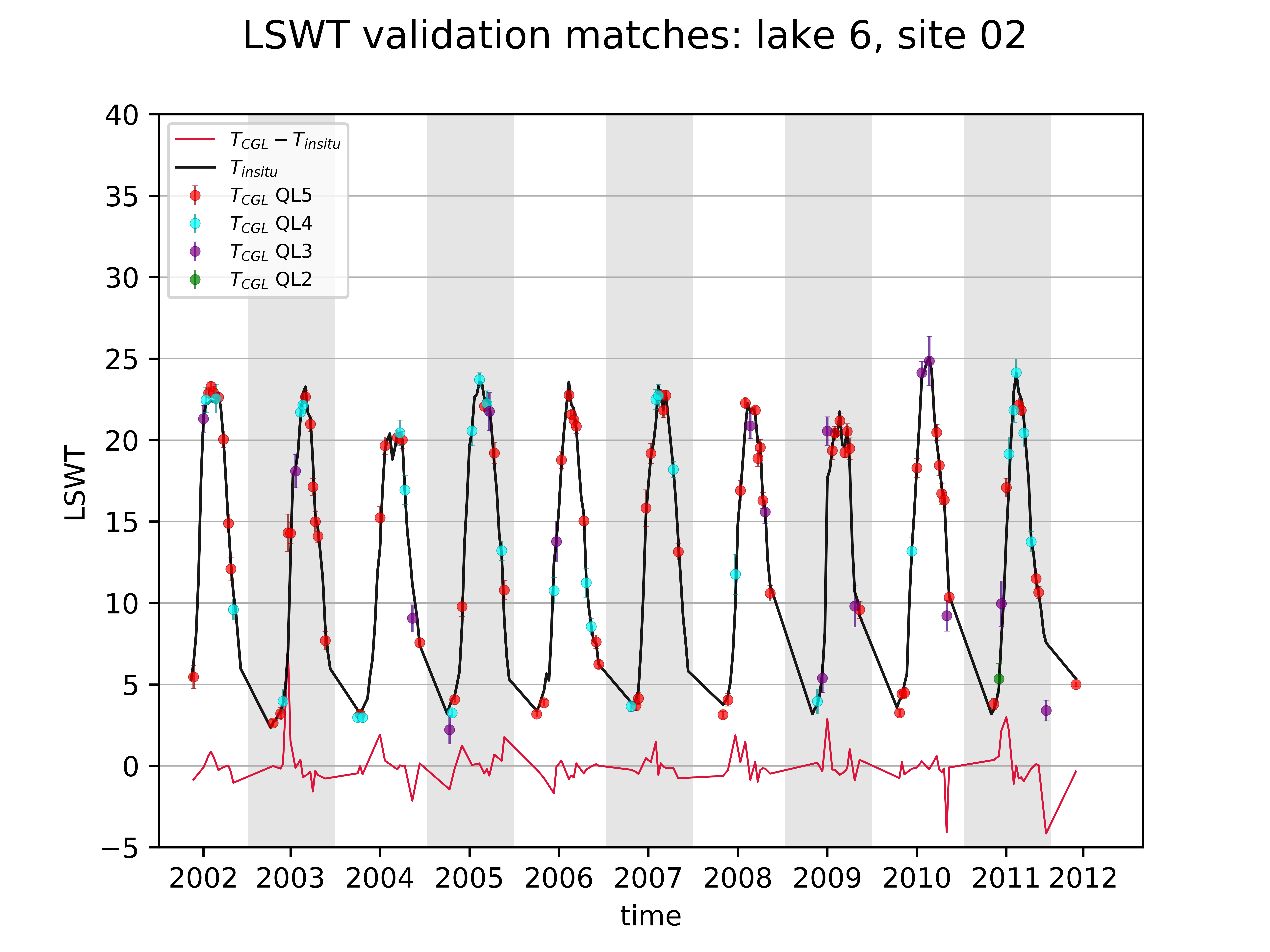

		000006_02	42.674	-87.026						126	-0.155	0.54116	-0.0443	1.1516
		000006_06	45.404	-85.088						14	-0.25	1.1416	0.13	2.148

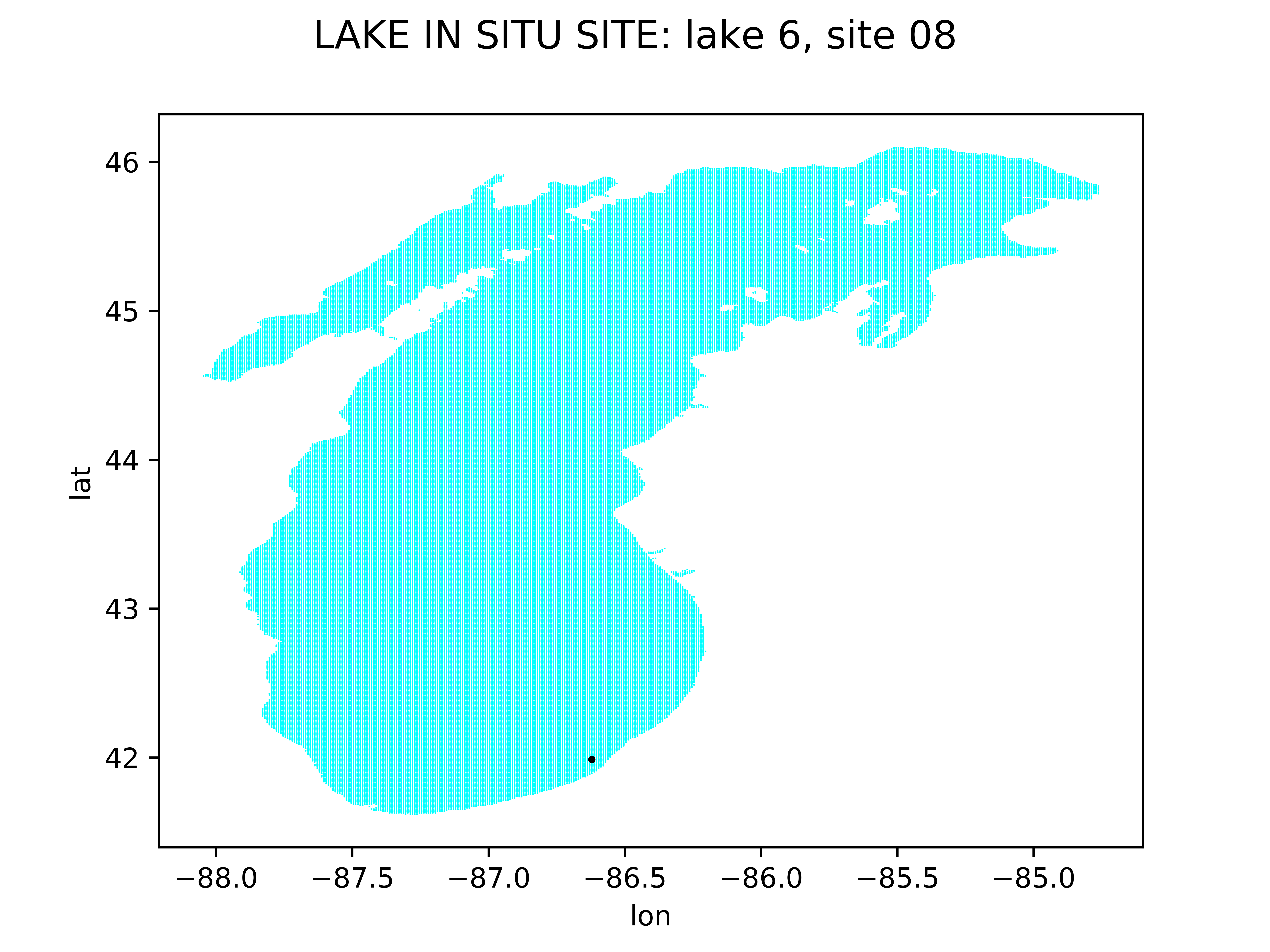

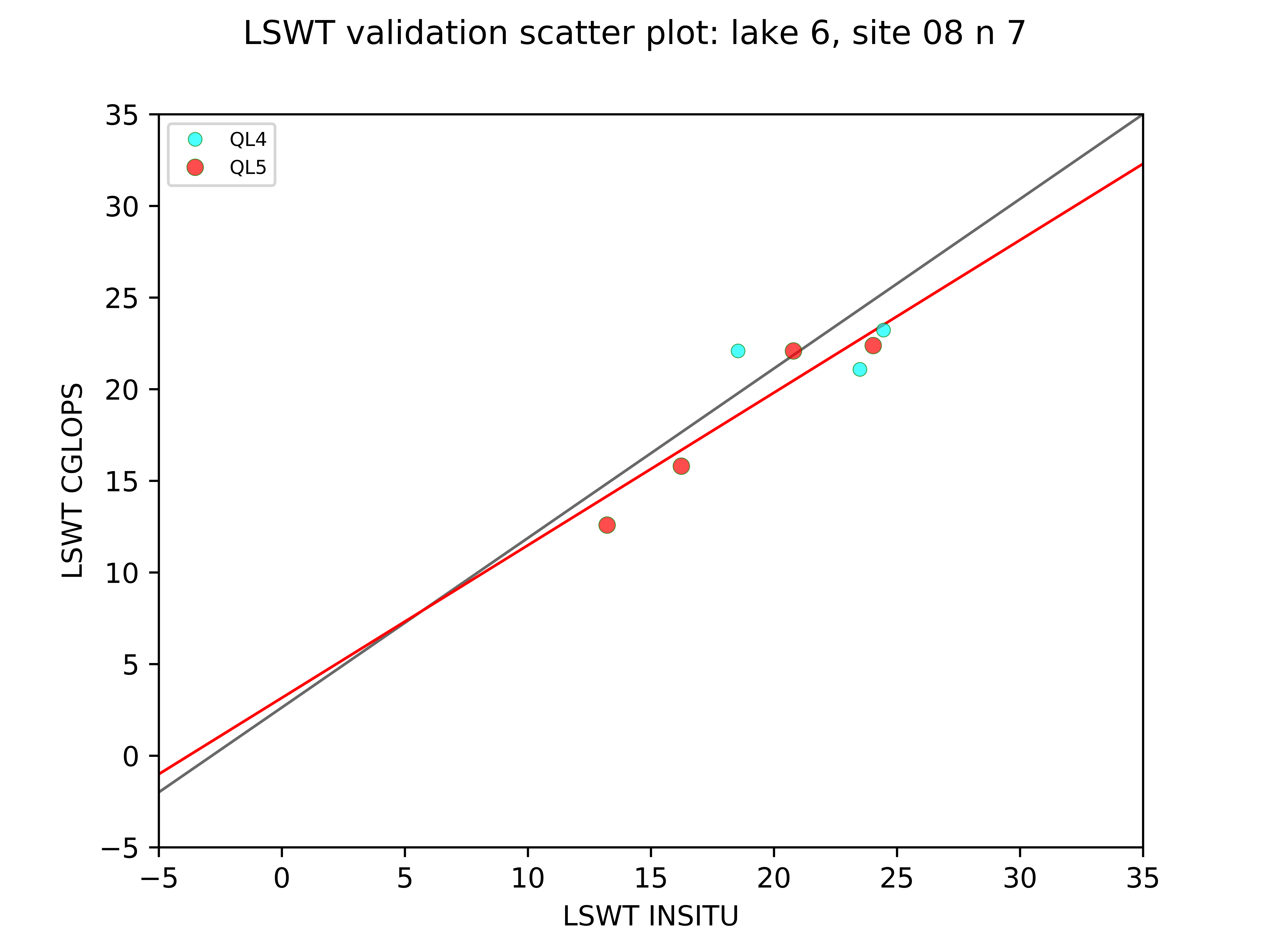

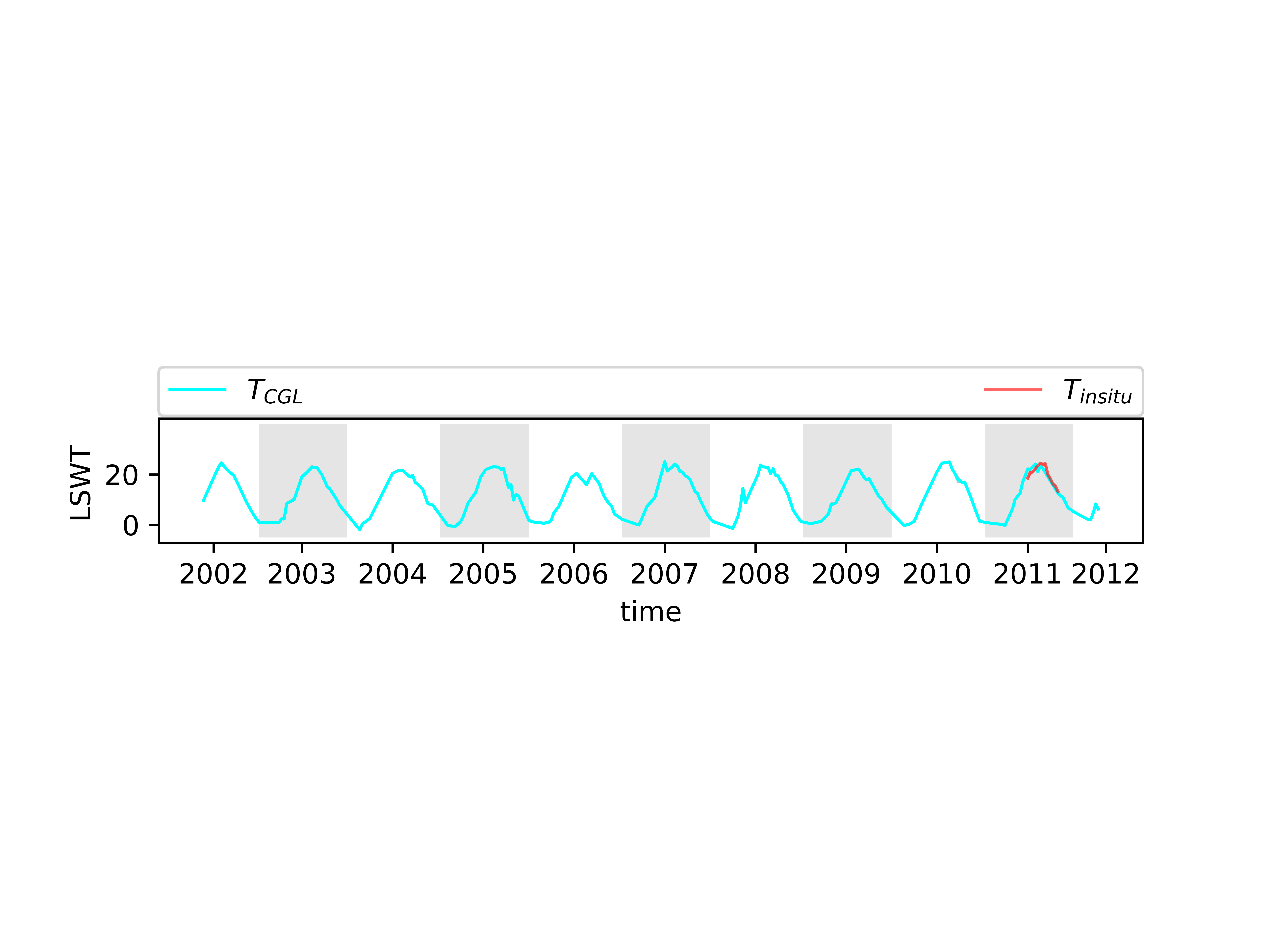

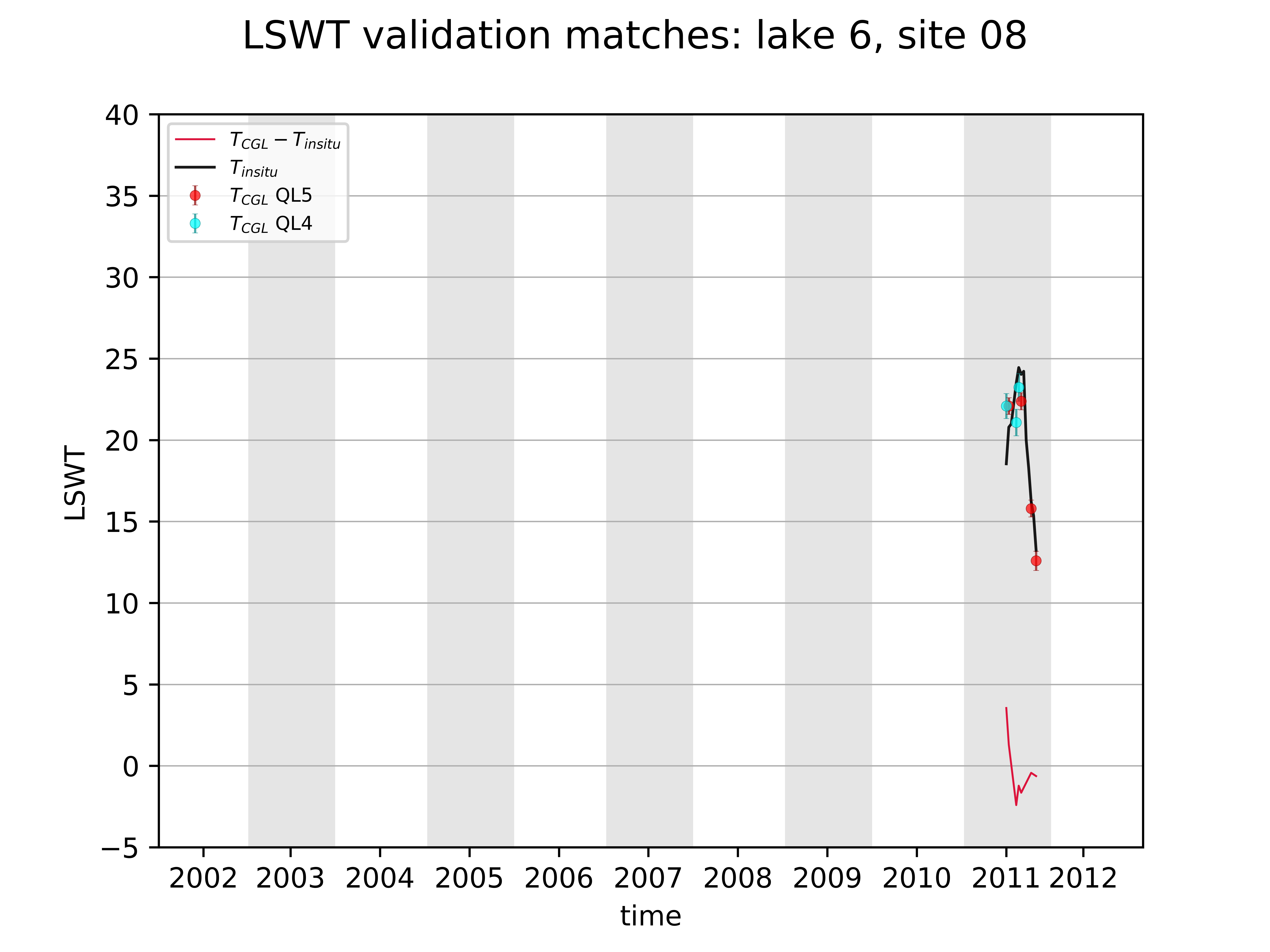

		000006_08	41.984	-86.617						7	-0.63	1.51224	-0.2129	1.8737

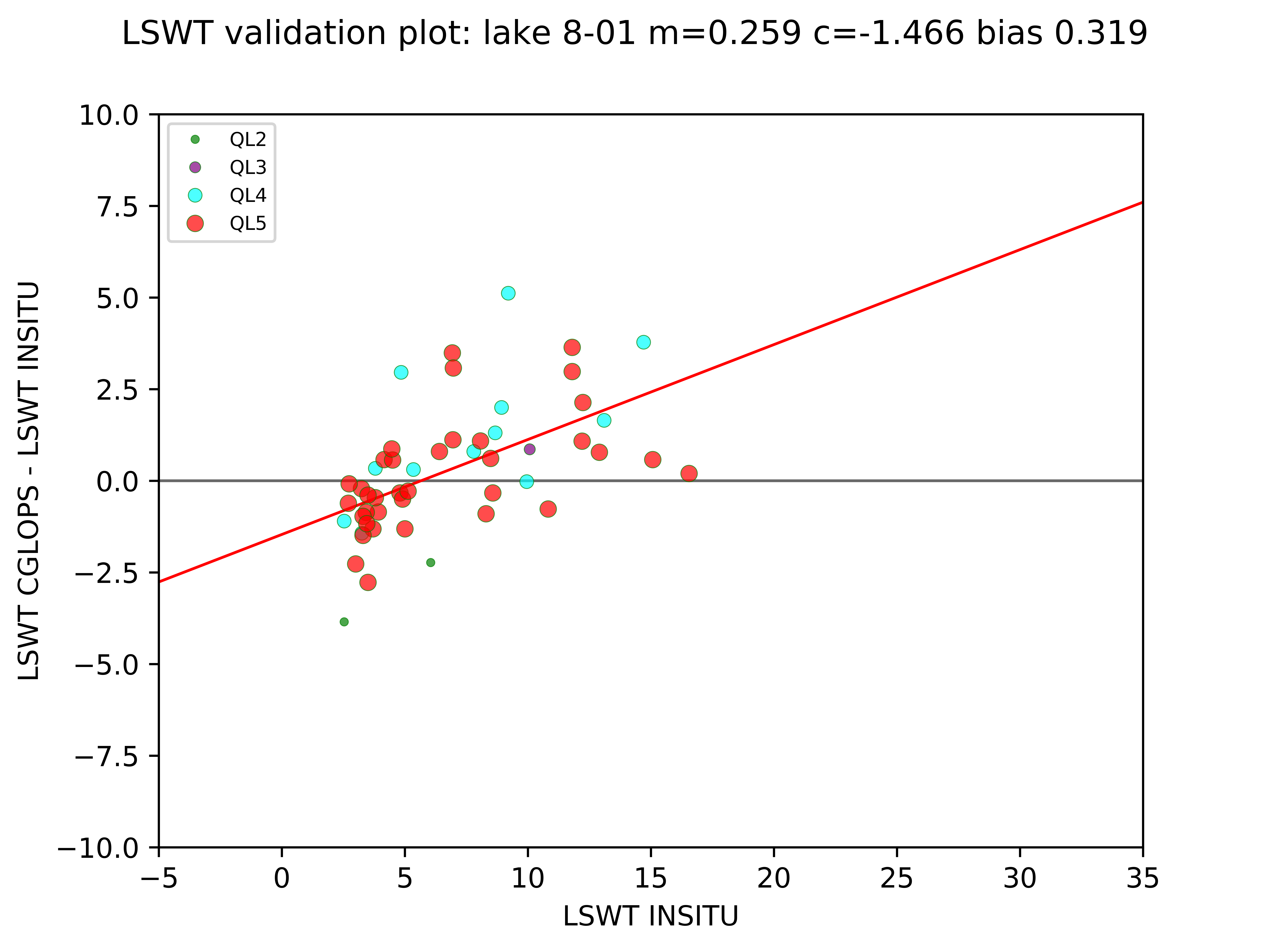

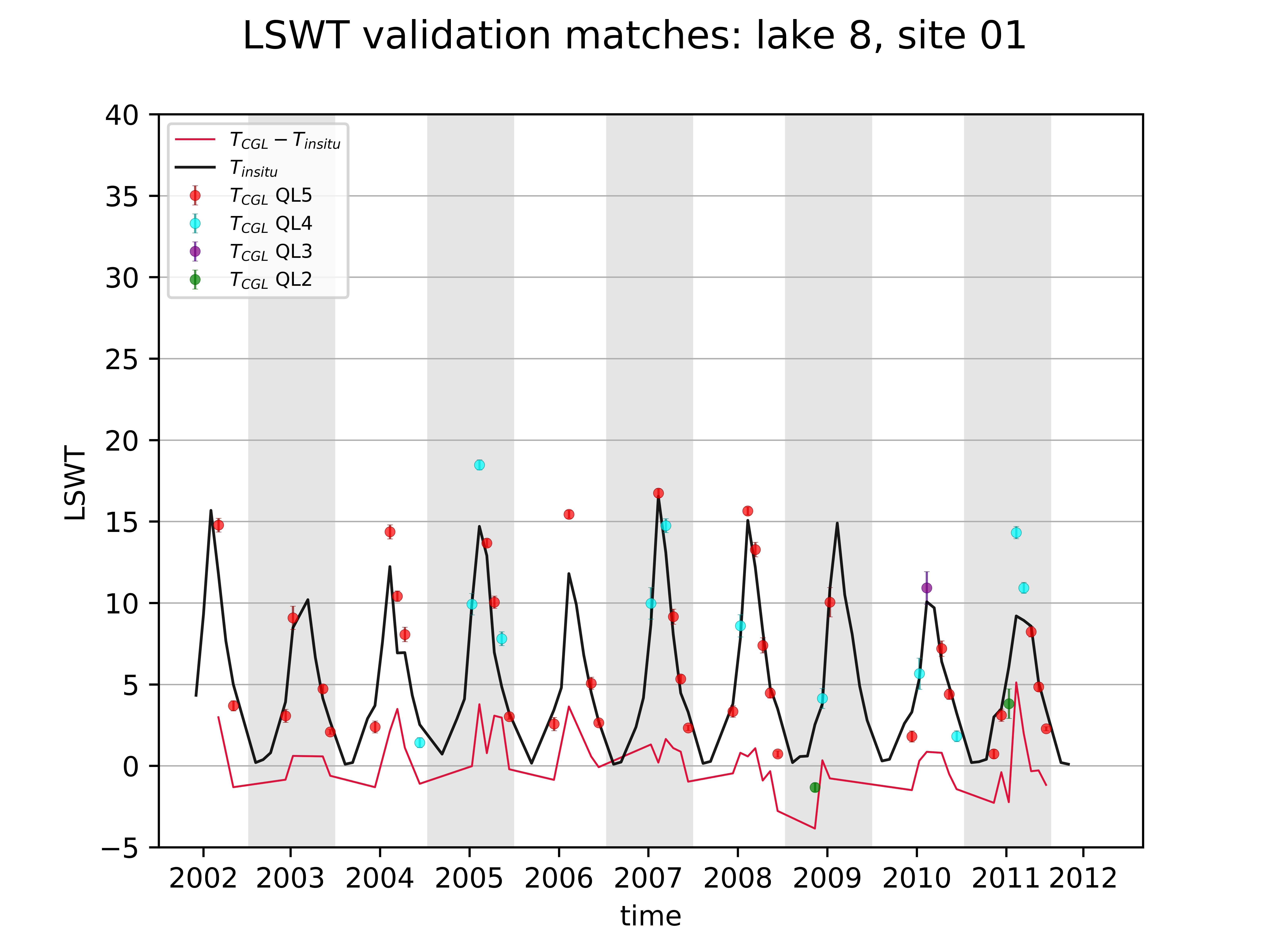

8	Baikal/Russia	000008_01	51.648	104.716						51	0.2	1.43814	0.3186	1.7576

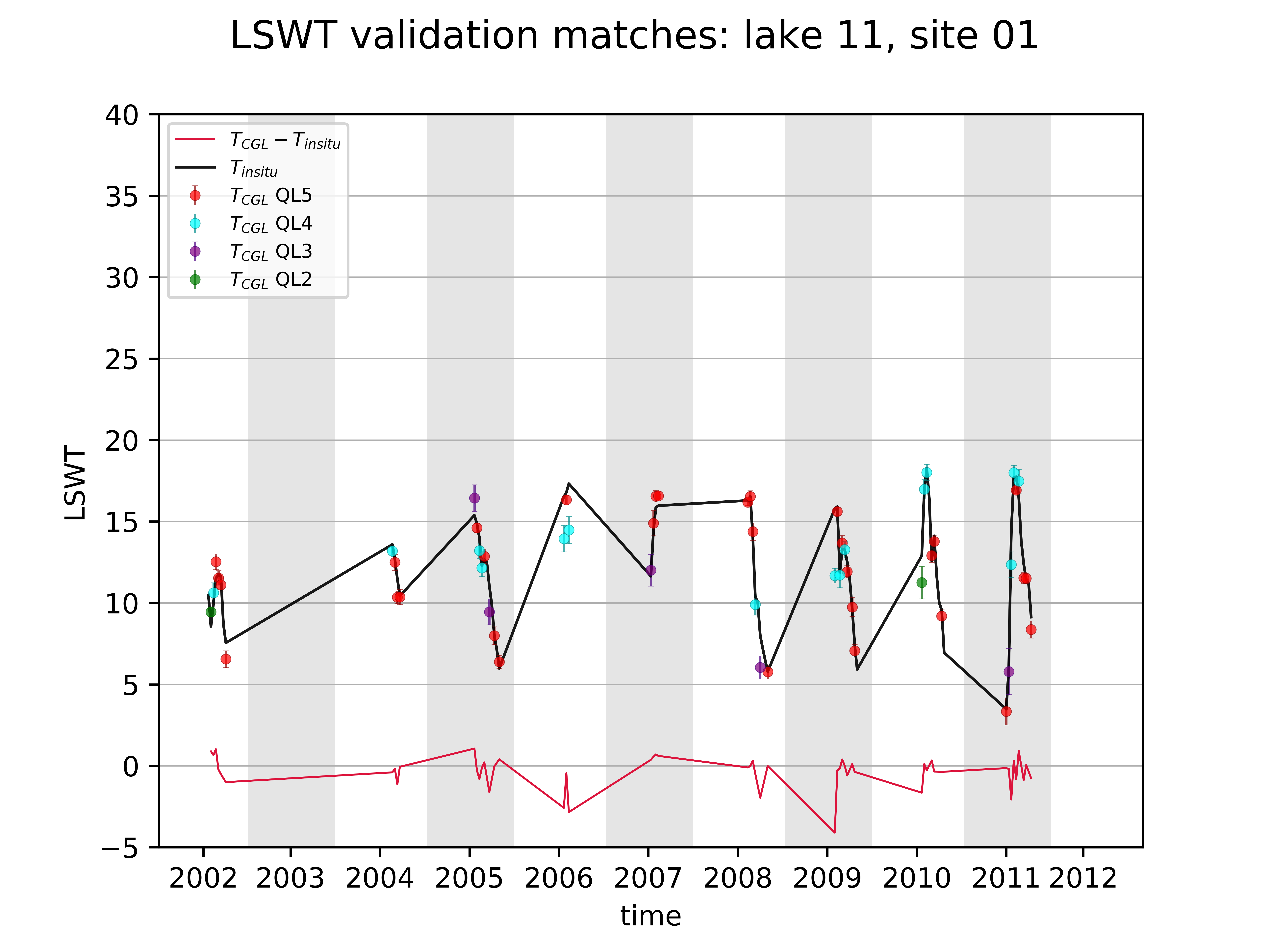

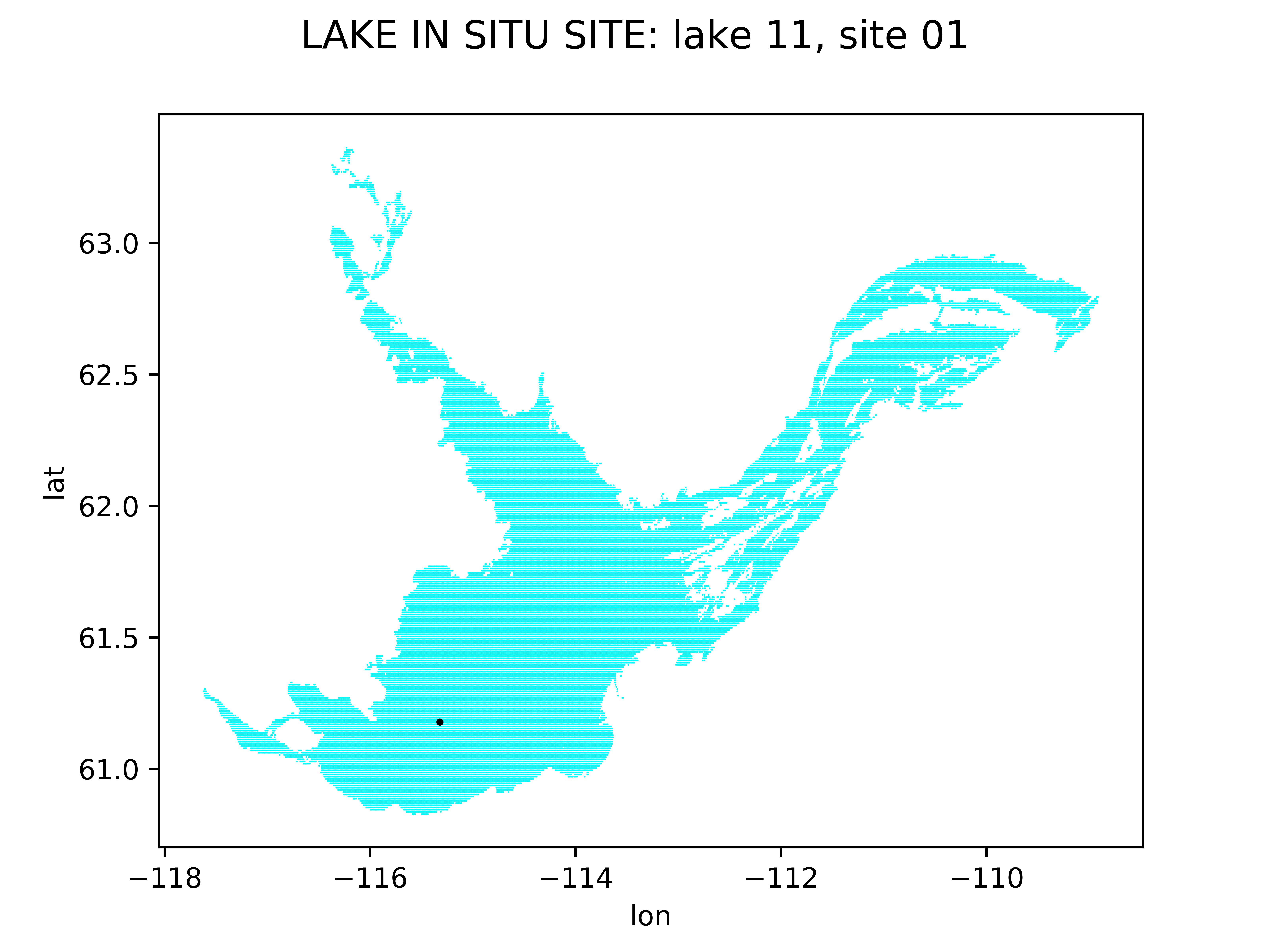

11	Great Slave/Canada	000011_01	61.18	-115.32						54	-0.165	0.67457	-0.3476	0.978

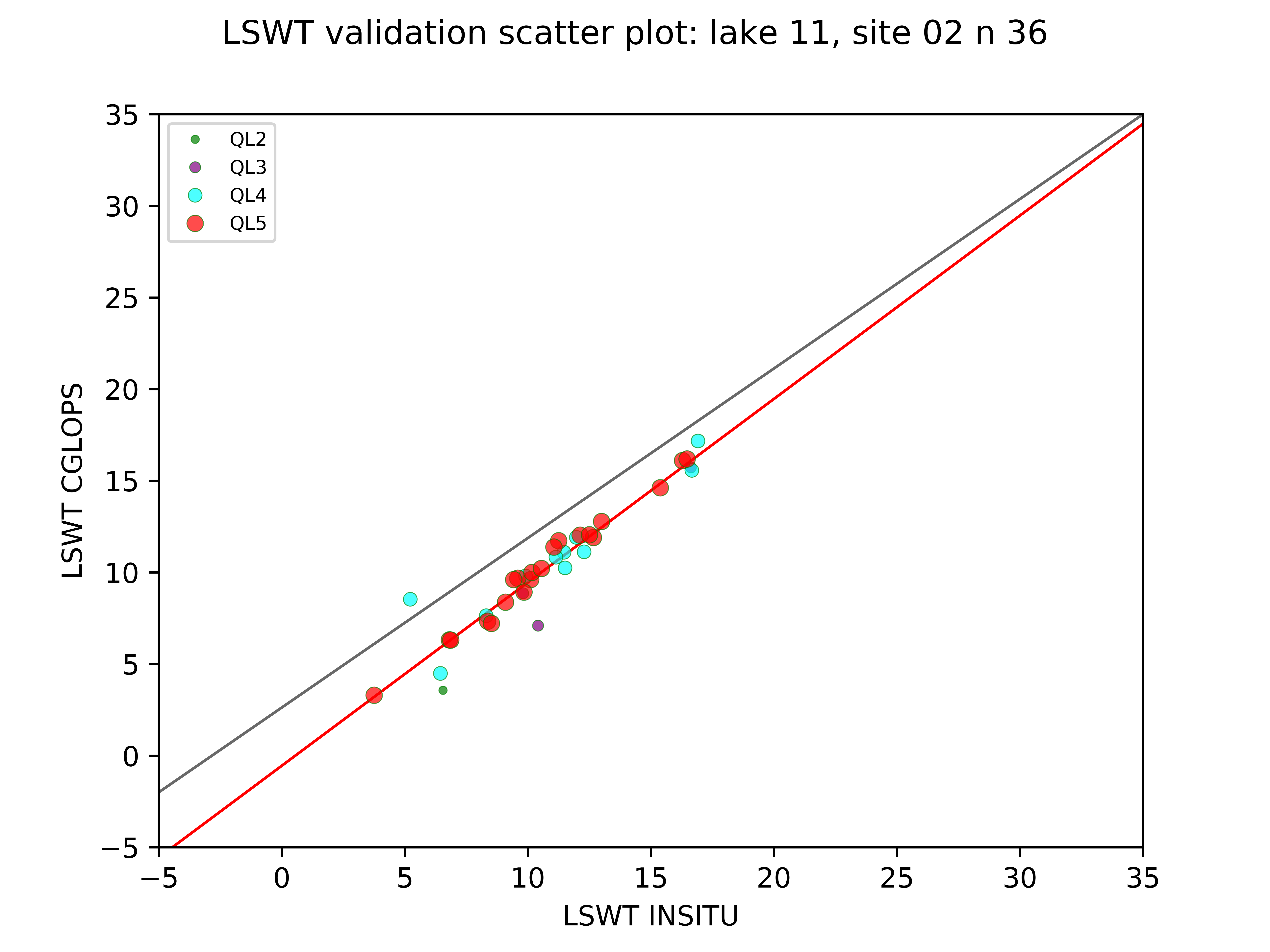

		000011_02	61.97	-114.13						36	-0.47	0.58563	-0.5422	1.0232

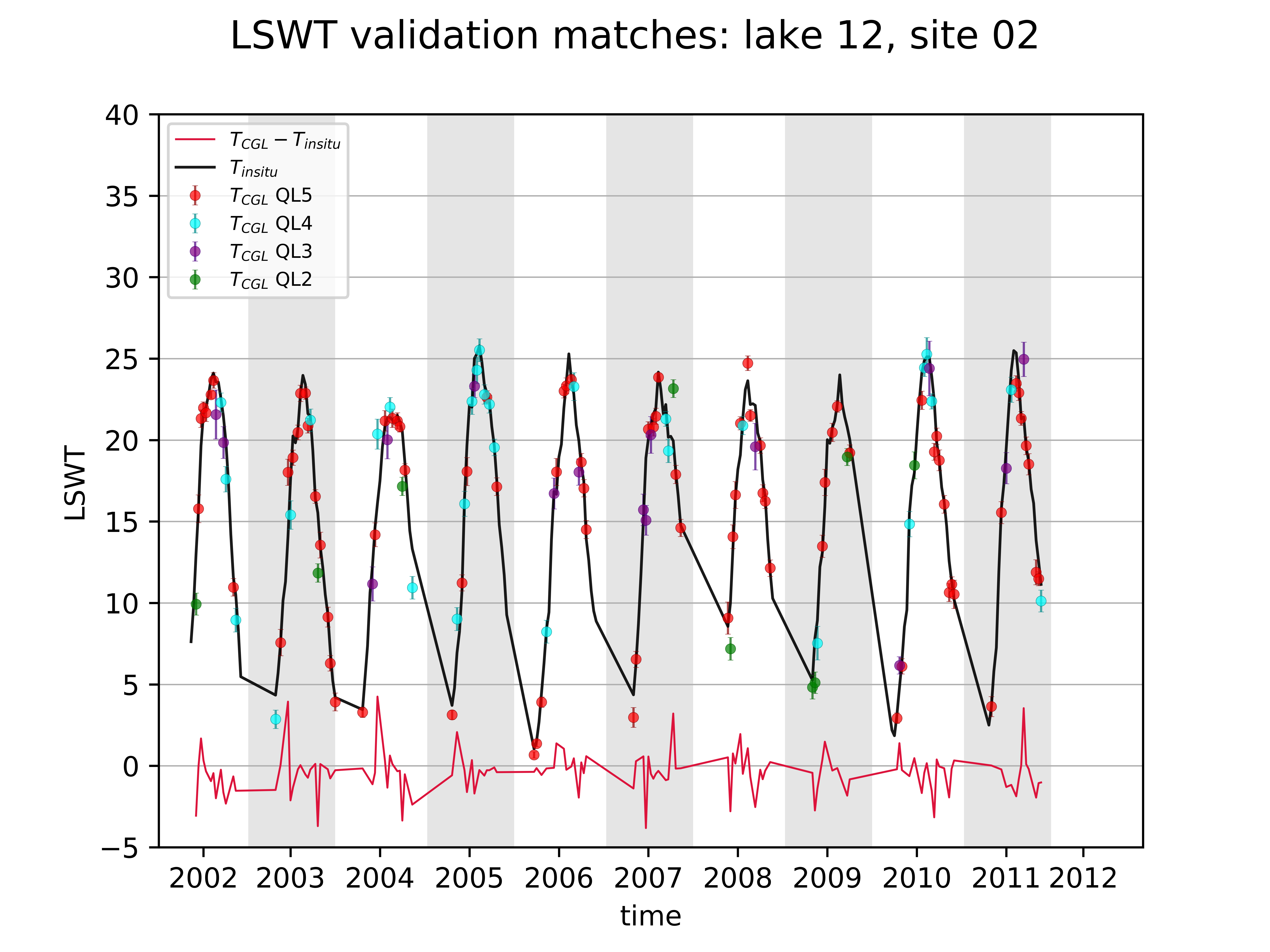

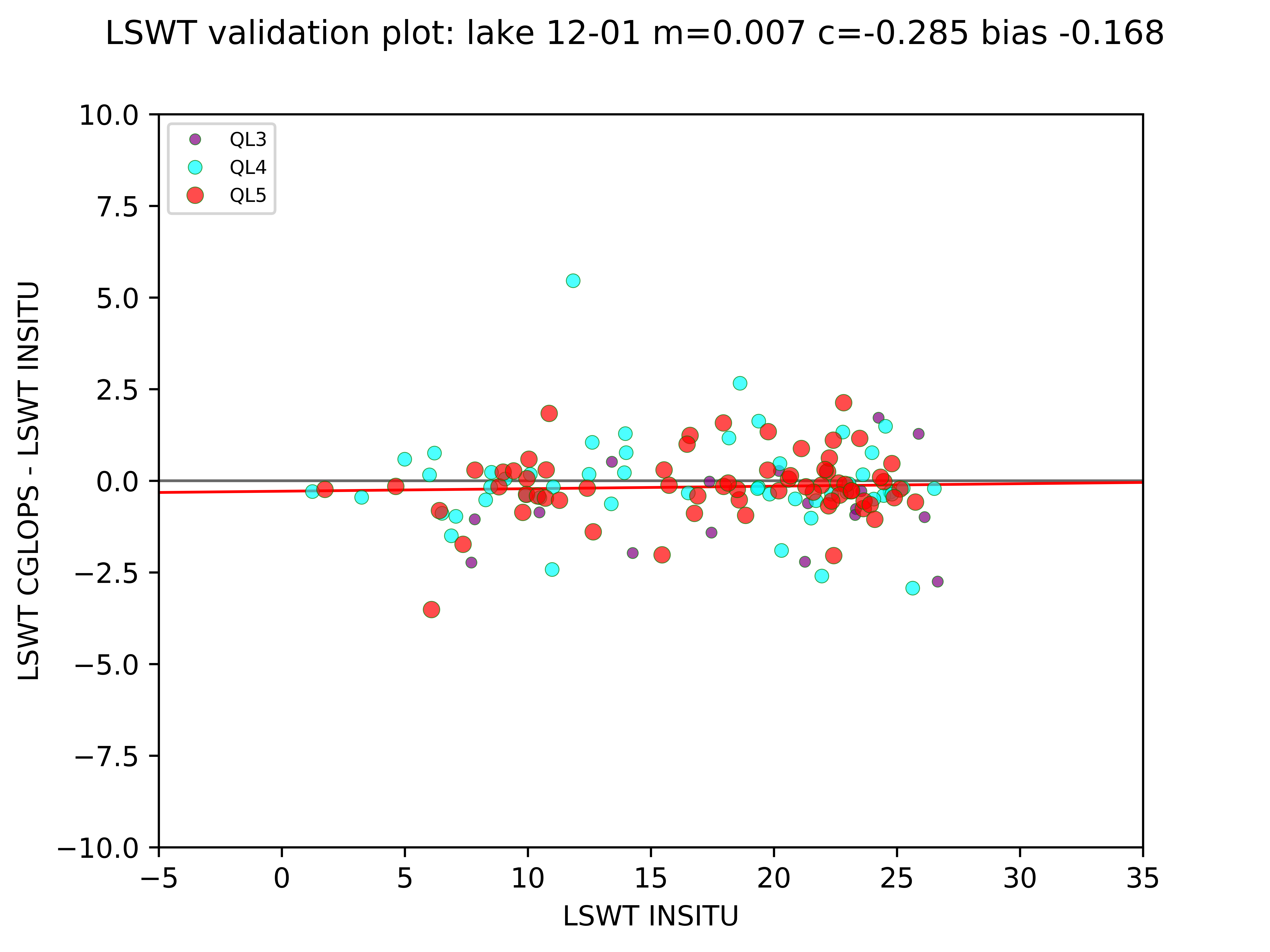

12	Erie/Canada	000012_01	41.677	-82.398						135	-0.21	0.66719	-0.1679	1.1106

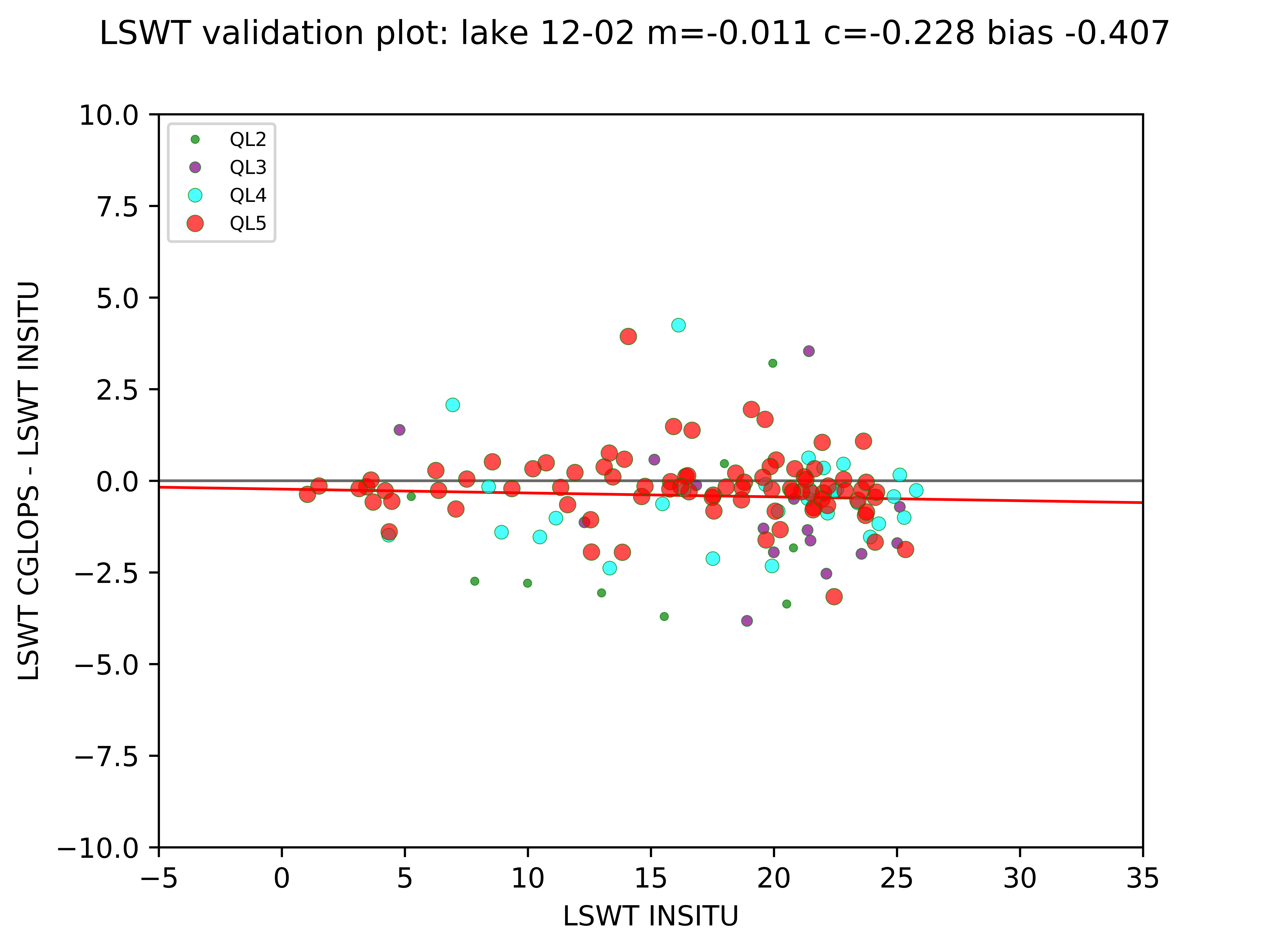

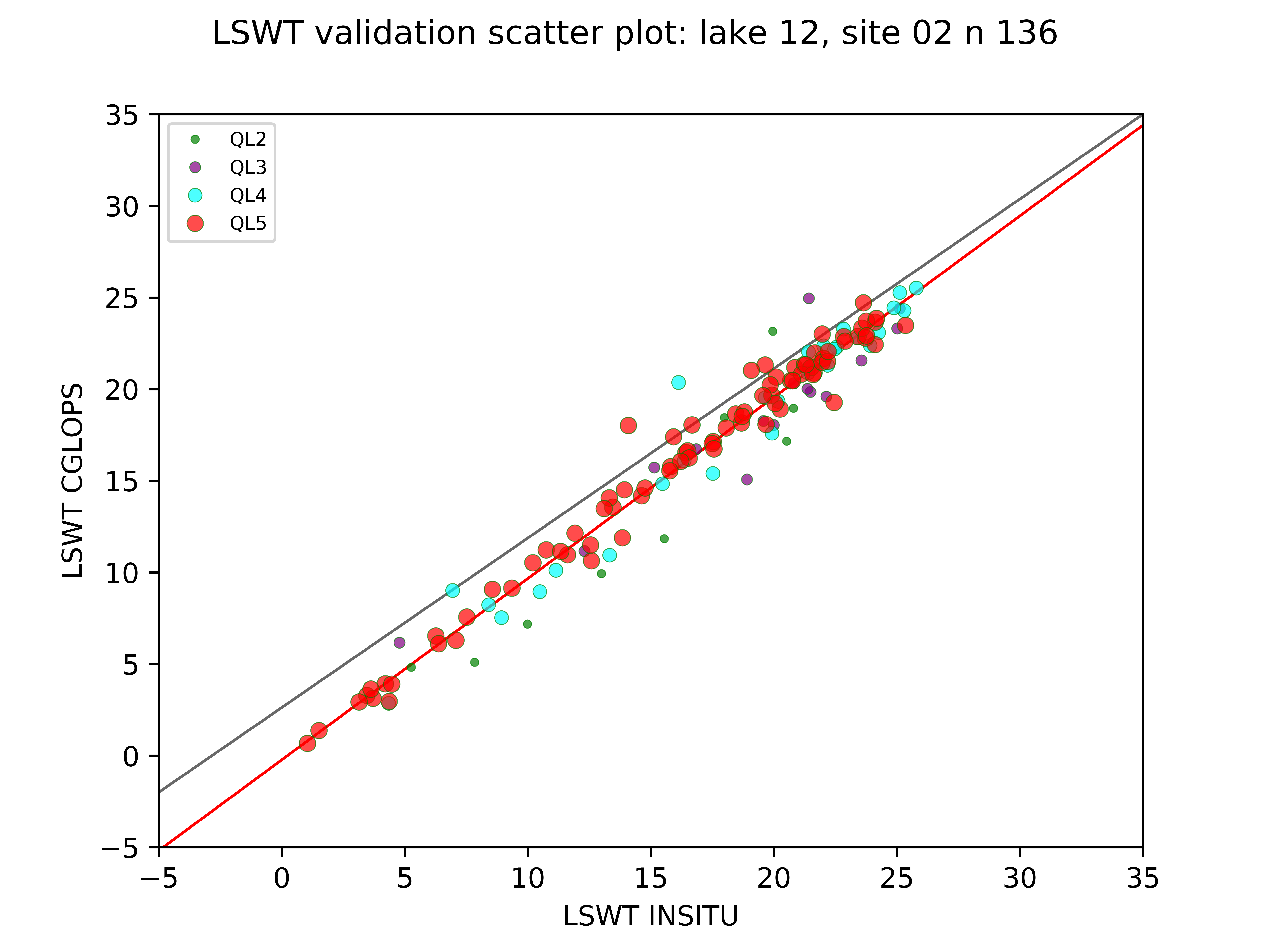

		000012_02	42.47	-81.22						136	-0.28	0.77838	-0.4068	1.2756

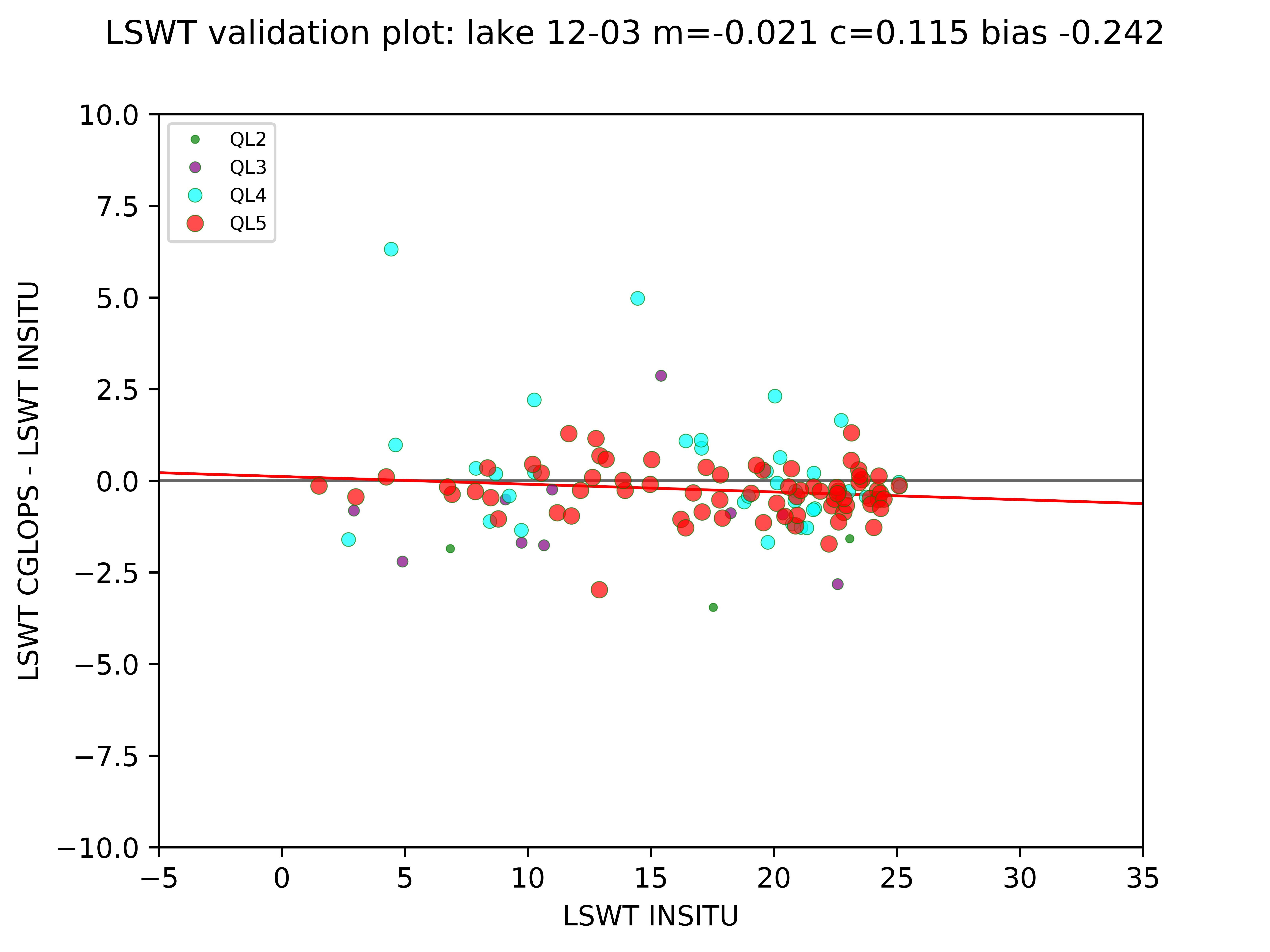

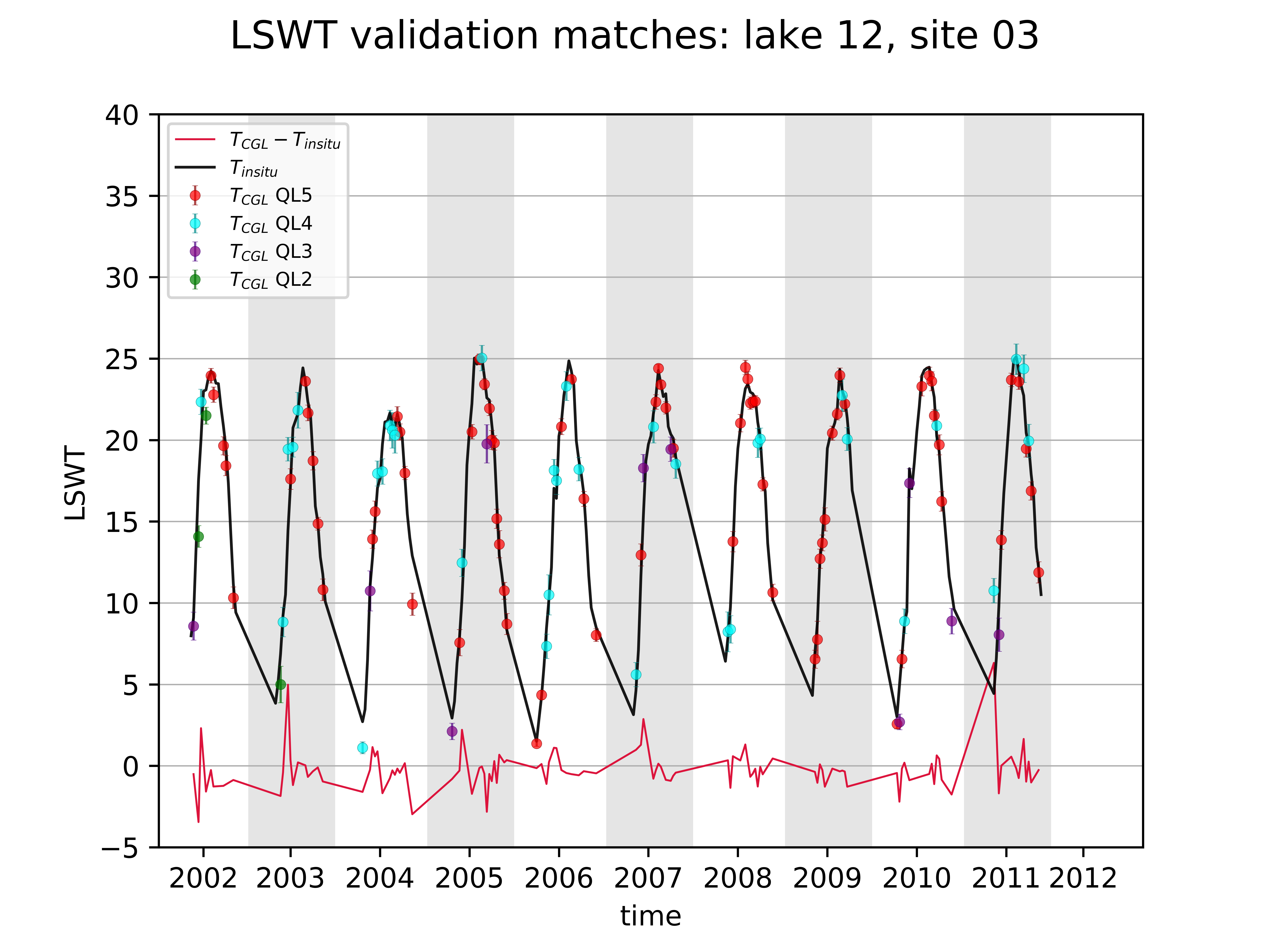

		000012_03	42.74	-79.29						119	-0.33	0.80057	-0.2422	1.2257

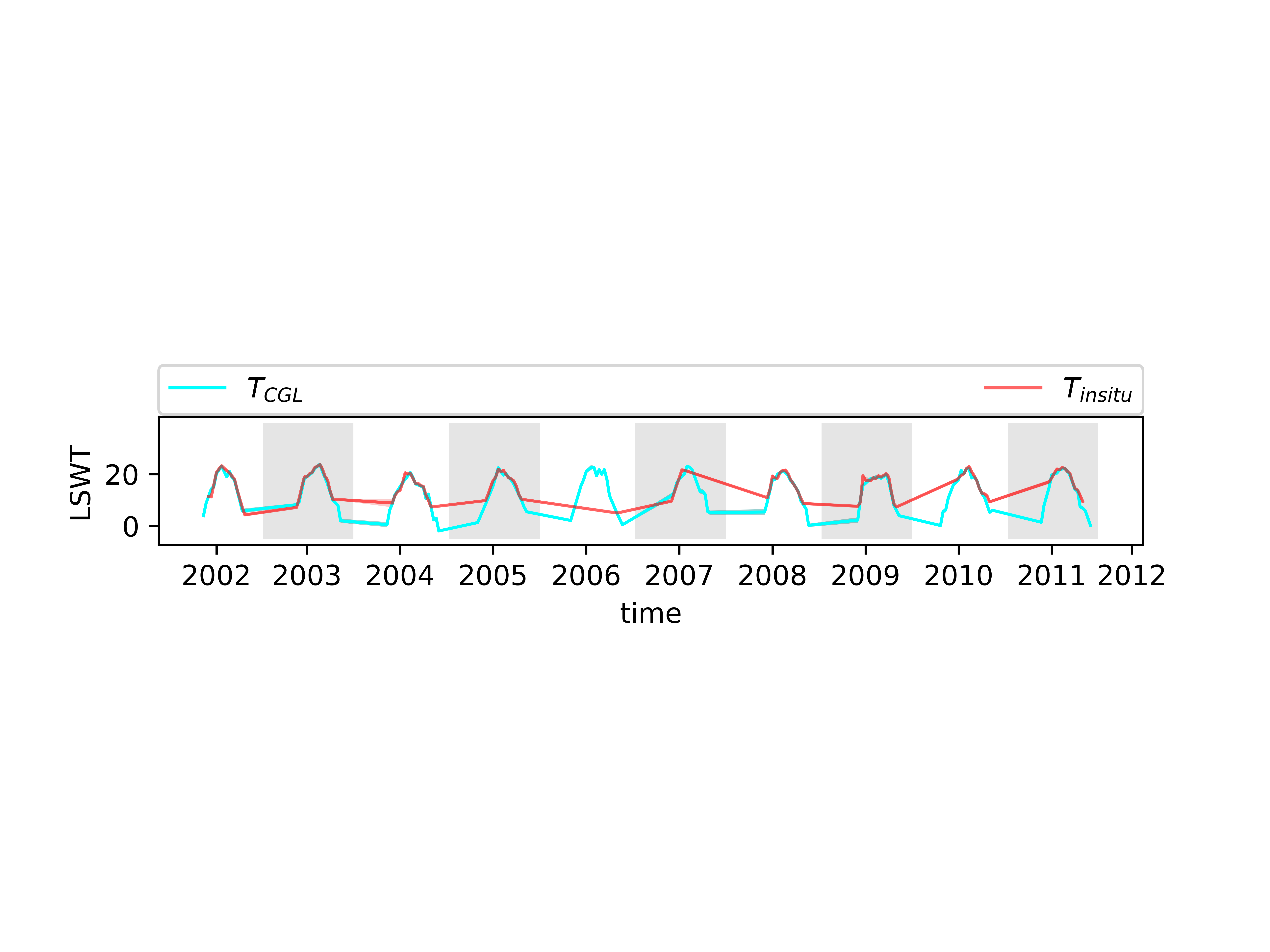

13	Winnipeg/Canada	000013_01	50.79	-96.73						89	-0.41	0.80064	-0.5034	1.3089

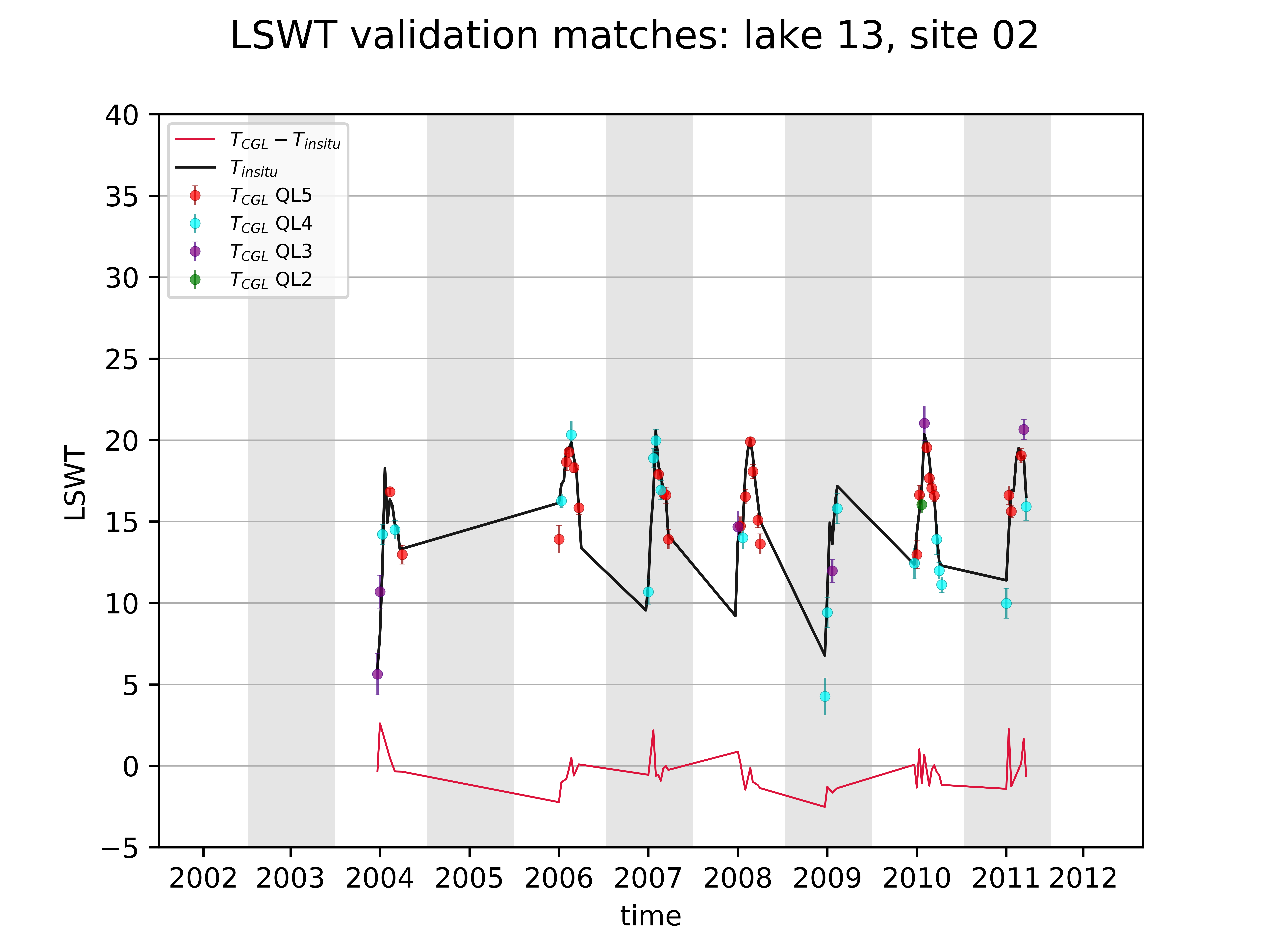

		000013_02	53.38	-98.48						51	-0.38	0.88955	-0.3184	1.09

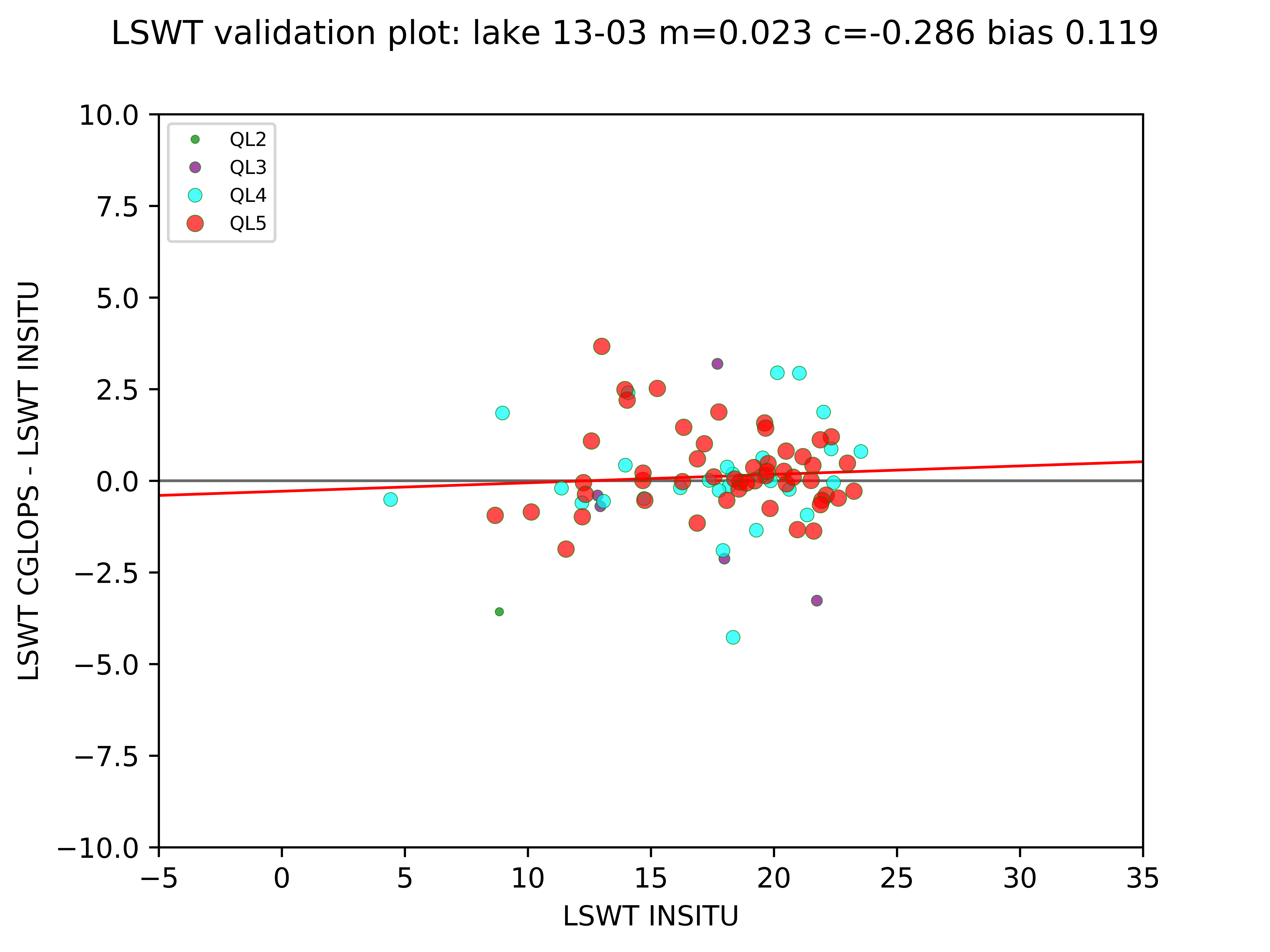

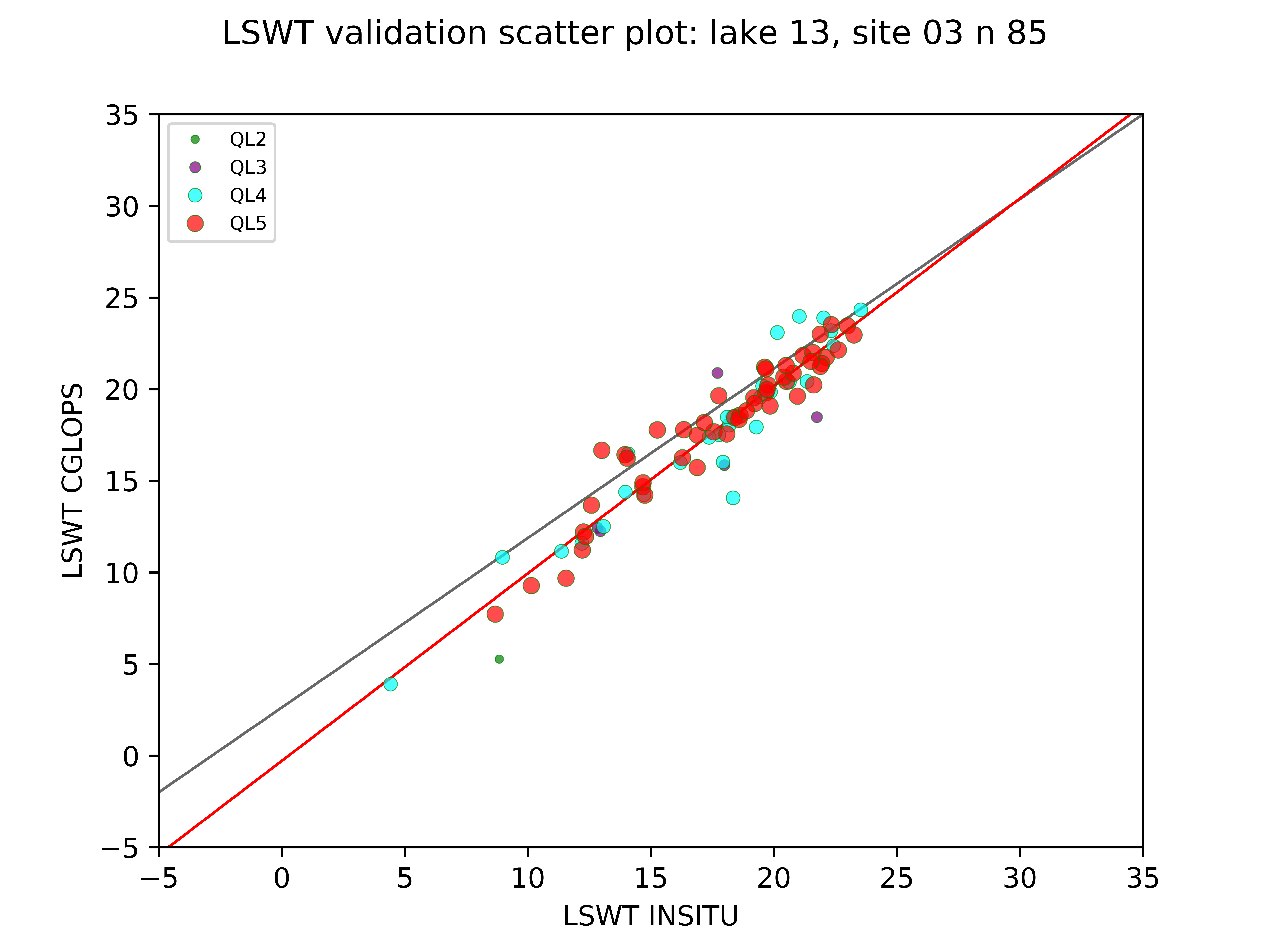

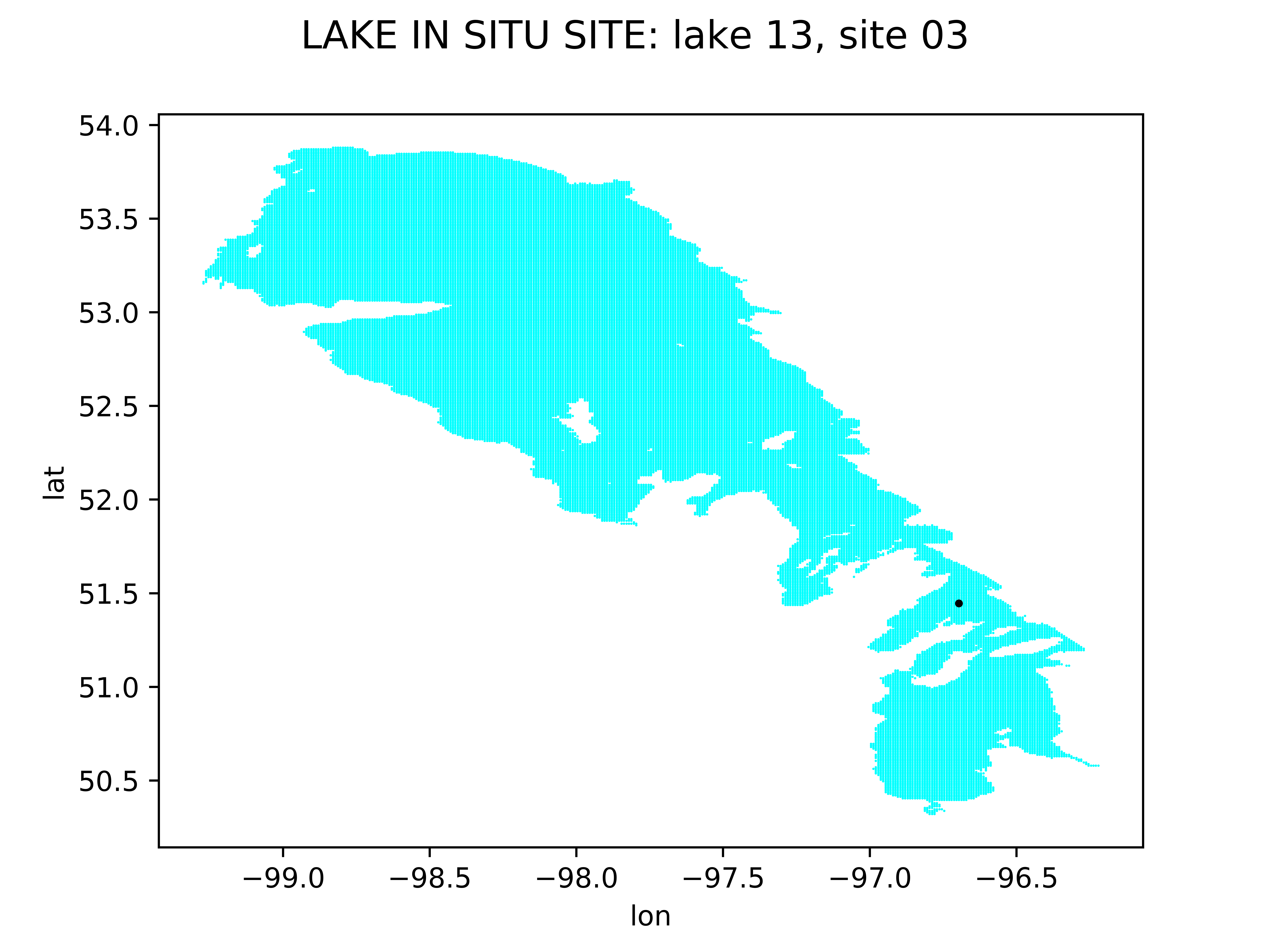

		000013_03	51.45	-96.7						85	-0.0	0.83024	0.1188	1.3617

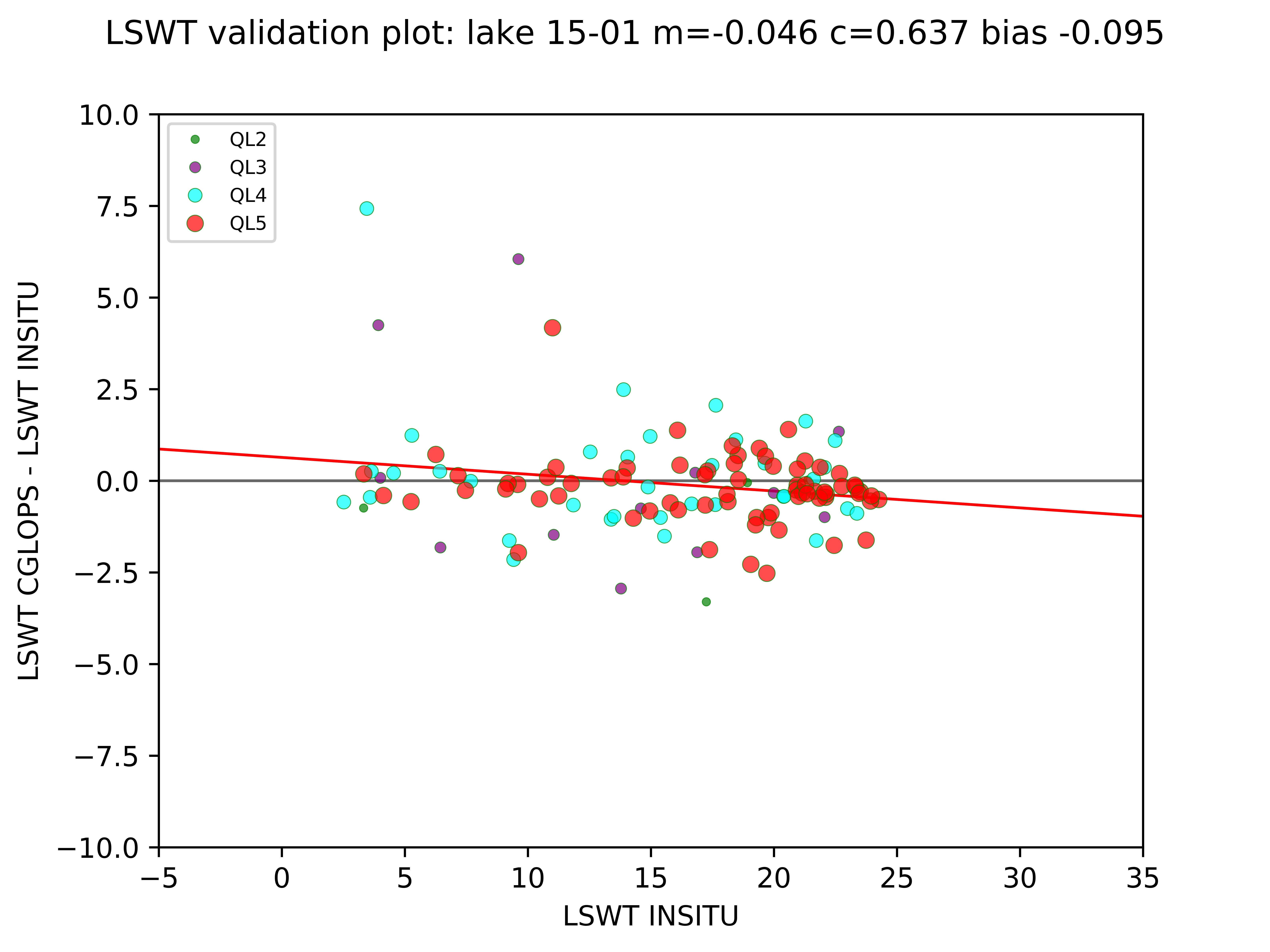

15	Ontario/Canada	000015_01	43.621	-77.406						122	-0.255	0.77093	-0.0953	1.4151

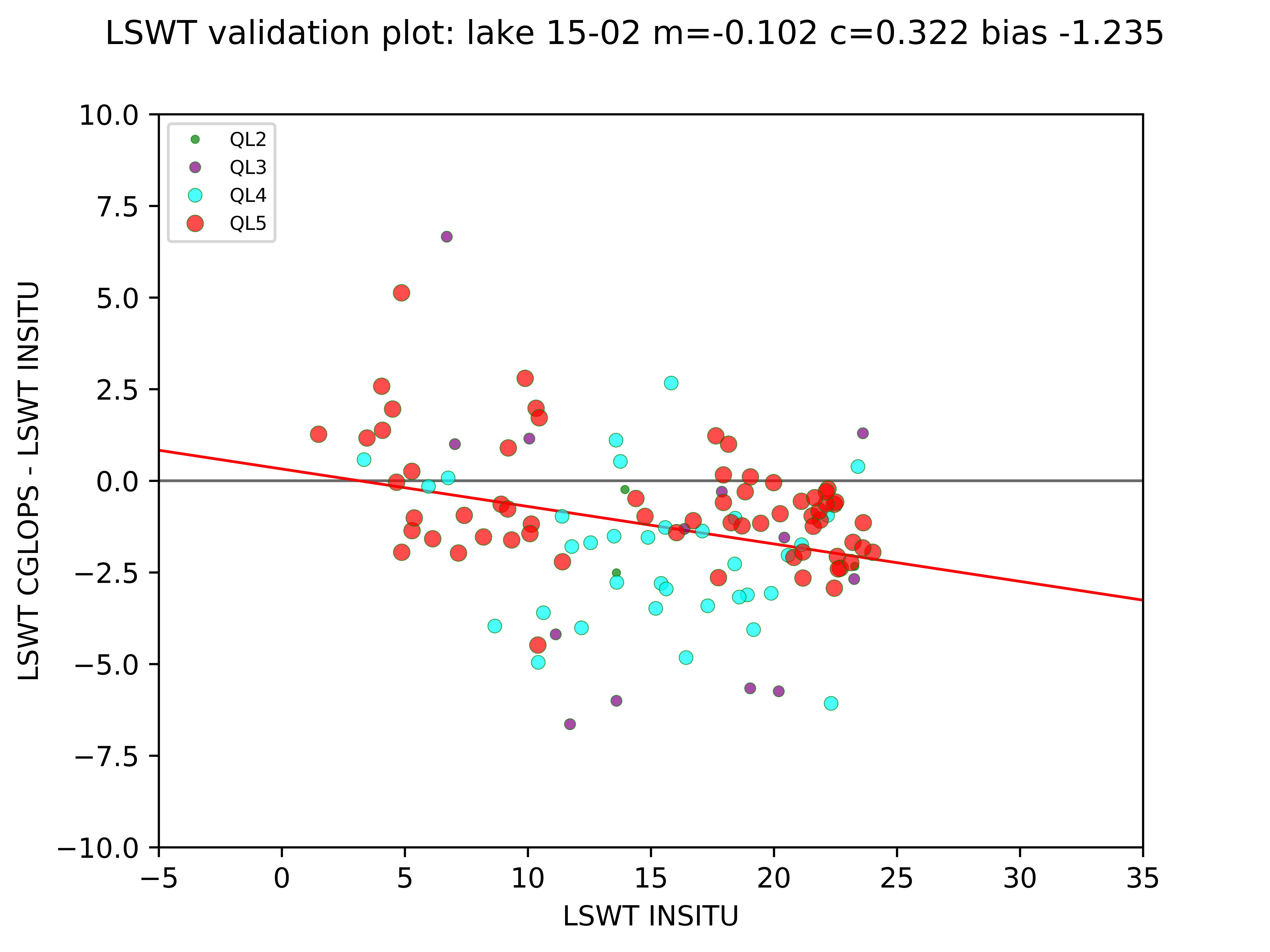

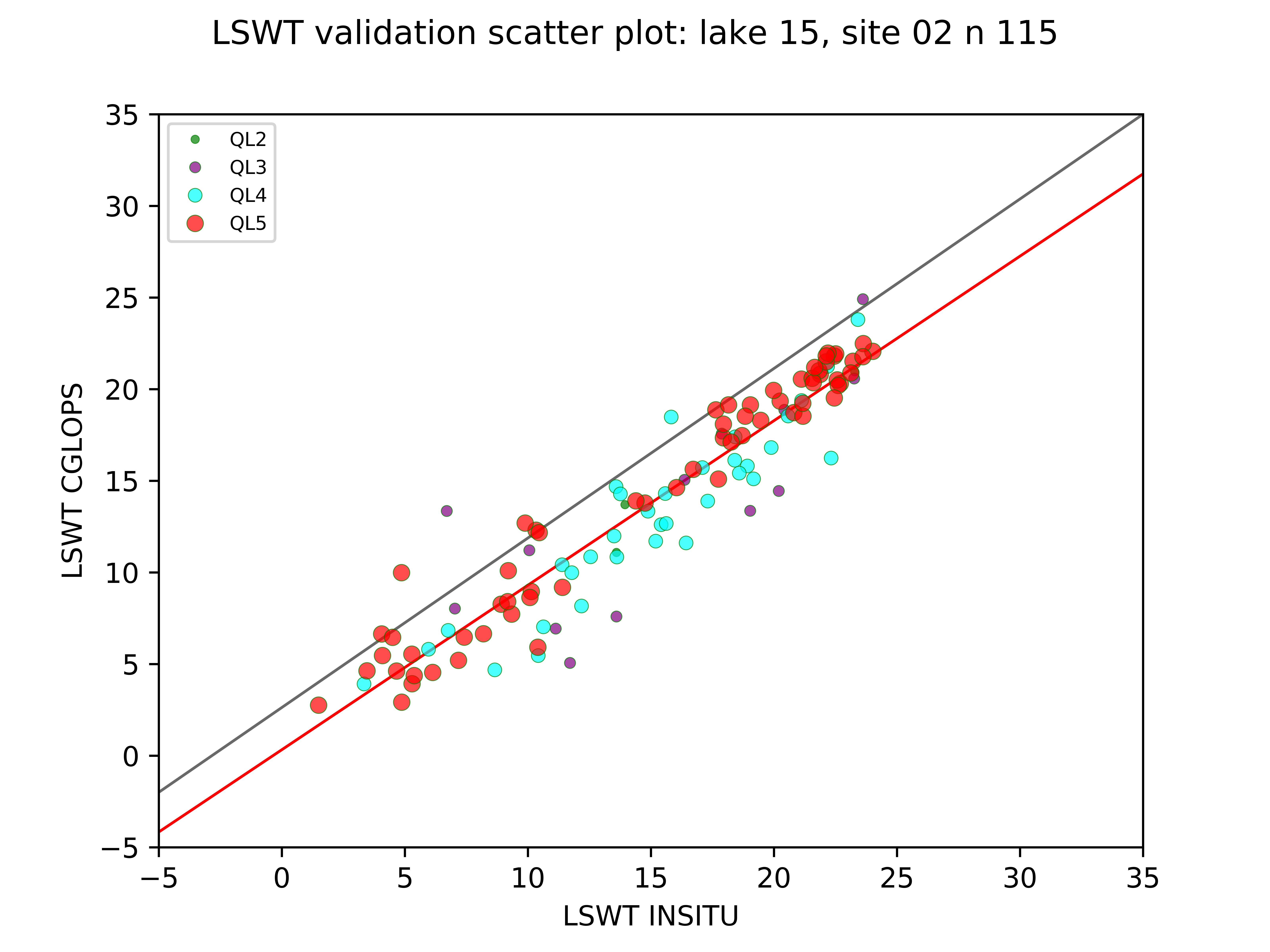

		000015_02	43.85	-78.34						115	-1.23	1.5419	-1.2346	2.0995

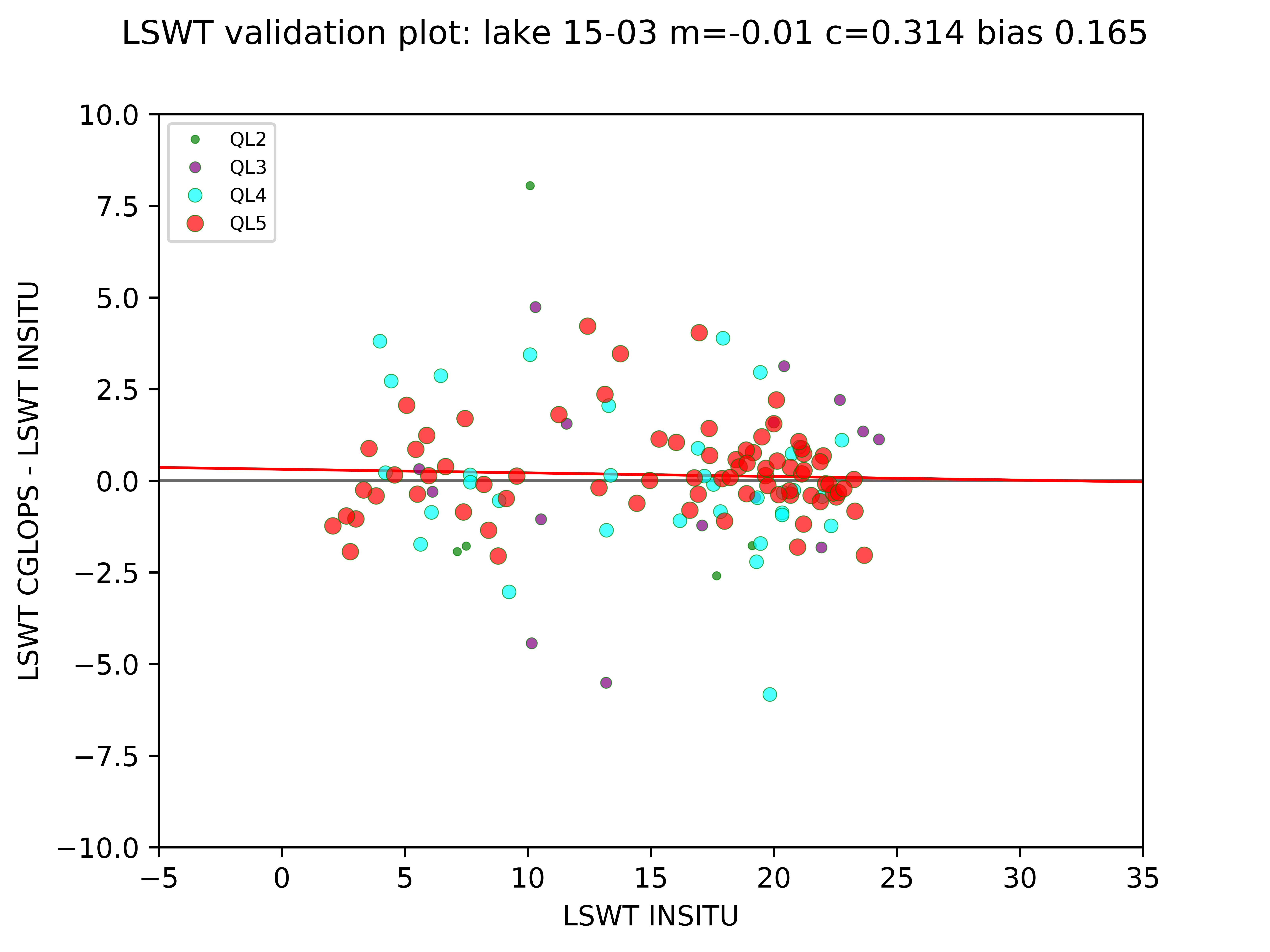

		000015_03	43.26	-79.54						130	0.025	1.27504	0.1645	1.8154

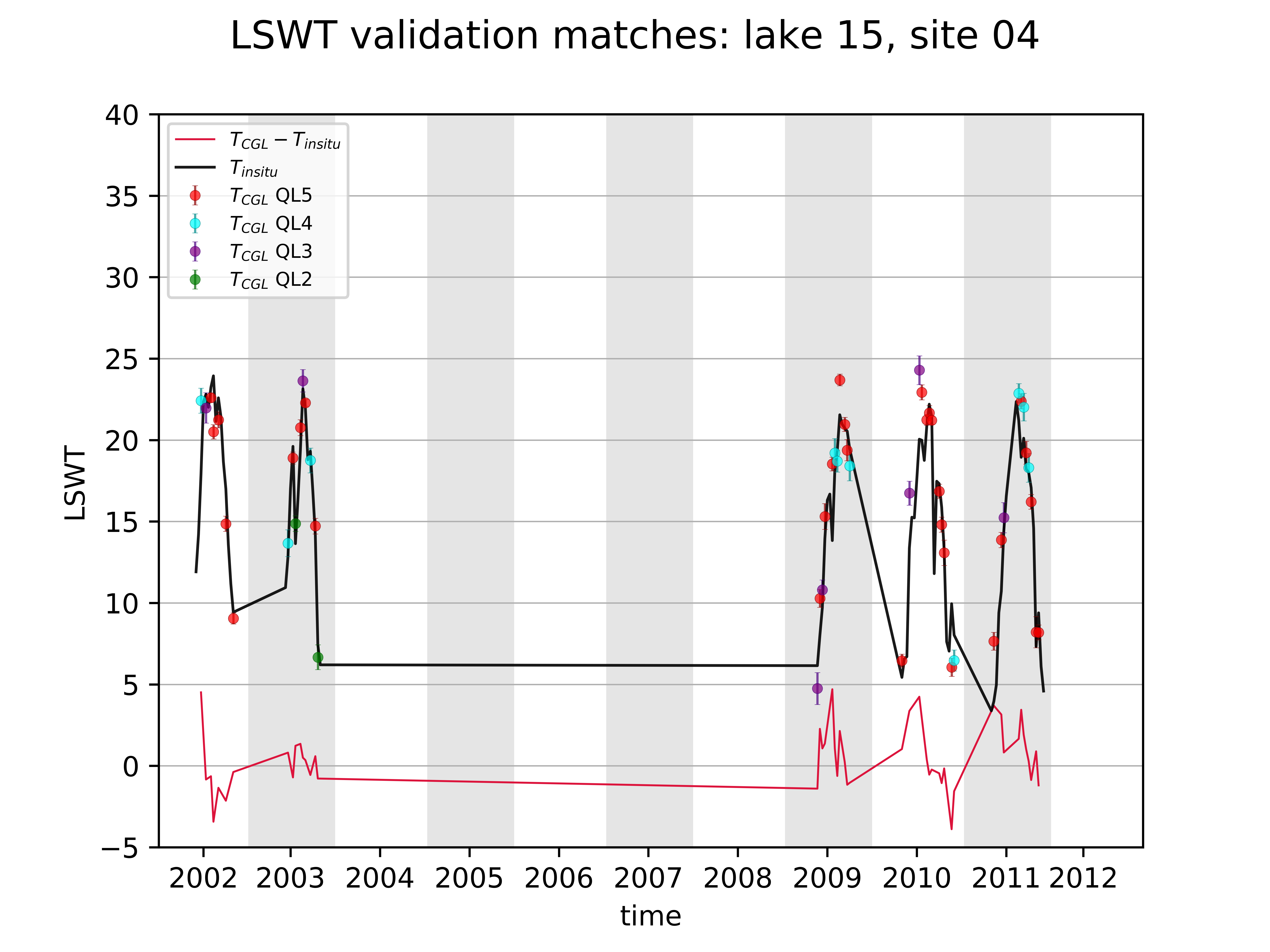

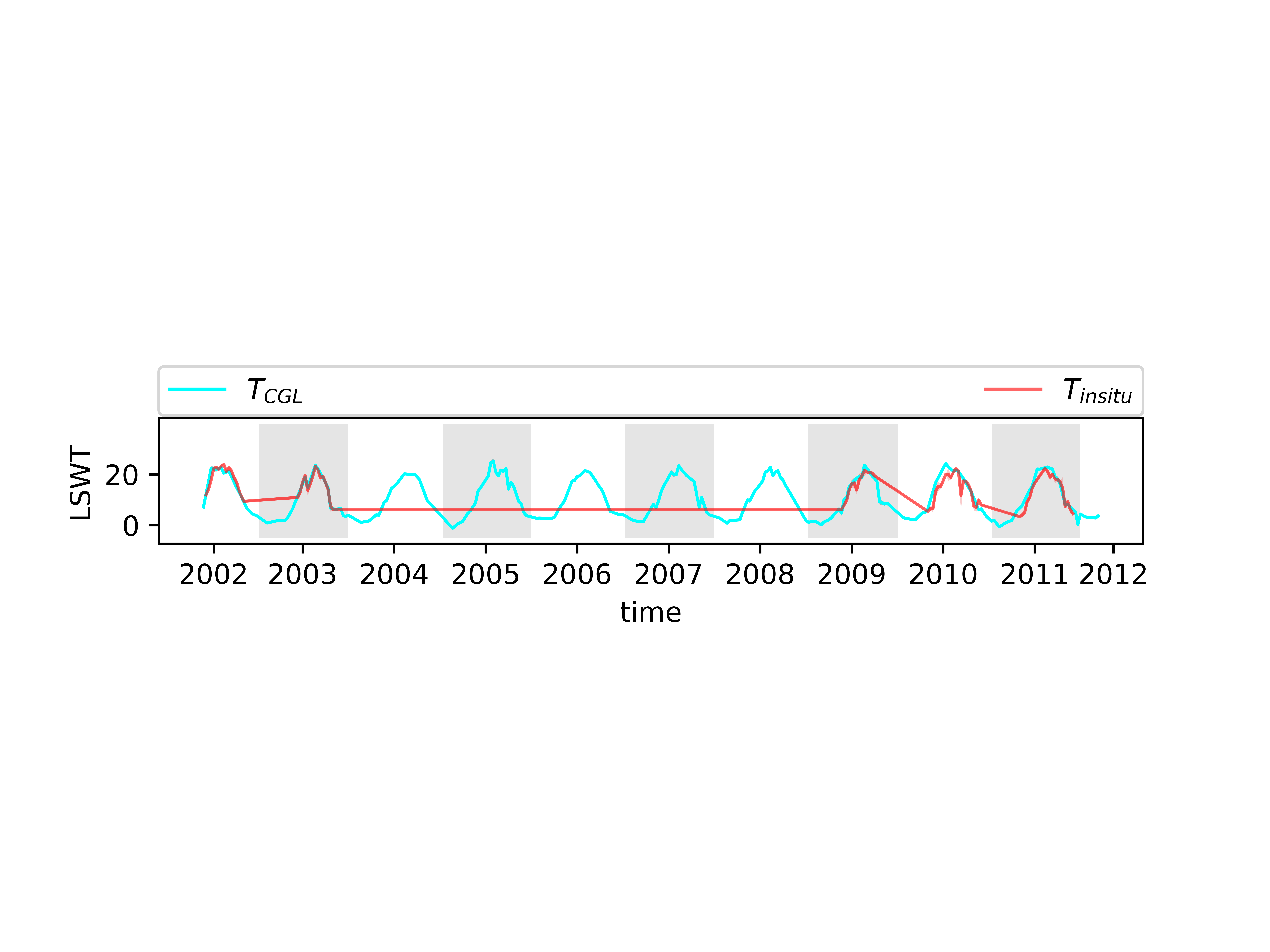

		000015_04	43.23	-79.47						50	0.37	1.65309	0.5202	1.8879

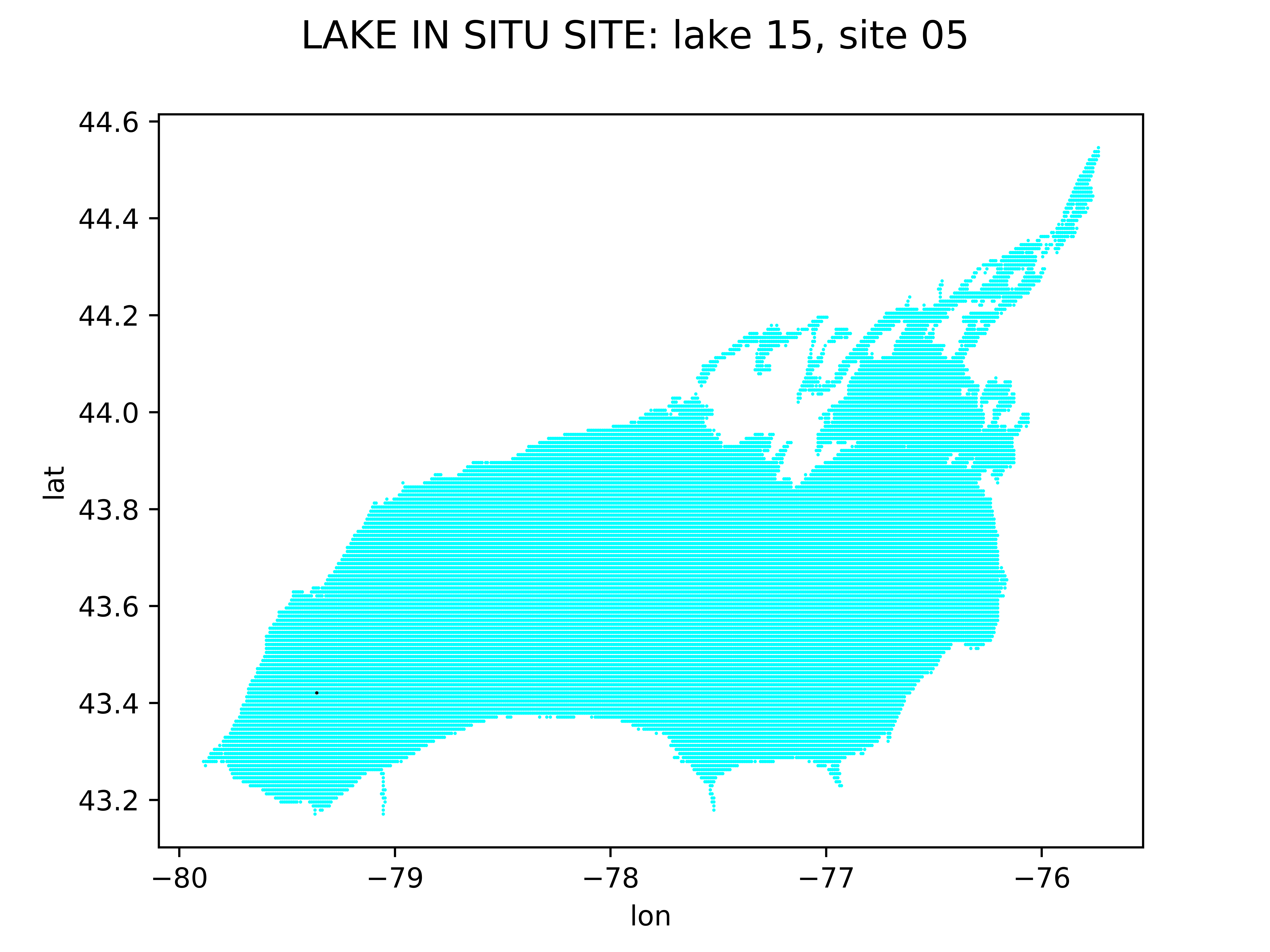

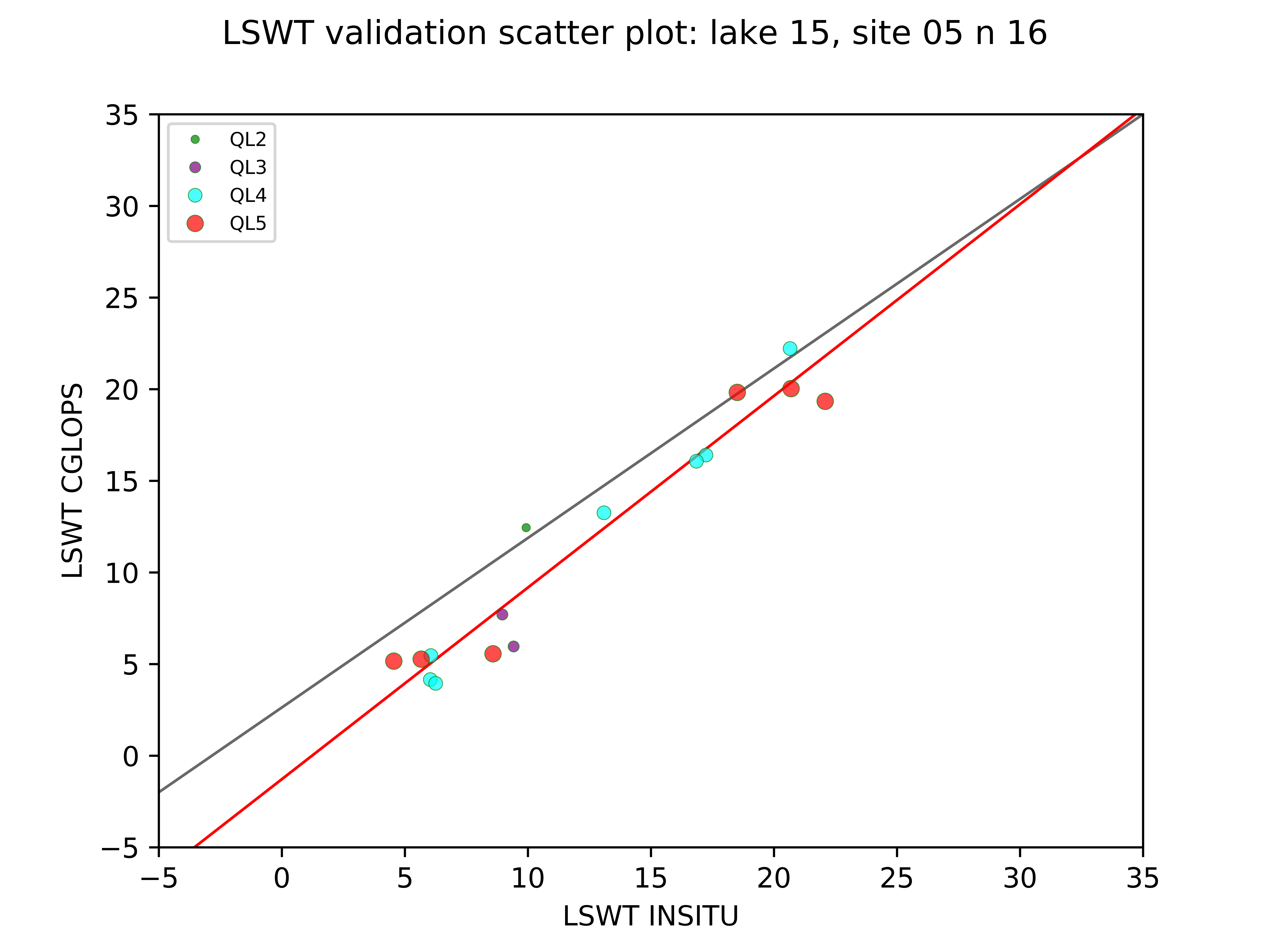

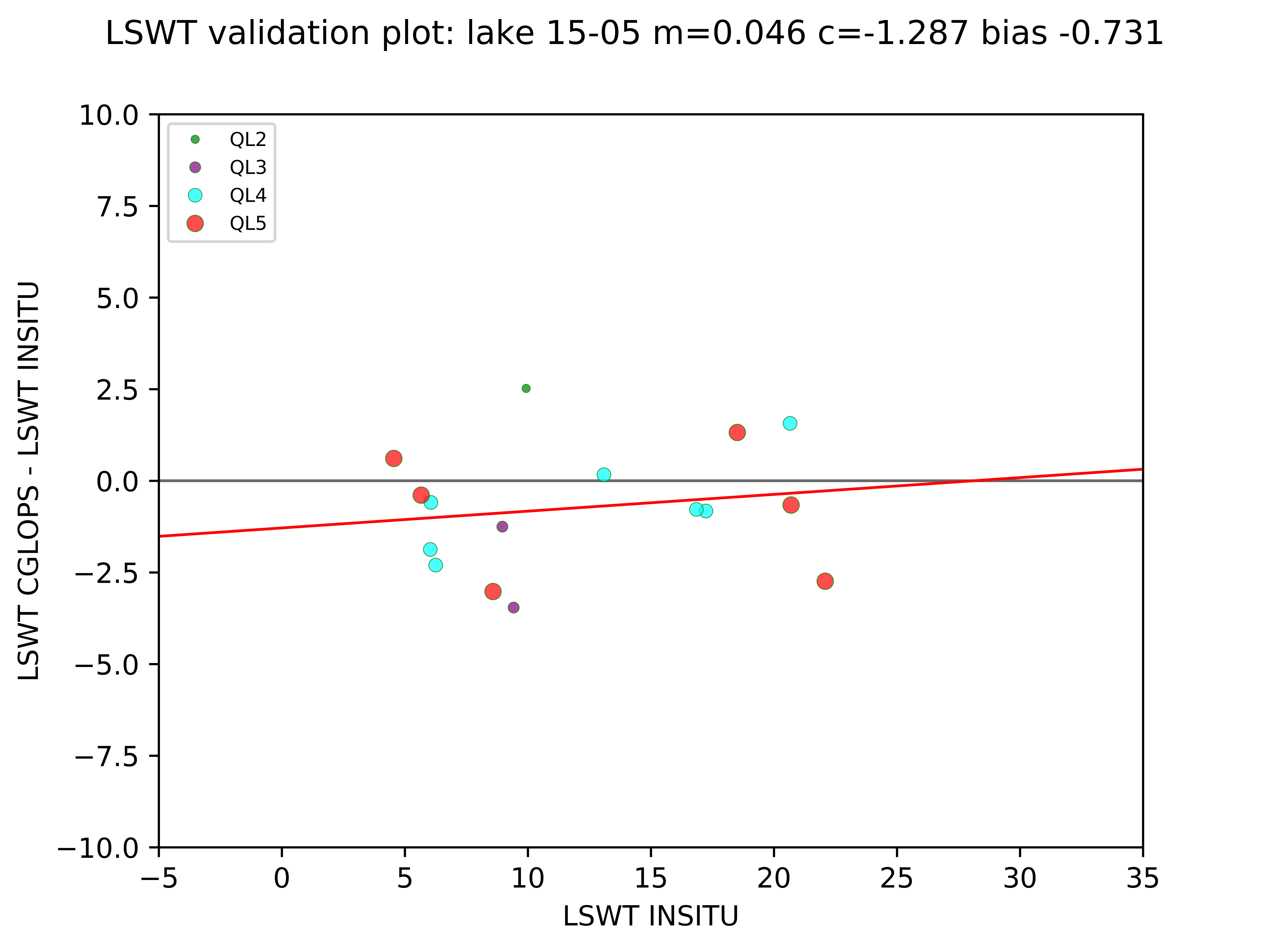

		000015_05	43.42	-79.36						16	-0.72	1.83842	-0.7306	1.6504

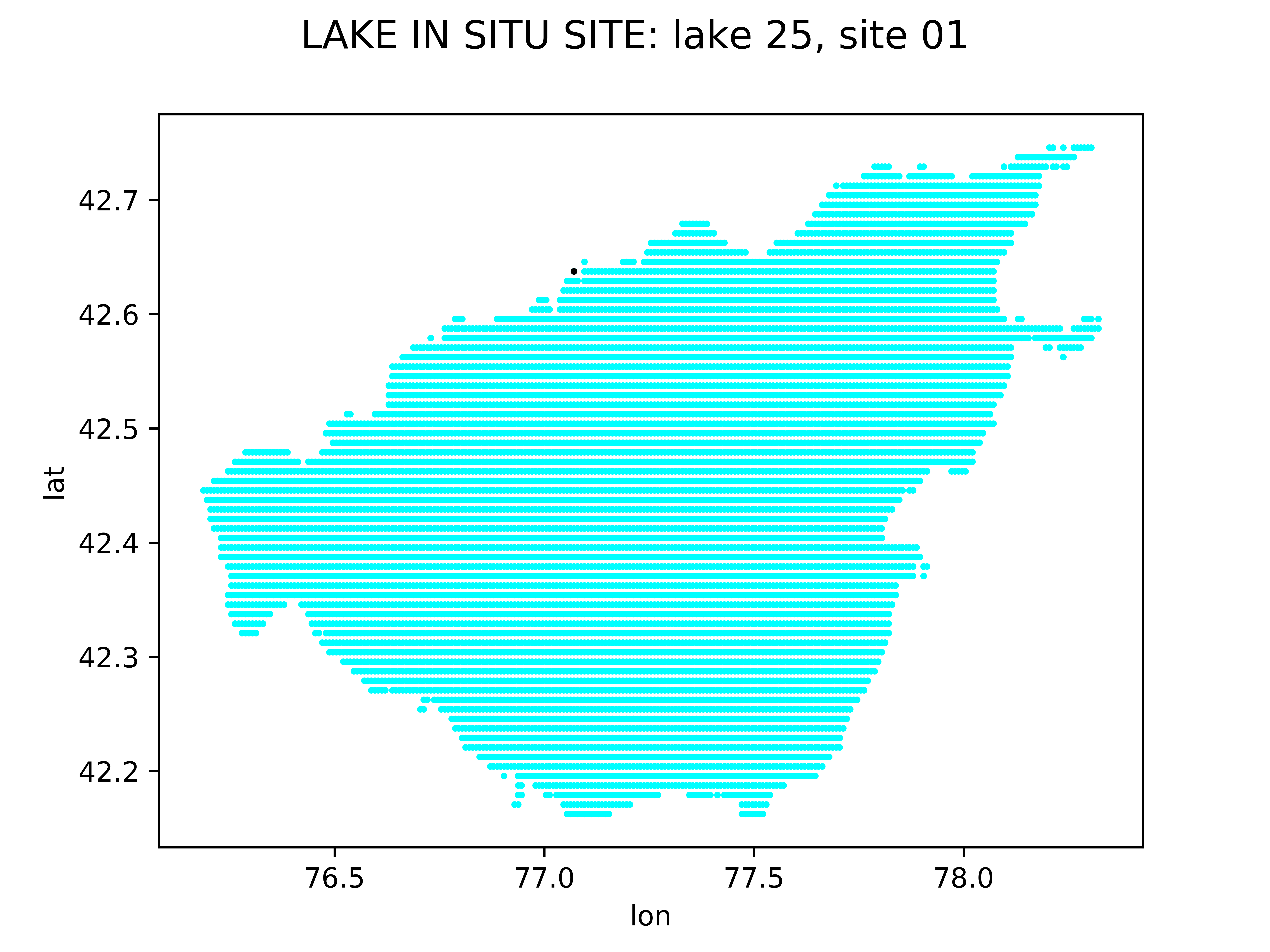

25	Issykkul/Kyrgyzstan	000025_01	42.636	77.068						10	-0.72	0.70424	-0.787	0.9198

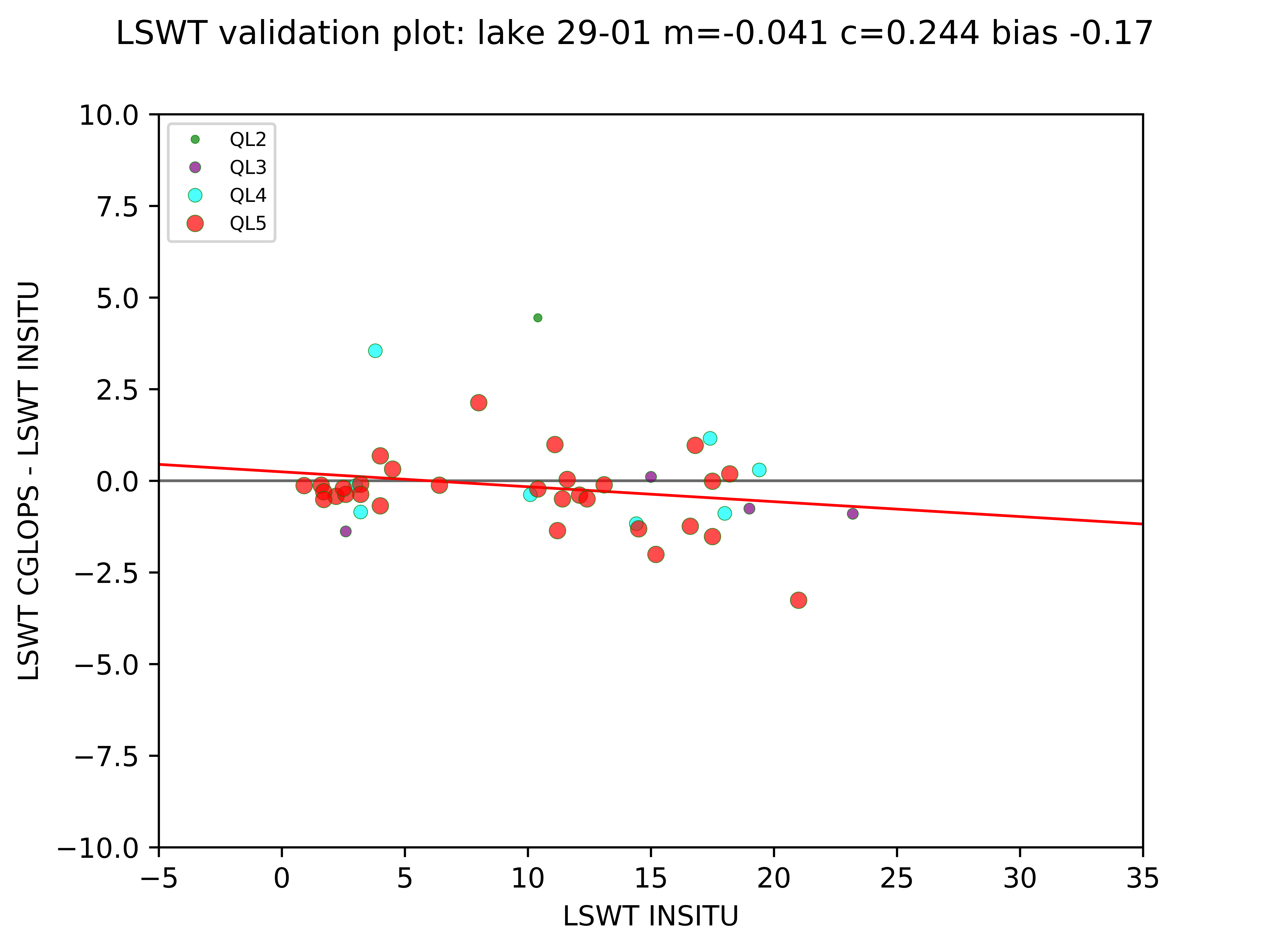

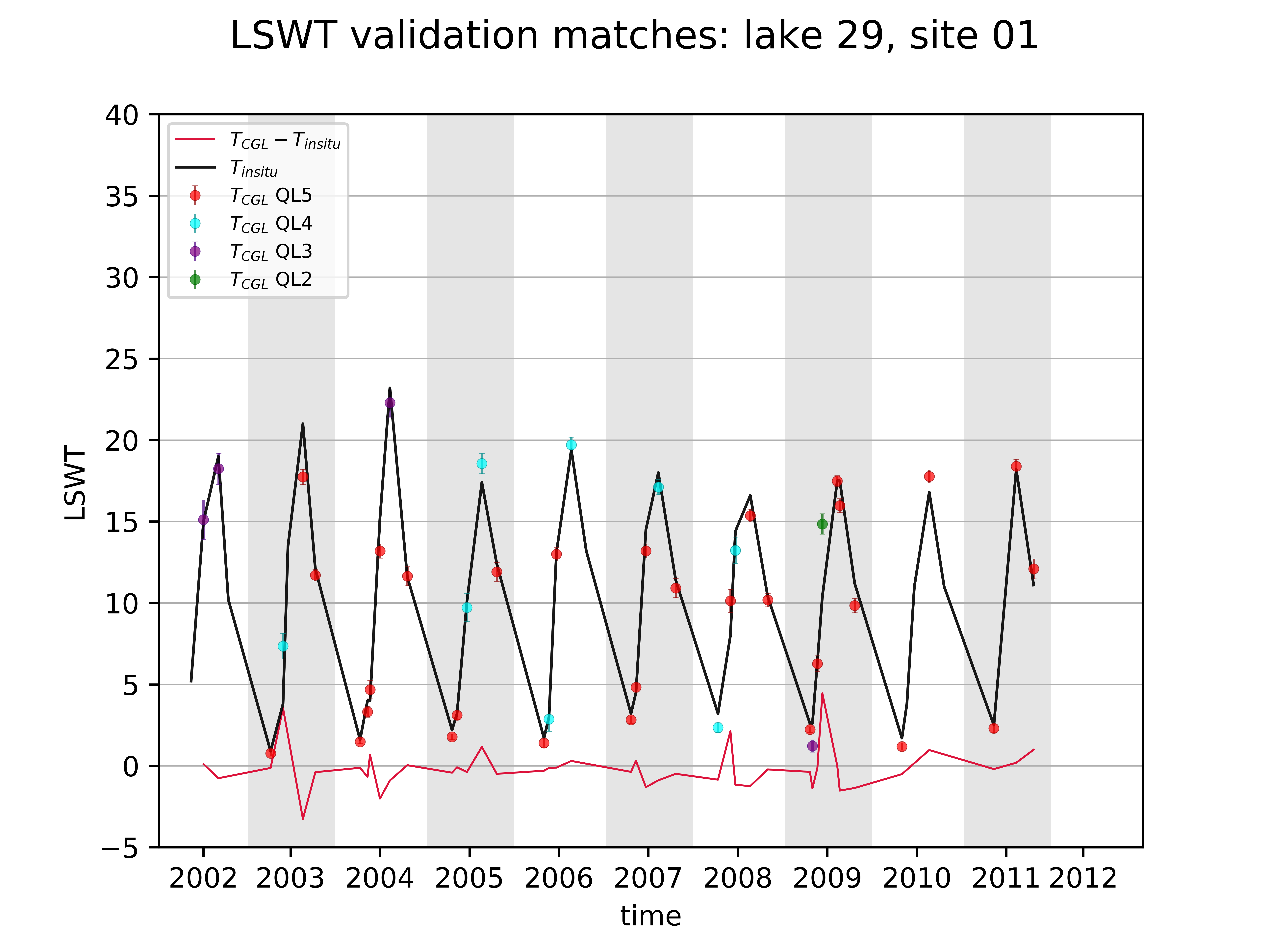

29	Vanern/Sweden	000029_01	59.092	13.467						43	-0.3	0.682	-0.1695	1.2772
		000029_02	58.847	12.817						41	-0.42	0.77096	-0.3668	2.1617
		000029_03	58.772	13.872						34	0.135	0.99333	0.2835	1.5754

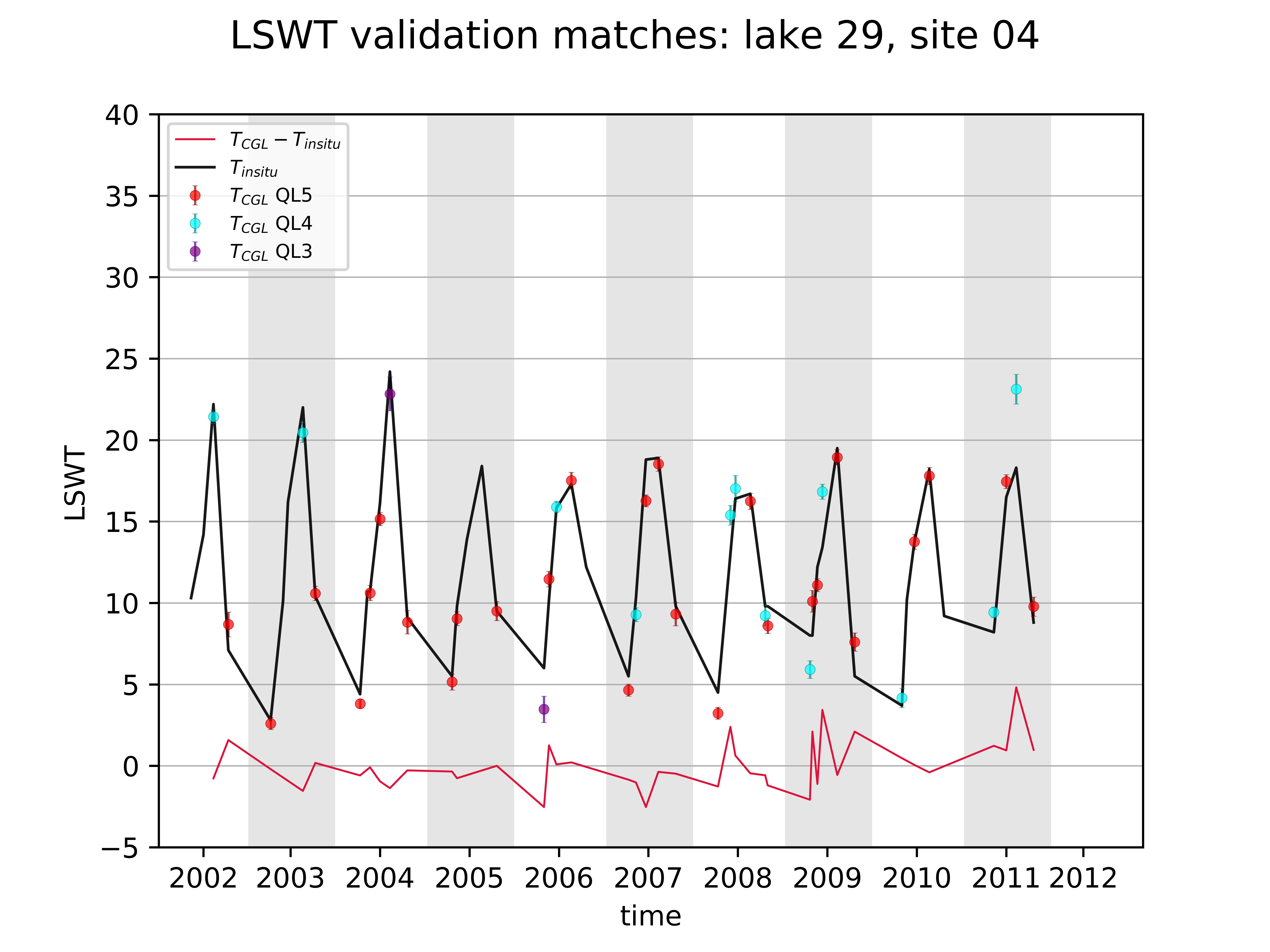

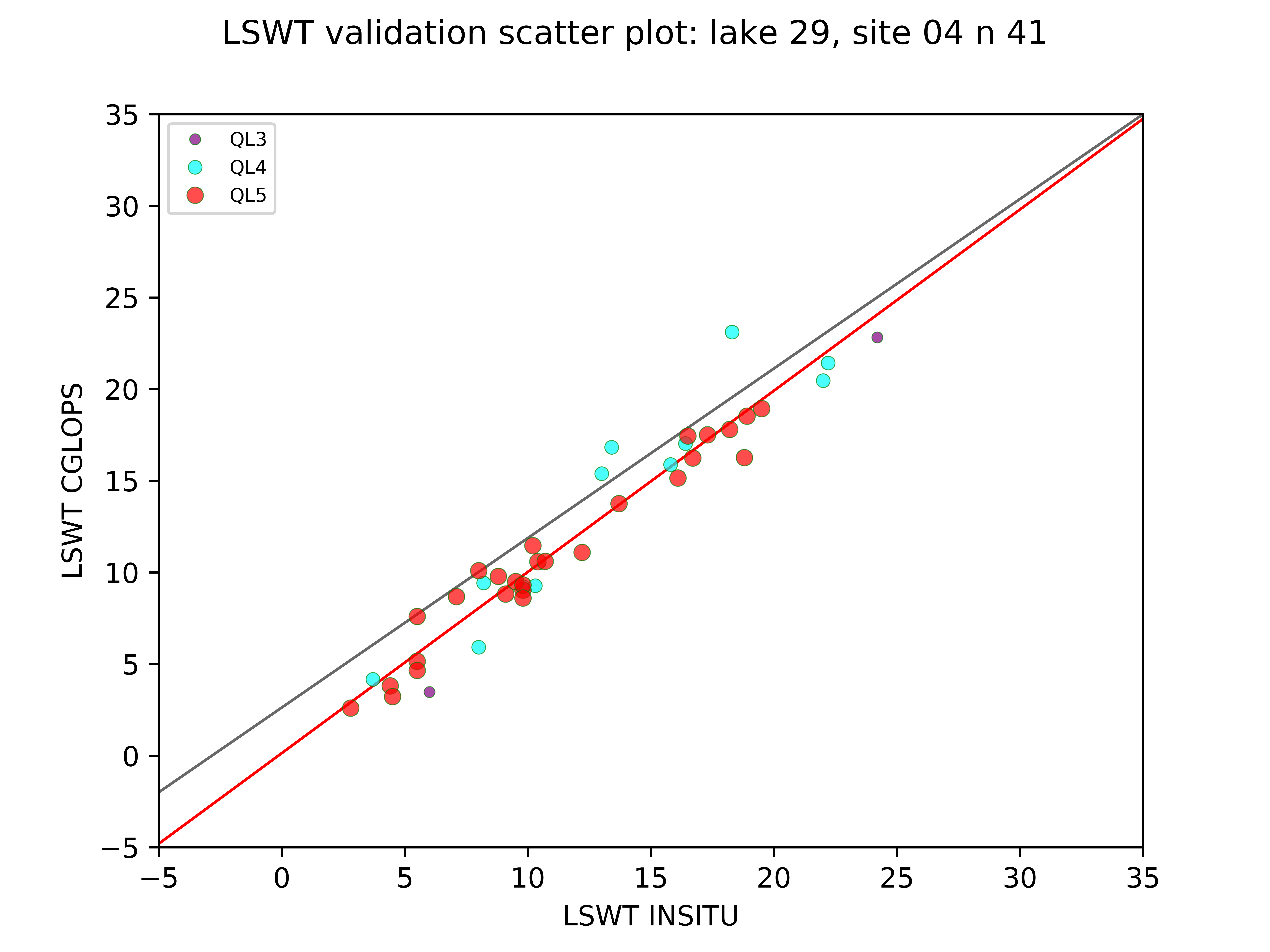

		000029_04	58.713	13.712						41	-0.35	0.99334	0.0034	1.4748

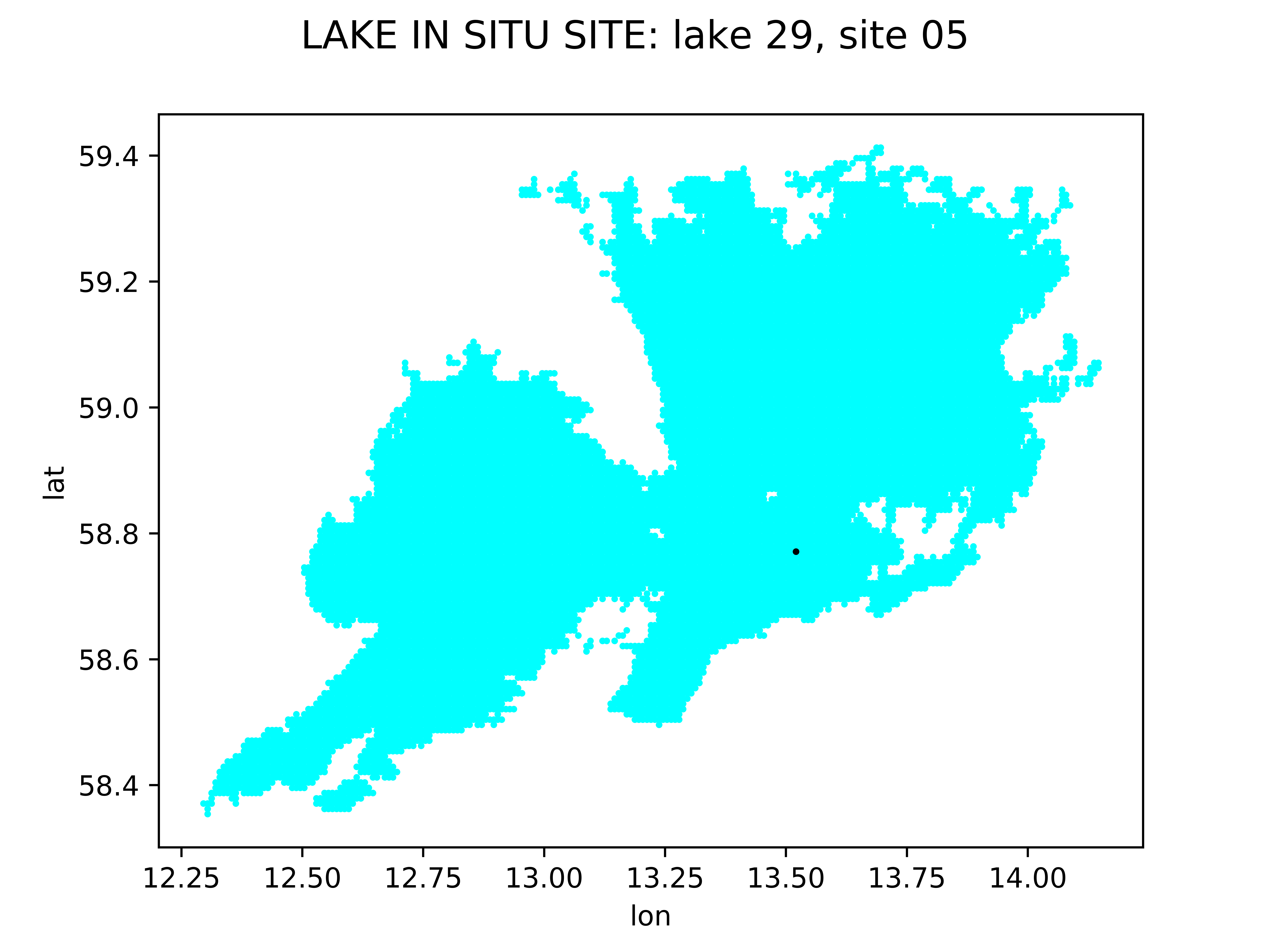

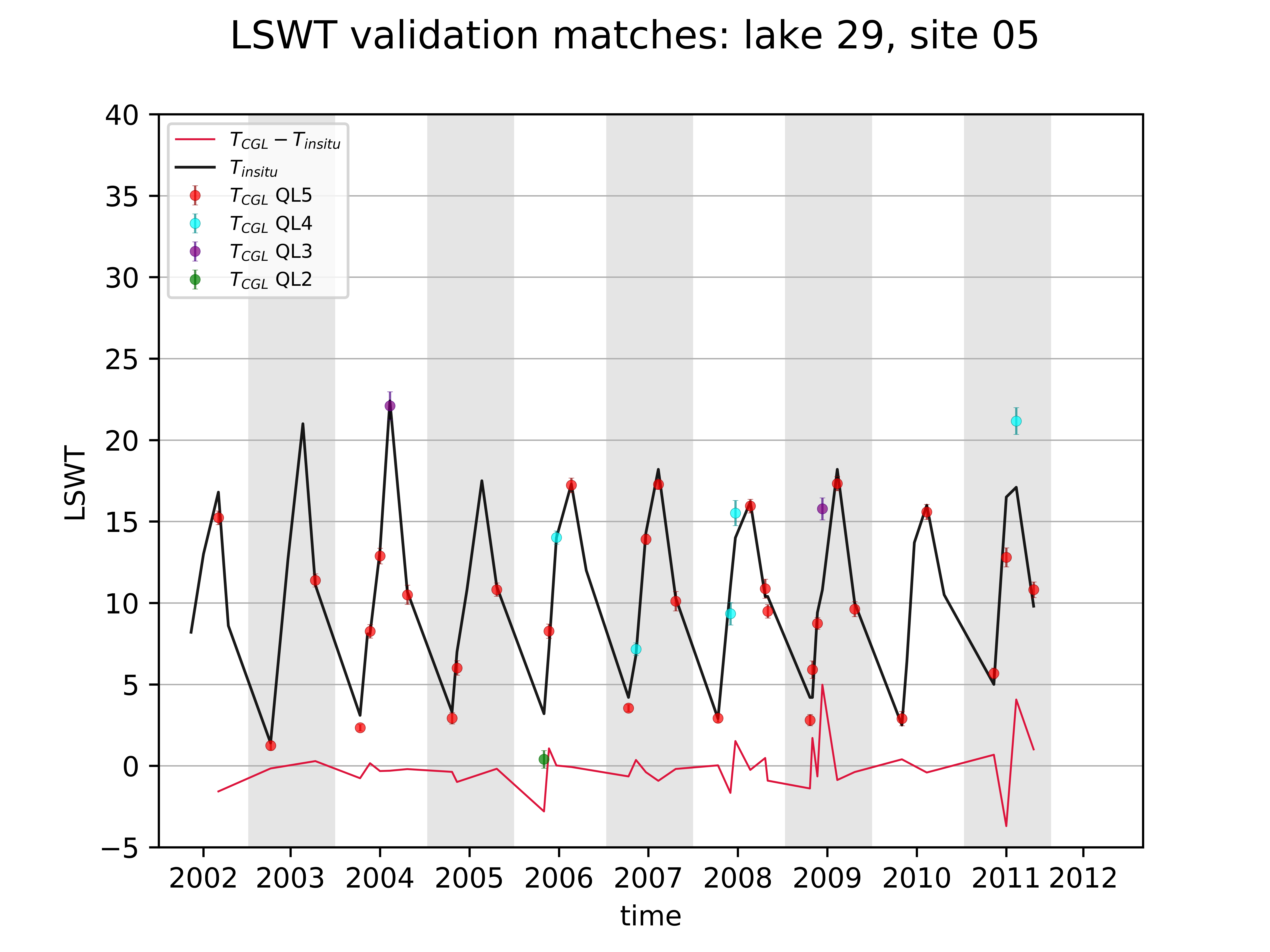

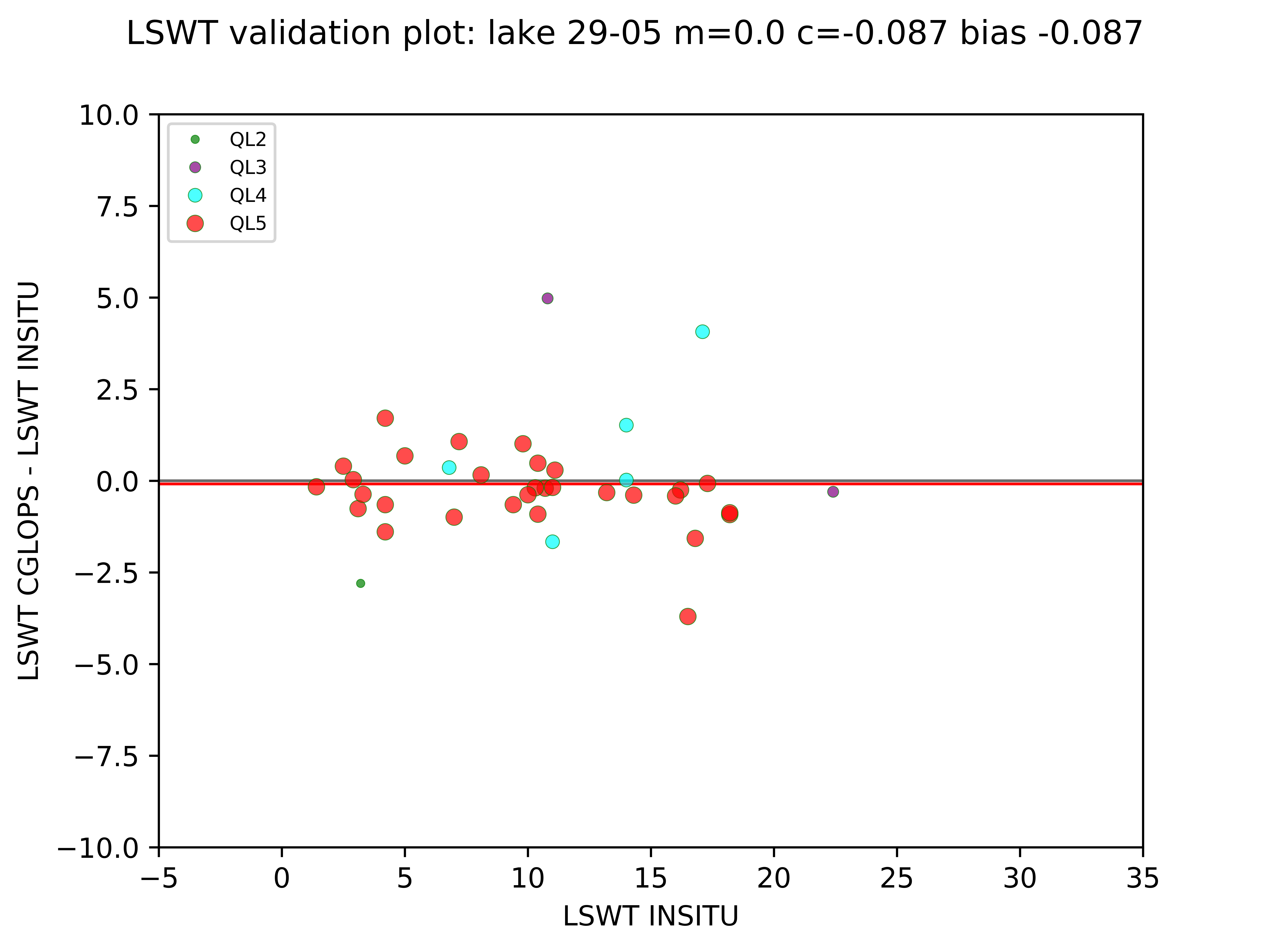

		000029_05	58.767	13.52						38	-0.225	0.83026	-0.0871	1.4875

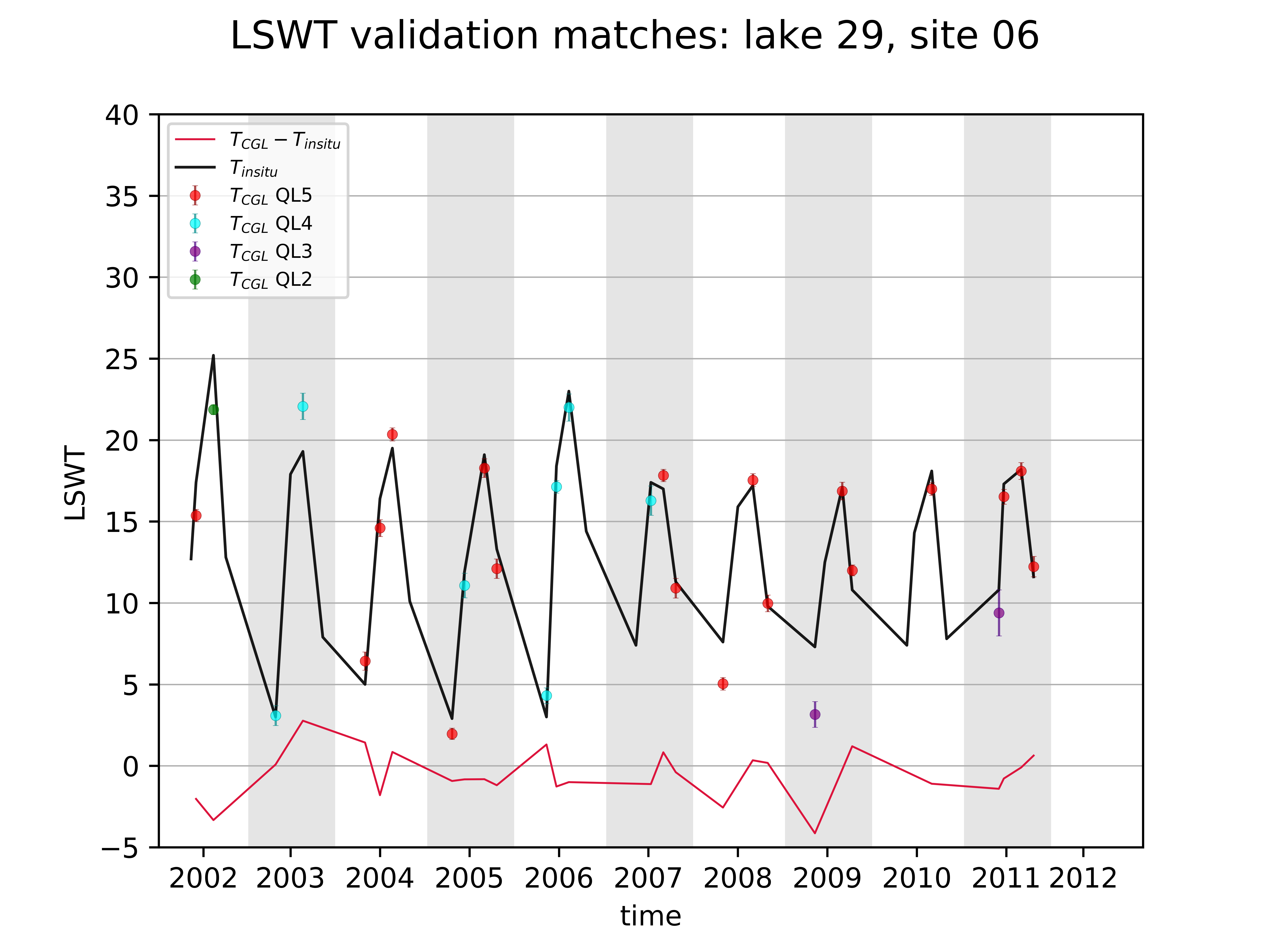

		000029_06	59.333	13.337						28	-0.8	1.37882	-0.5504	1.4642

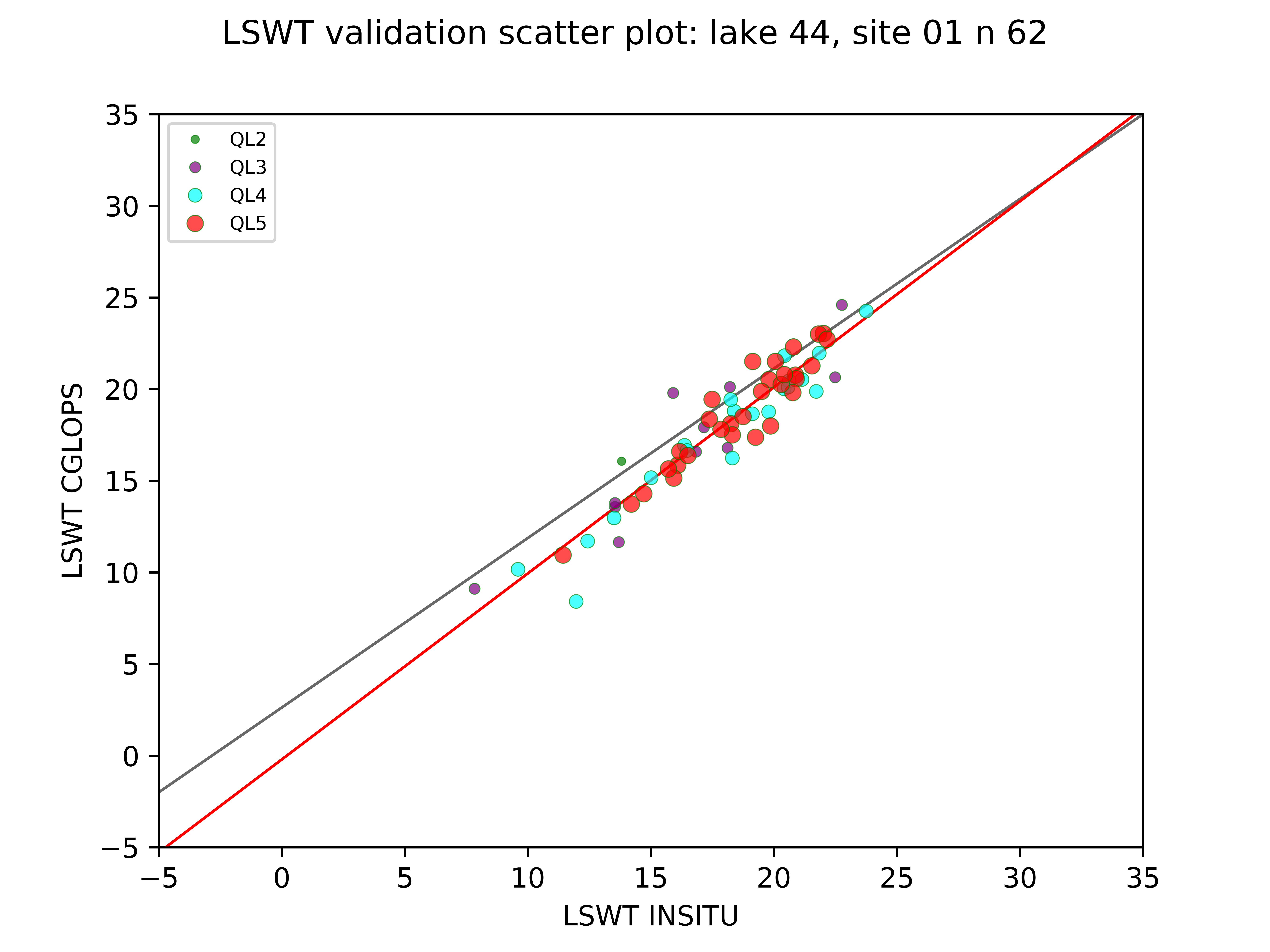

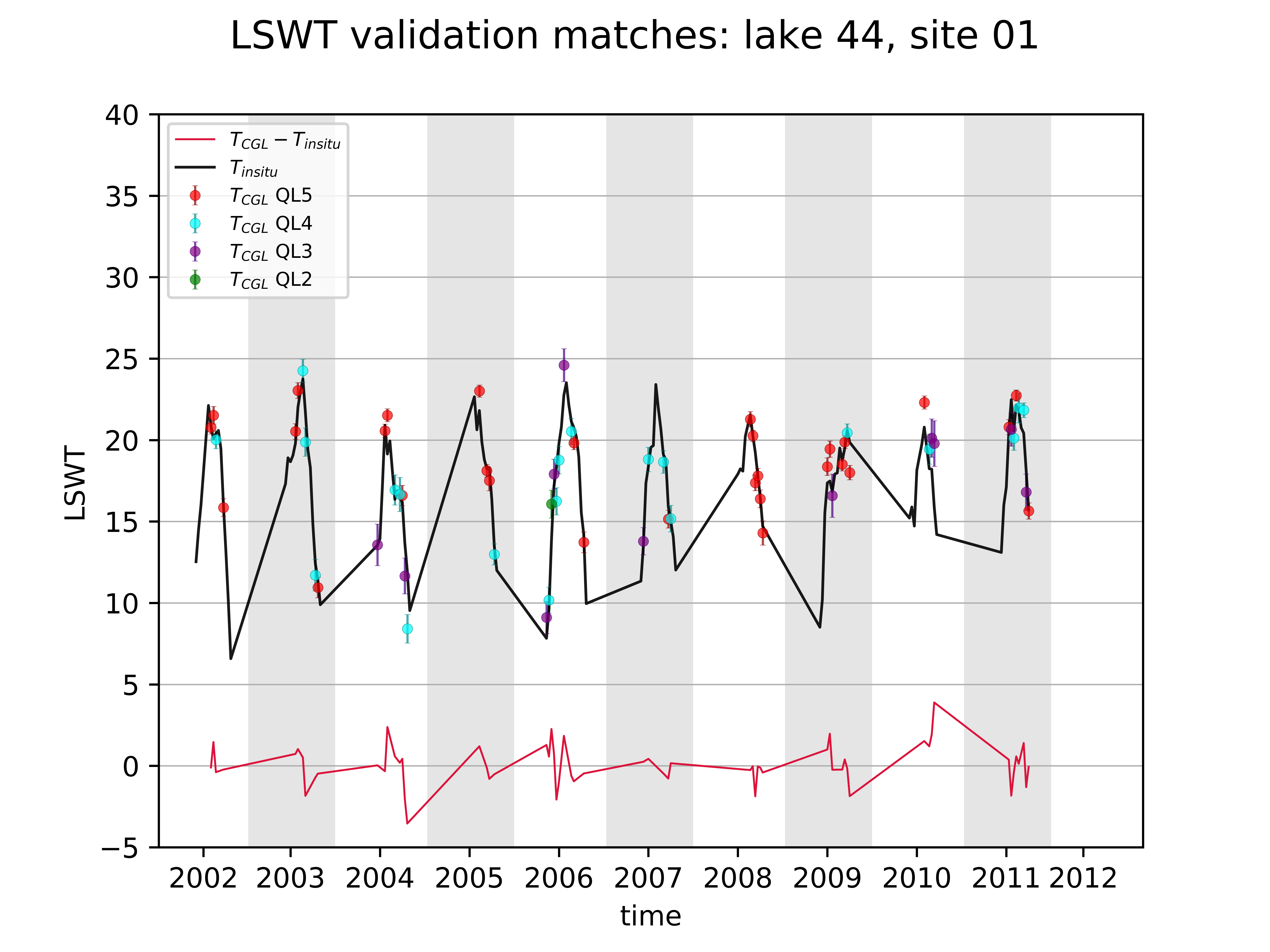

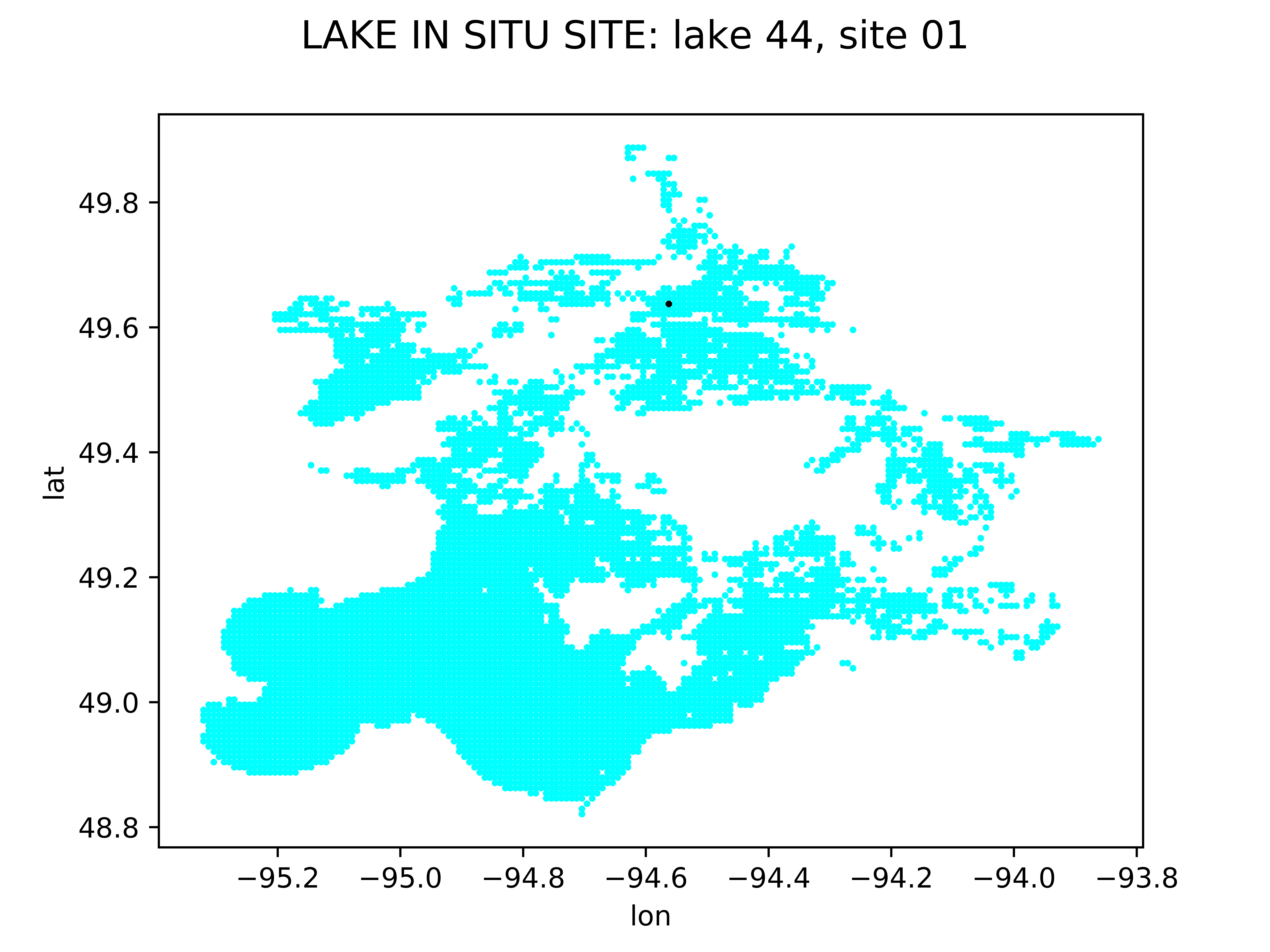

44	Woods/Canada	000044_01	49.64	-94.56						62	-0.05	0.92664	0.0671	1.2377

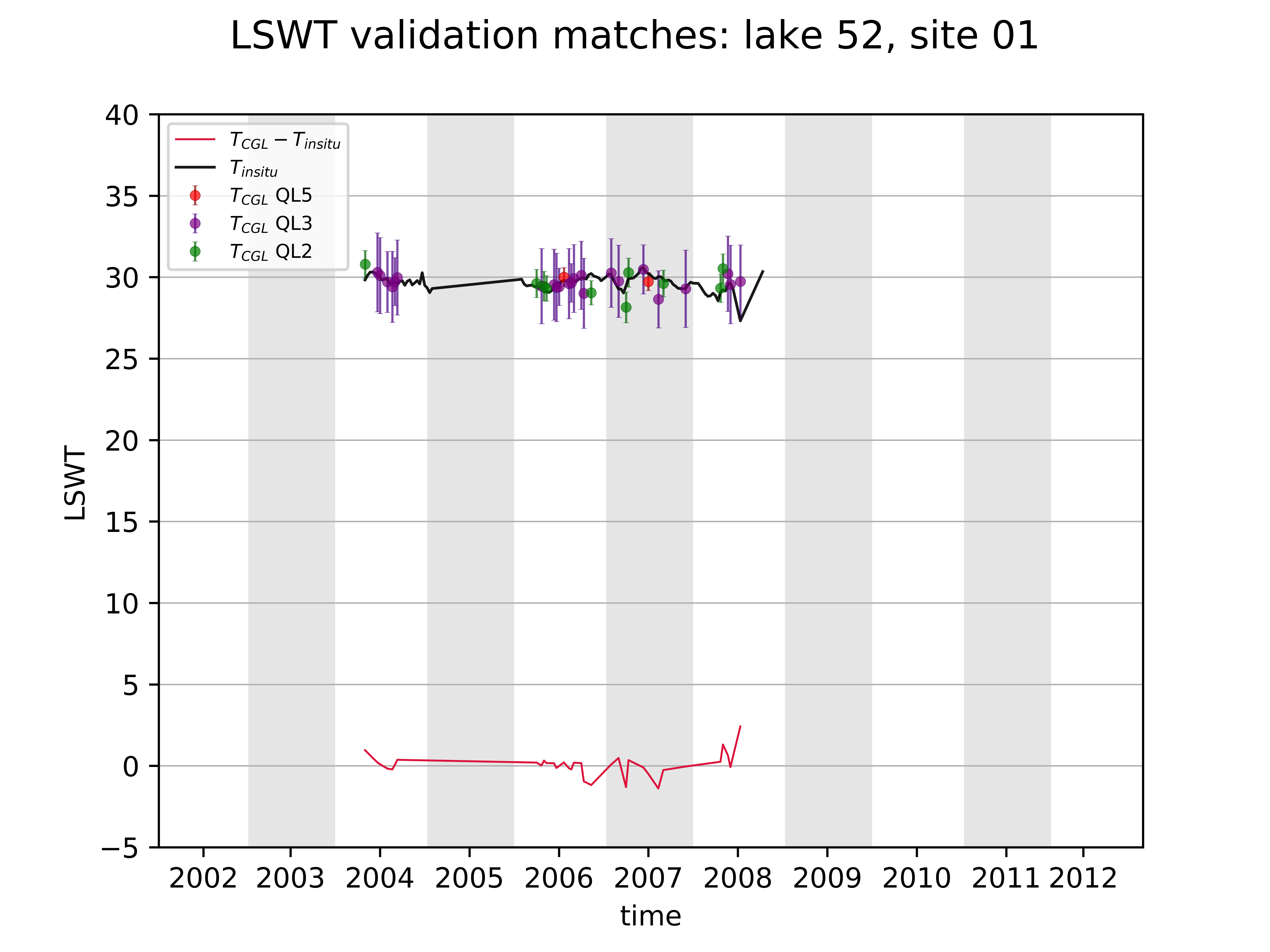

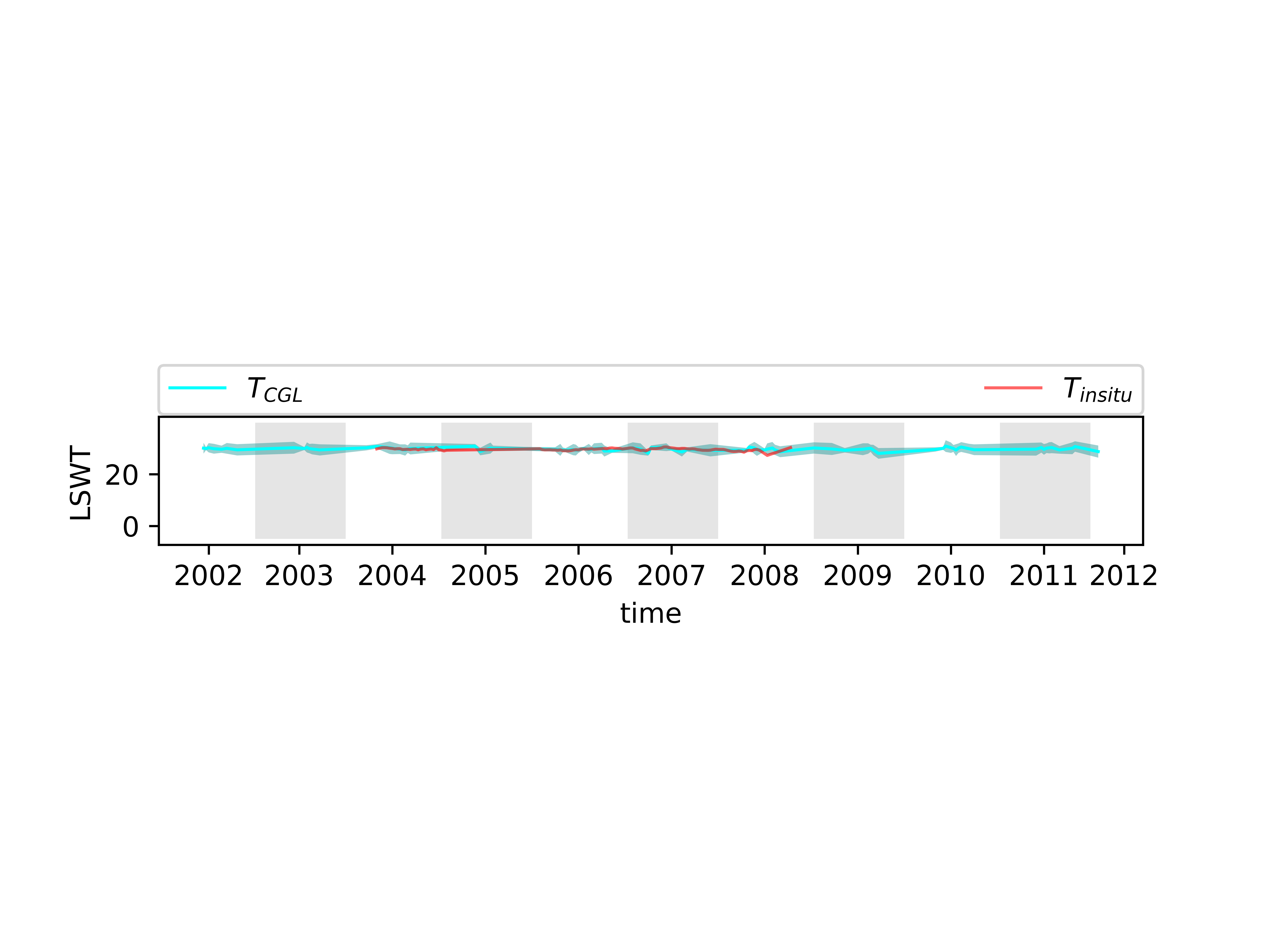

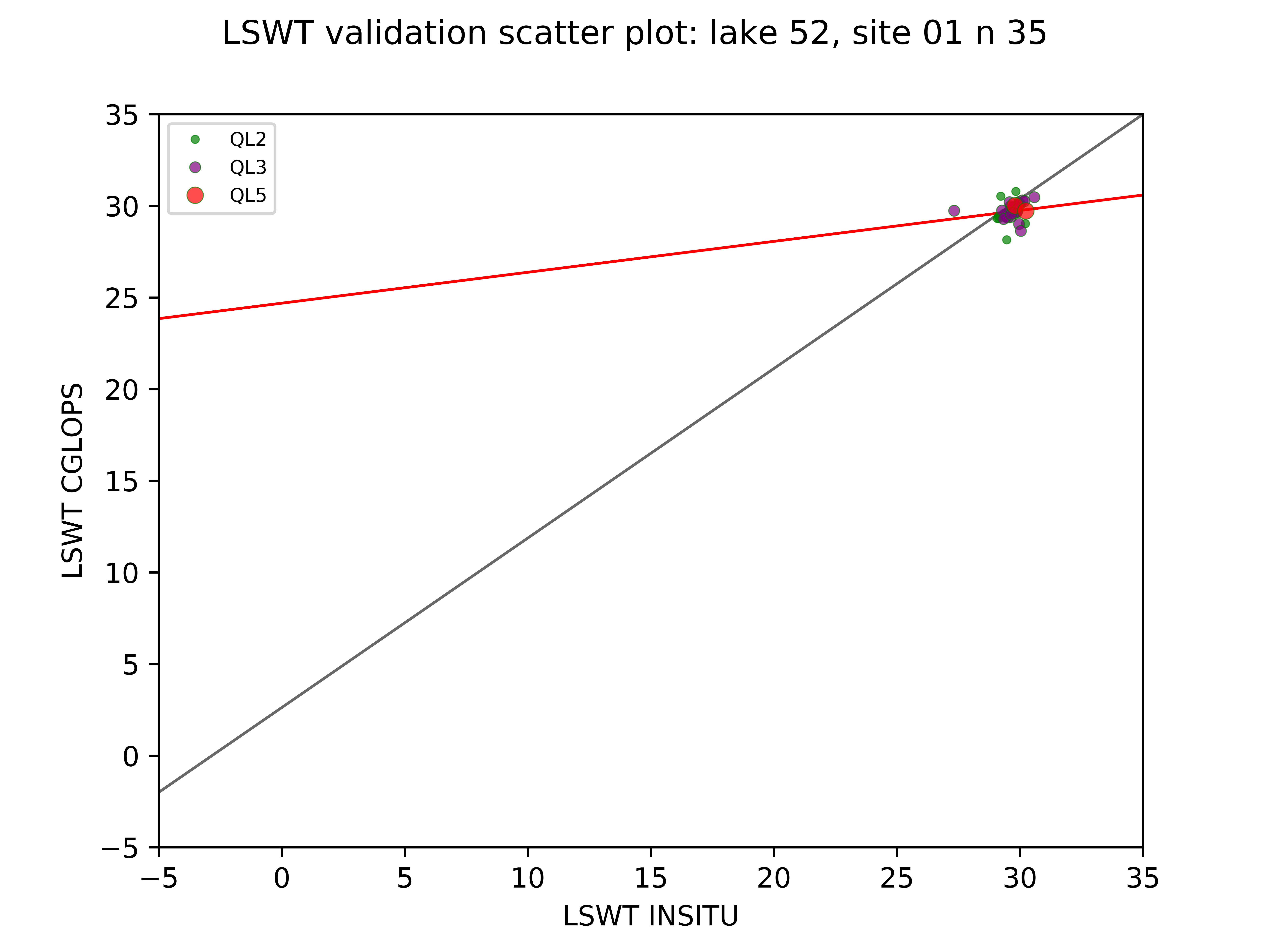

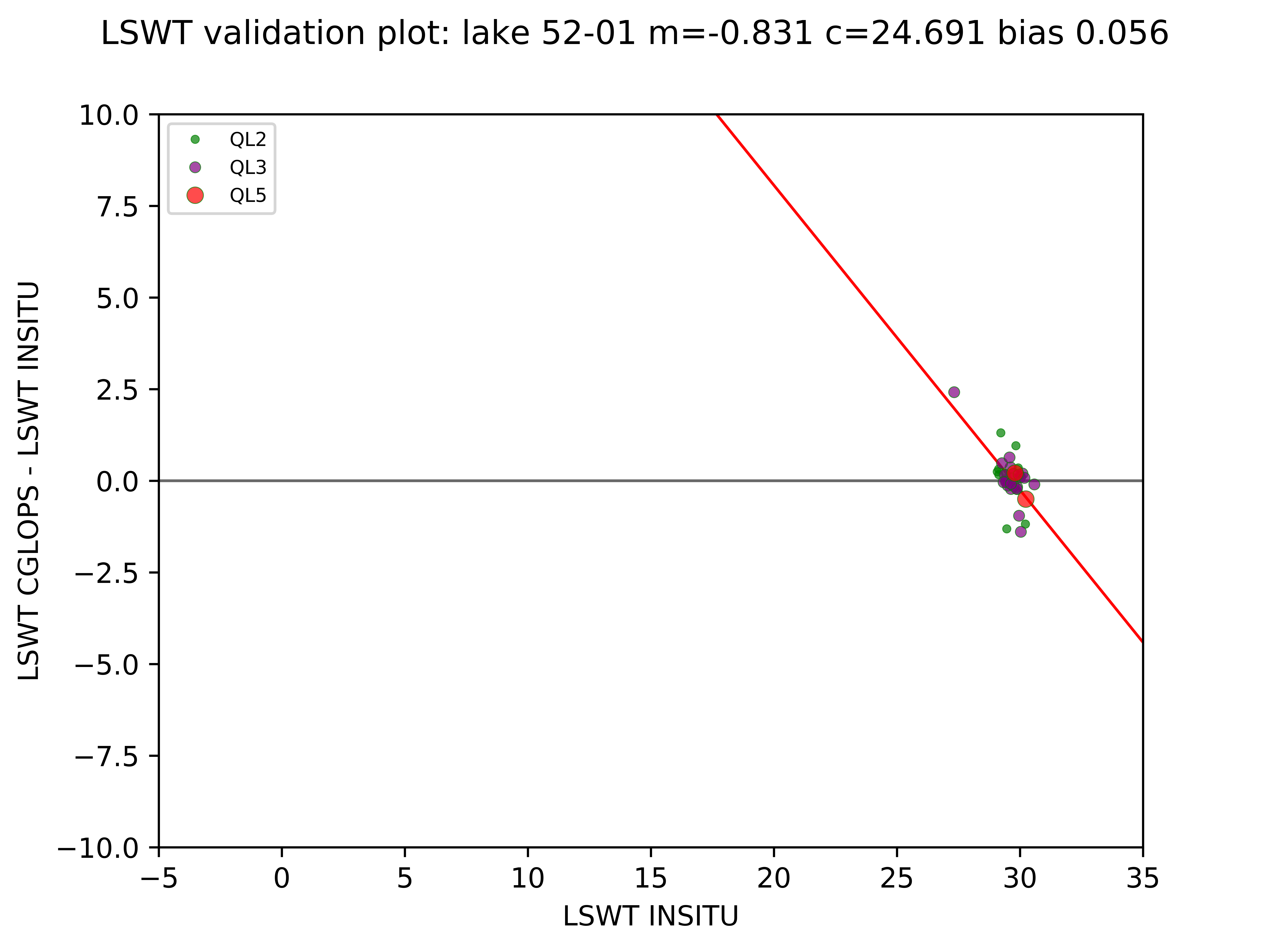

52	Tucurui/Brazil	000052_01	-3.86	-49.63						35	0.08	0.32618	0.0557	0.6794

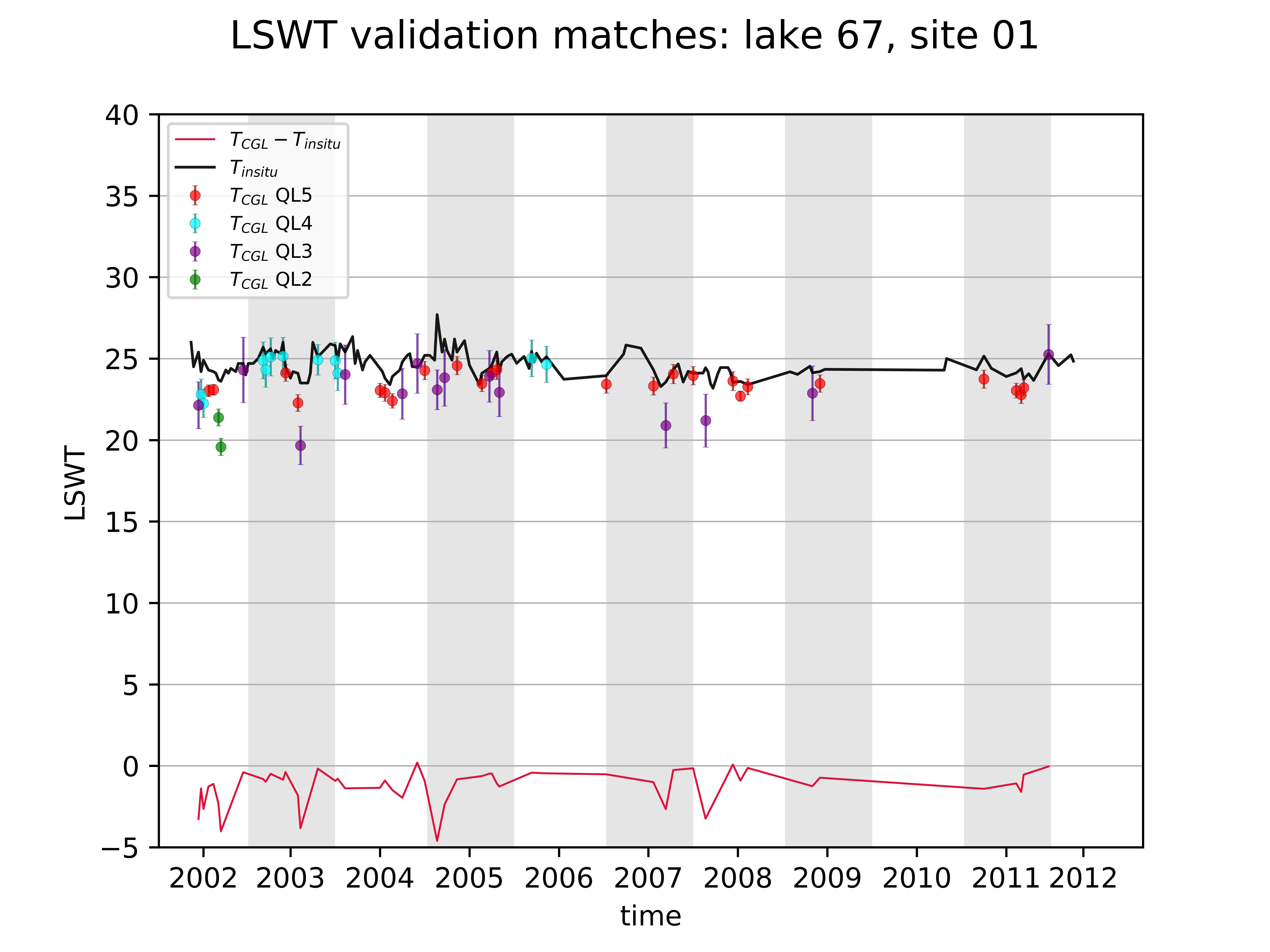

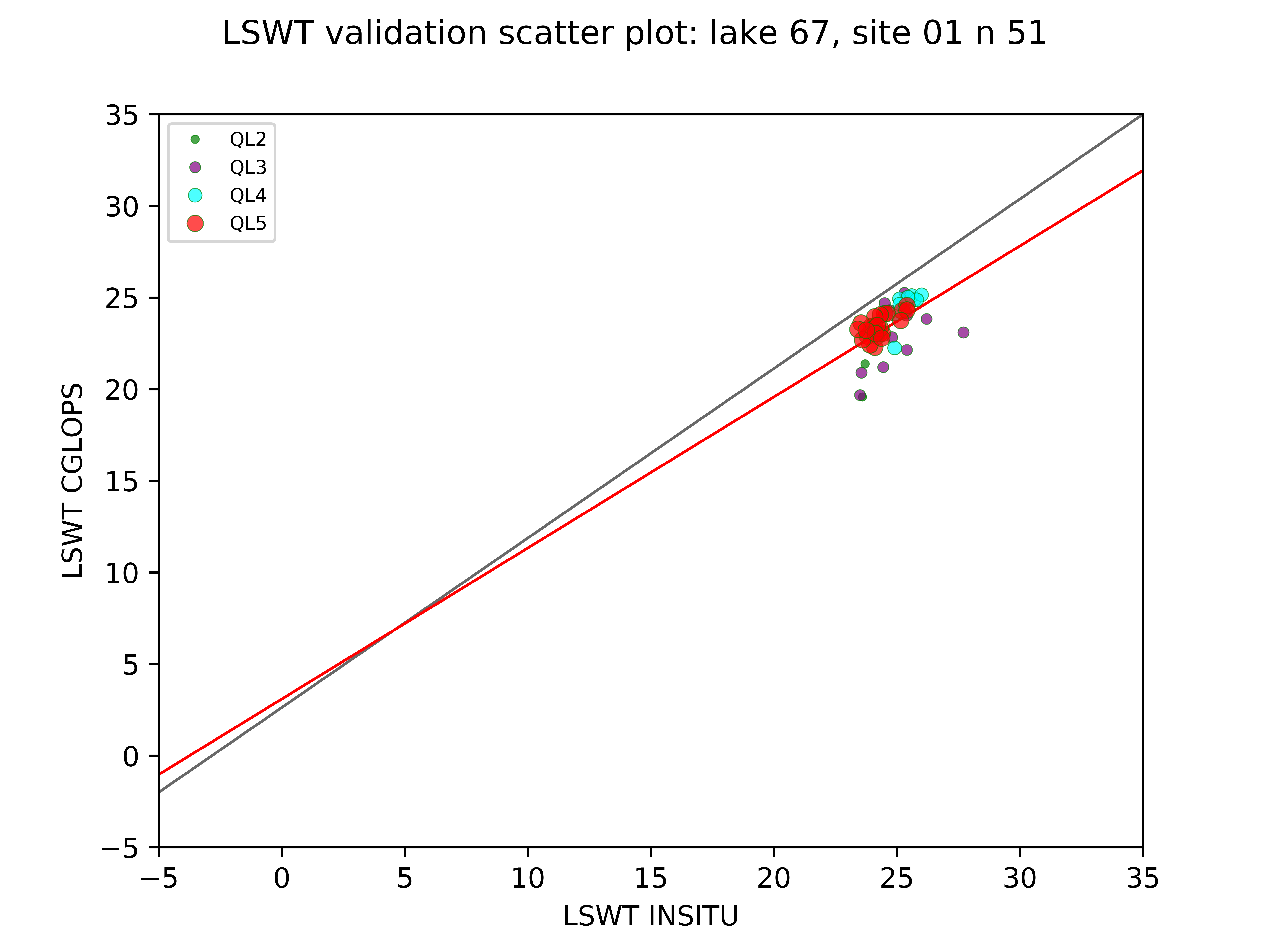

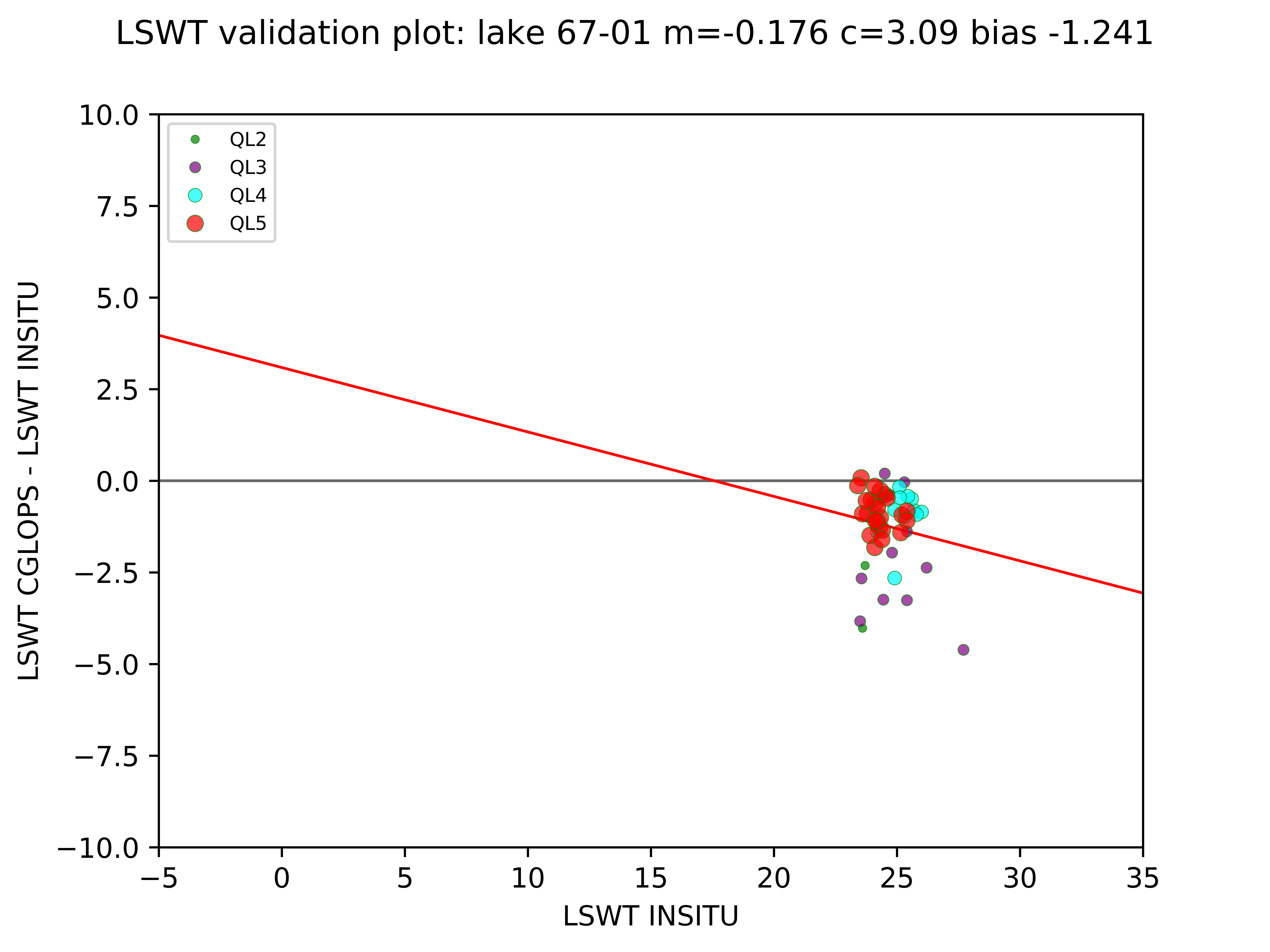

67	Kivu/Zaire	000067_01	-2.34	28.977						51	-0.93	0.68202	-1.2412	1.0725

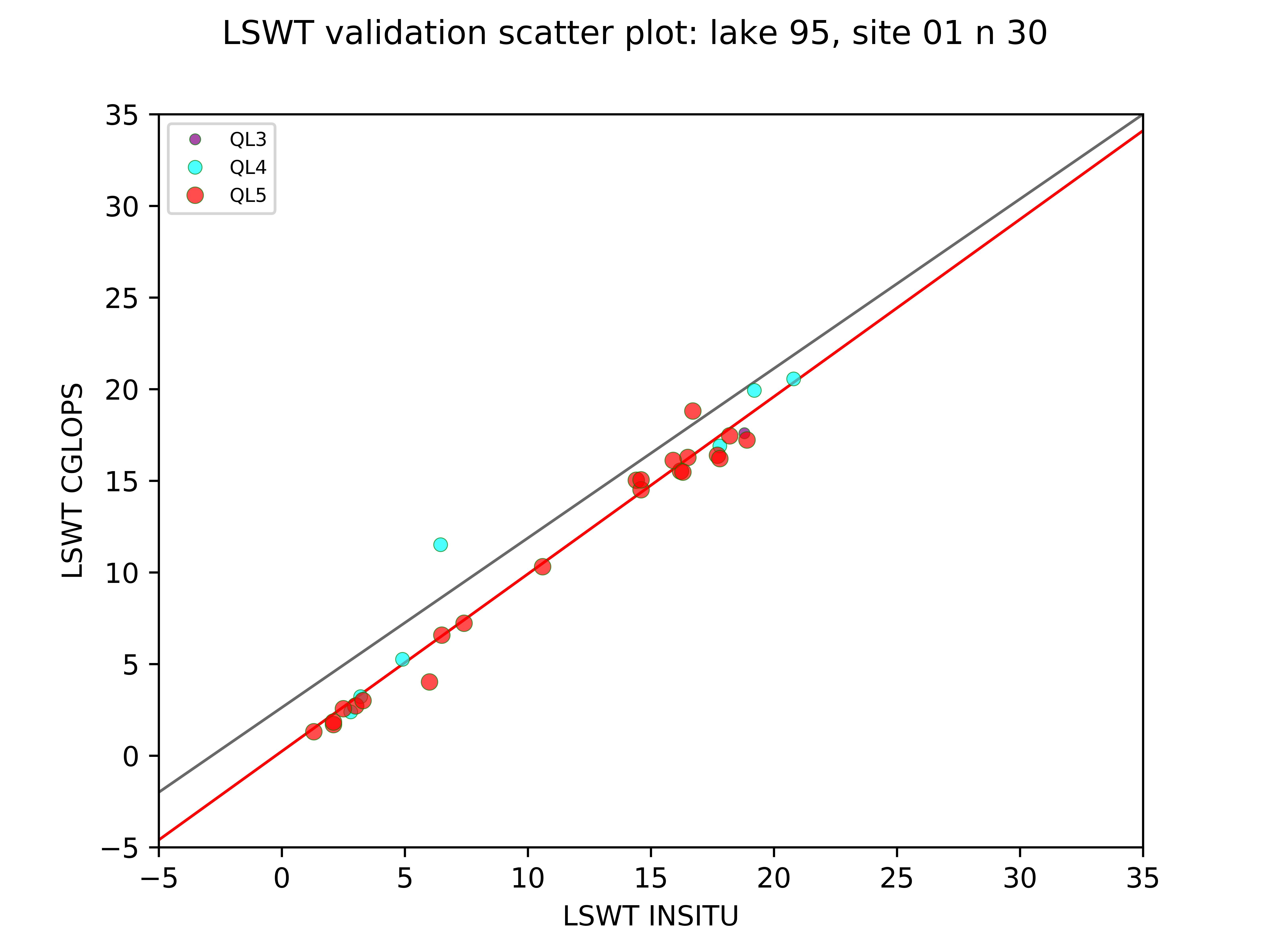

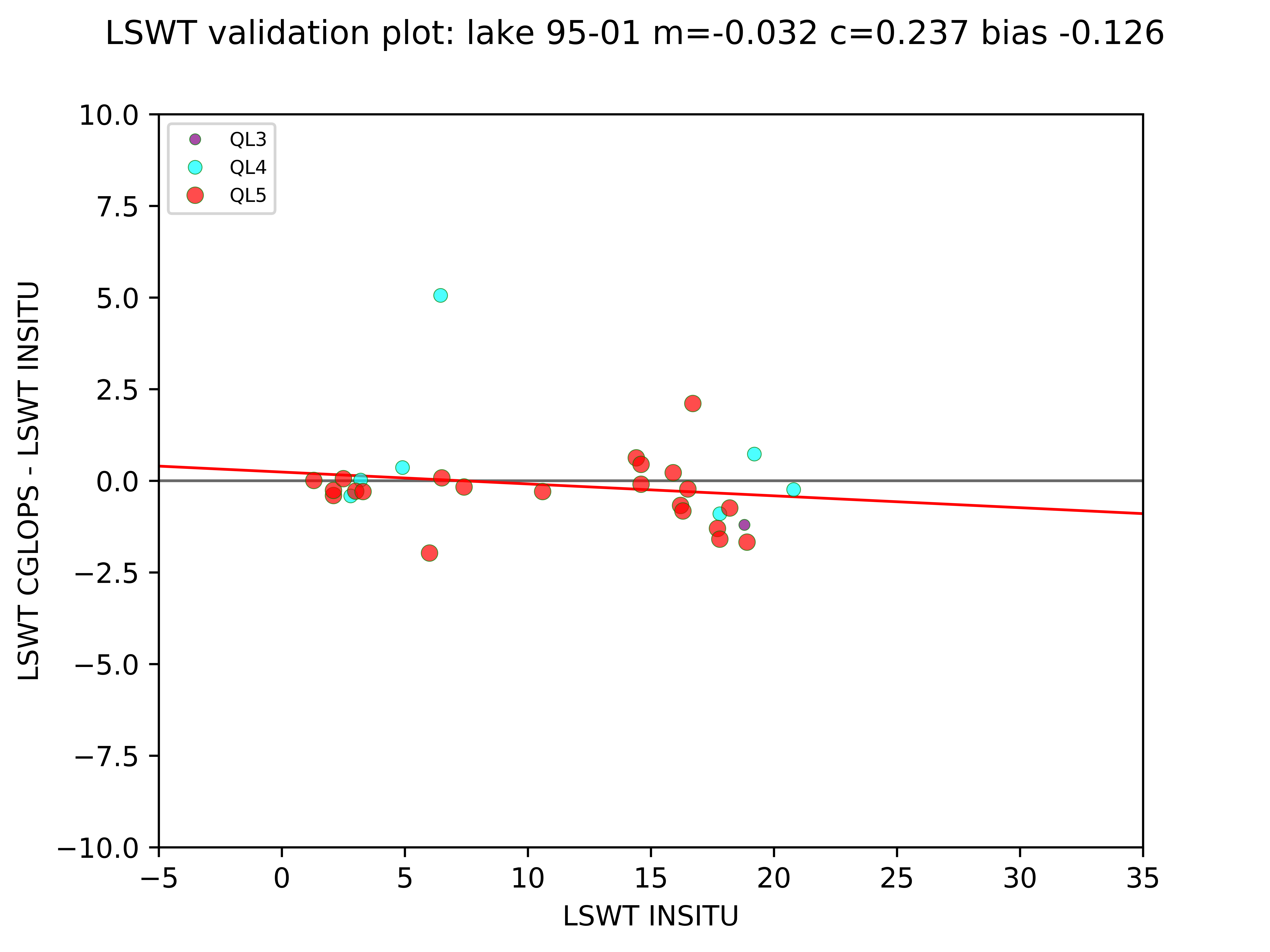

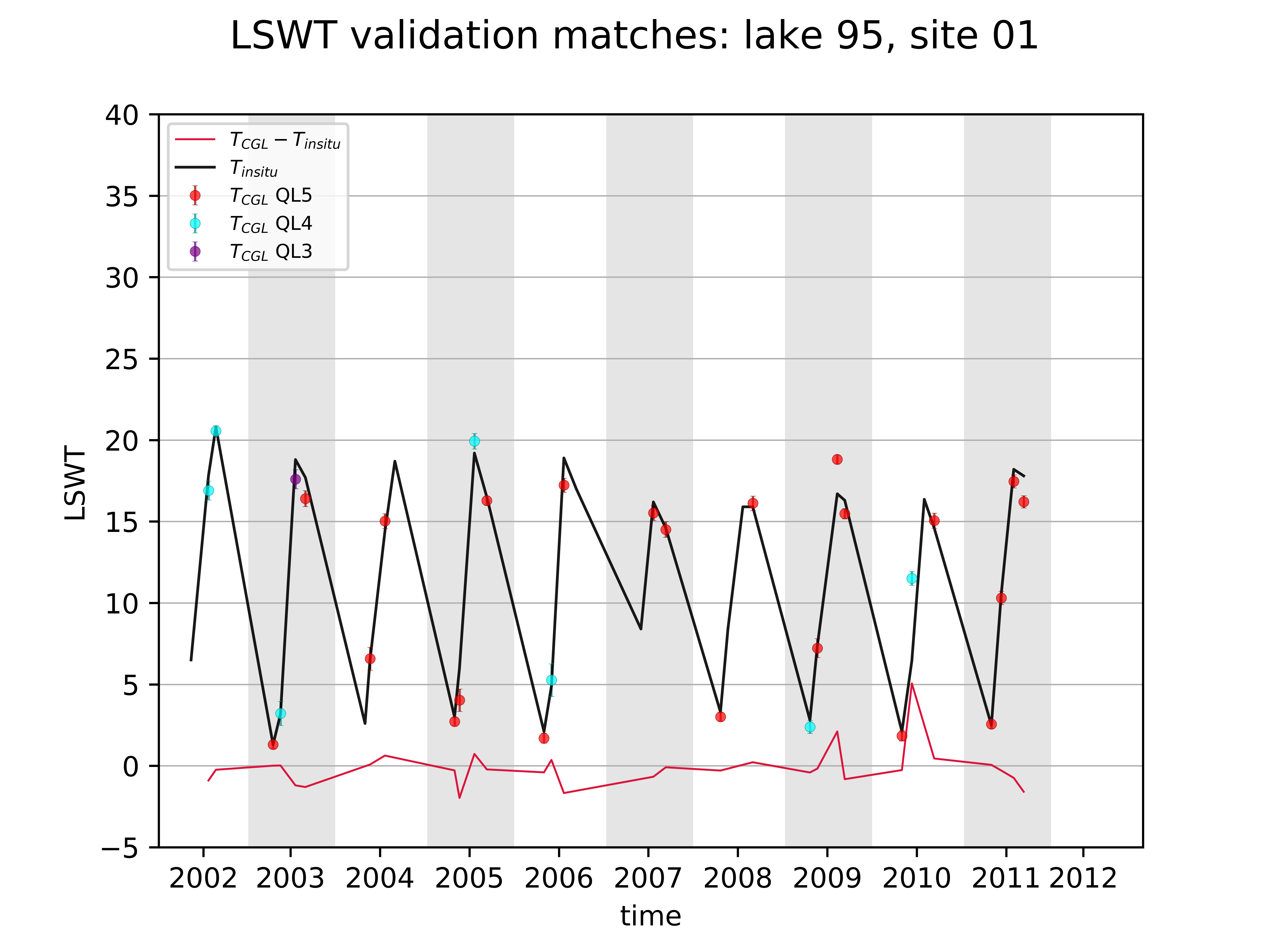

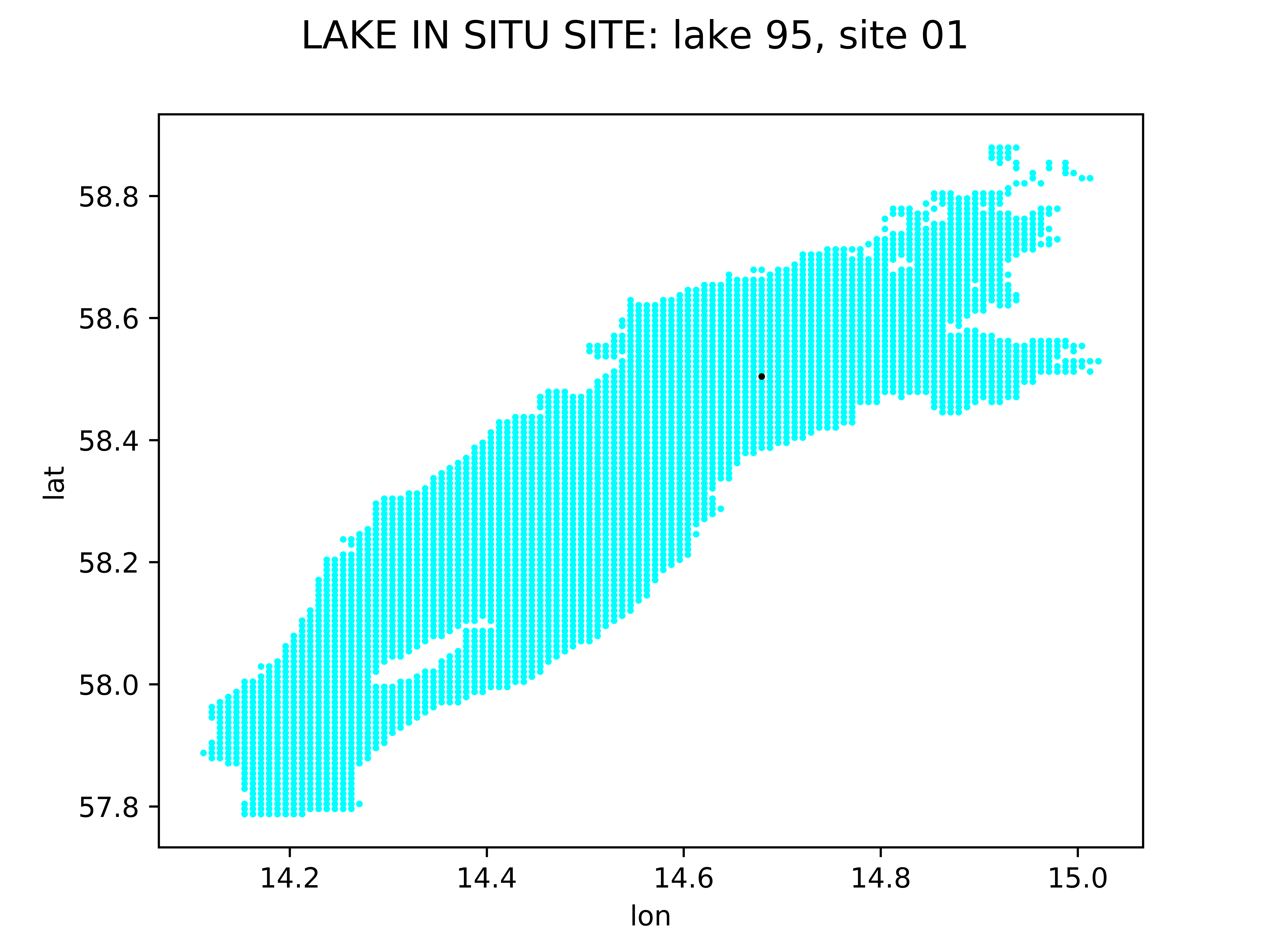

95	Vattern/Sweden	000095_01	58.501	14.678						30	-0.25	0.65976	-0.126	1.2449

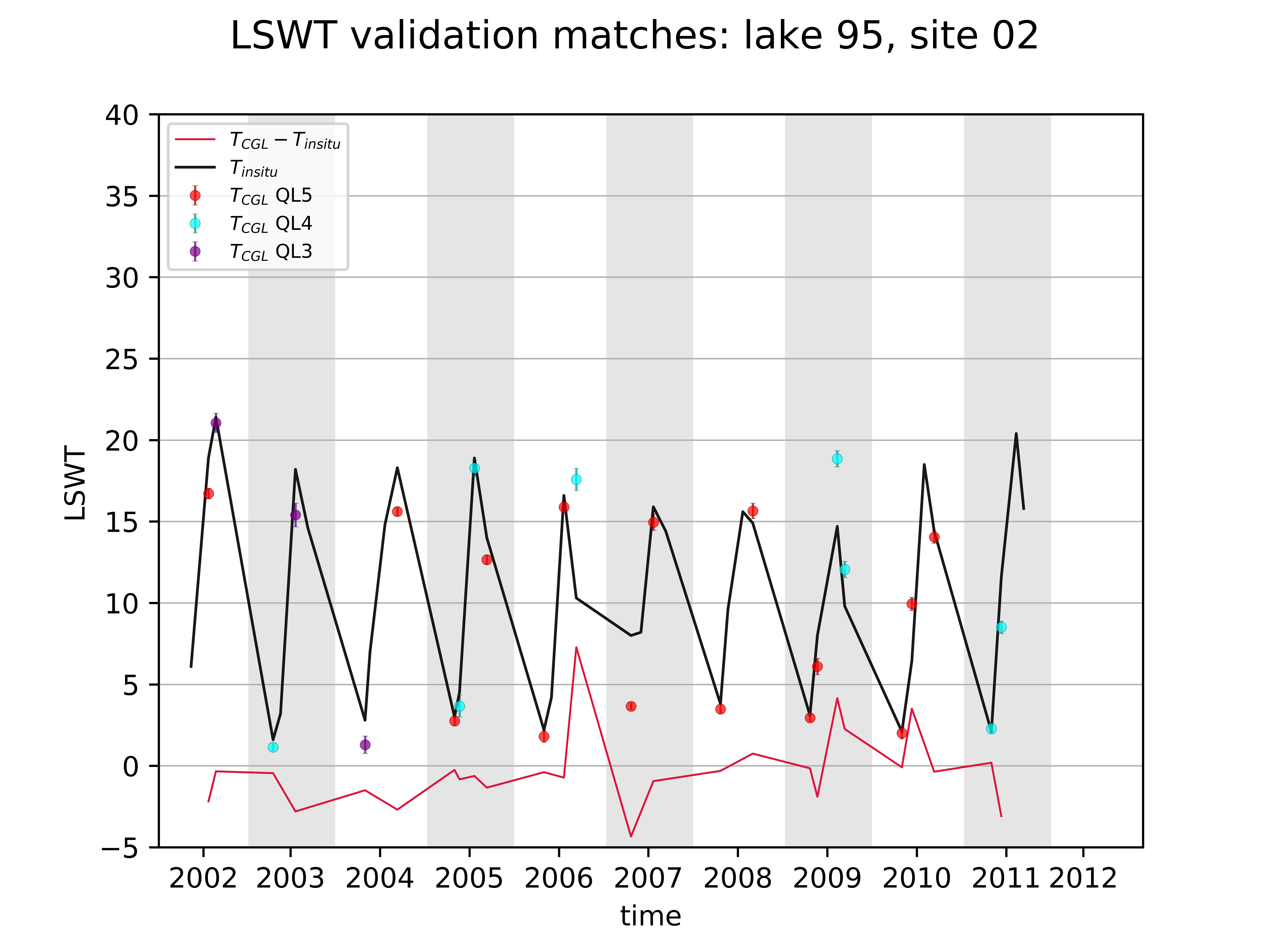

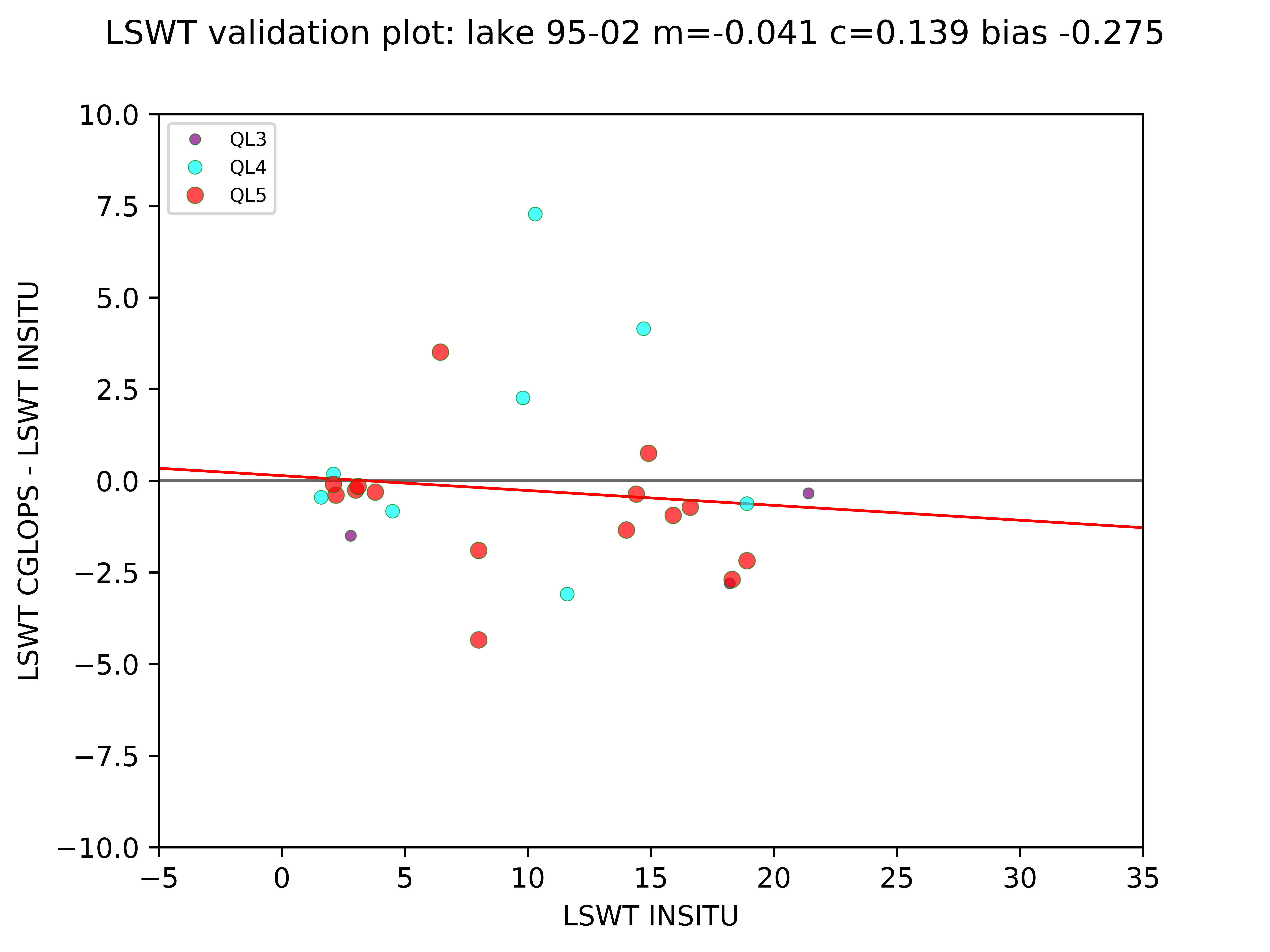

		000095_02	57.908	14.229						26	-0.42	1.13419	-0.275	2.3649

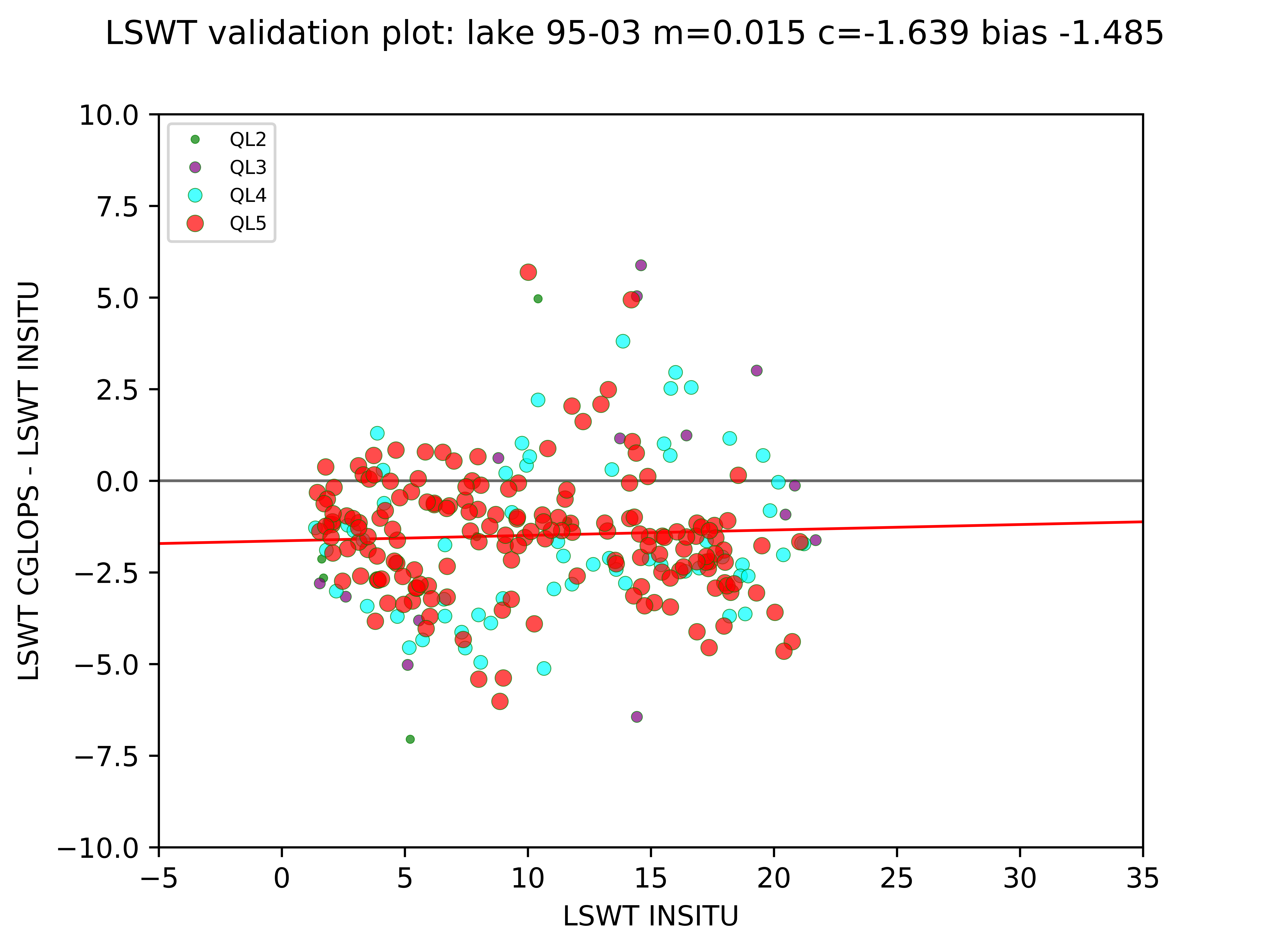

		000095_03	58.33	14.563						254	-1.57	1.5938	-1.4846	1.9678

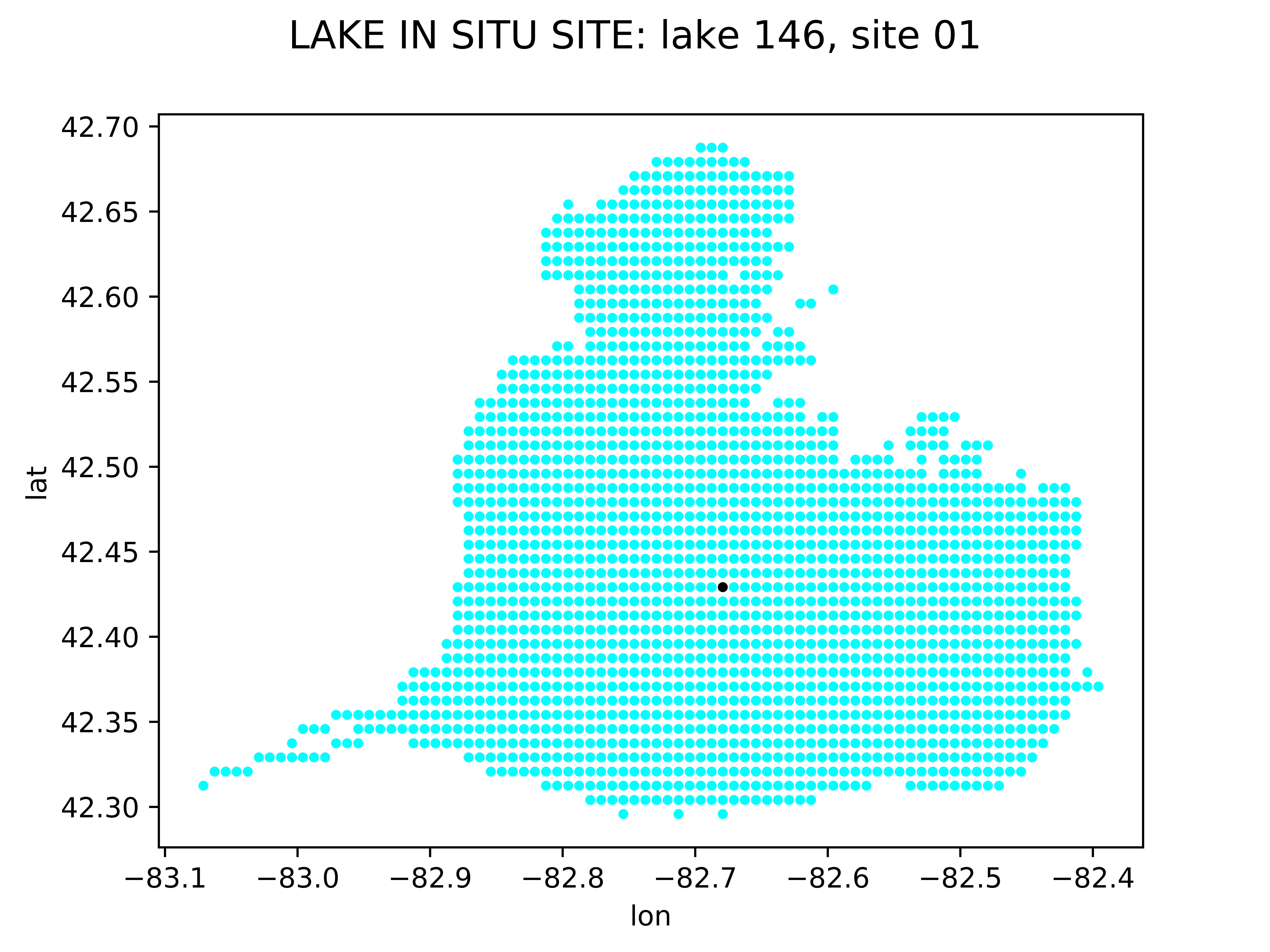

146	Saint Clair/Canada	000146_01	42.43	-82.68						138	-0.28	1.06005	-0.2196	1.2816

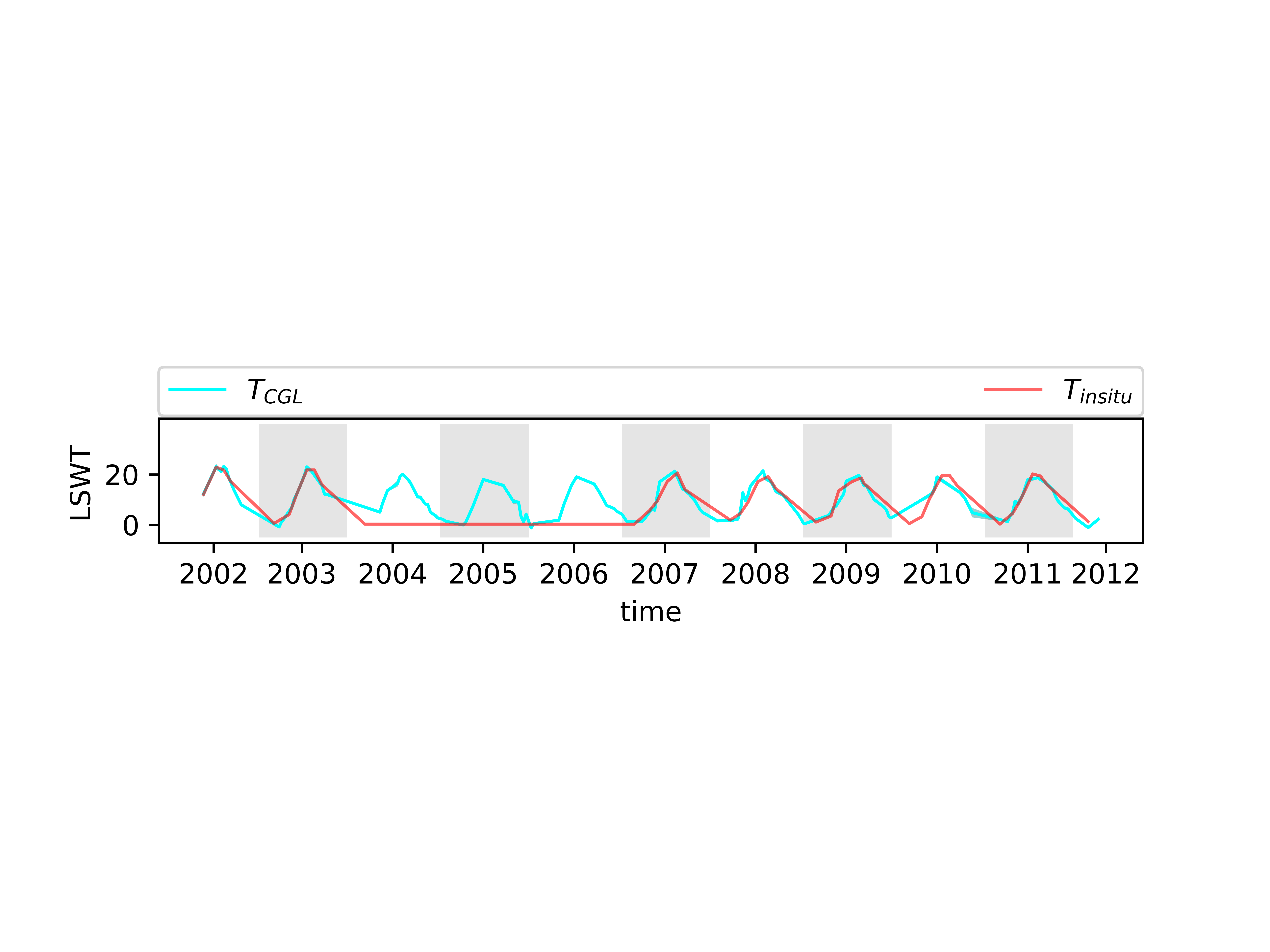

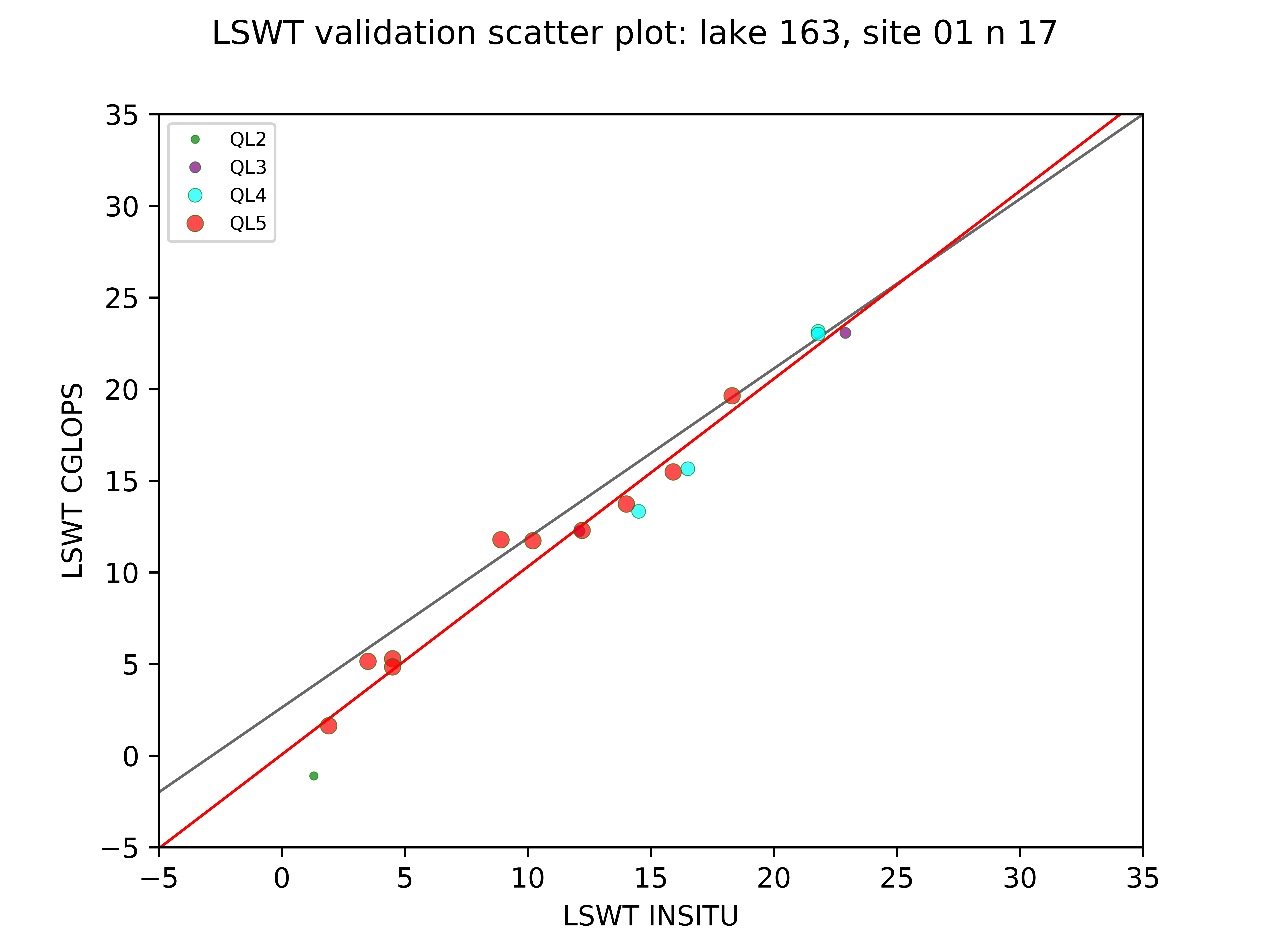

163	Malaren/Sweden	000163_01	59.29	17.523						17	0.17	1.49743	0.3635	1.2184

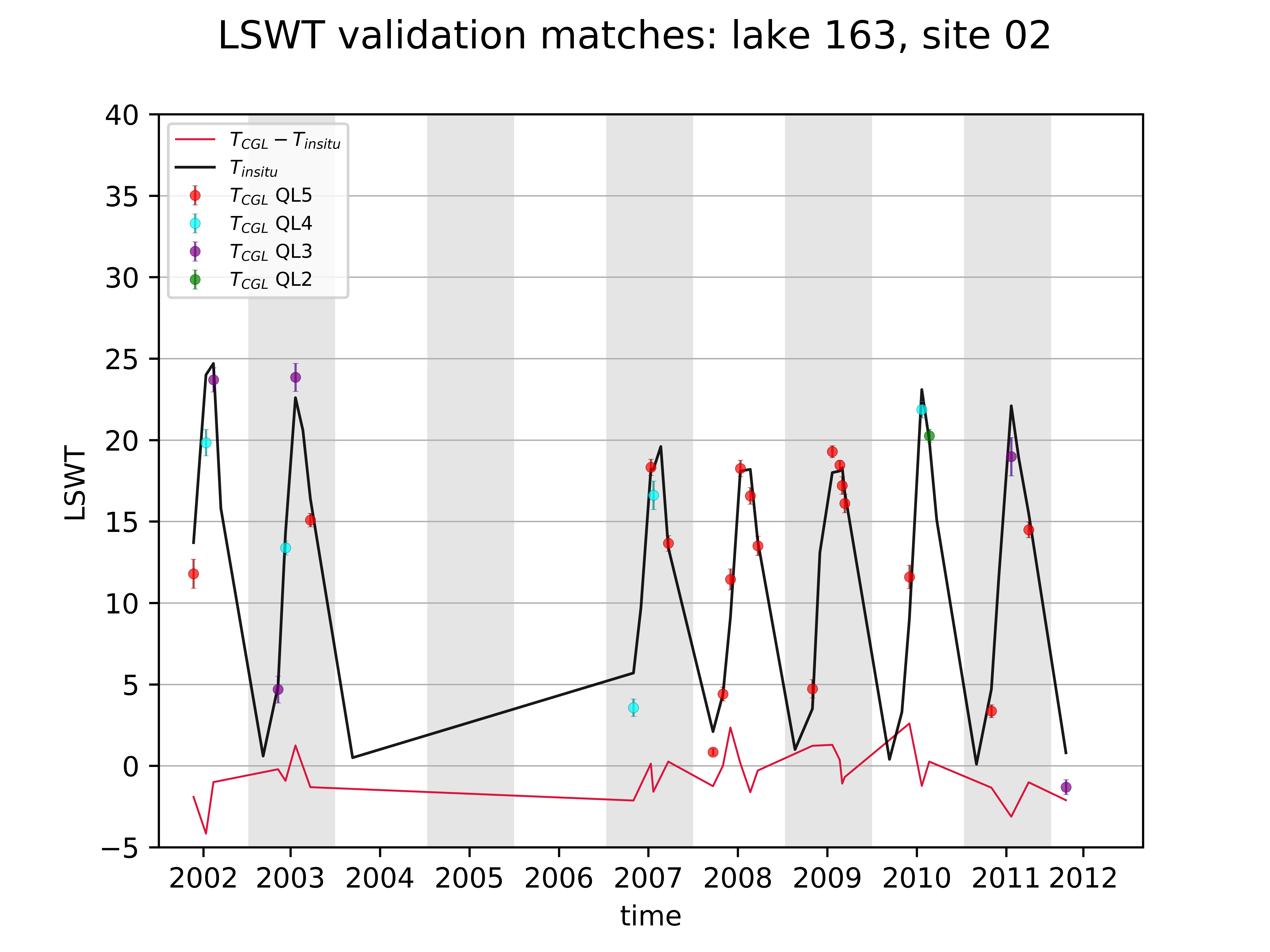

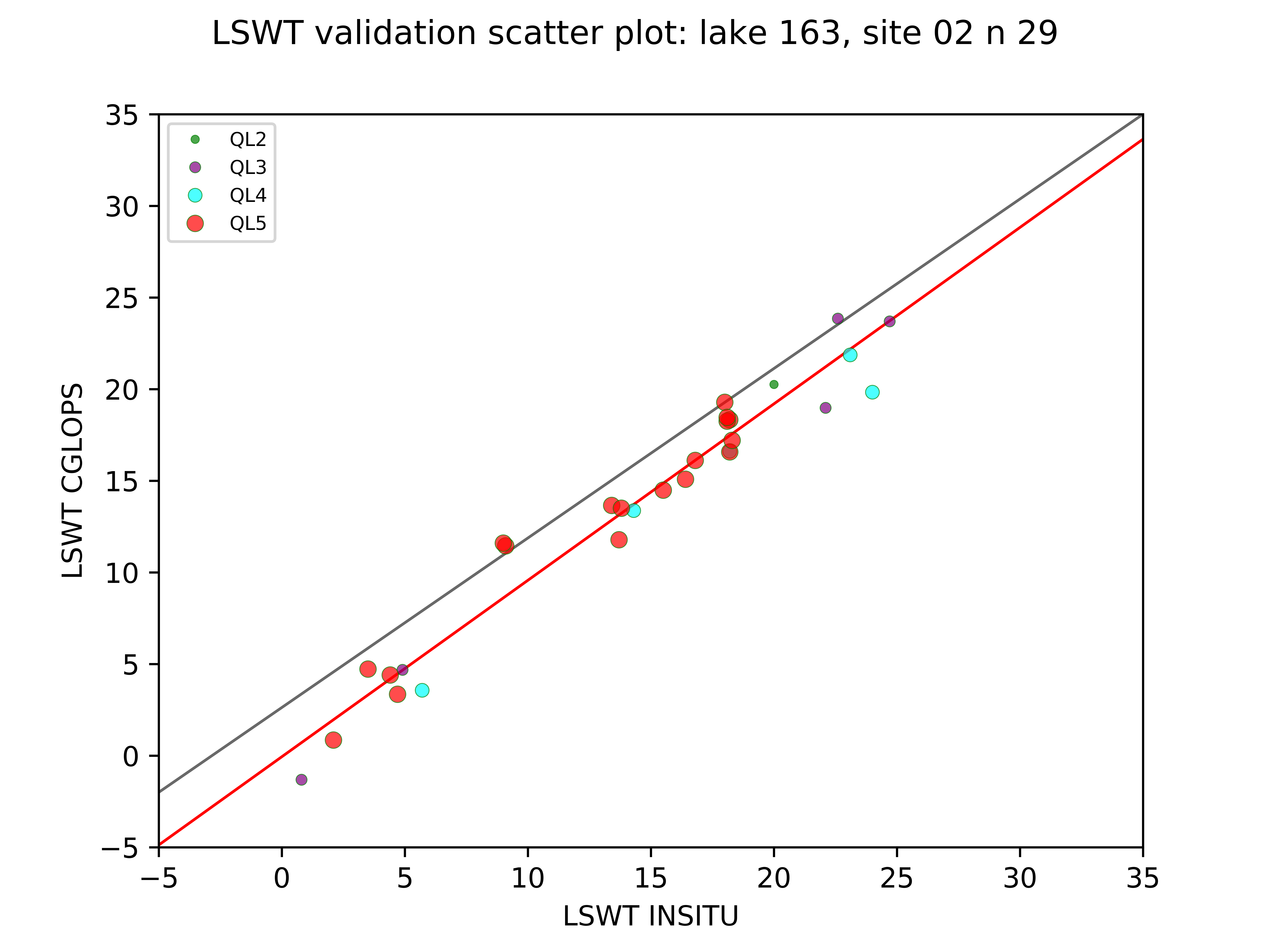

		000163_02	59.427	17.43						29	-0.92	1.46777	-0.589	1.4779

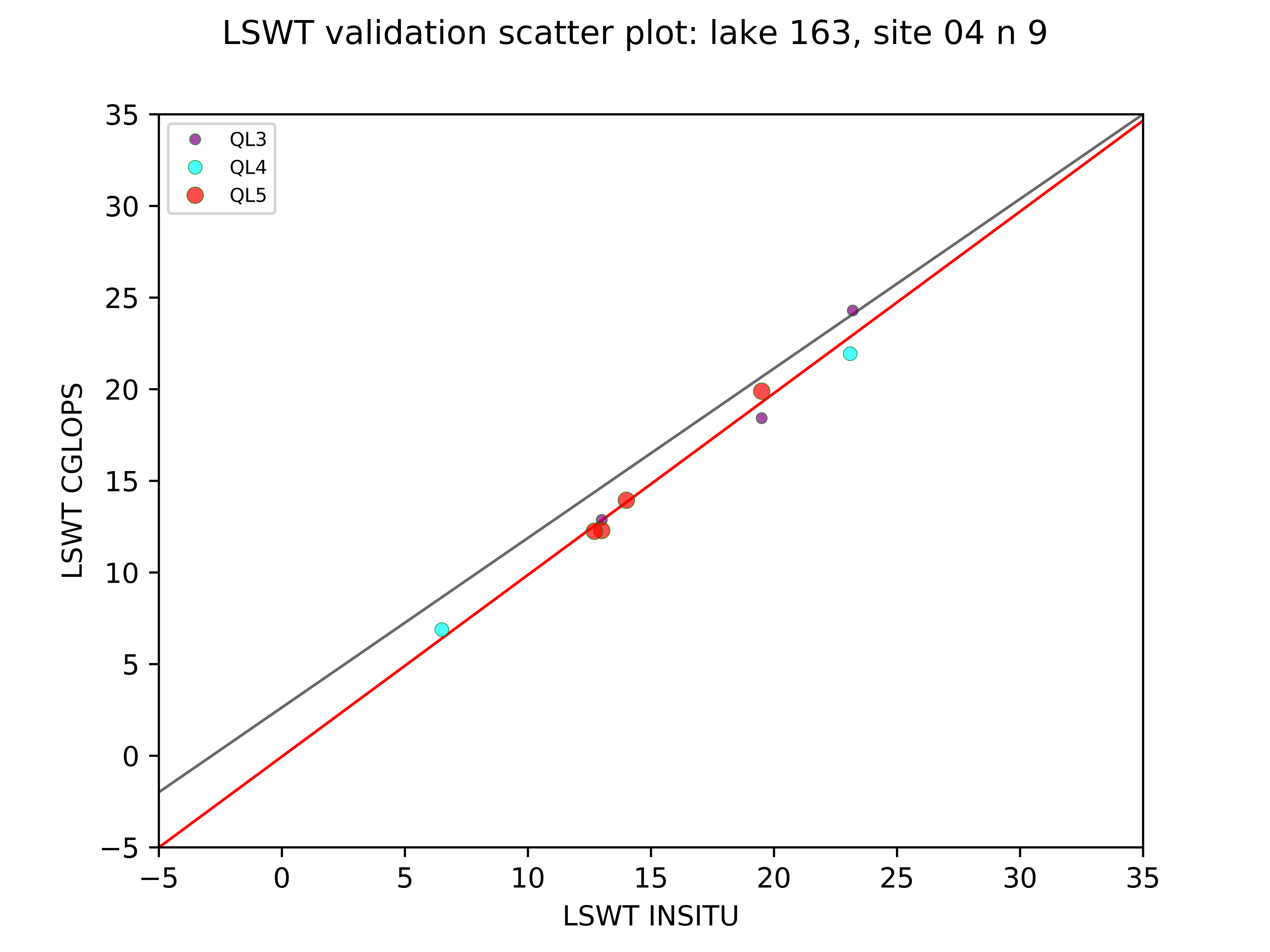

		000163_04	59.42	17.743						9	-0.13	0.77094	-0.1911	0.7005

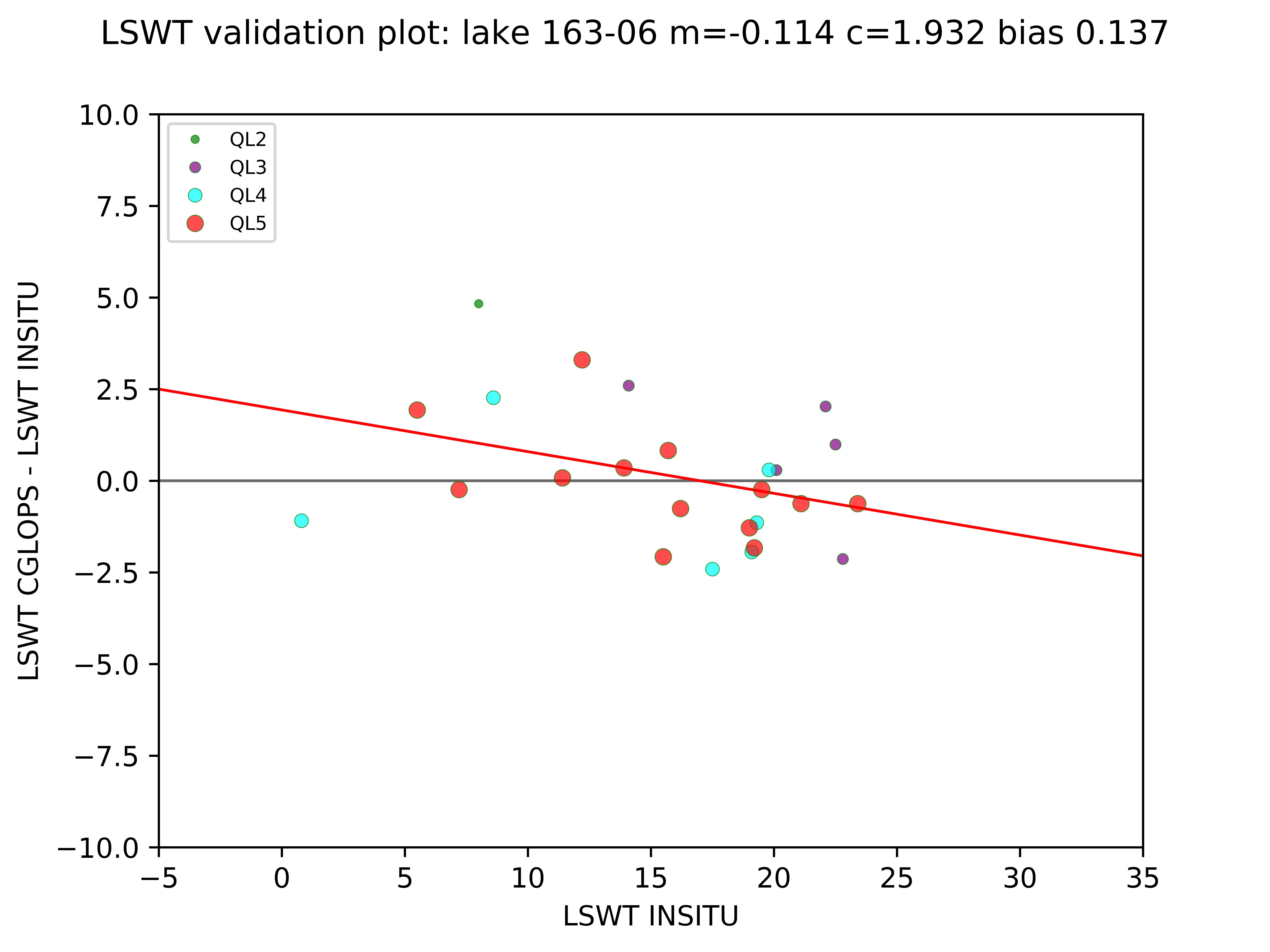

		000163_06	59.495	16.814						25	-0.24	1.58637	0.1372	1.82

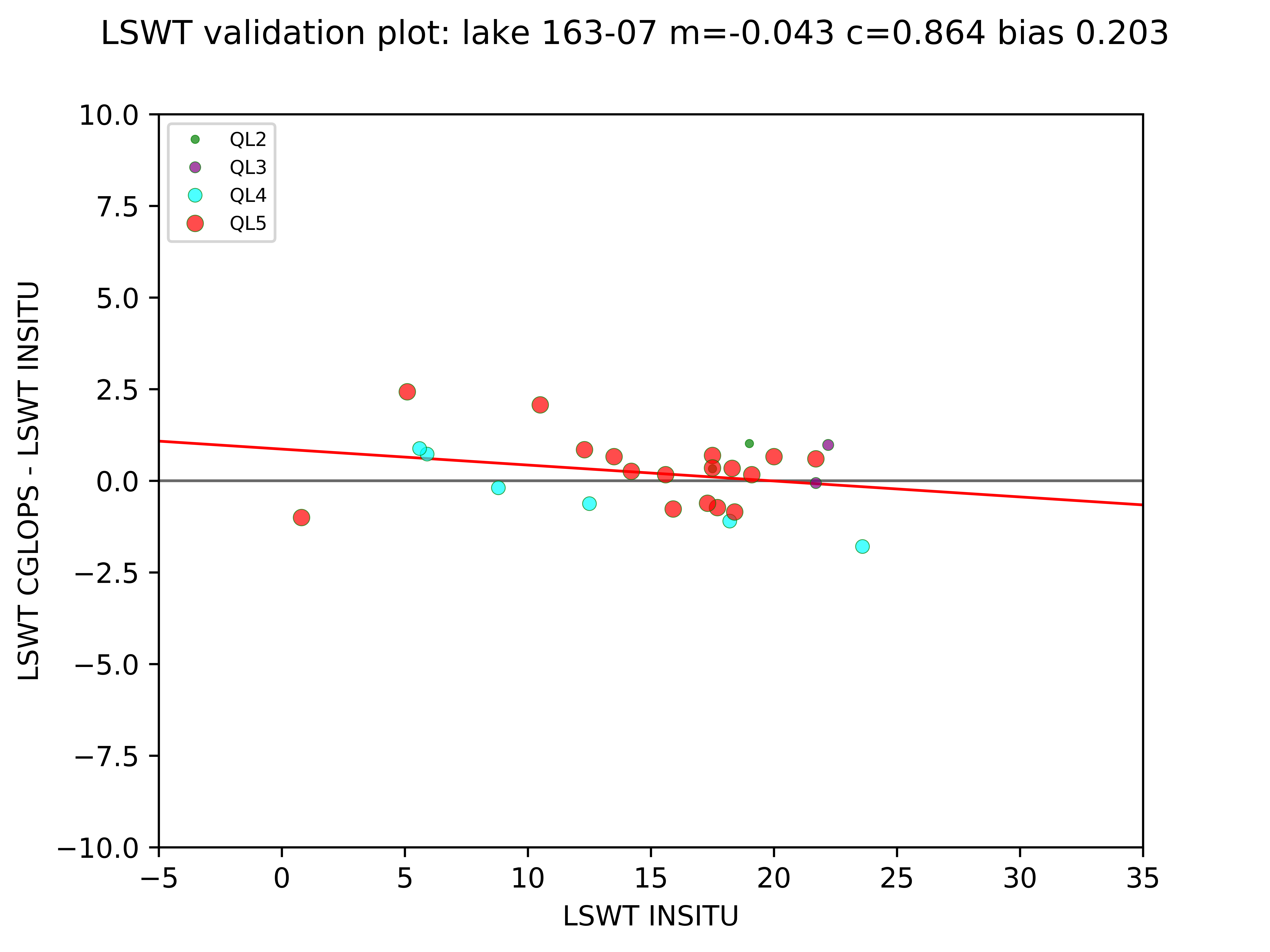

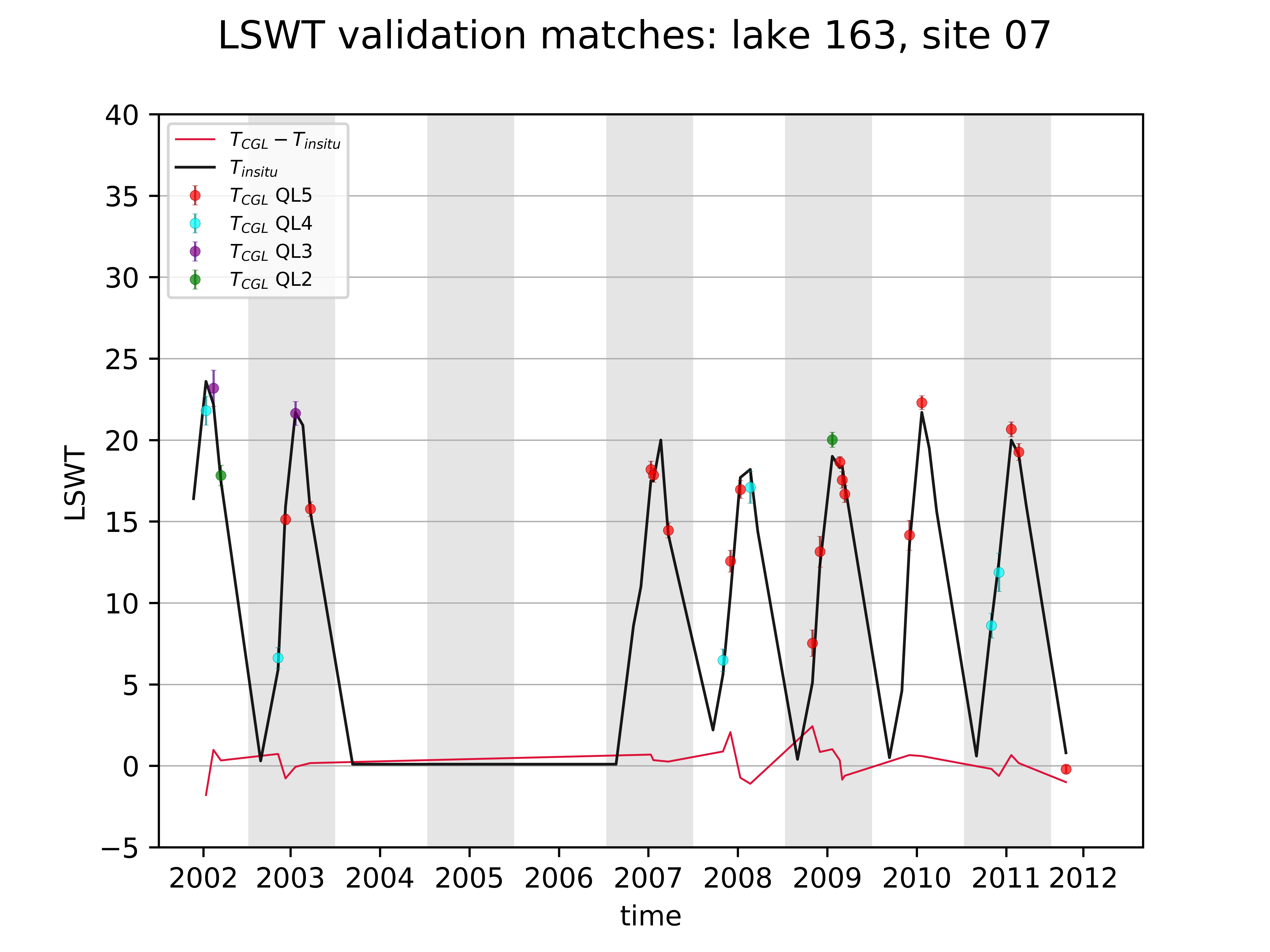

		000163_07	59.474	16.547						27	0.33	0.77096	0.2026	0.93

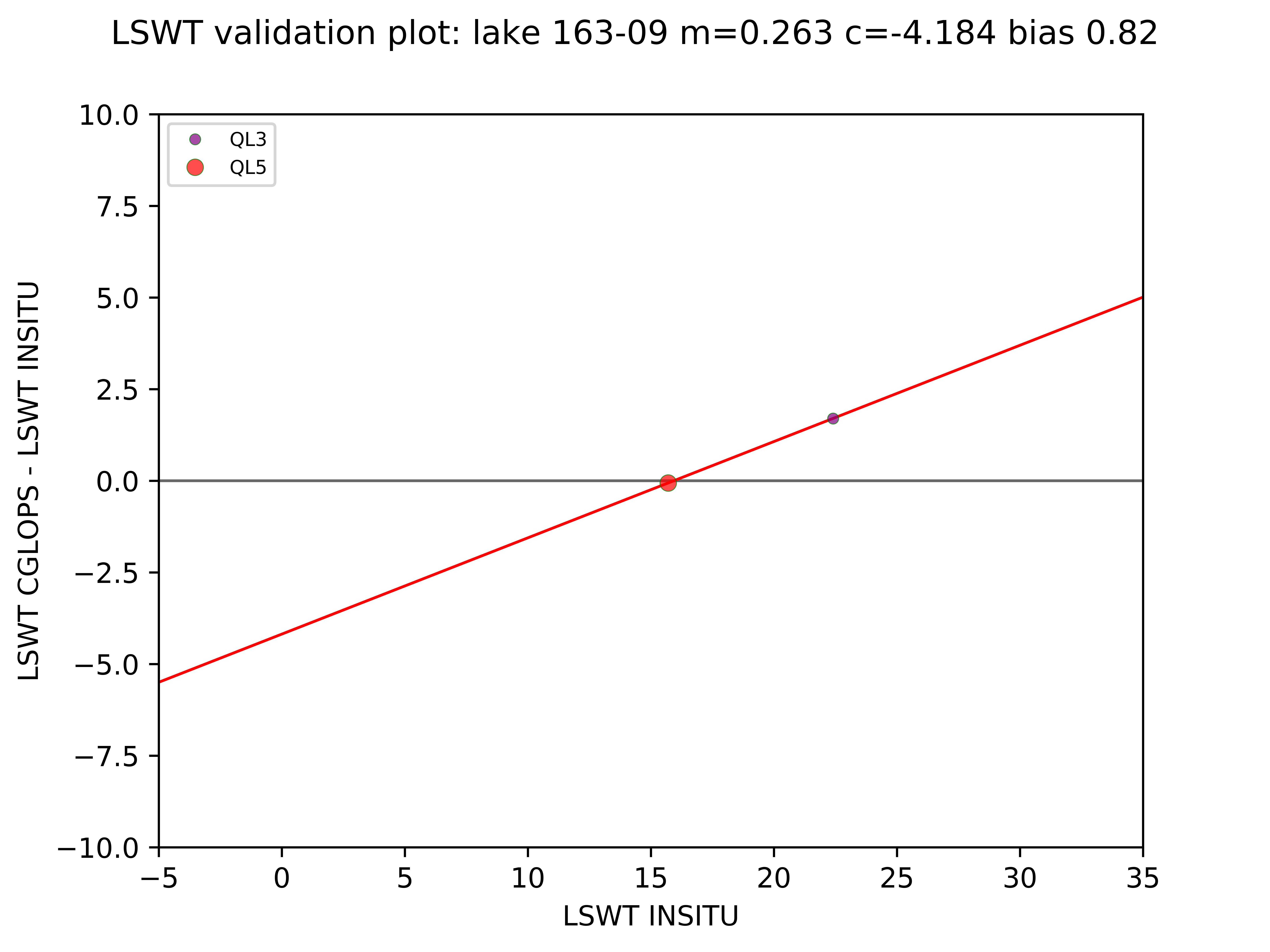

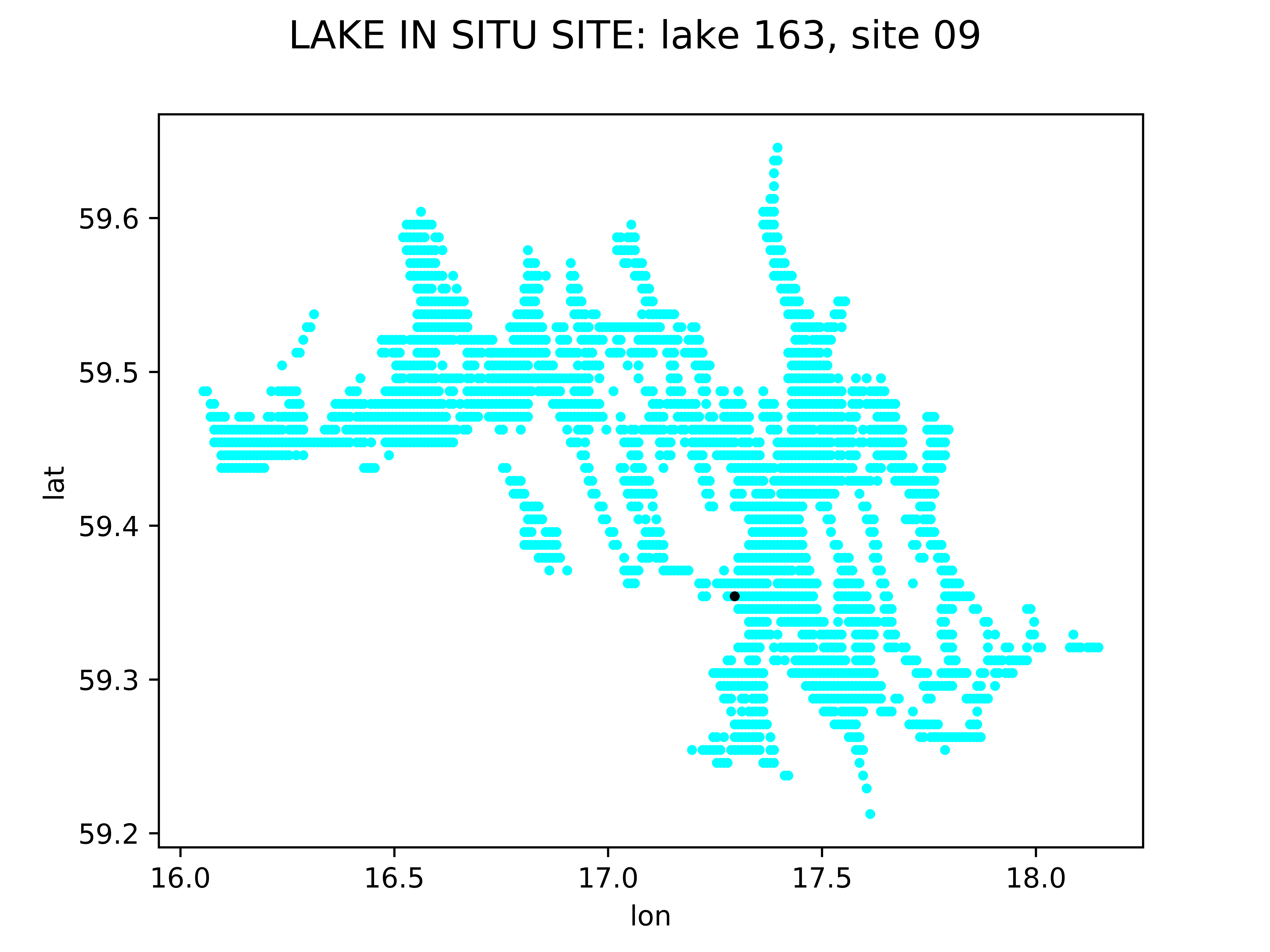

		000163_09	59.355	17.295						2	0.82	1.3047	0.82	0.88

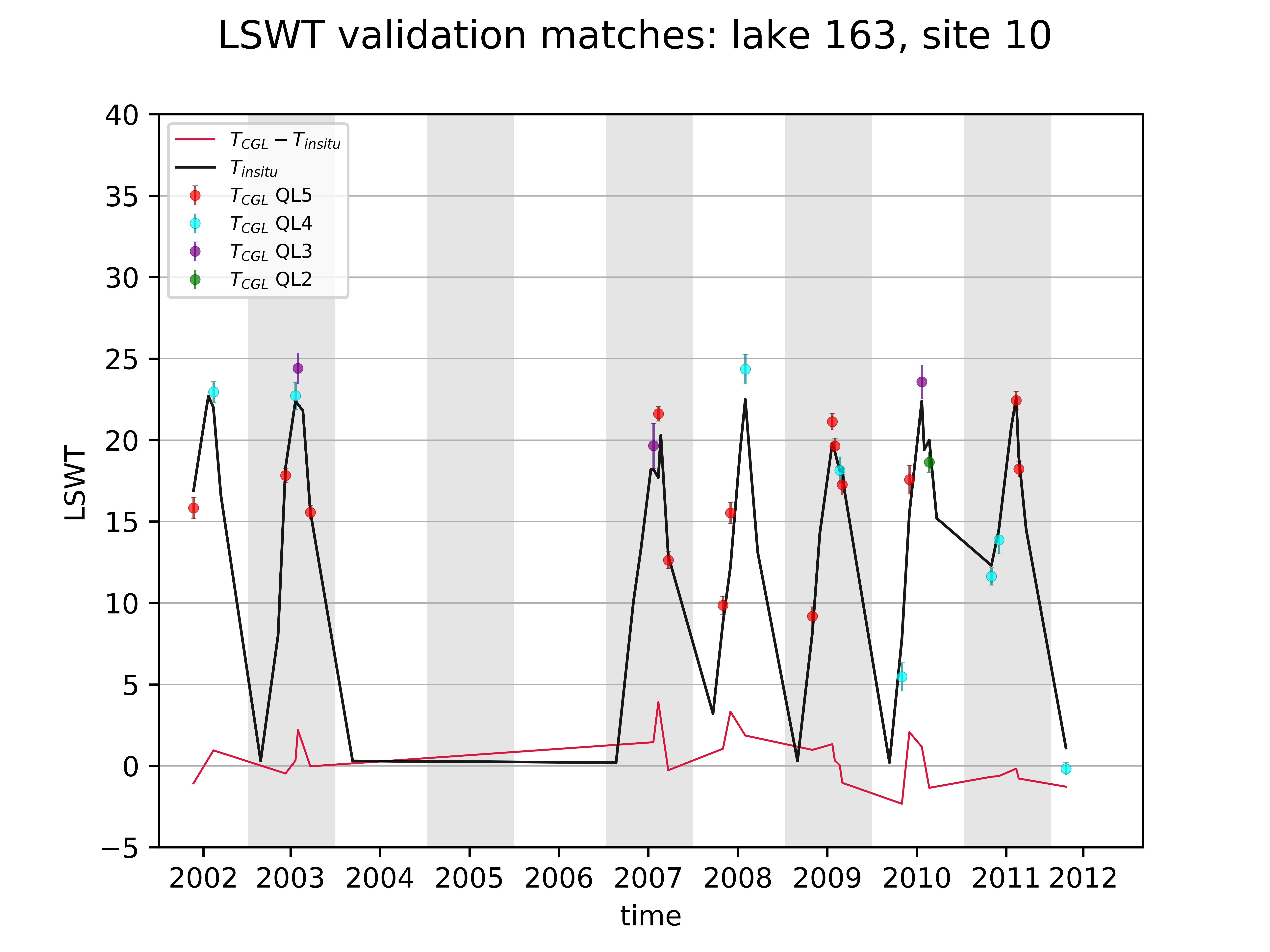

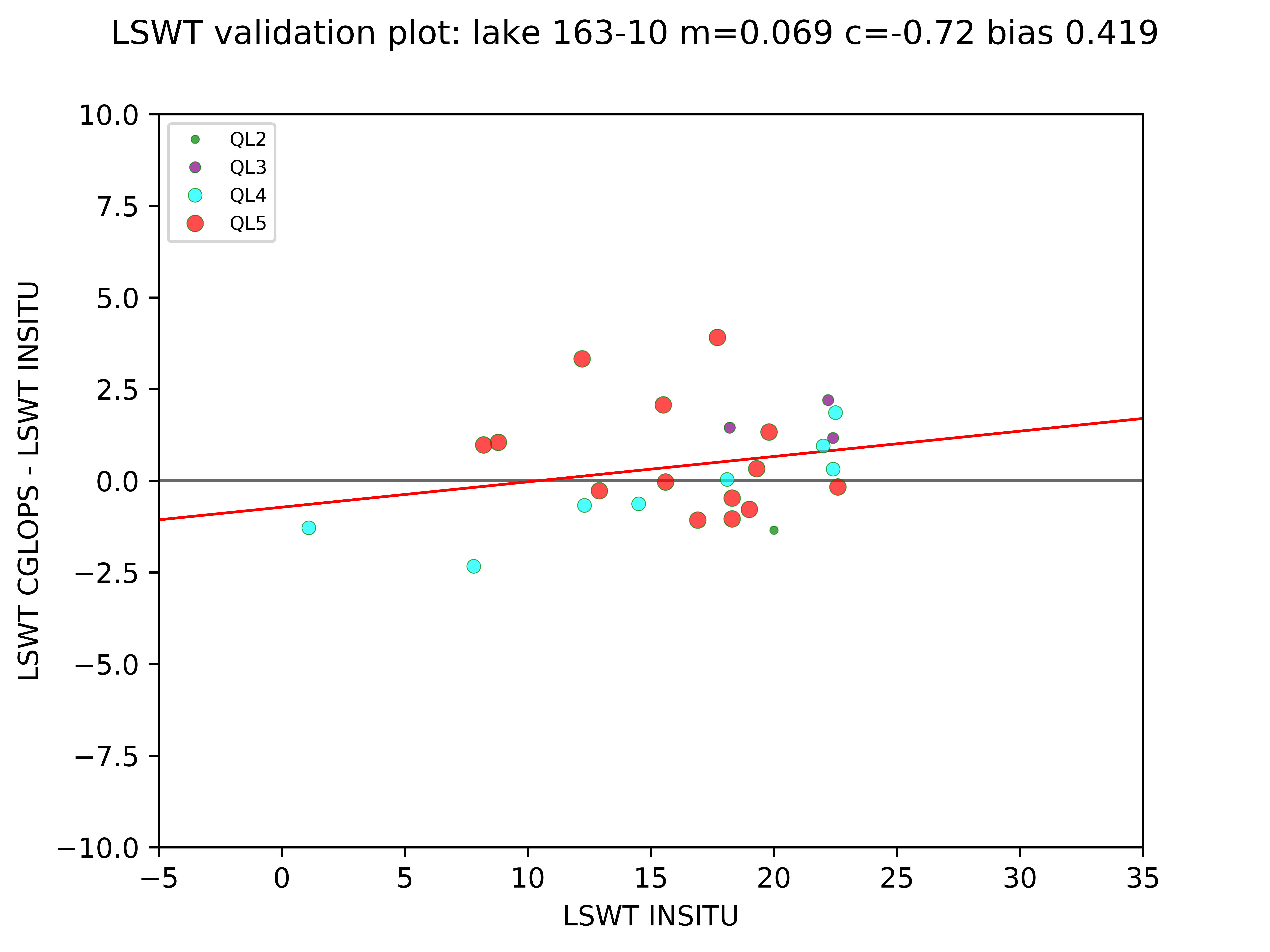

		000163_10	59.447	16.191						26	0.18	1.44554	0.4192	1.4637

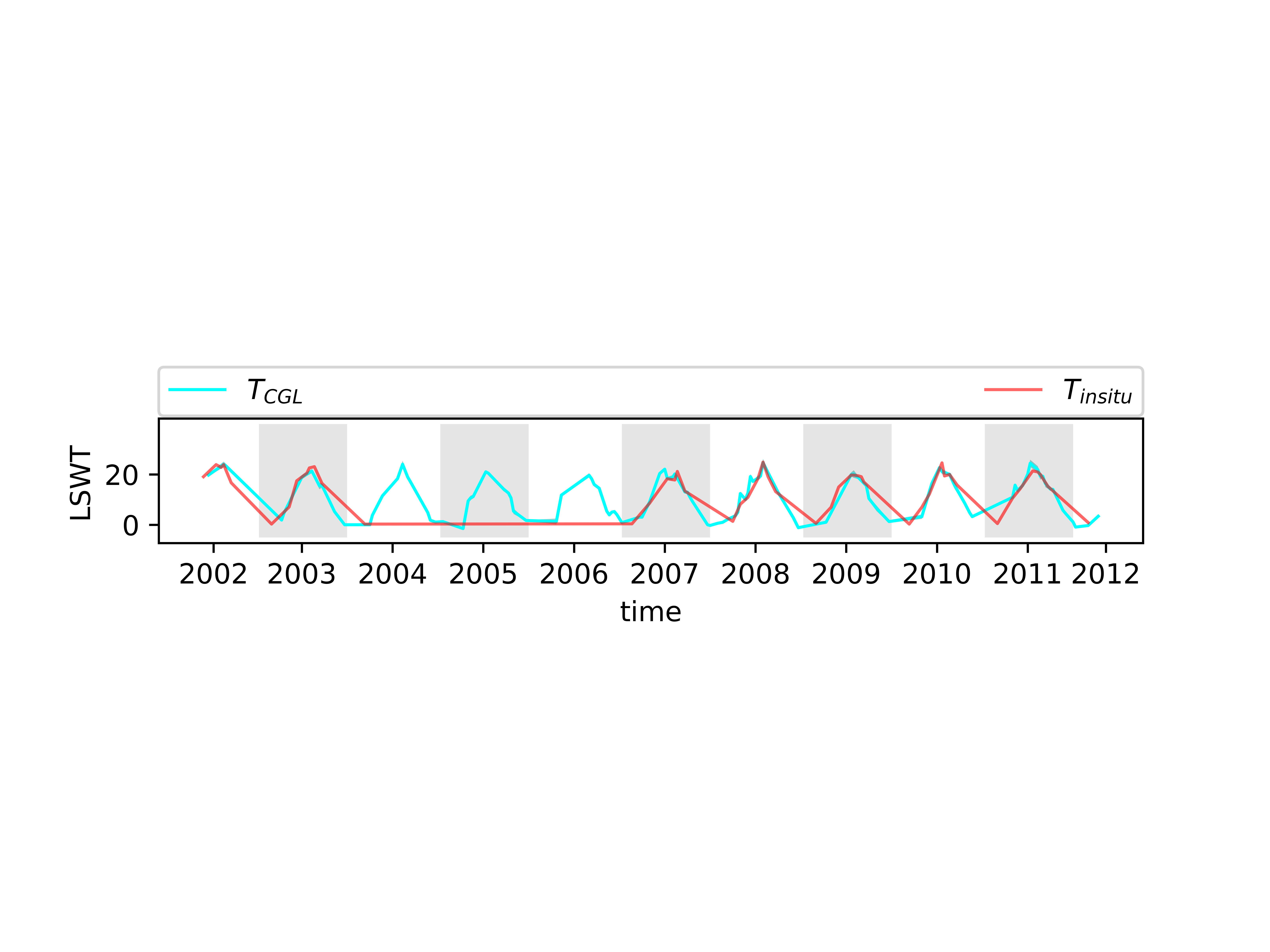

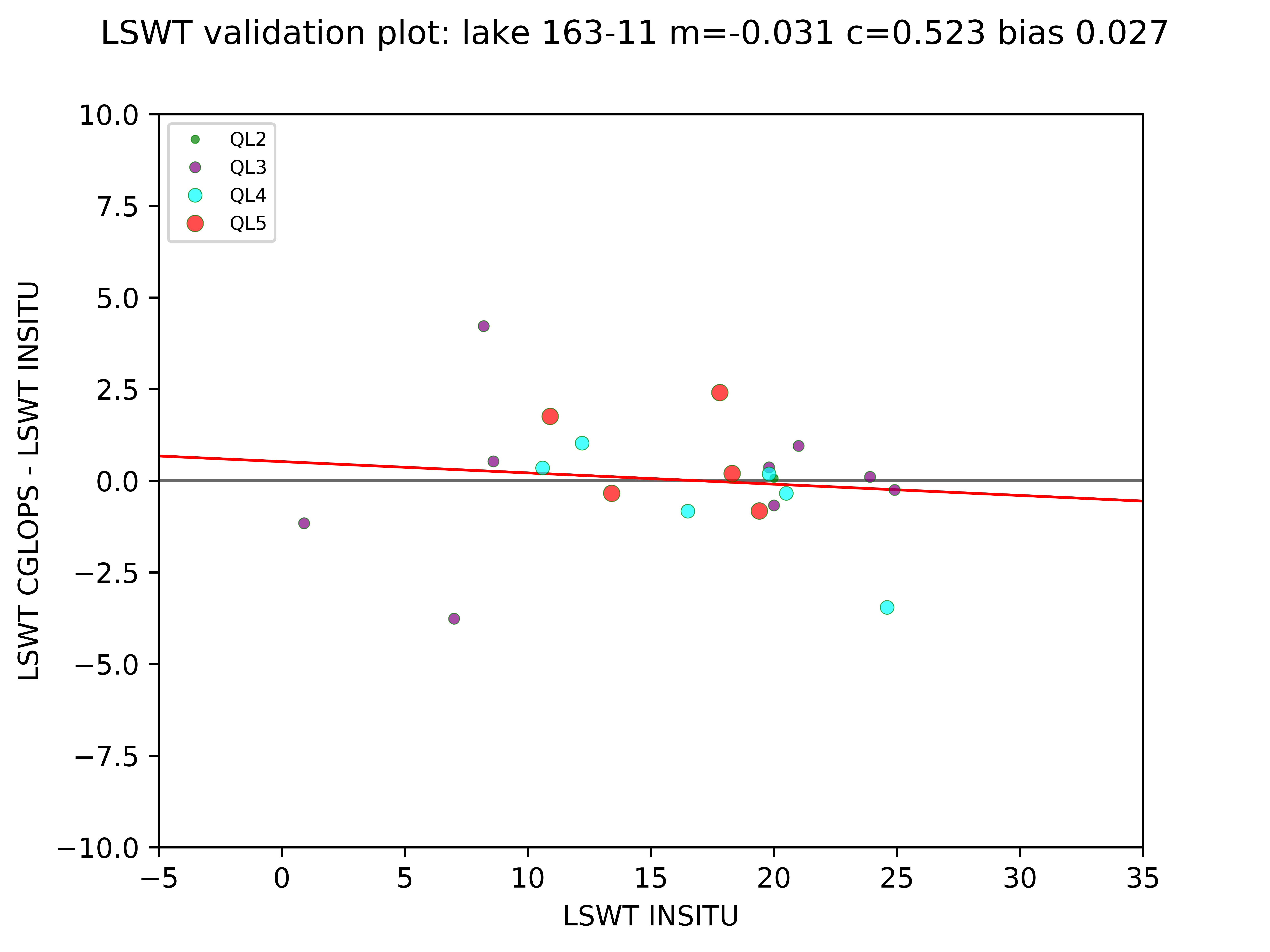

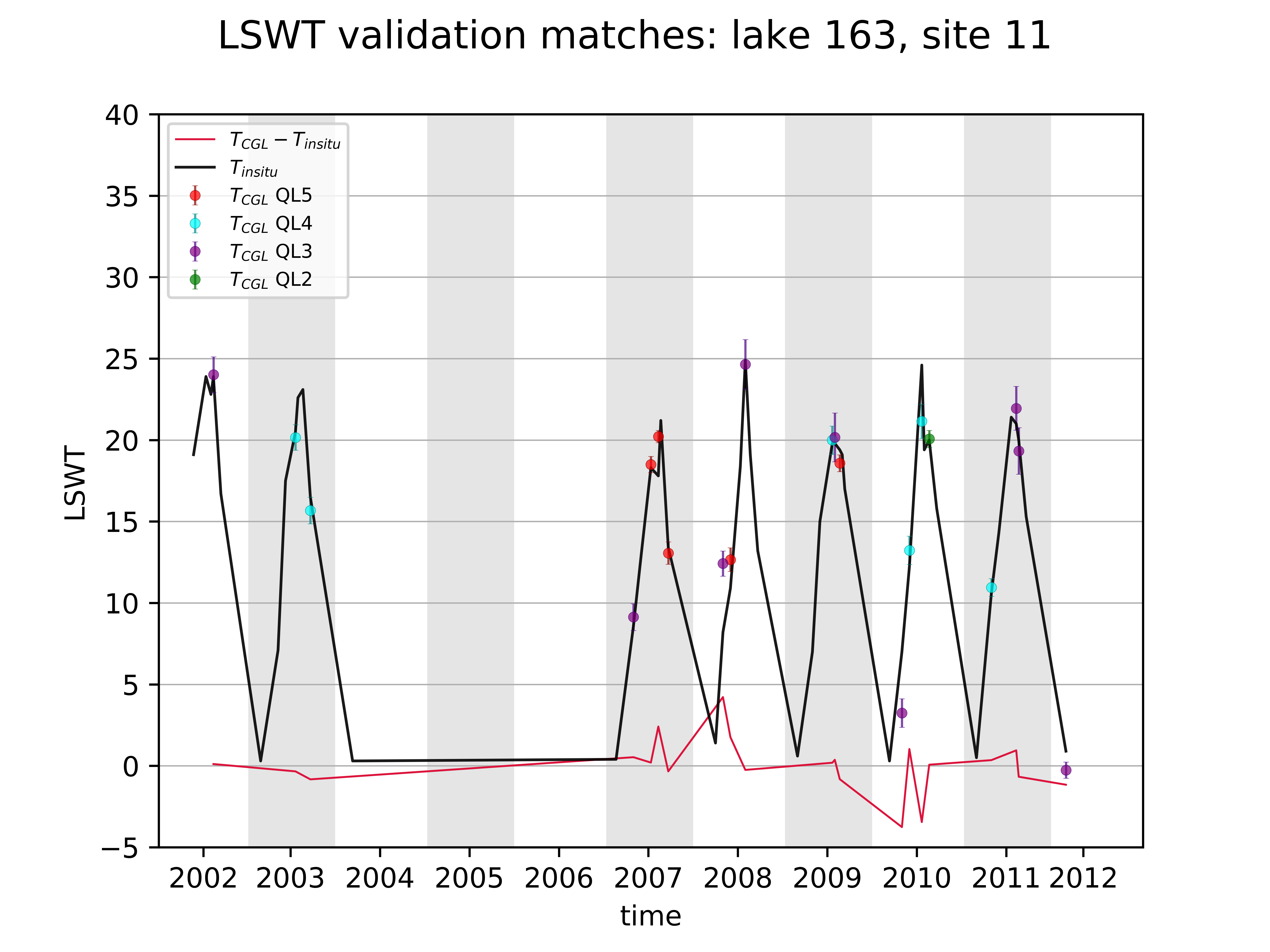

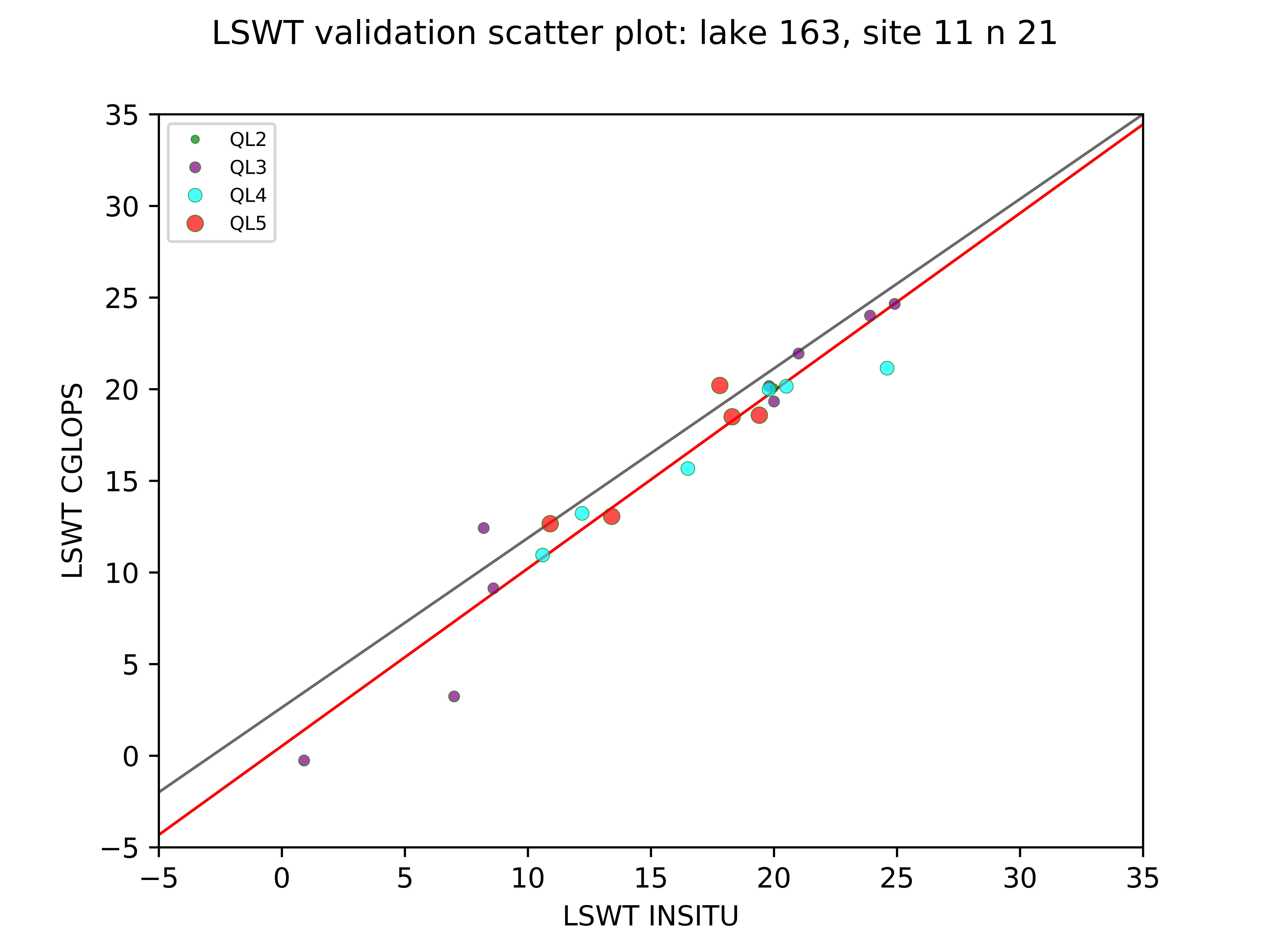

		000163_11	59.593	16.556						21	0.11	1.15646	0.0271	1.6731

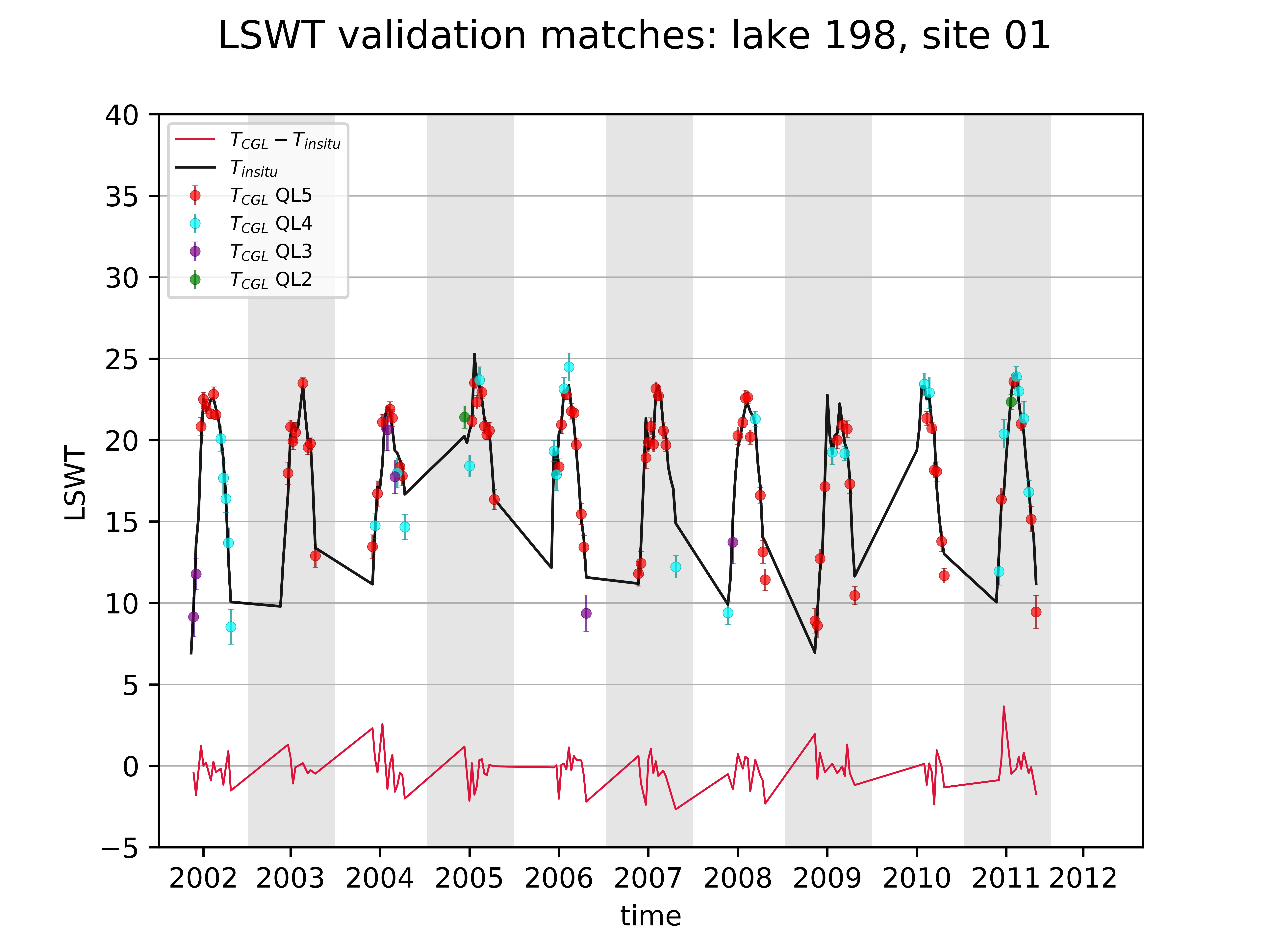

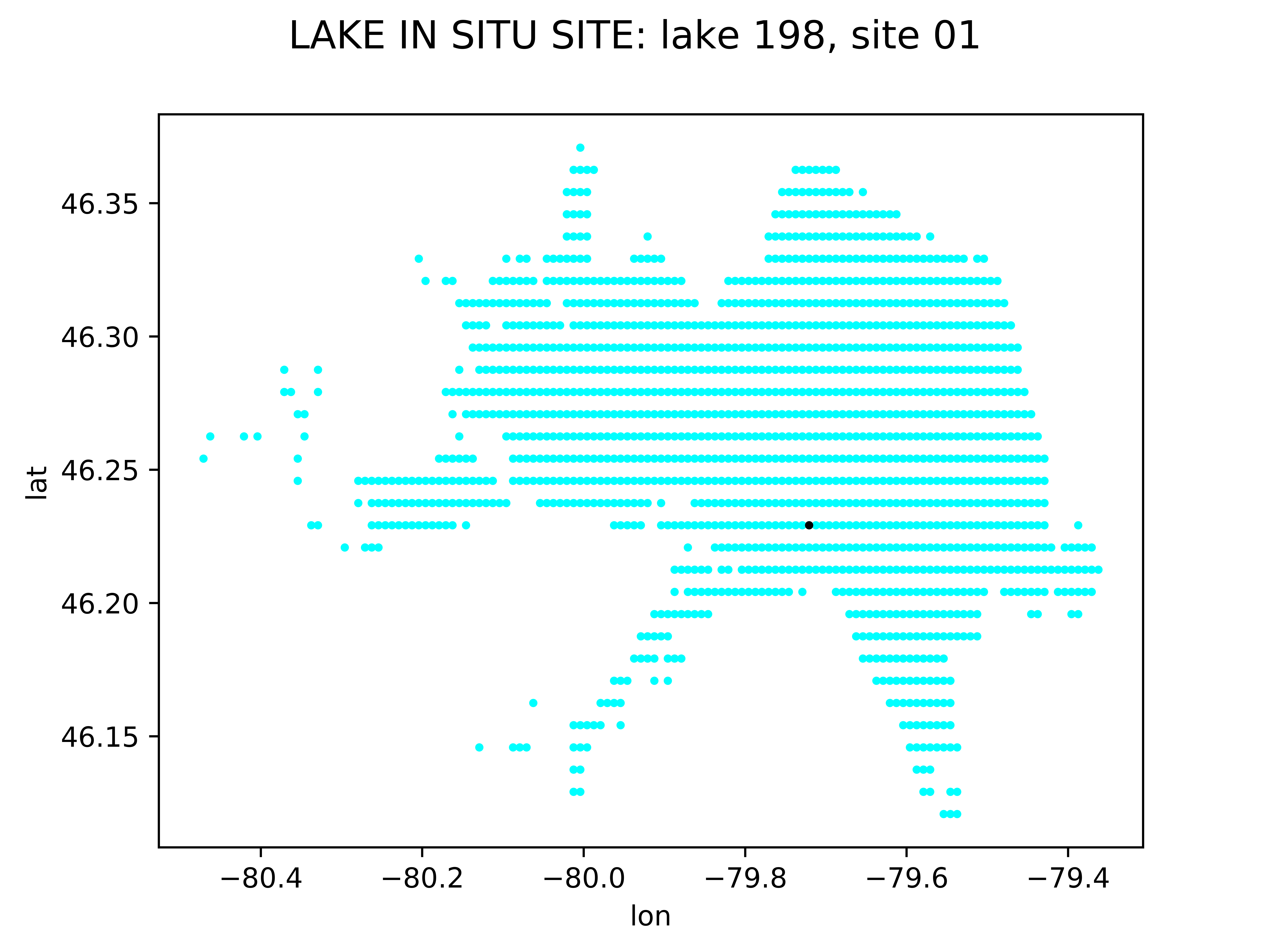

198	Nipissing/Canada	000198_01	46.23	-79.72						110	-0.215	0.85992	-0.2413	1.0488

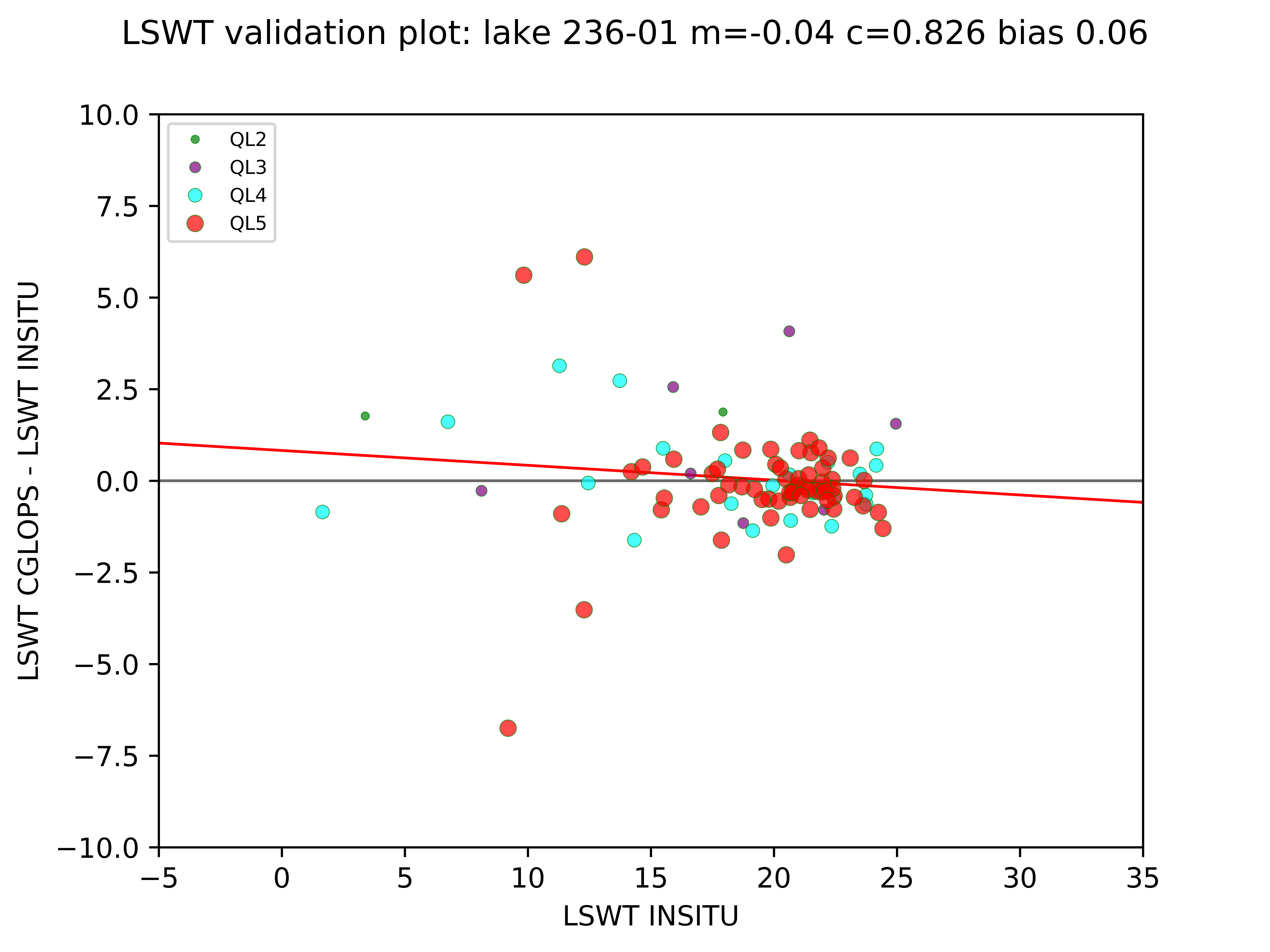

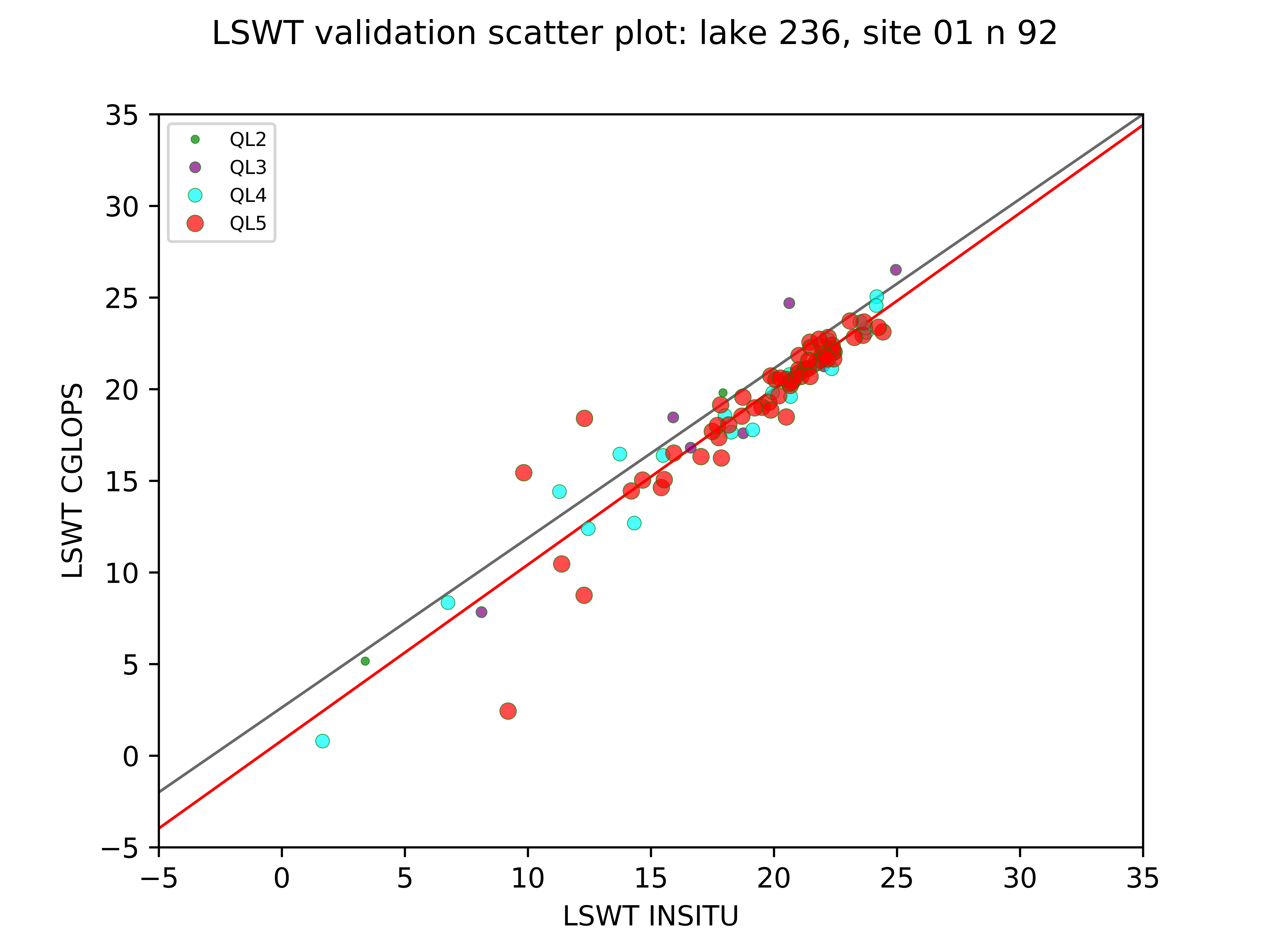

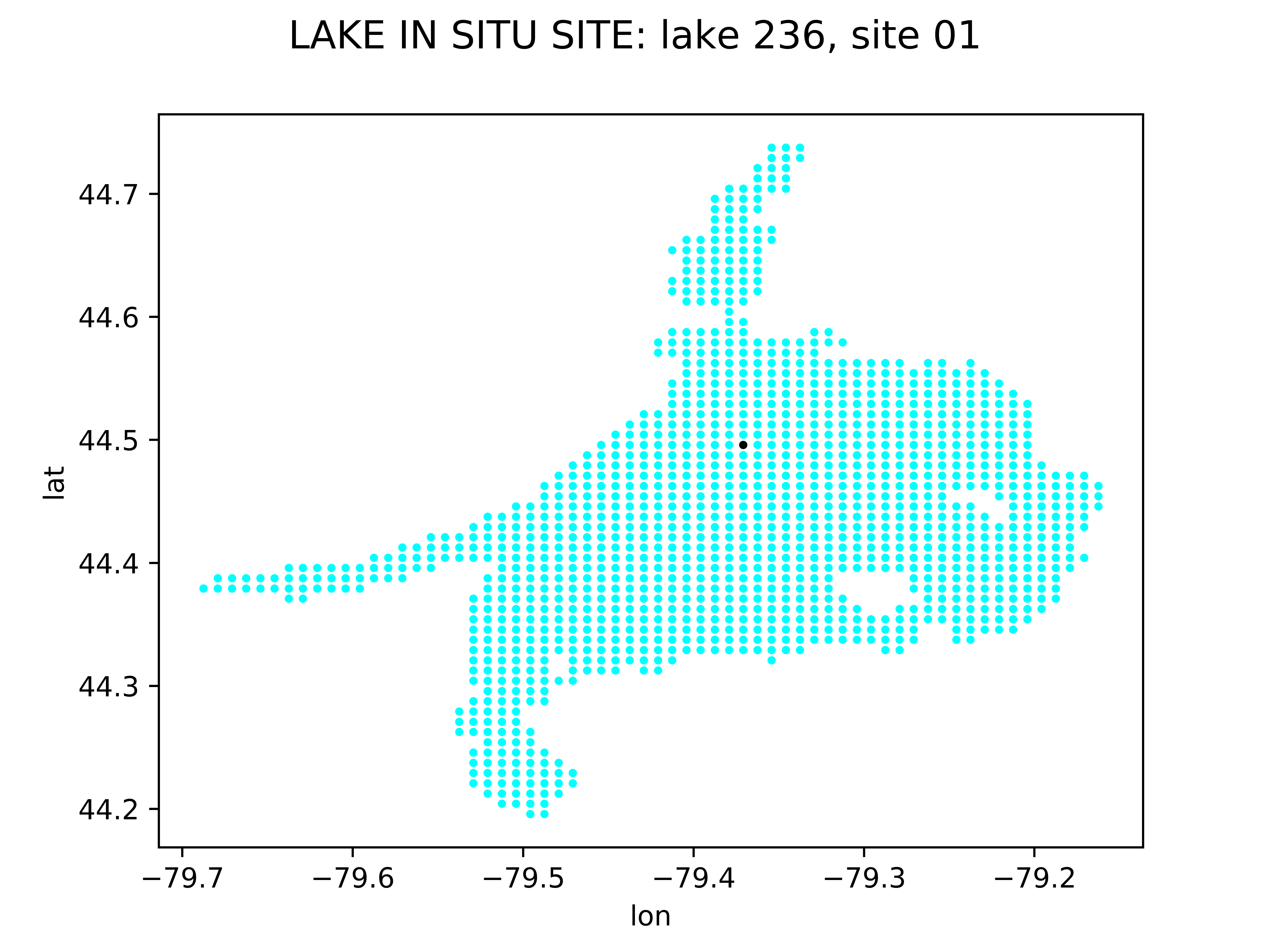

236	Simcoe/Canada	000236_01	44.5	-79.37						92	-0.165	0.78576	0.0596	1.5373

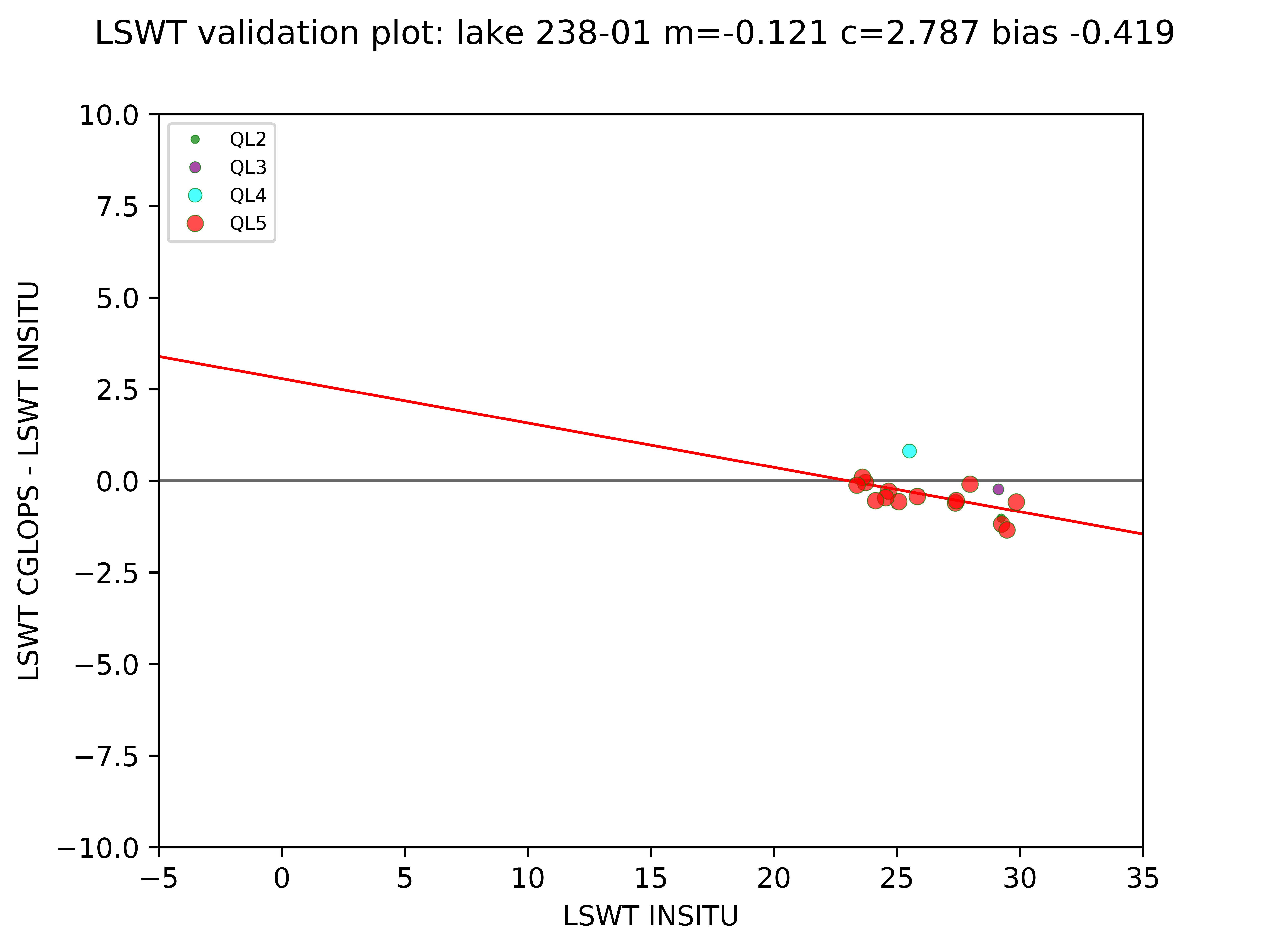

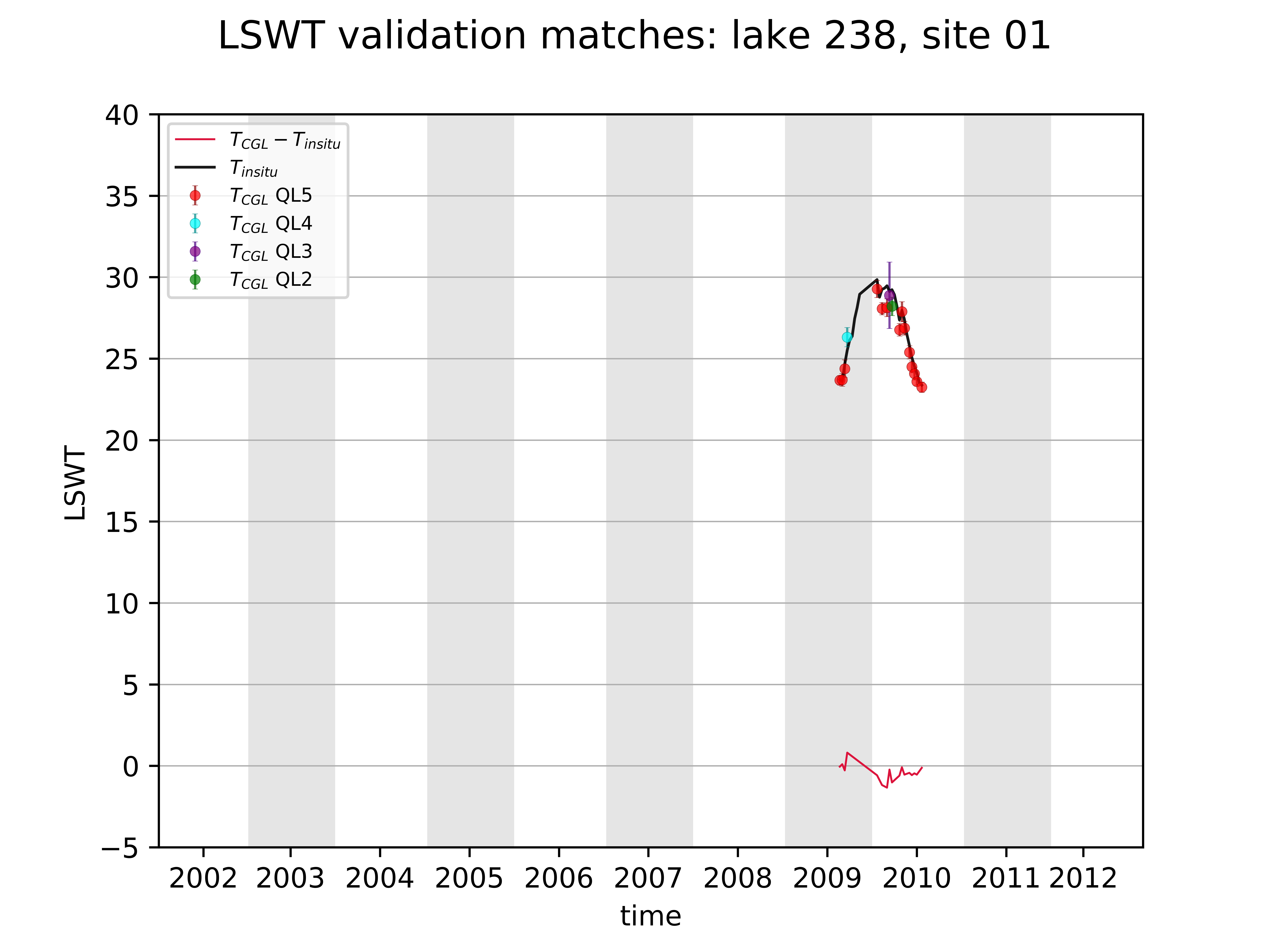

238	Itumbiara/Brazil	000238_01	-18.41	-49.06						17	-0.46	0.34099	-0.4188	0.4893

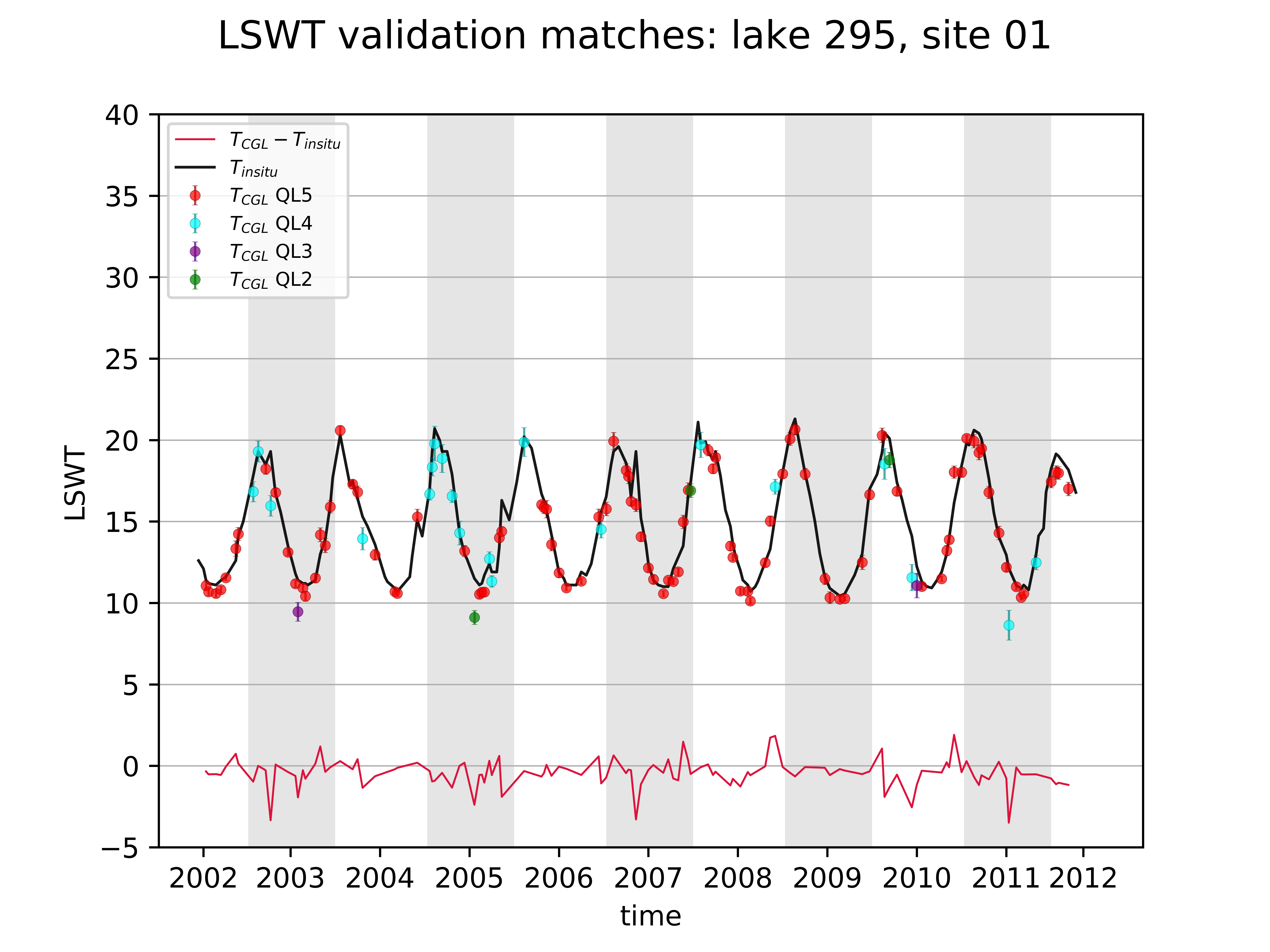

295	Taupo/New Zealand	000295_01	-38.791	175.922						120	-0.42	0.52631	-0.4388	0.8577

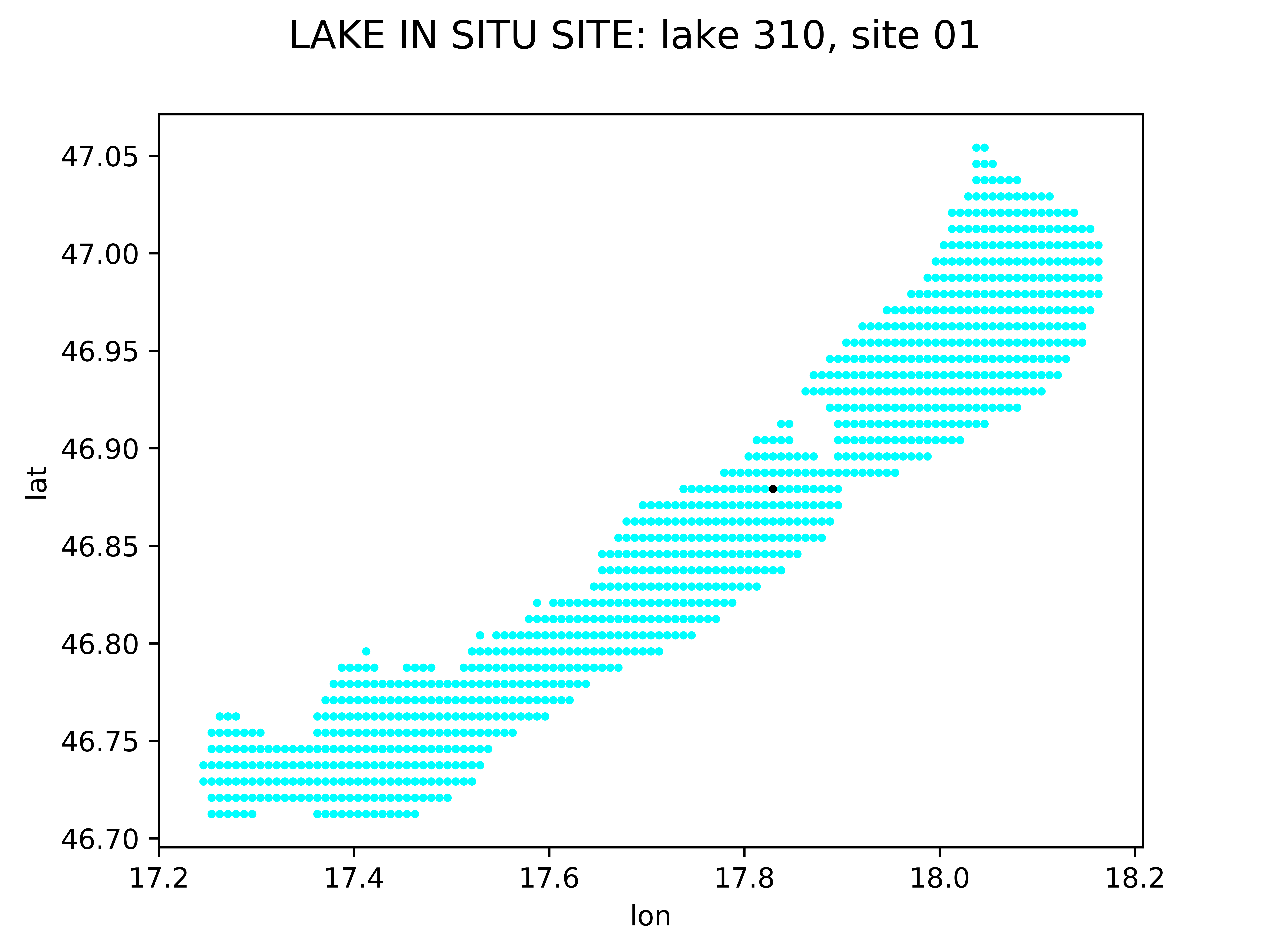

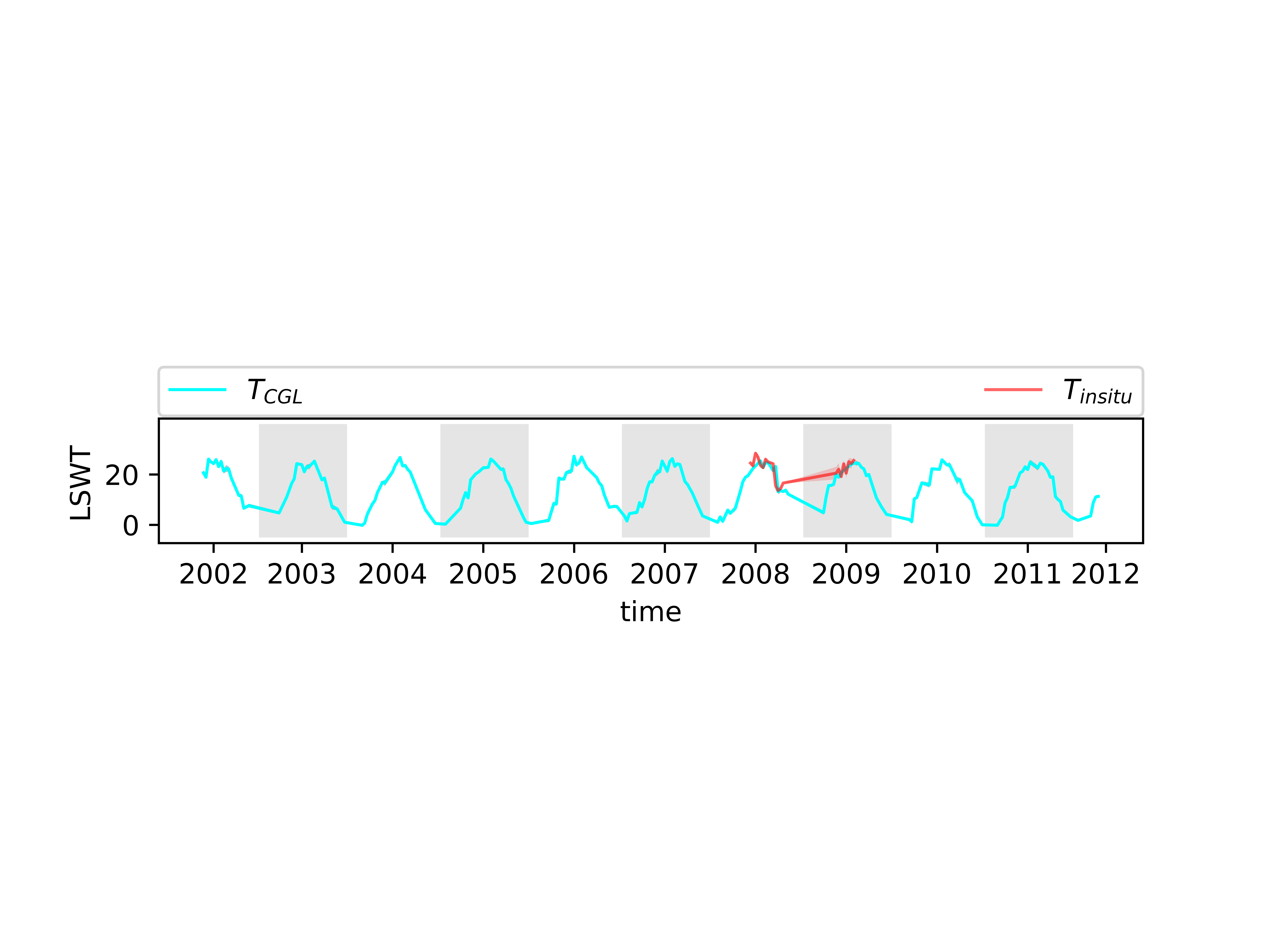

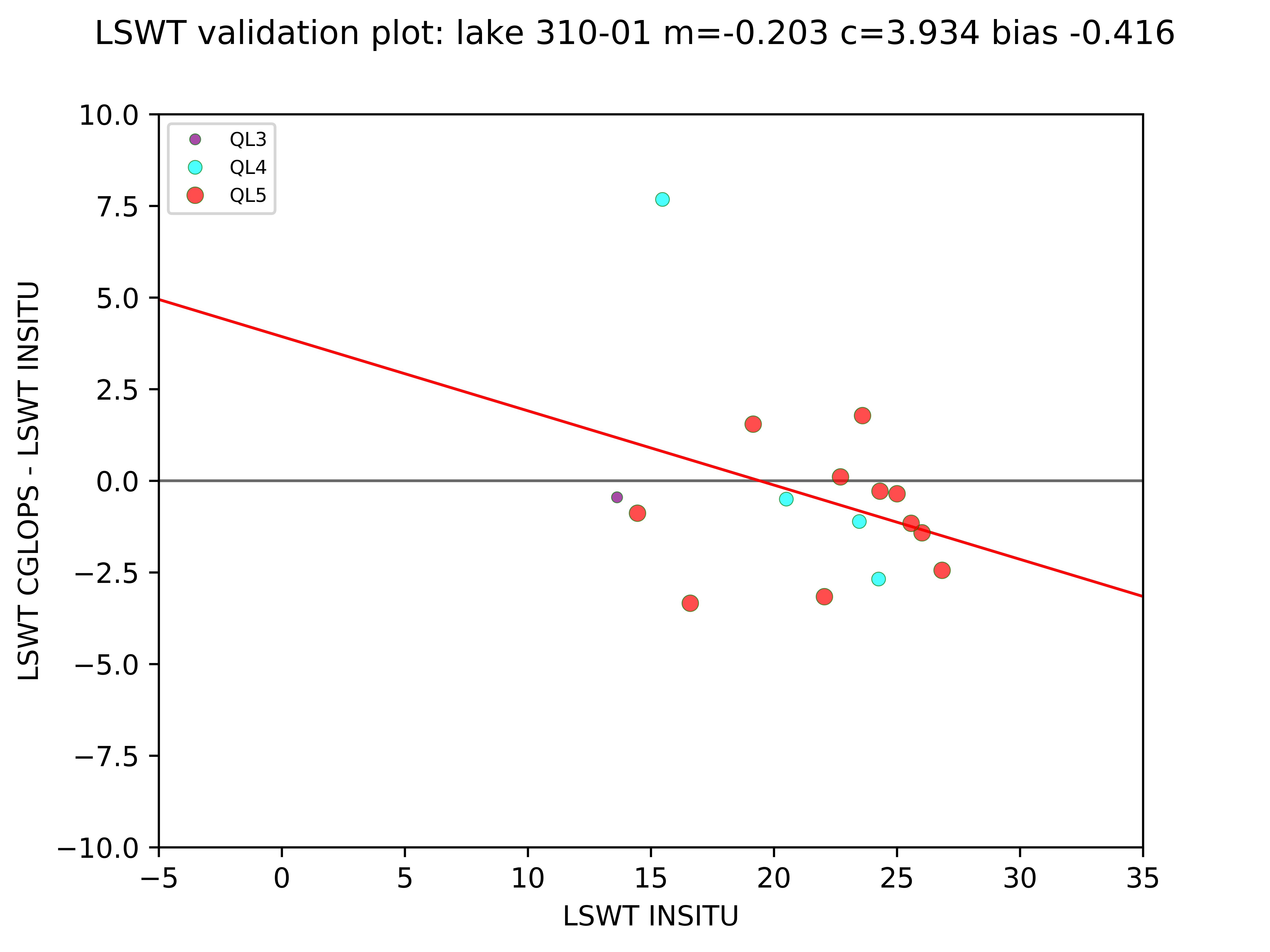

310	Balaton/Hungary	000310_01	46.88	17.83						16	-0.69	1.13418	-0.4156	2.5261

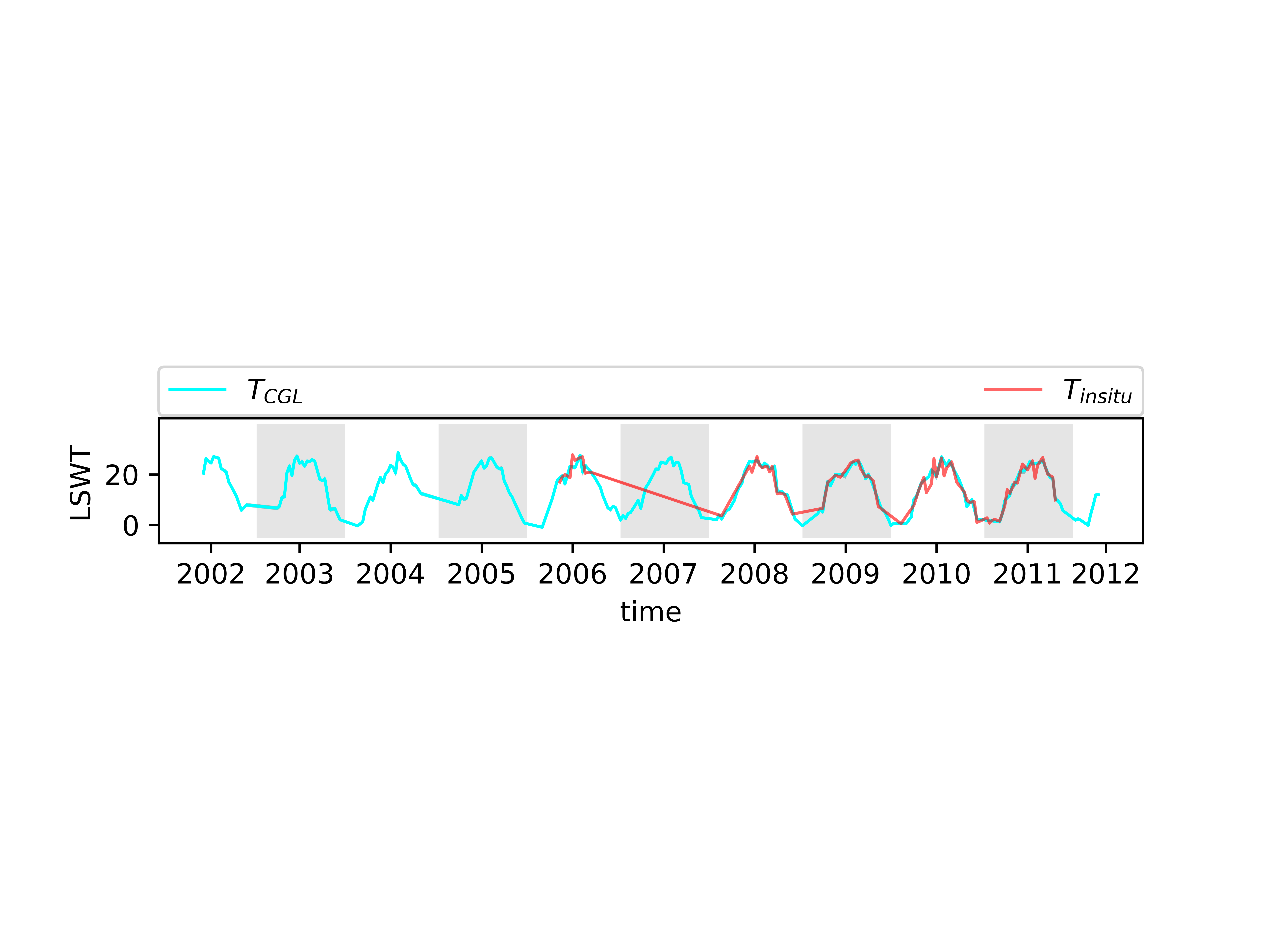

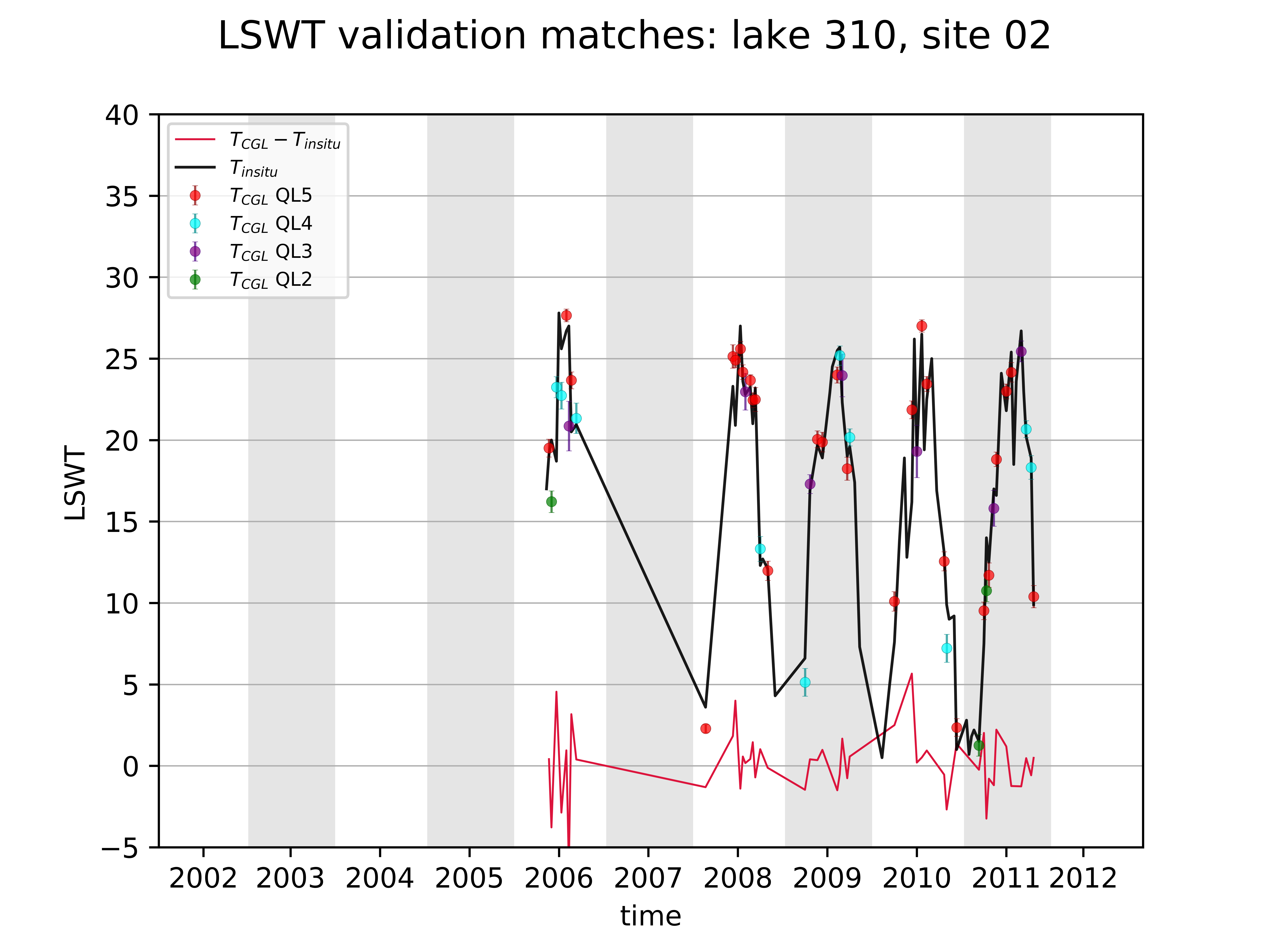

		000310_02	46.735	17.276						48	0.395	1.60122	0.1694	2.0584
		000310_03	46.738	17.268						53	-0.51	2.40181	-0.3851	2.7796

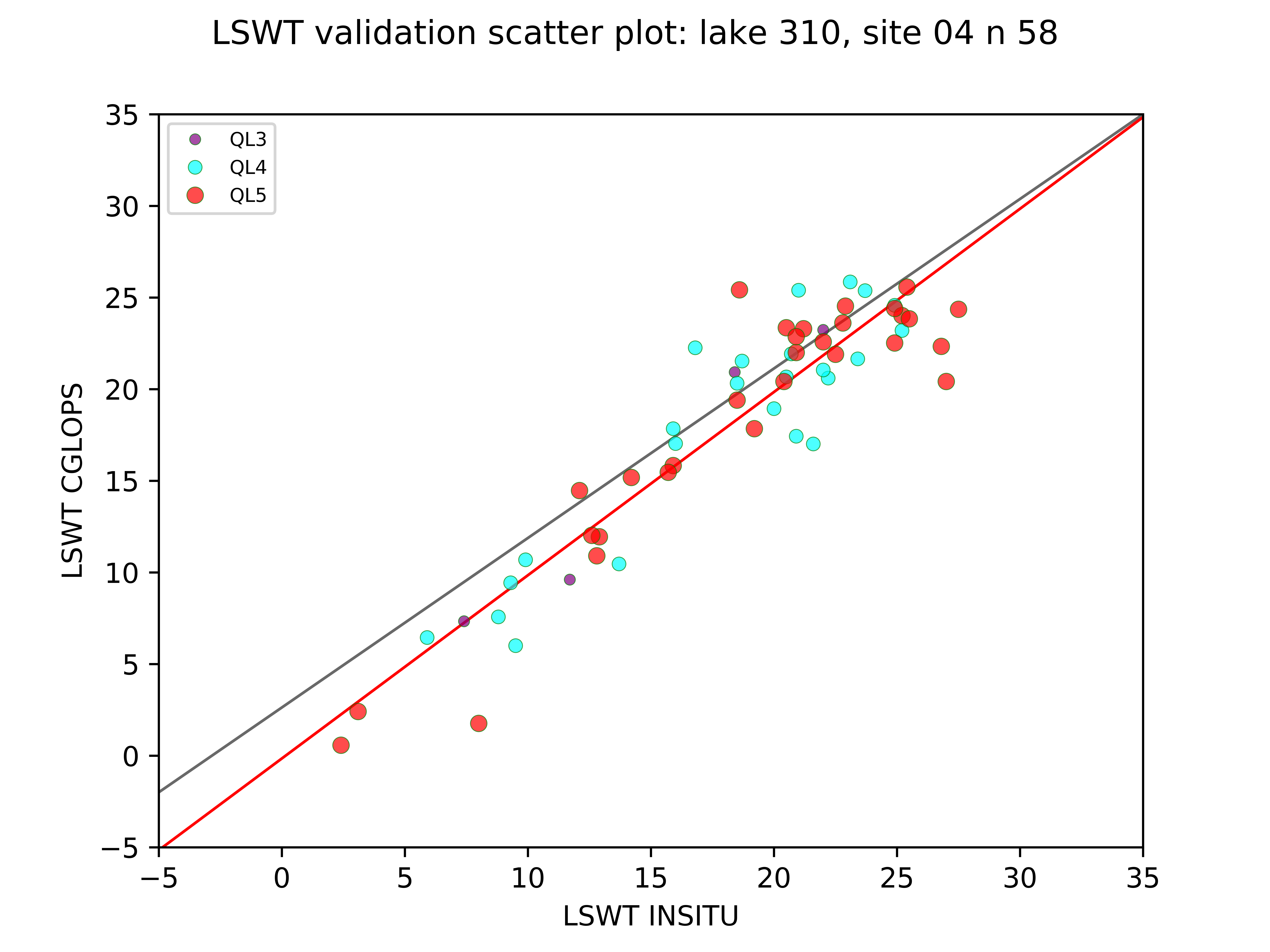

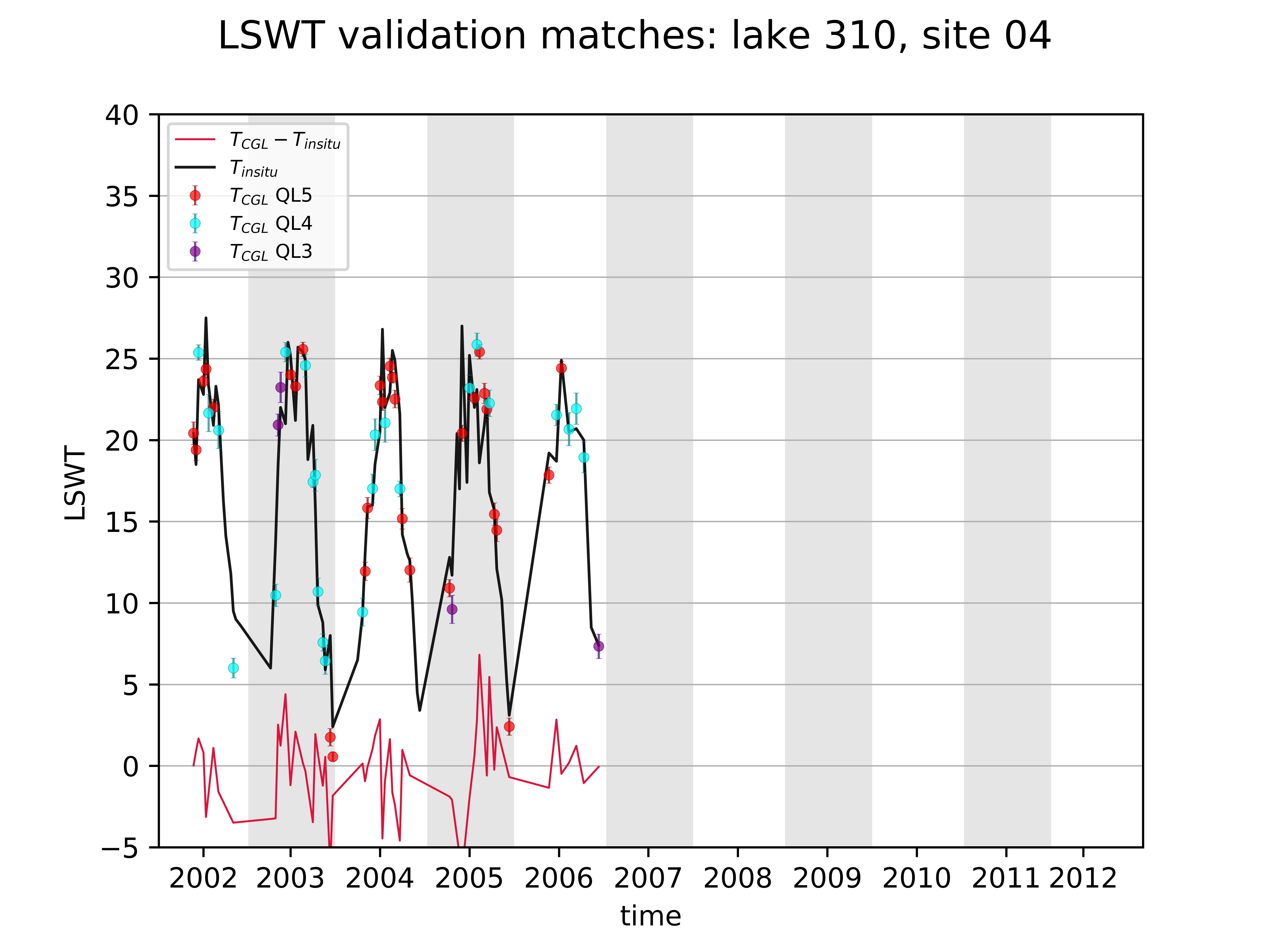

		000310_04	46.751	17.414						58	-0.065	2.31286	-0.1588	2.5131

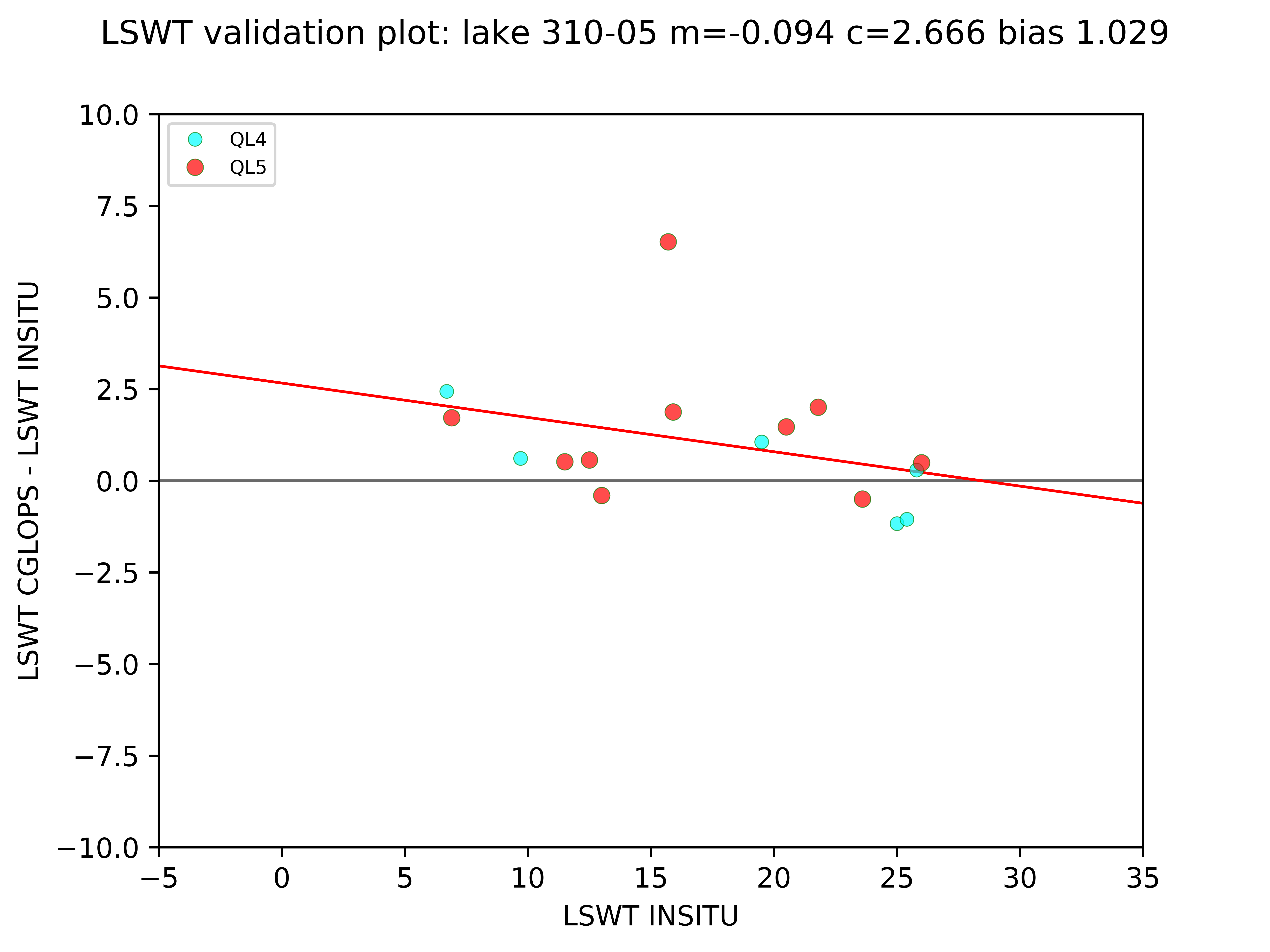

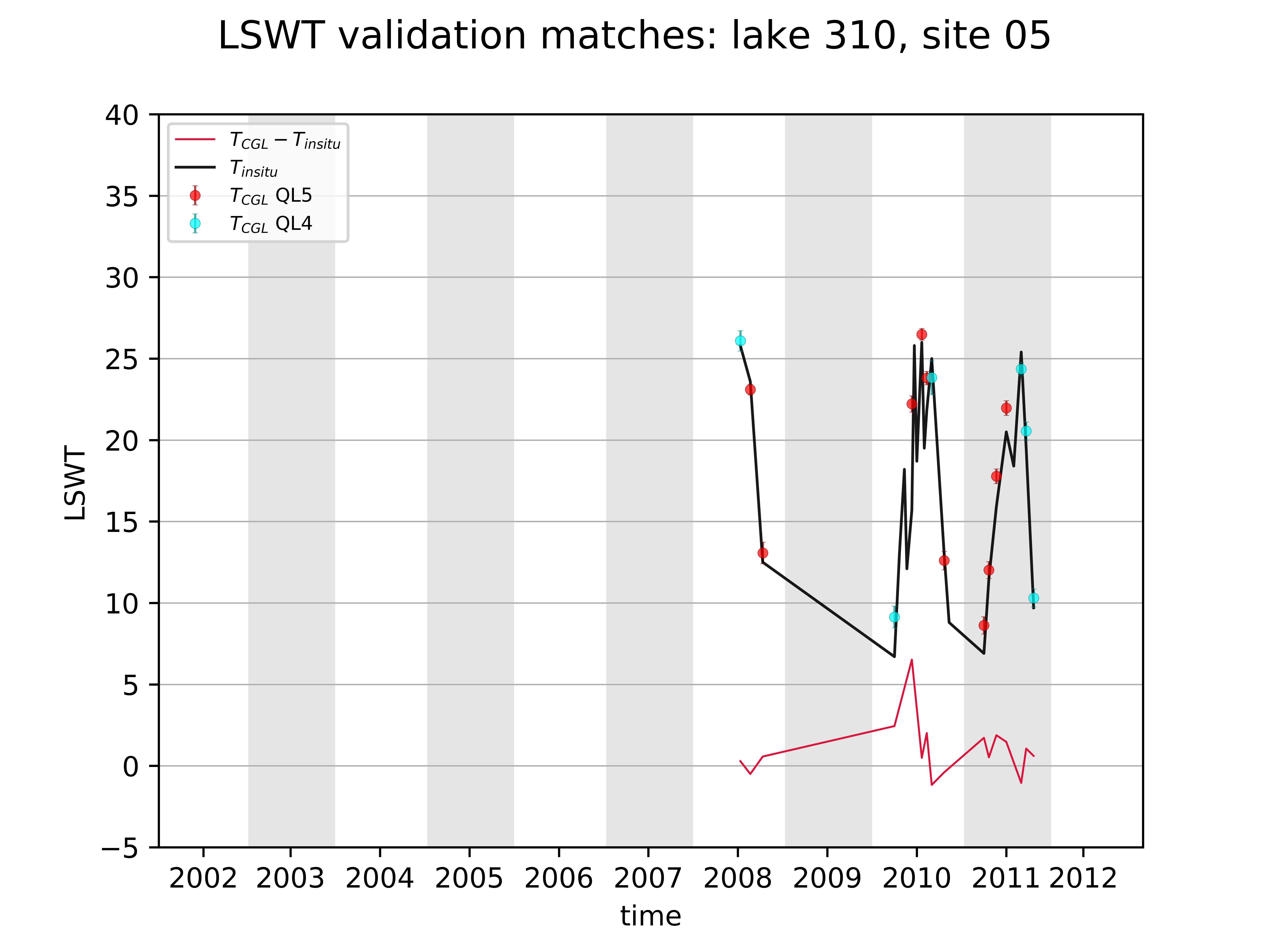

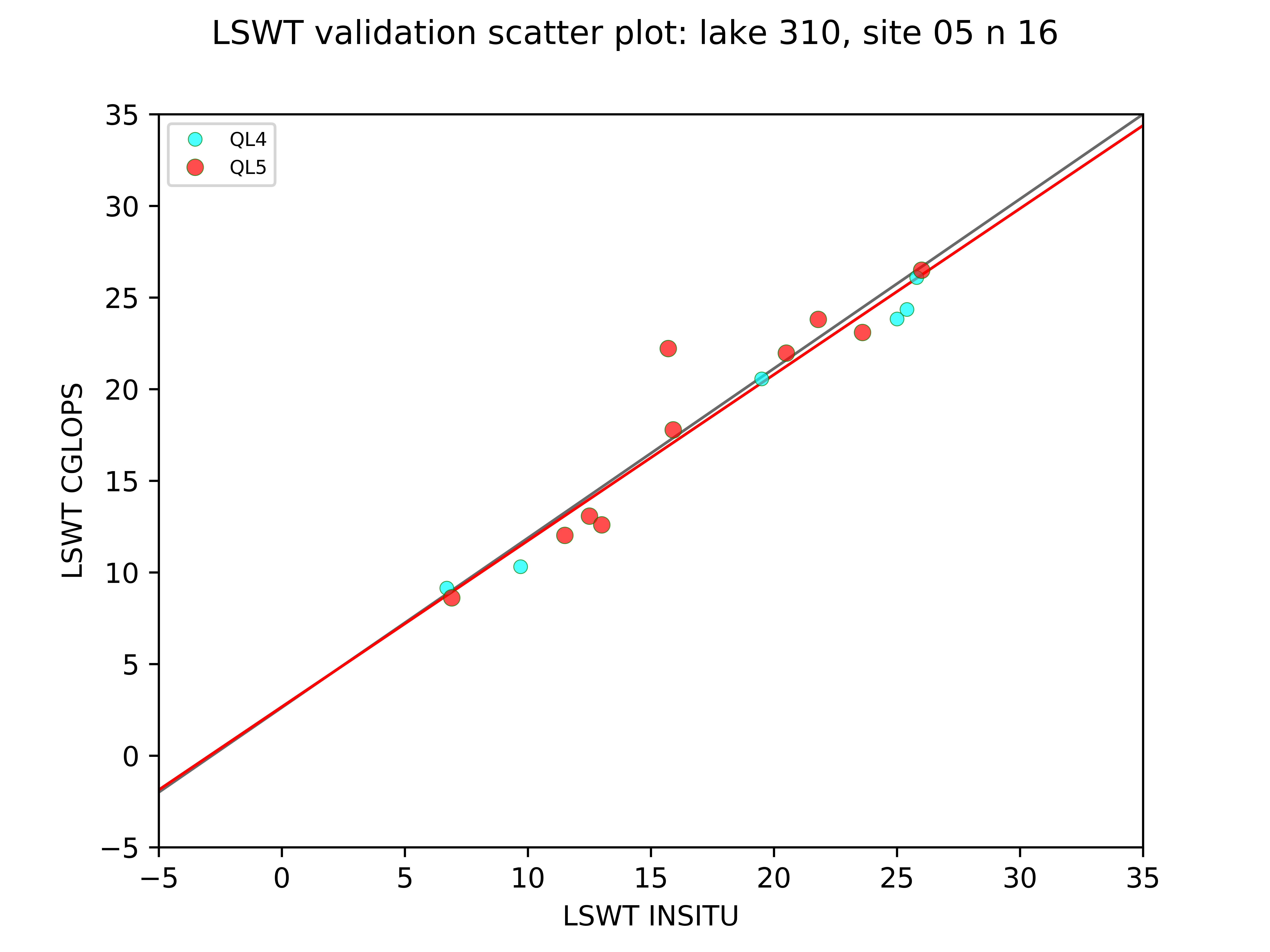

		000310_05	46.752	17.419						16	0.59	1.5419	1.0287	1.7593

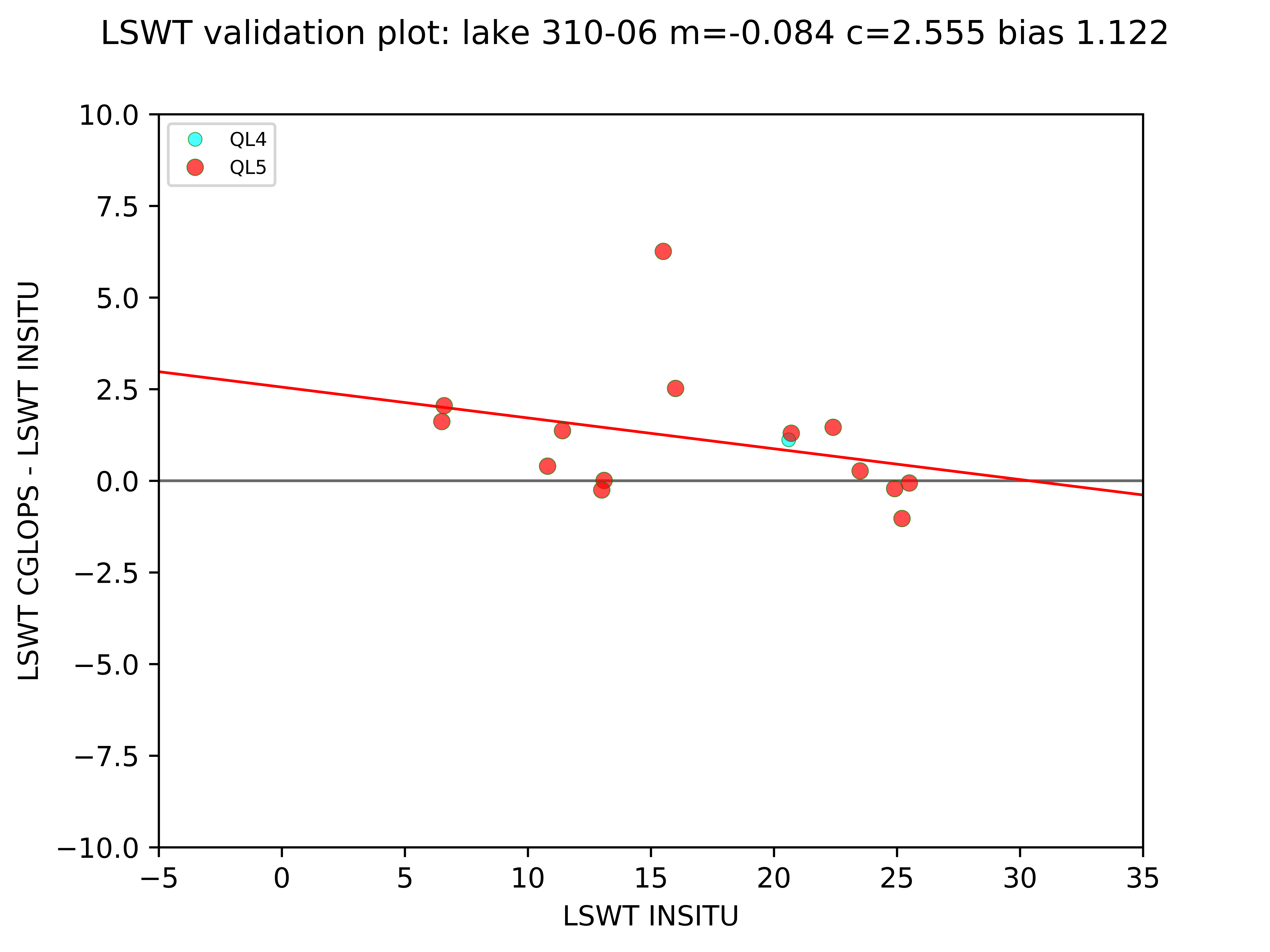

		000310_06	46.844	17.743						15	1.12	1.37881	1.122	1.6701

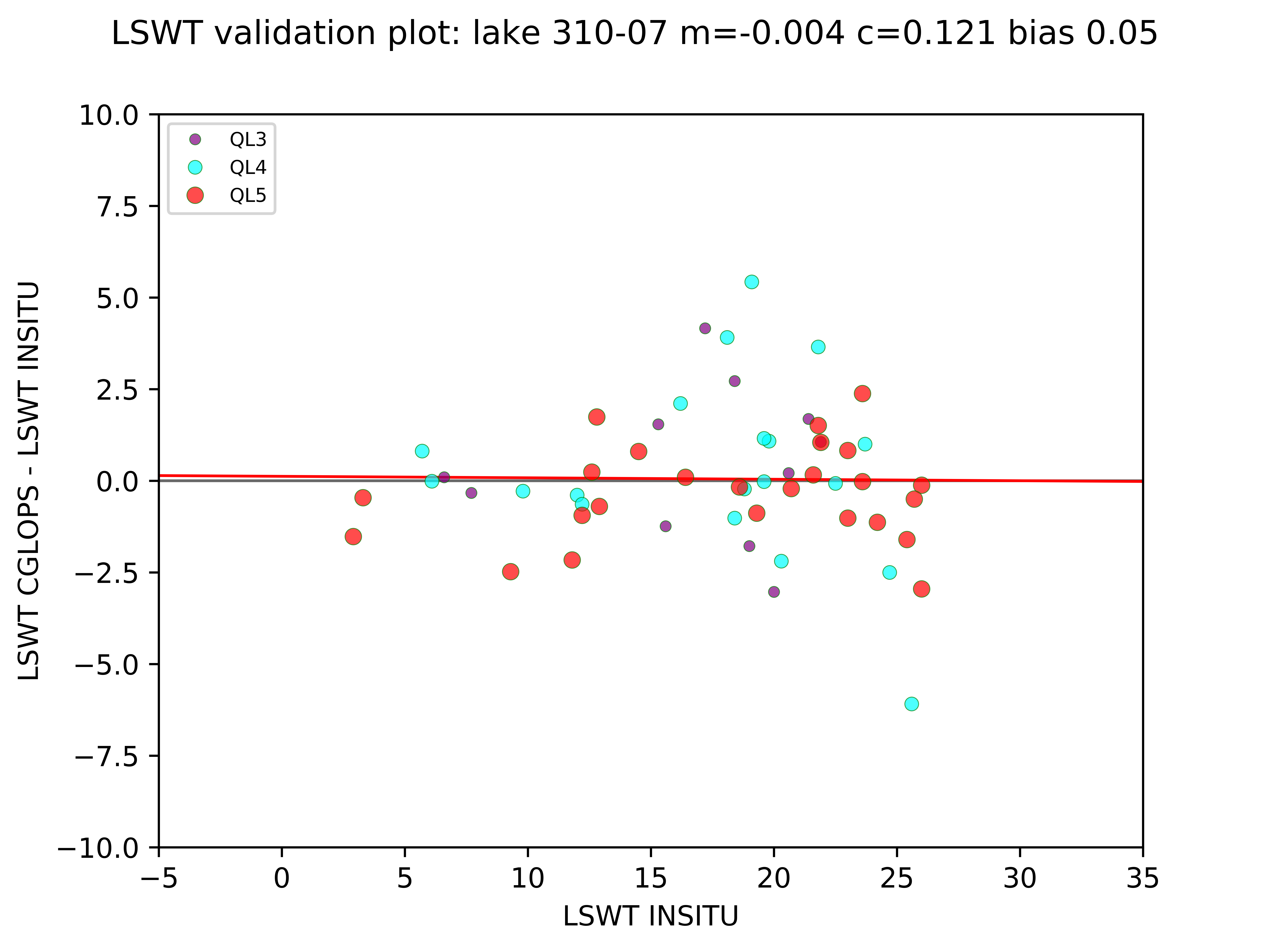

		000310_07	46.851	17.776						55	-0.07	1.57154	0.0504	1.928

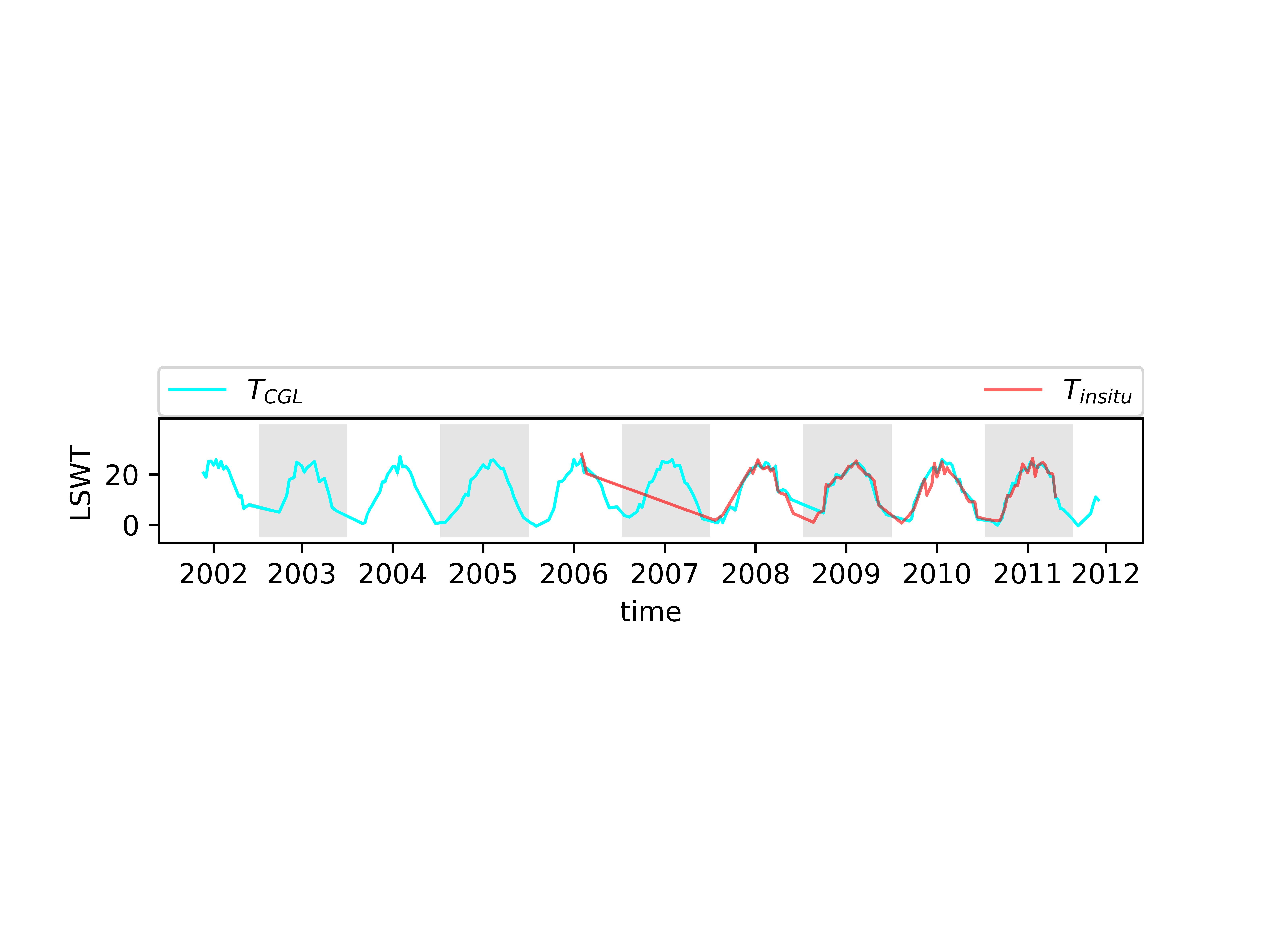

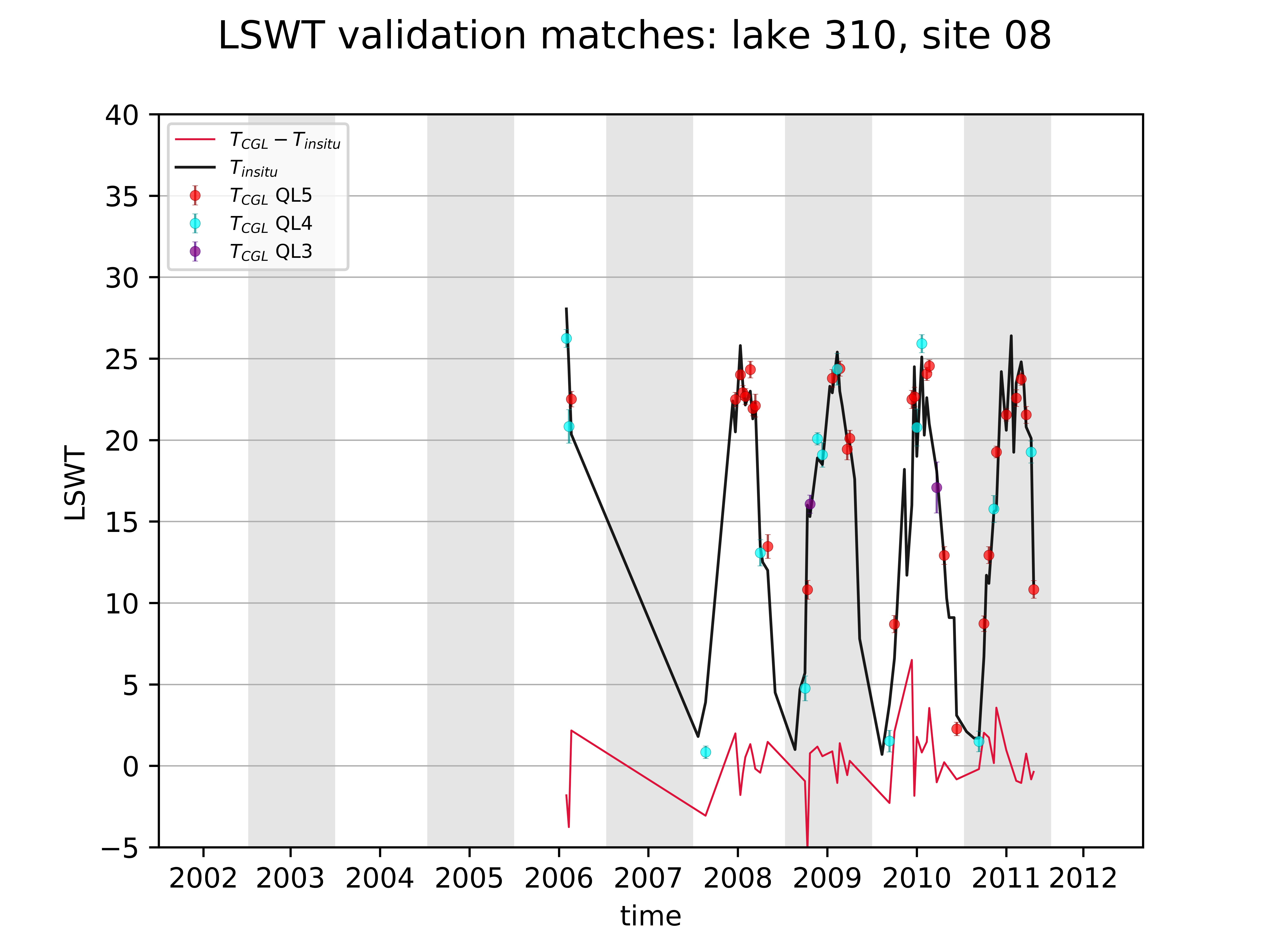

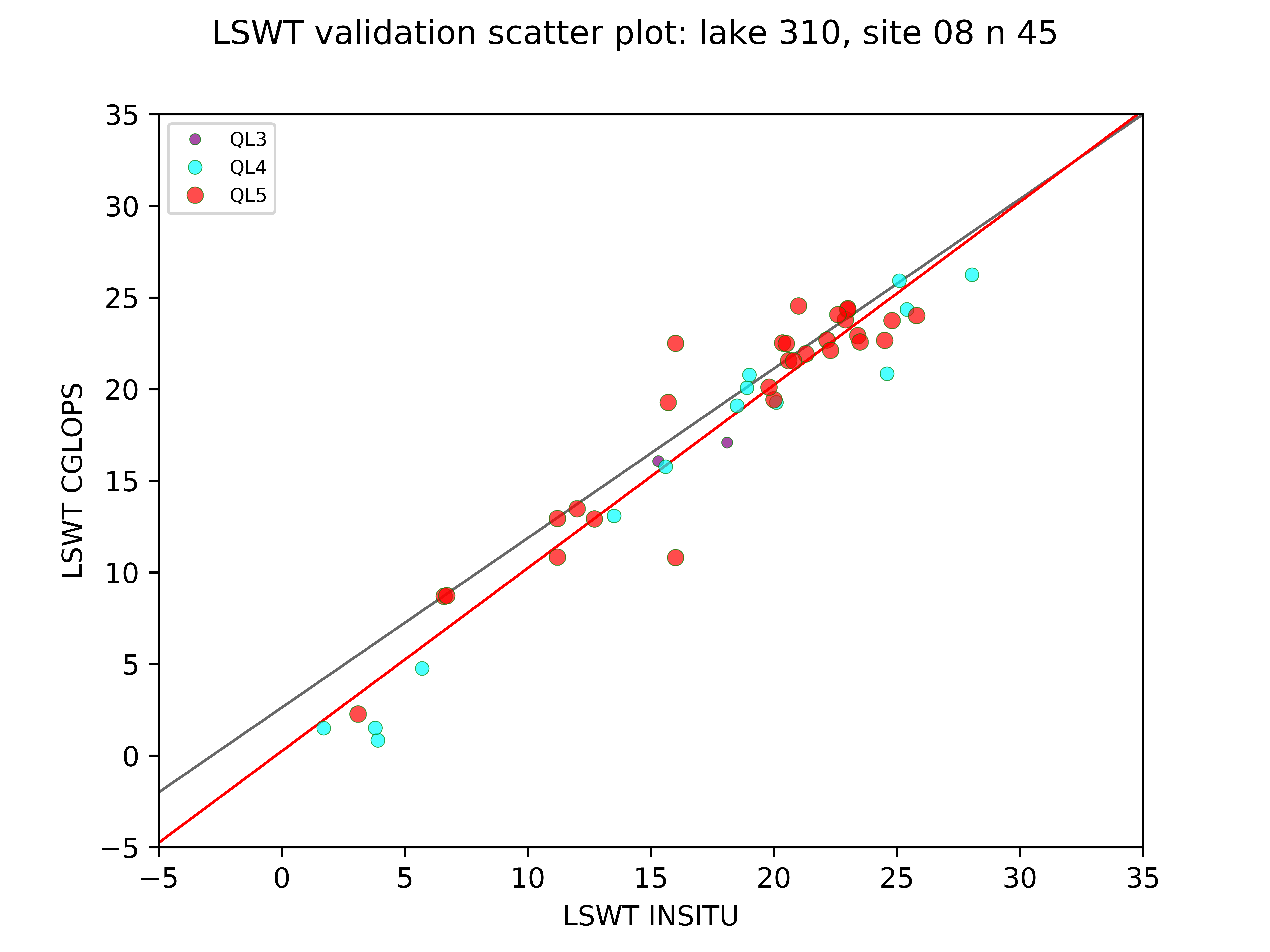

		000310_08	46.922	17.927						45	0.31	1.71984	0.2295	1.9751

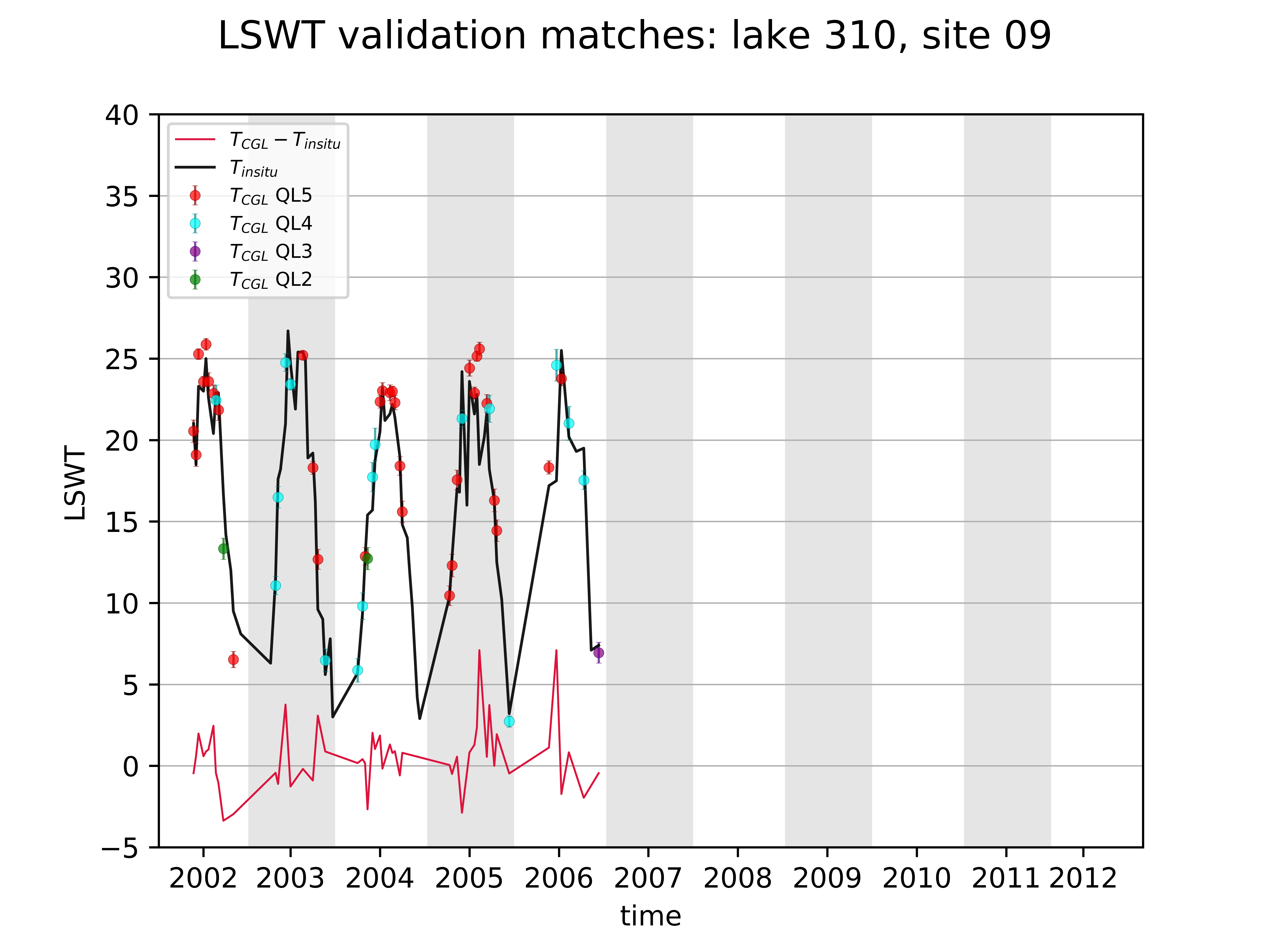

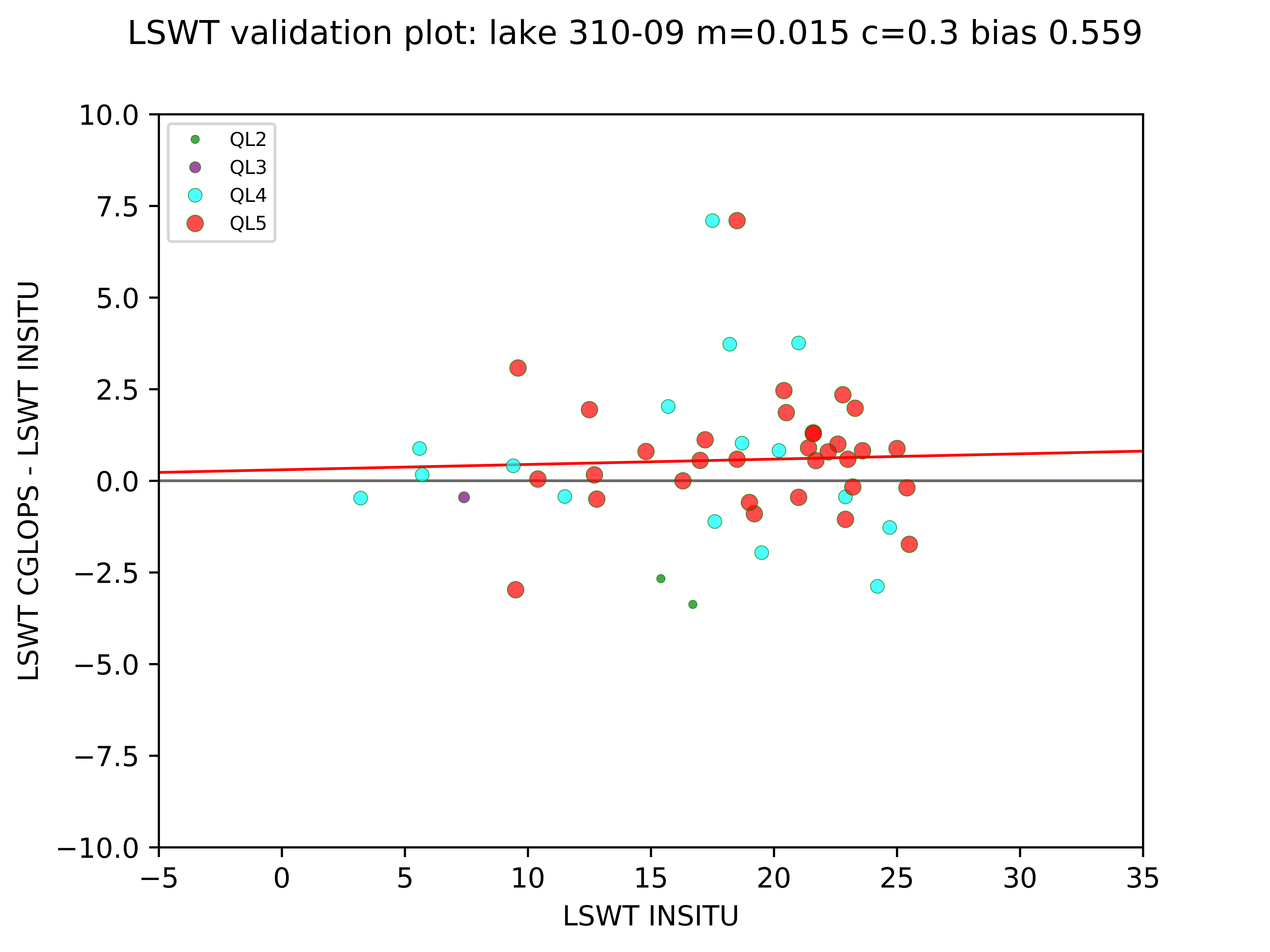

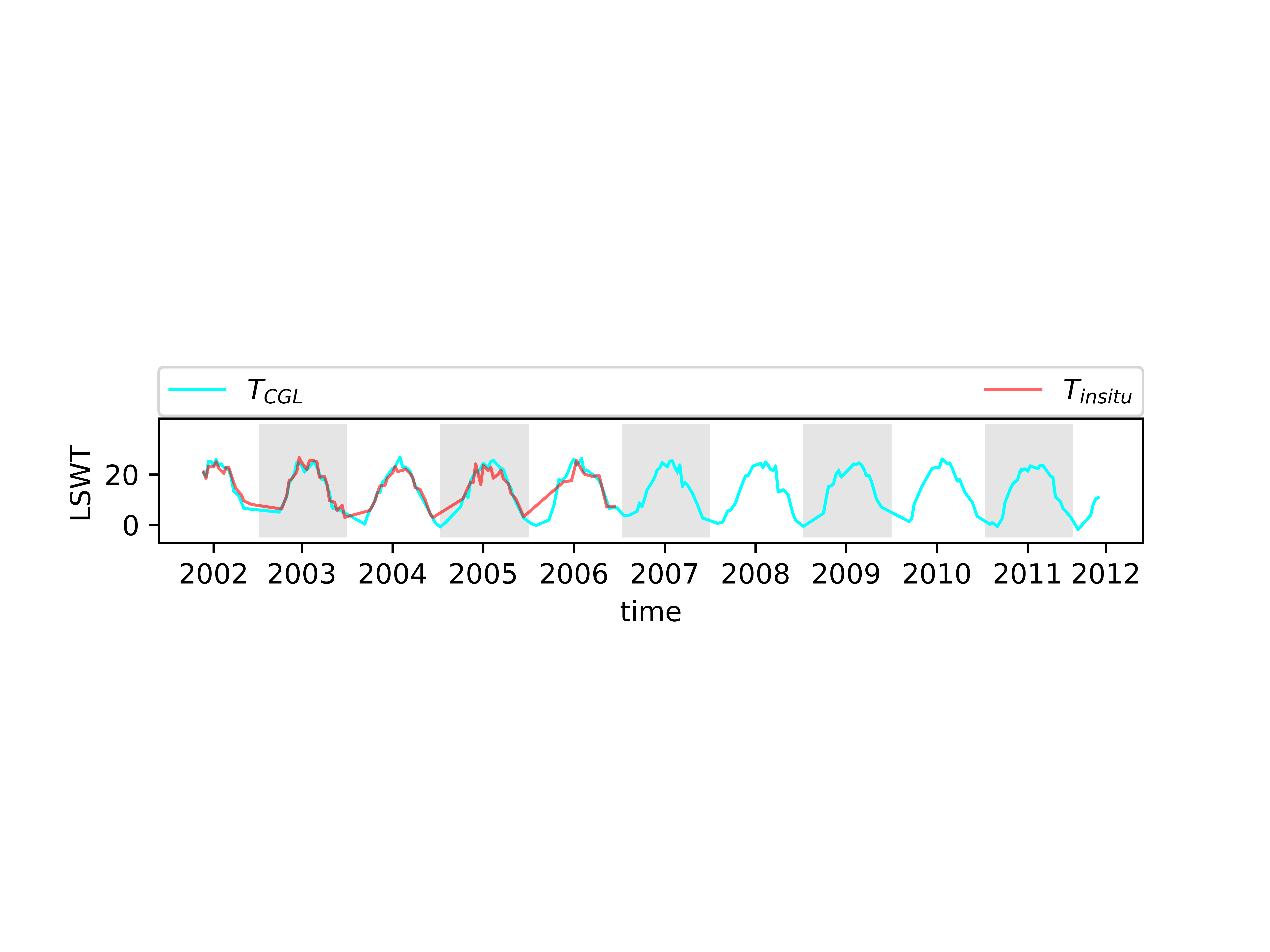

		000310_09	46.946	18.005						51	0.56	1.4974	0.5592	2.0356

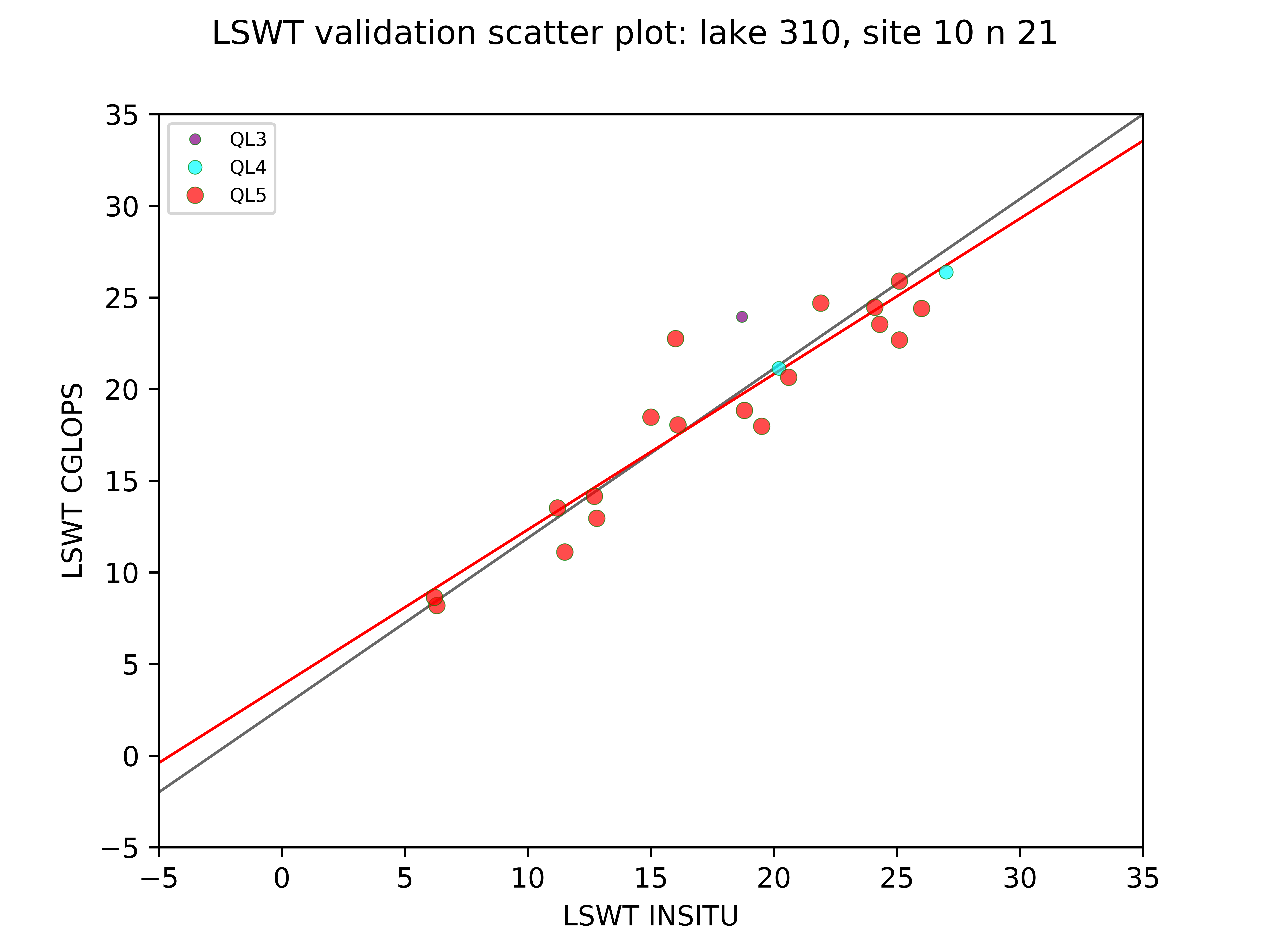

		000310_10	46.971	18.039						21	0.8	2.09048	1.1152	2.1973

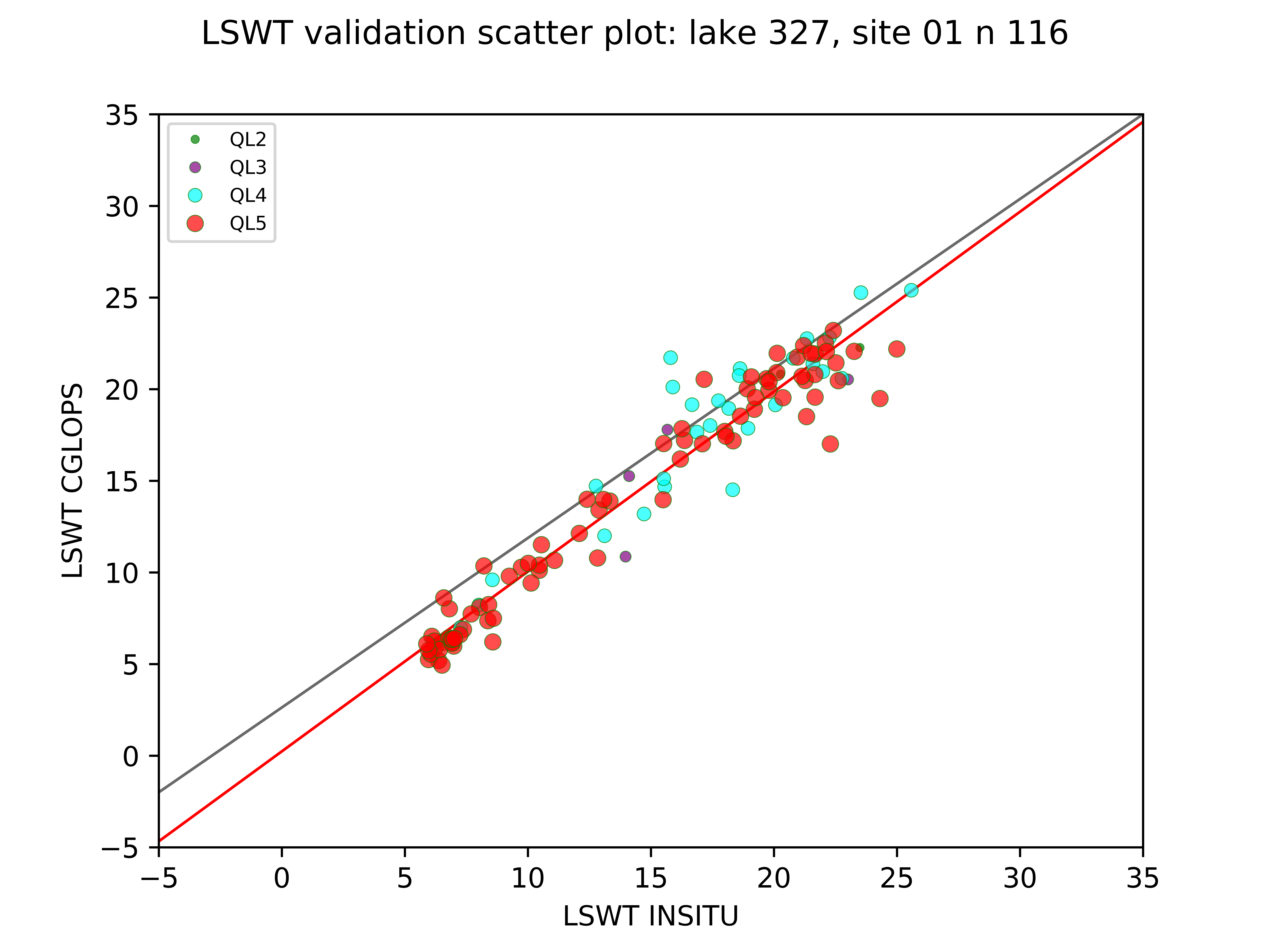

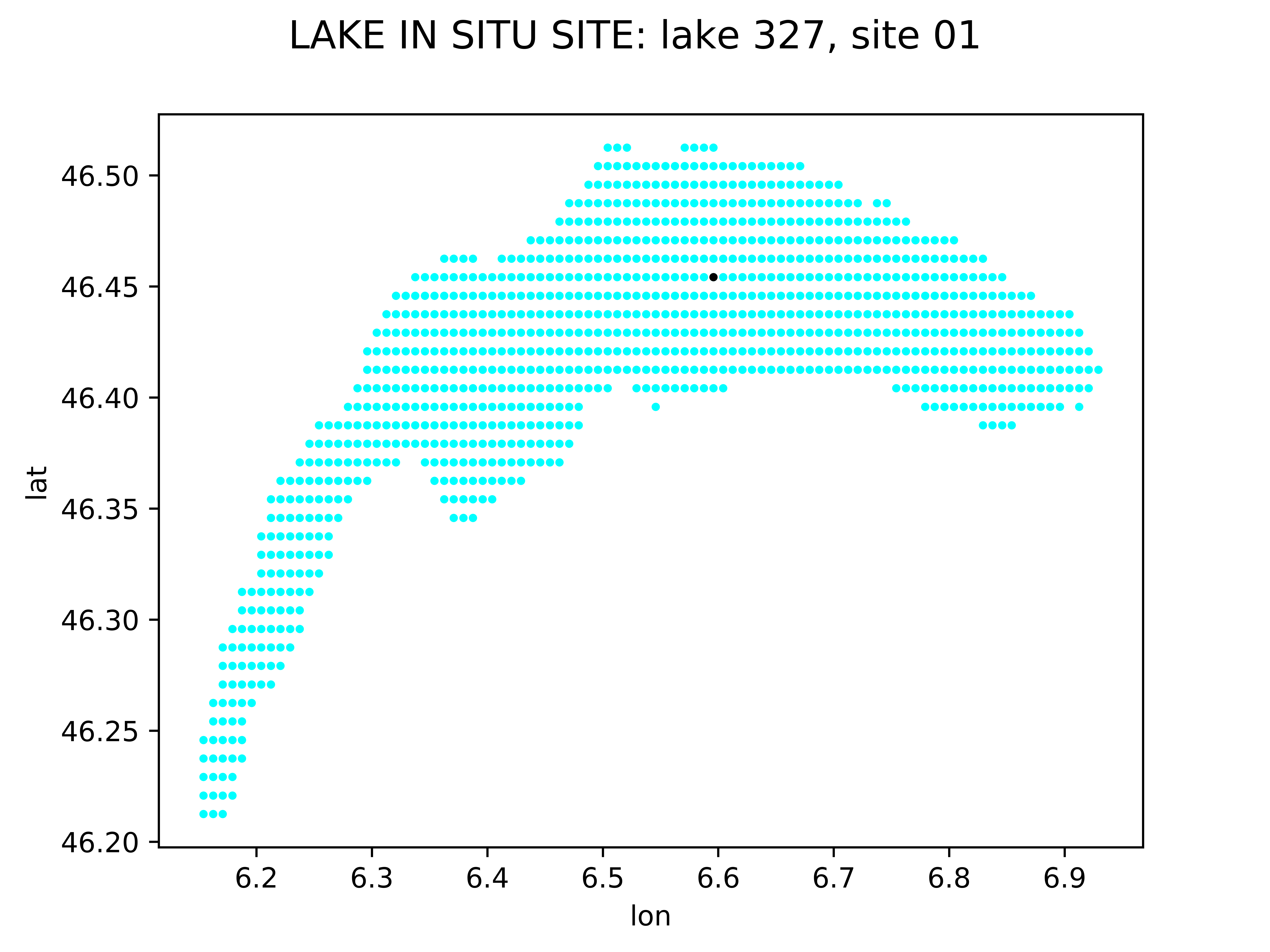

327	Geneva/Switzerland	000327_01	46.453	6.594						116	-0.09	1.30471	-0.0454	1.5743

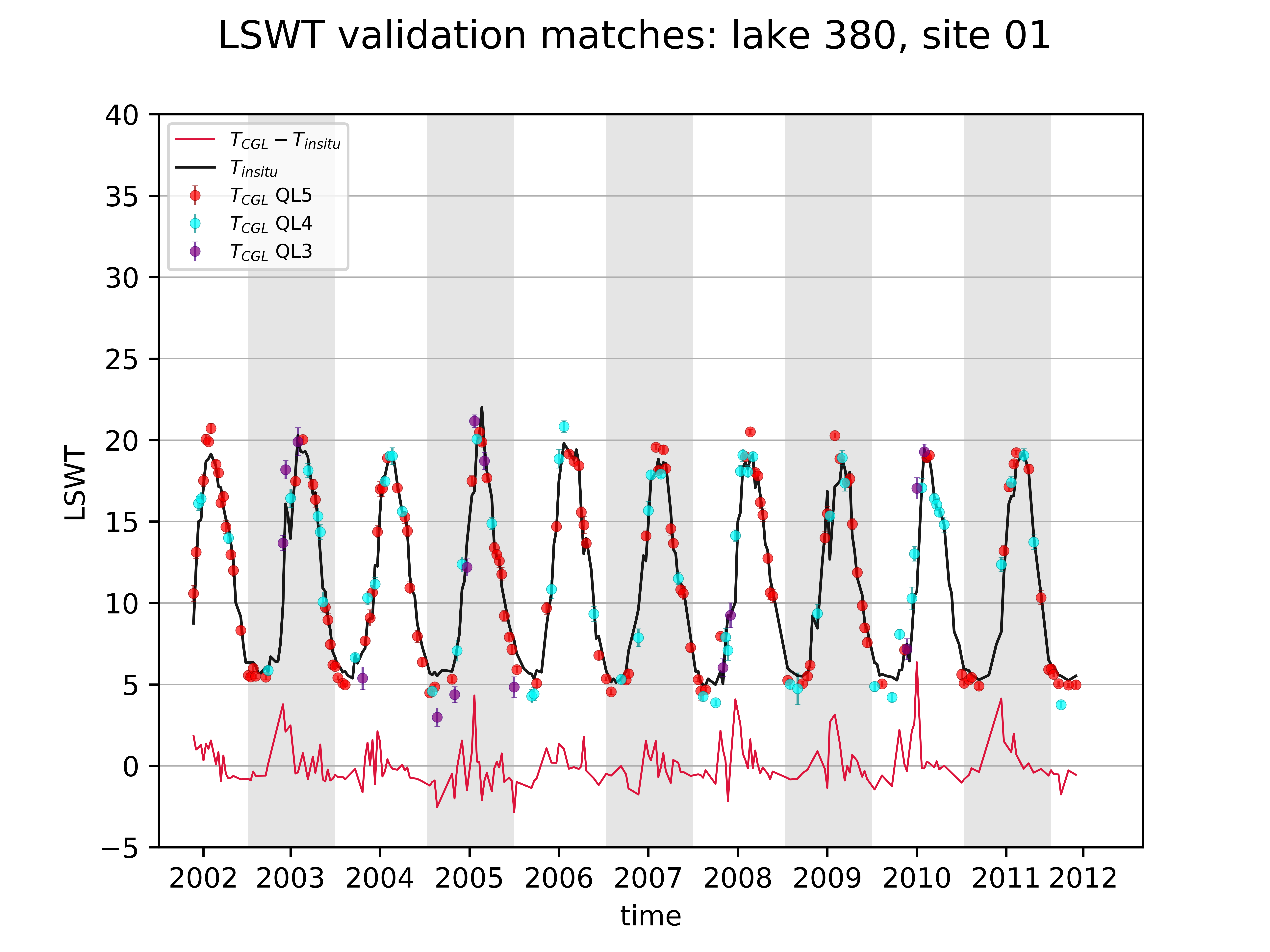

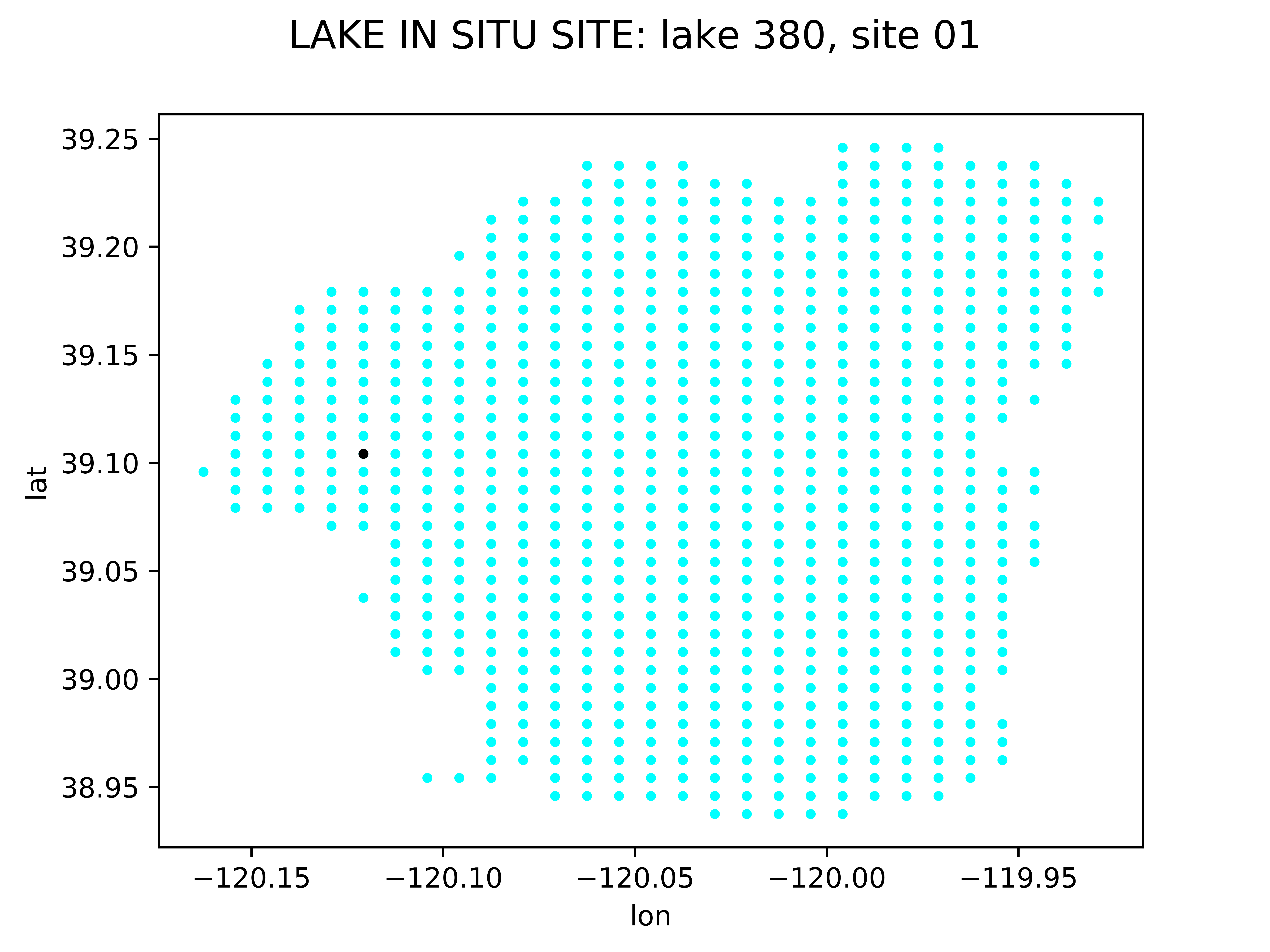

380	Tahoe/USA	000380_01	39.108	-120.122						210	-0.195	0.83027	0.0487	1.2314

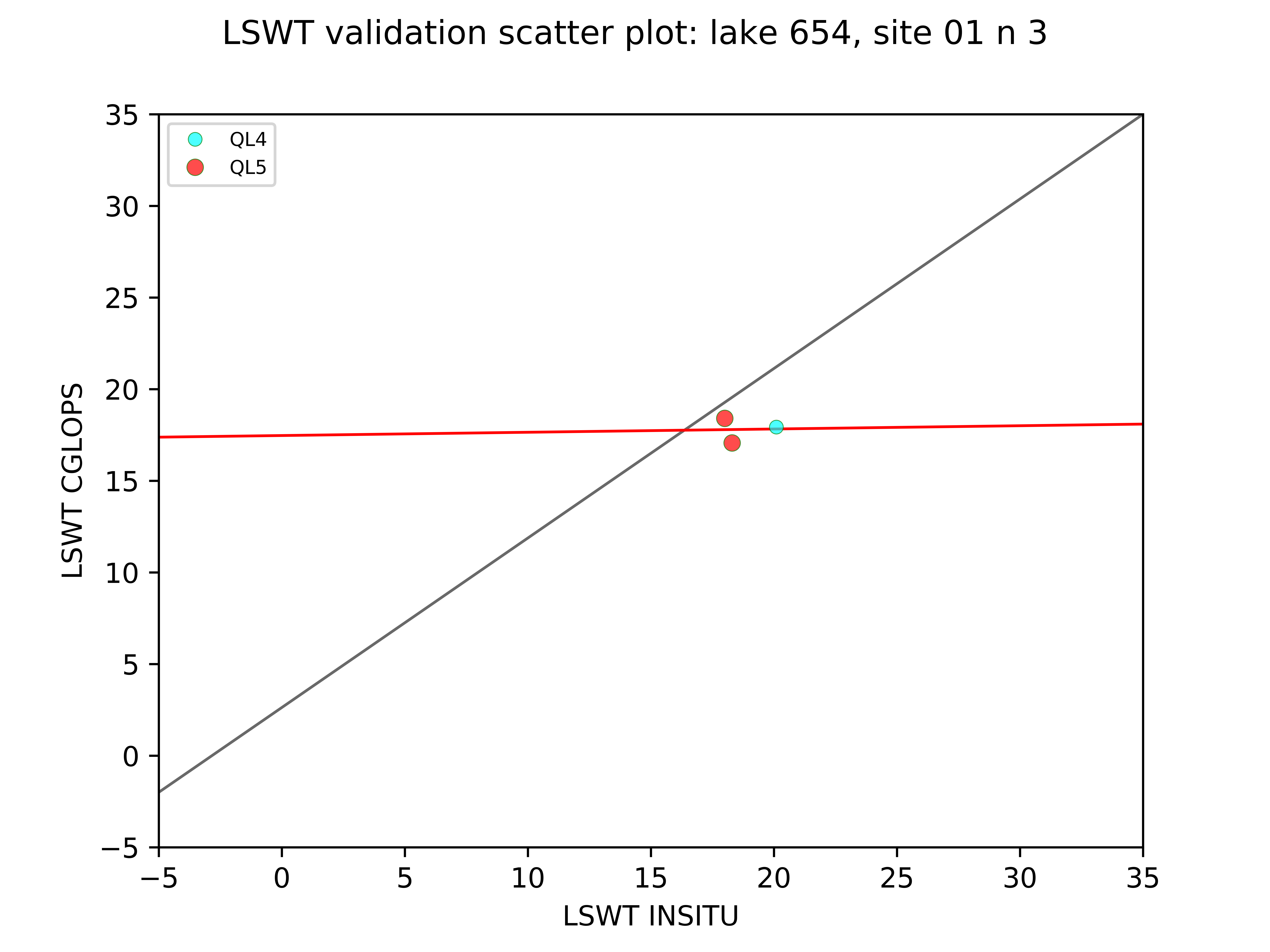

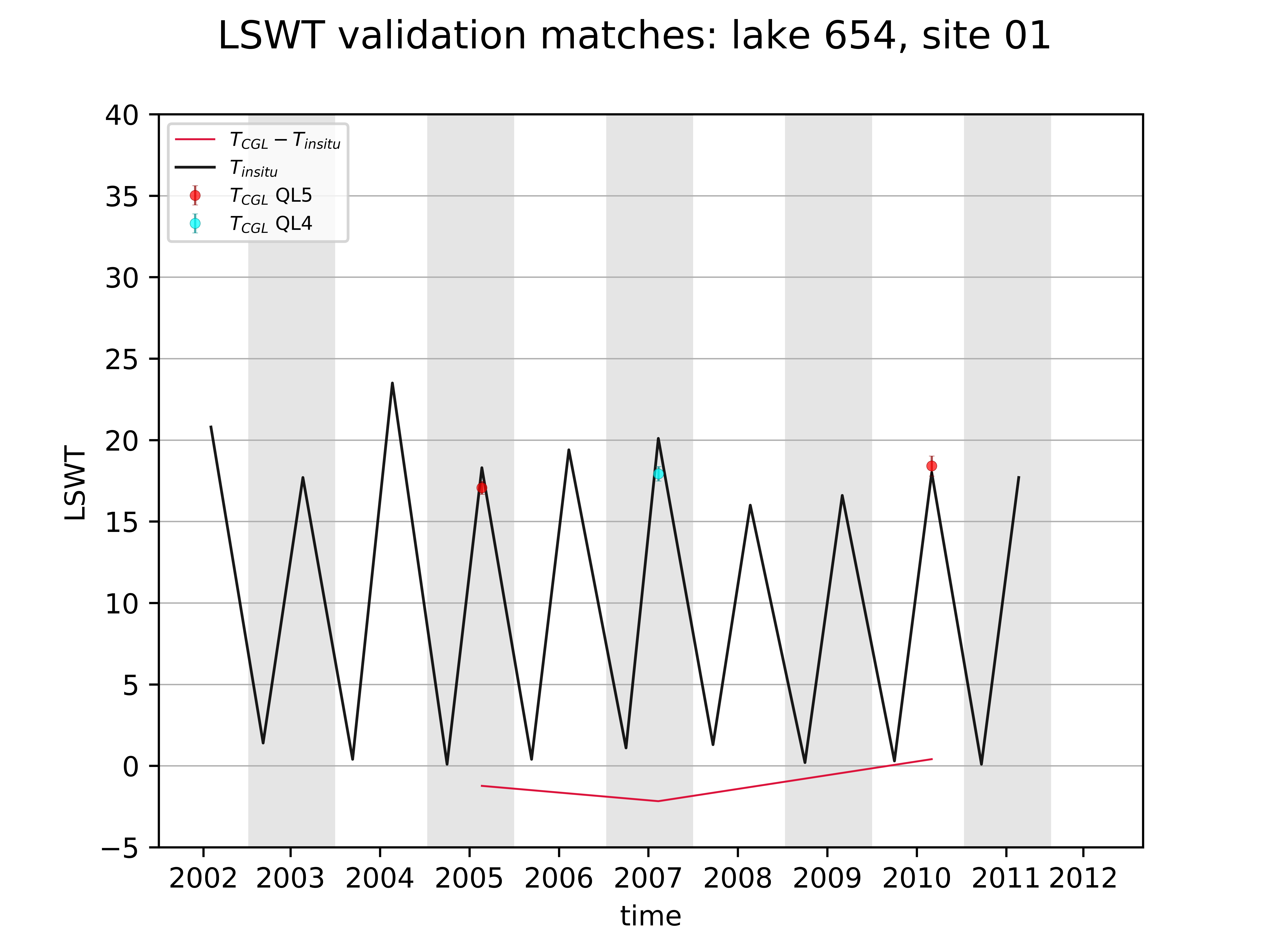

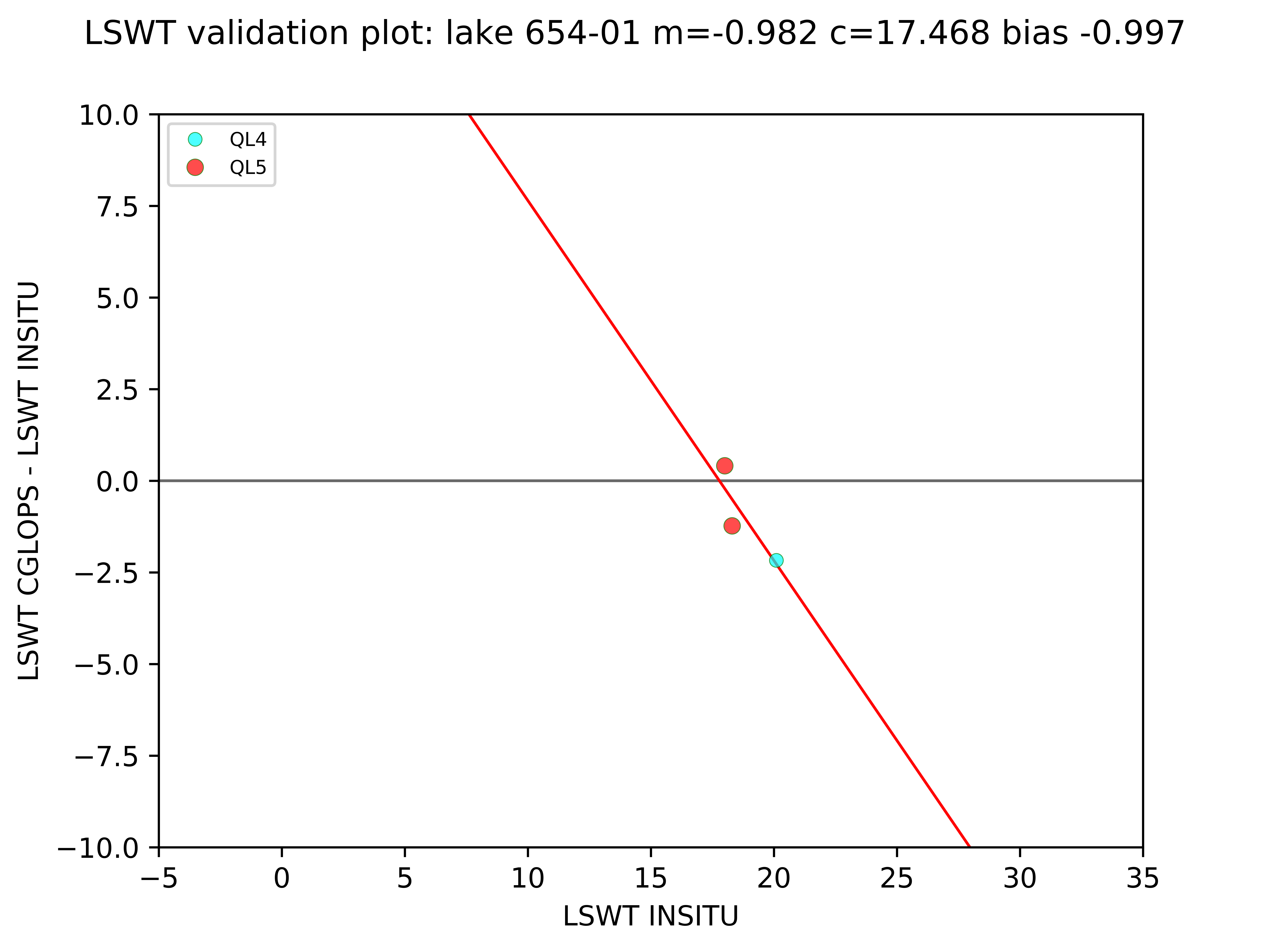

654	Siljan/Sweden	000654_01	60.867	14.986						3	-1.23	1.39367	-0.9967	1.0661

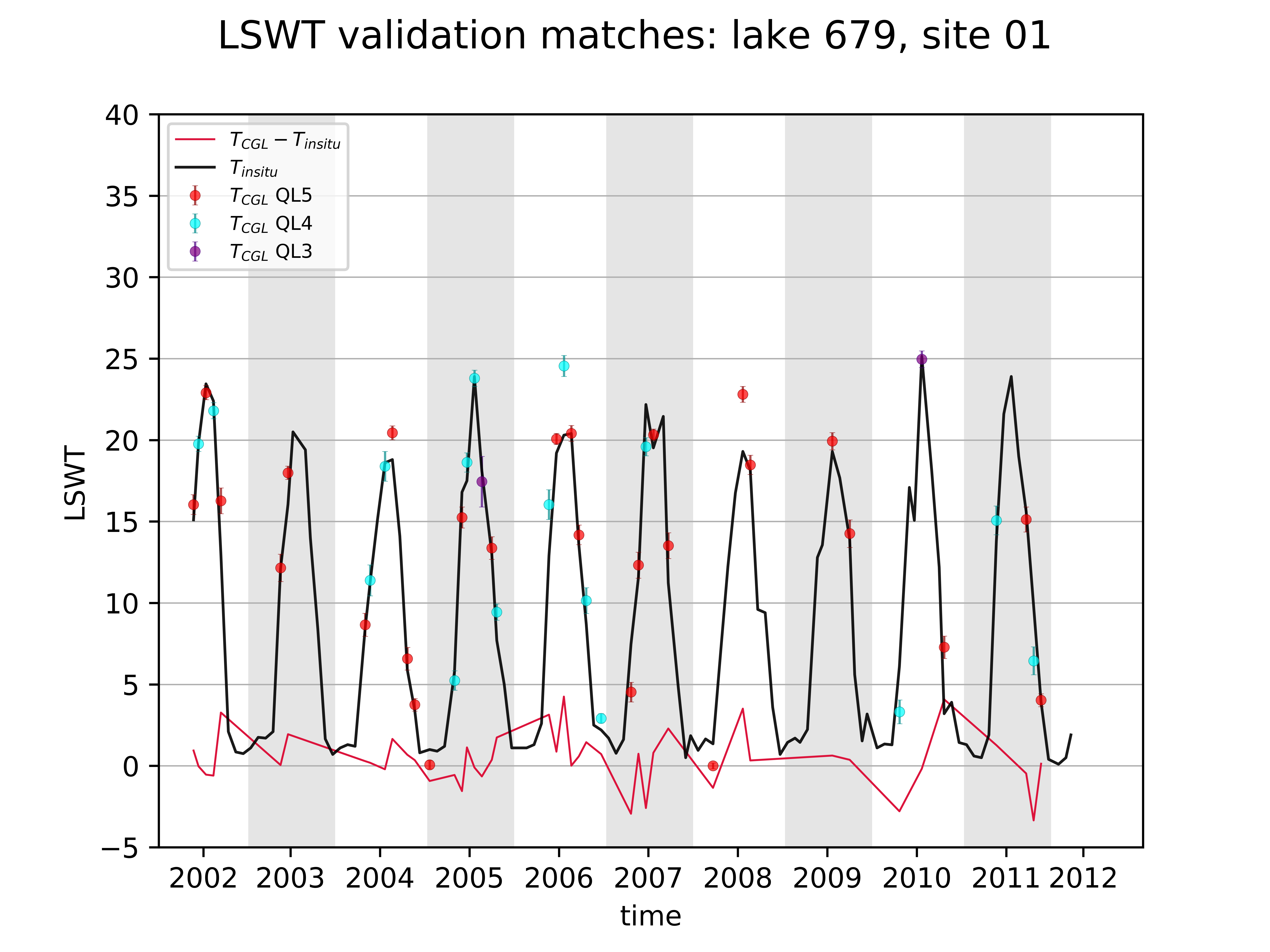

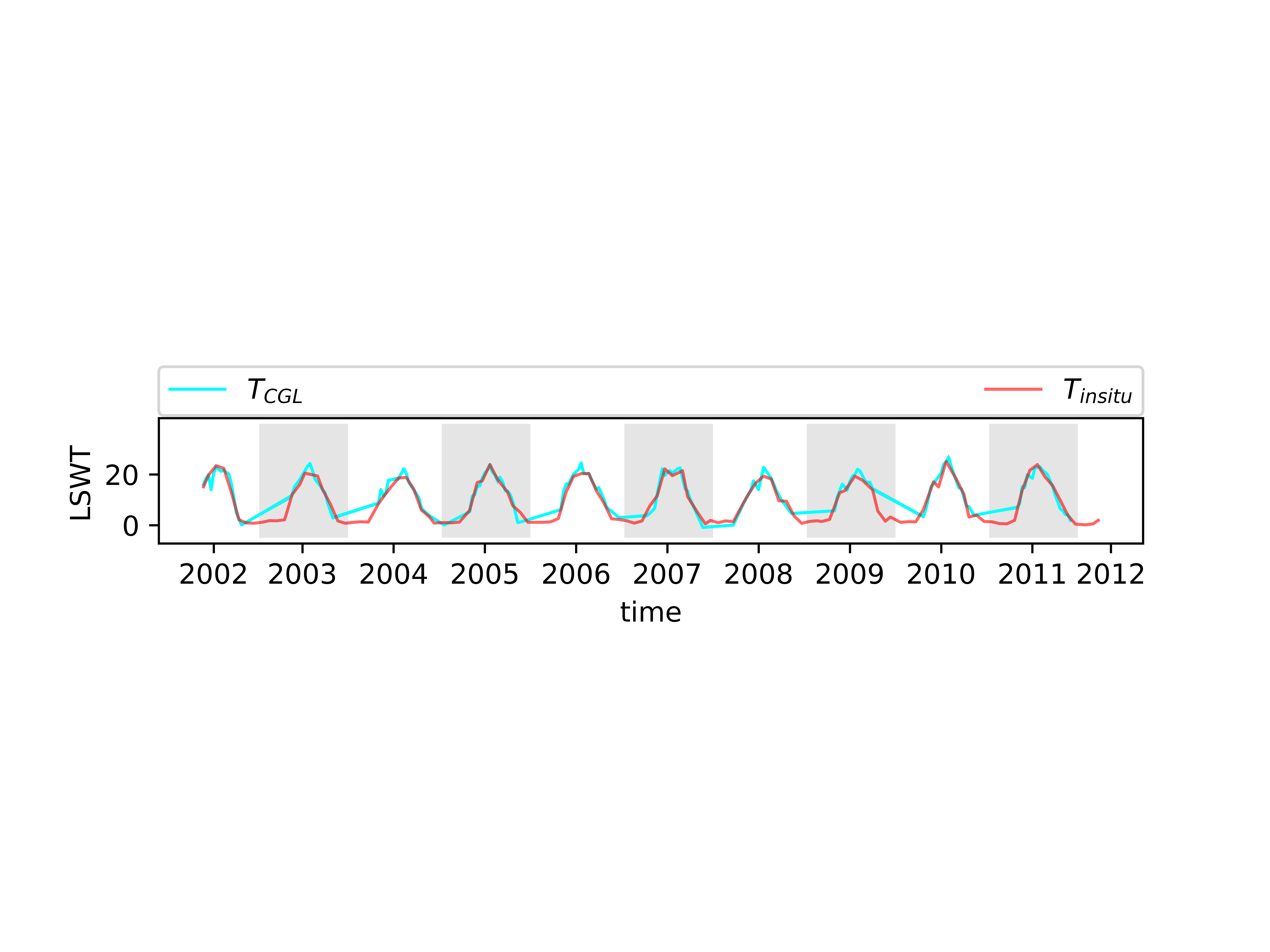

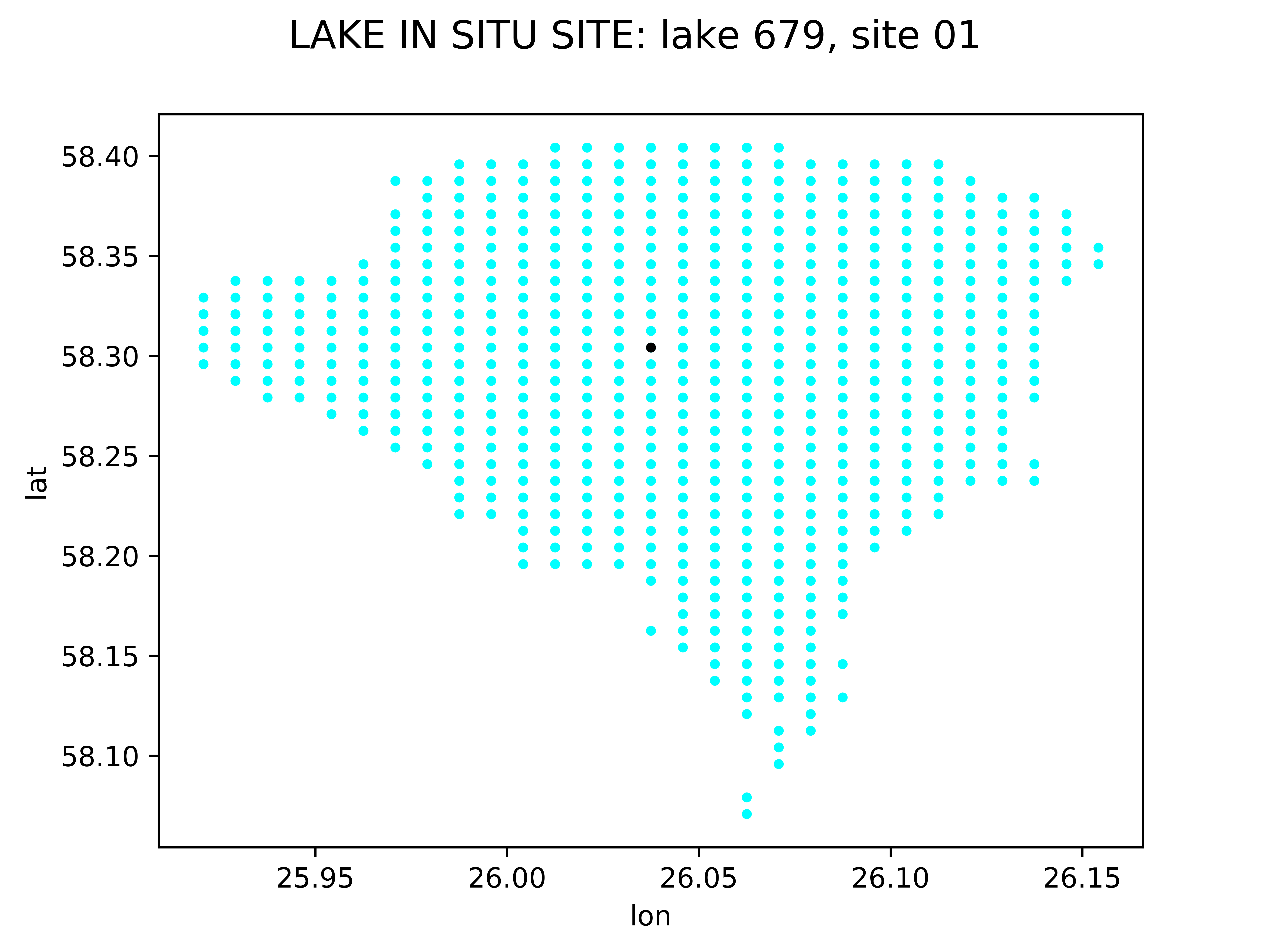

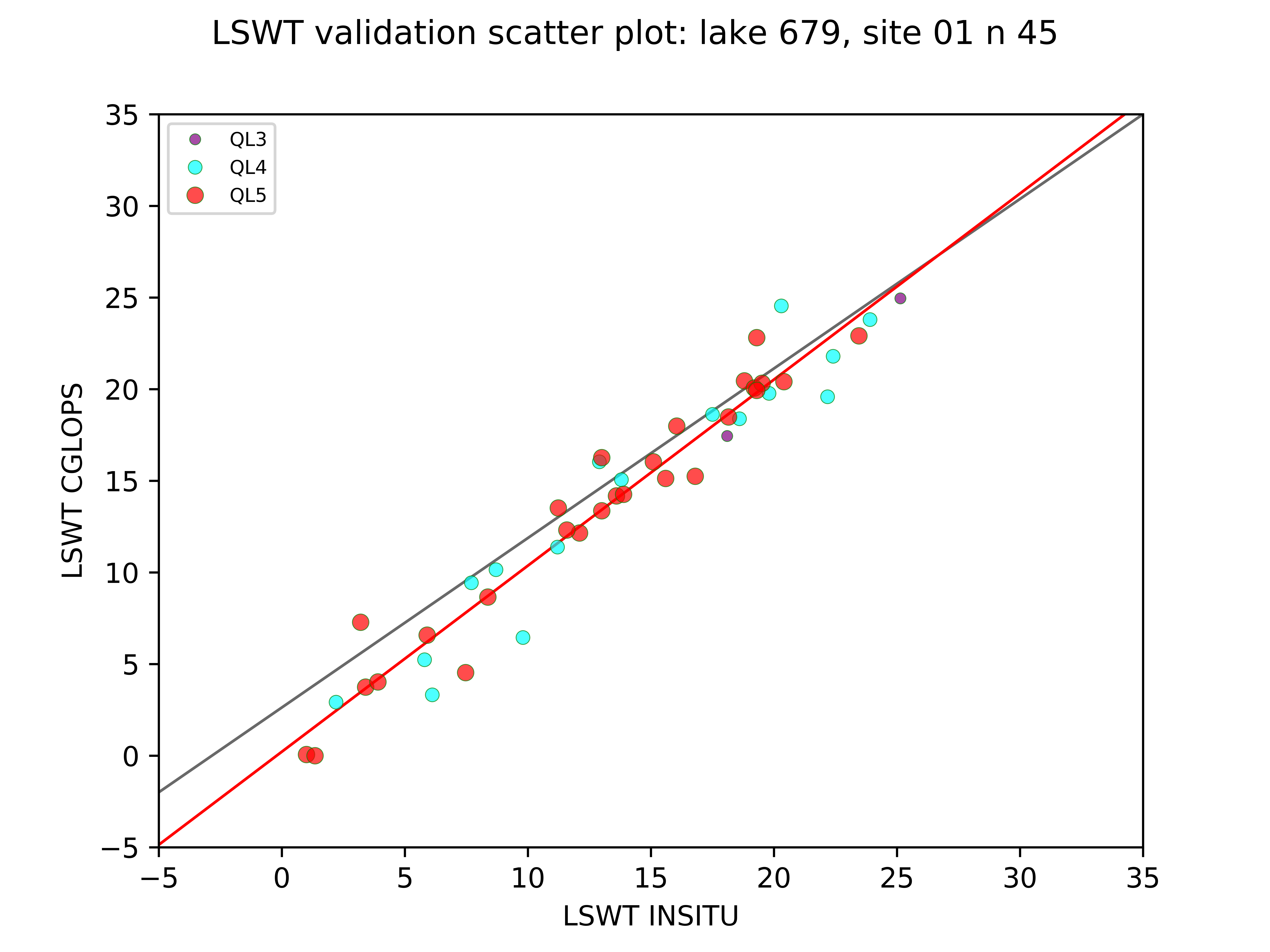

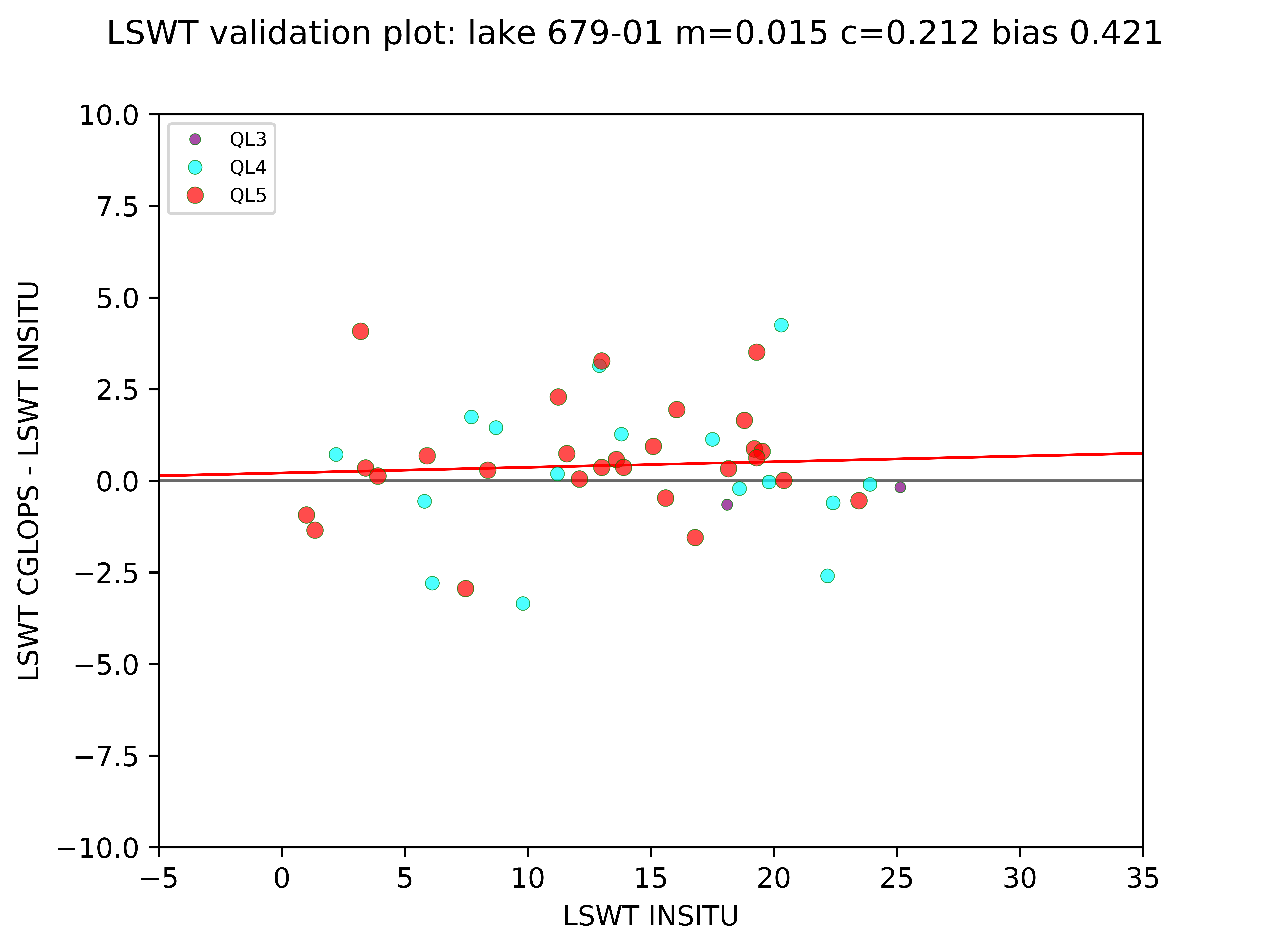

679	Vorstjarv/Estonia	000679_01	58.304	26.035						45	0.35	1.21573	0.4207	1.6713

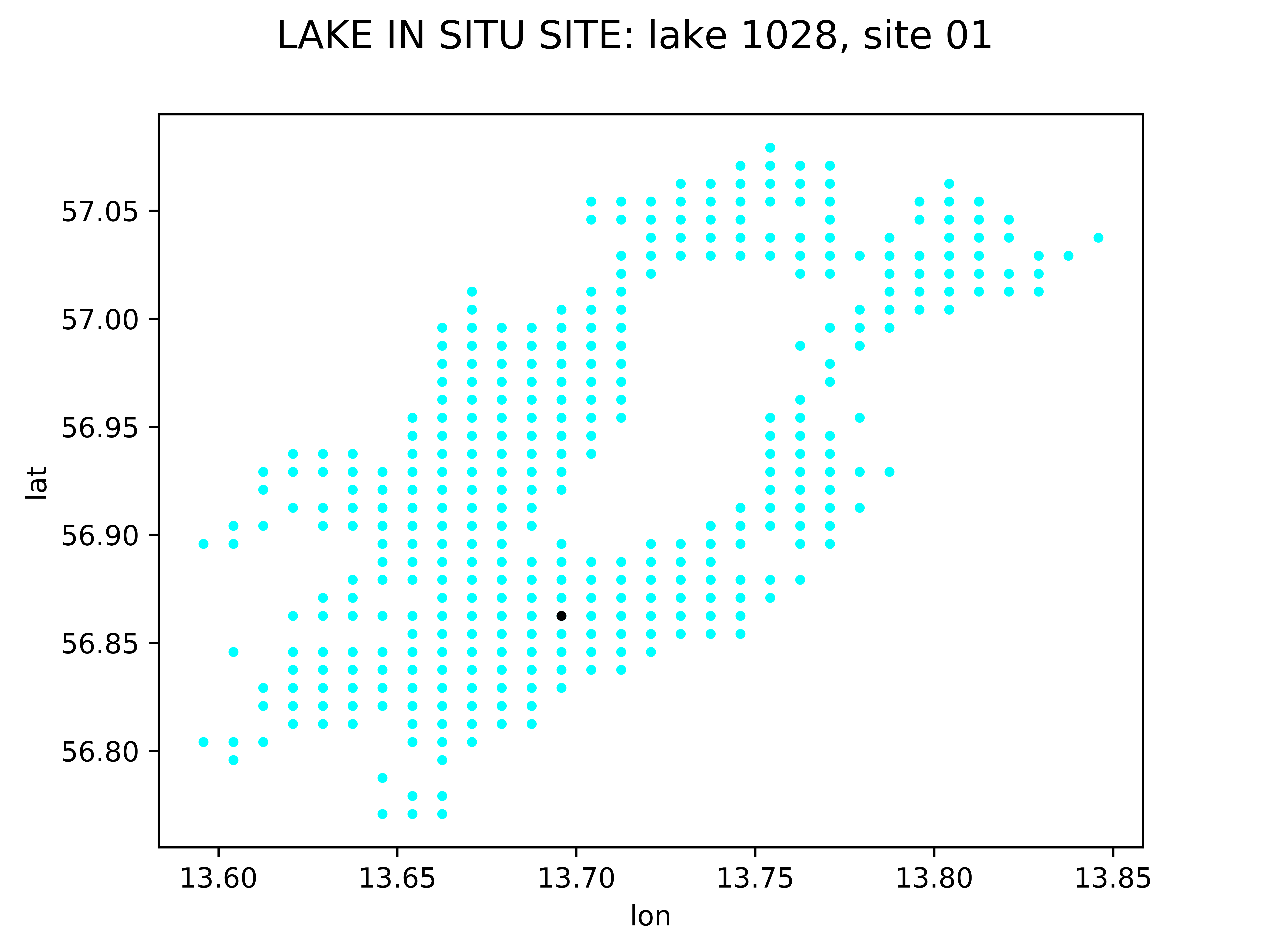

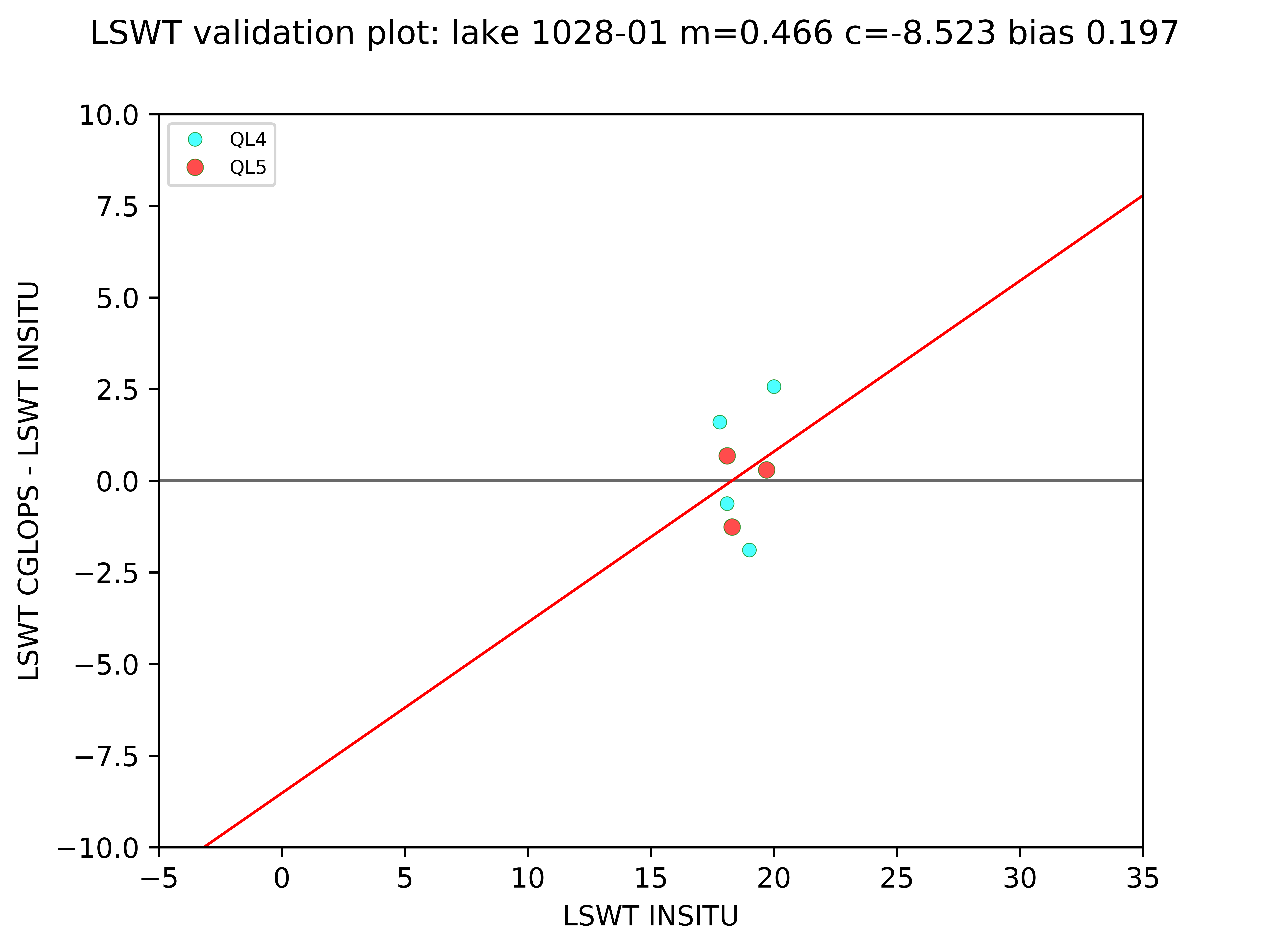

1028	Bolmen/Sweden	001028_01	56.861	13.695						7	0.3	1.92737	0.1971	1.4633

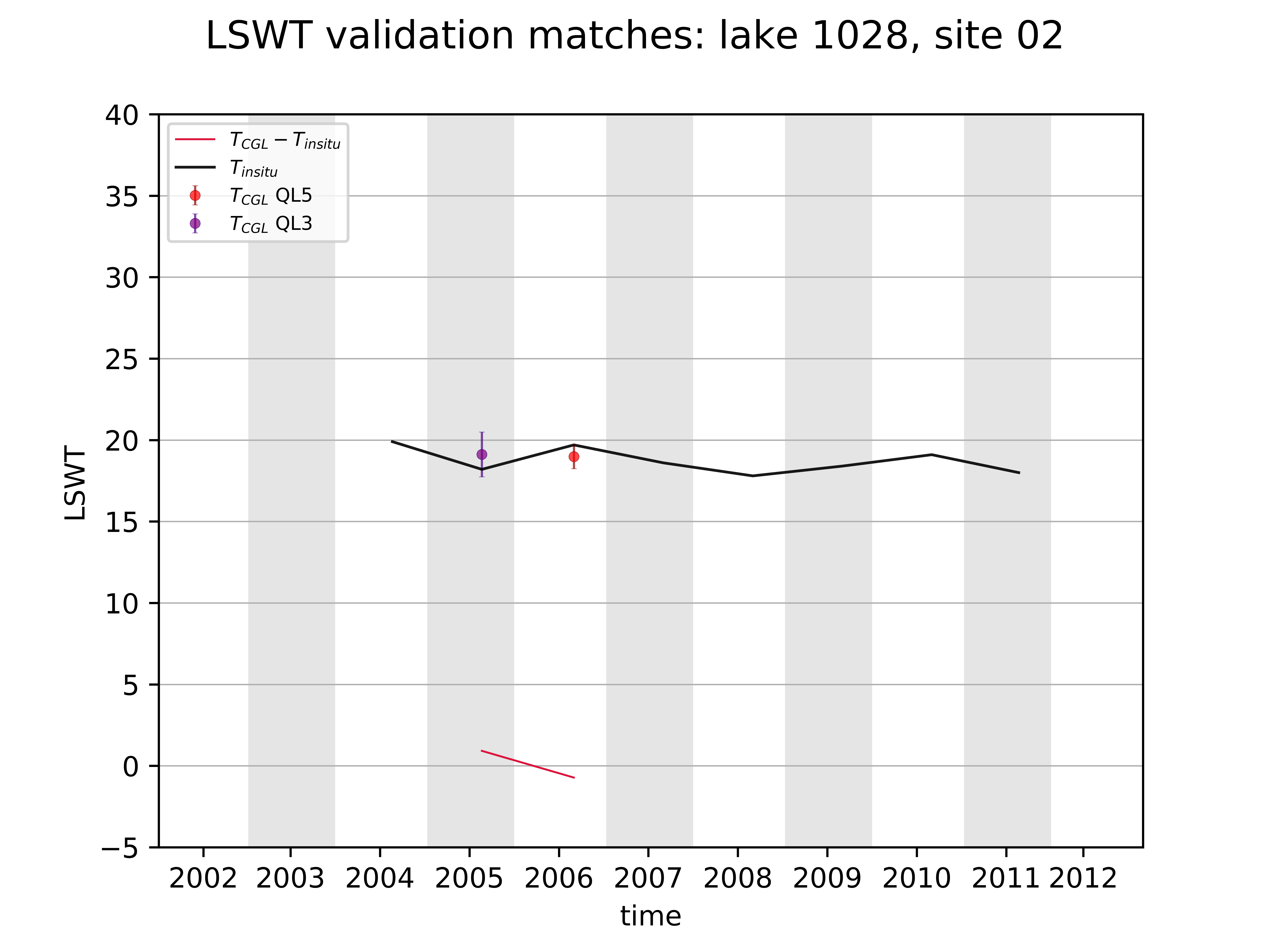

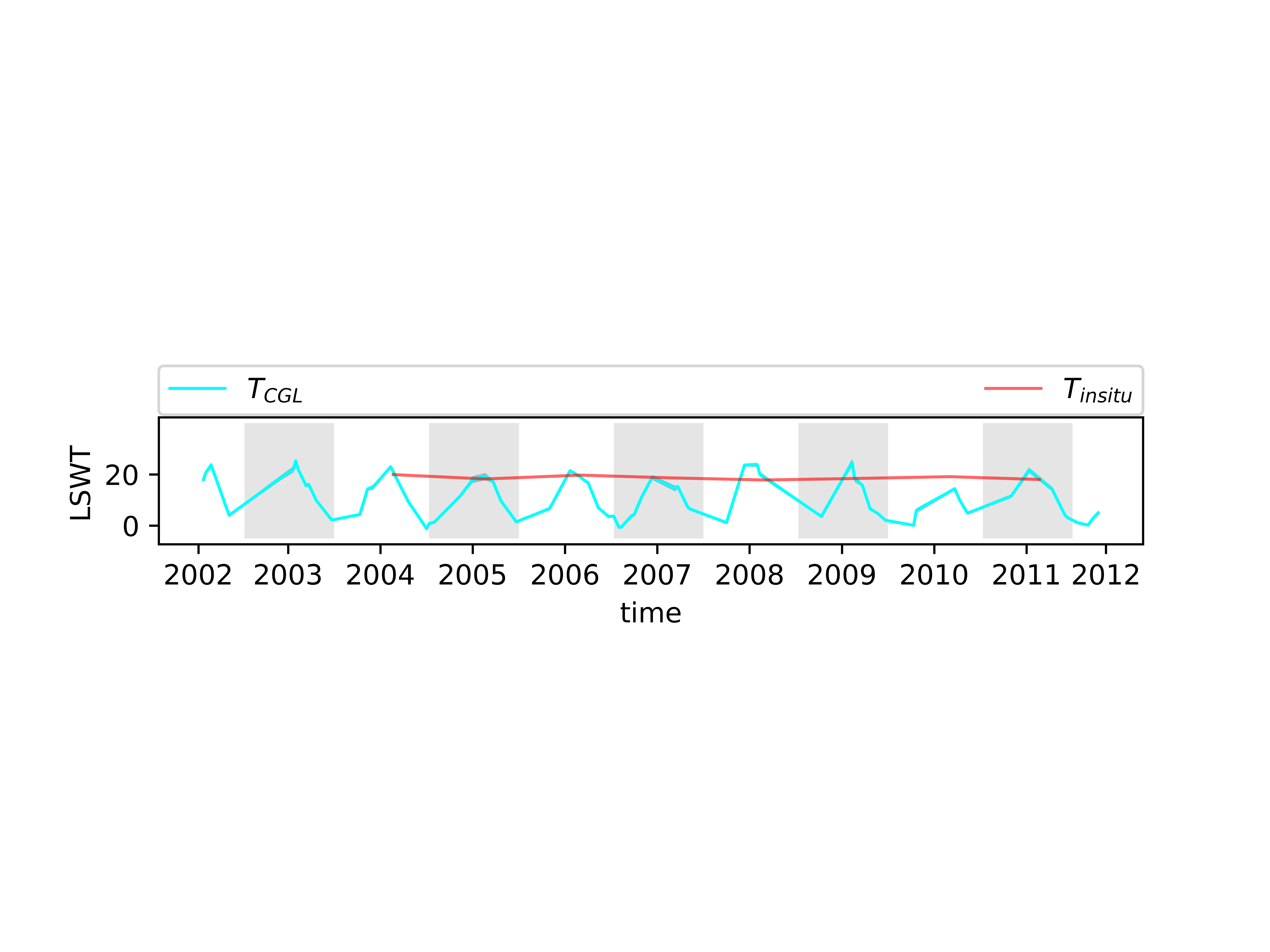

		001028_02	57.045	13.732						2	0.1	1.21572	0.1	0.82

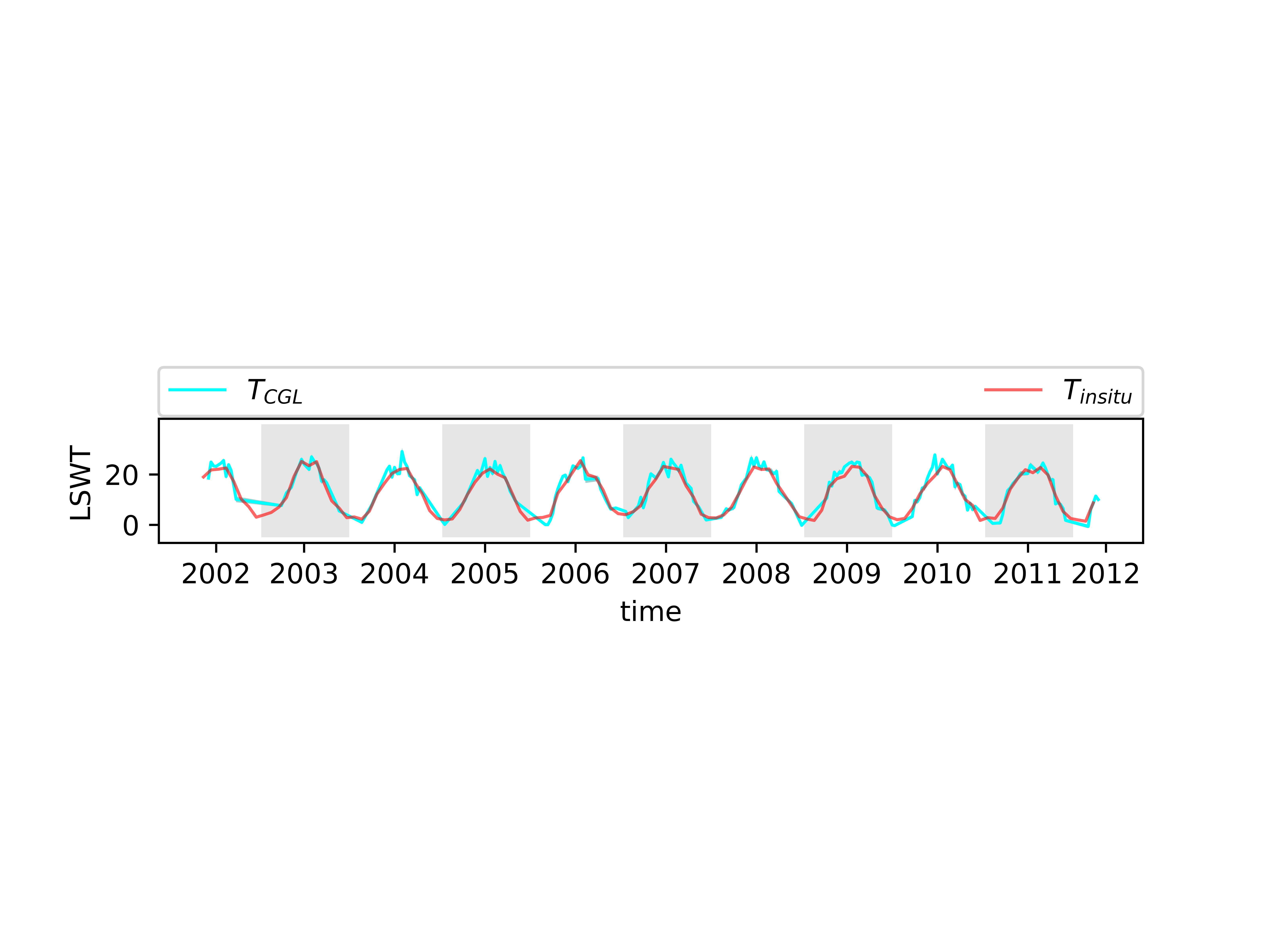

1115	Neusiedl/Austria	001115_01	47.845	16.767						63	0.5	1.89773	0.4659	2.0507

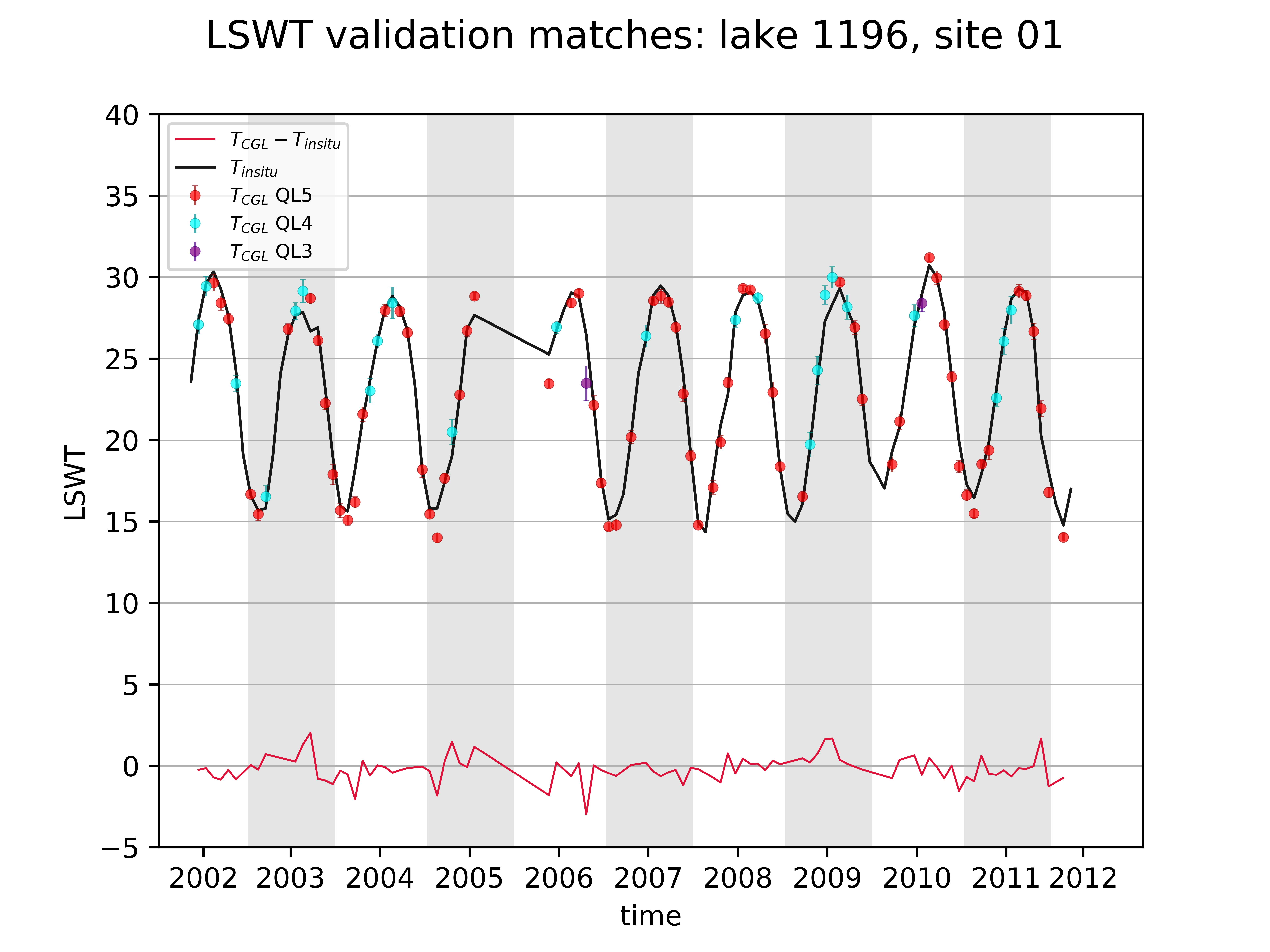

1196	Sea of Galilee/Israel	001196_01	32.817	35.588						93	-0.18	0.62269	-0.164	0.7914

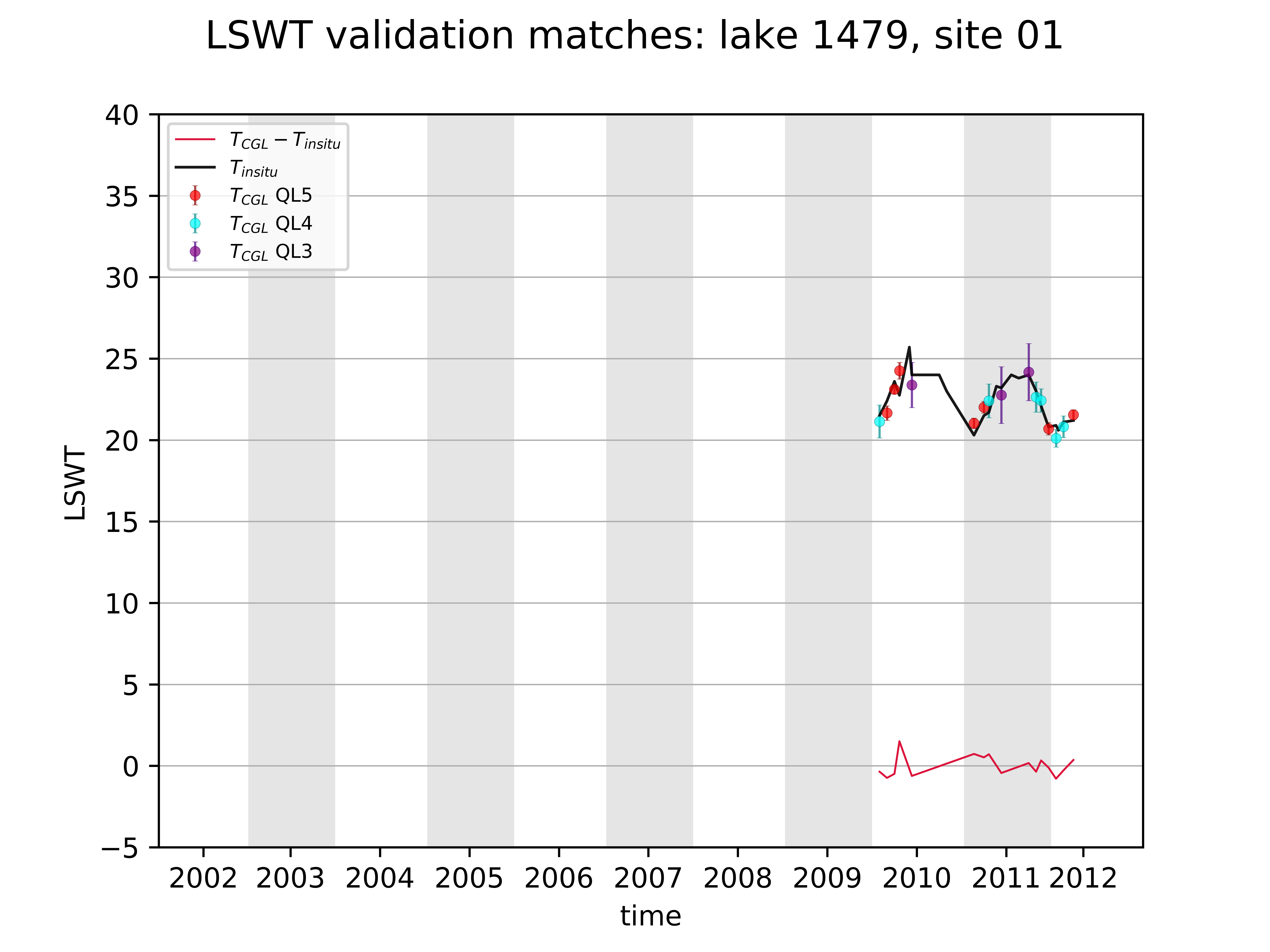

1479	Atilian/Guatemala	001479_01	14.706	-91.189						16	-0.195	0.70423	0.0087	0.6222
1529	Trasimeno/Italy	001529_01	43.145	12.154						13	-1.64	0.68199	-1.5092	0.6087

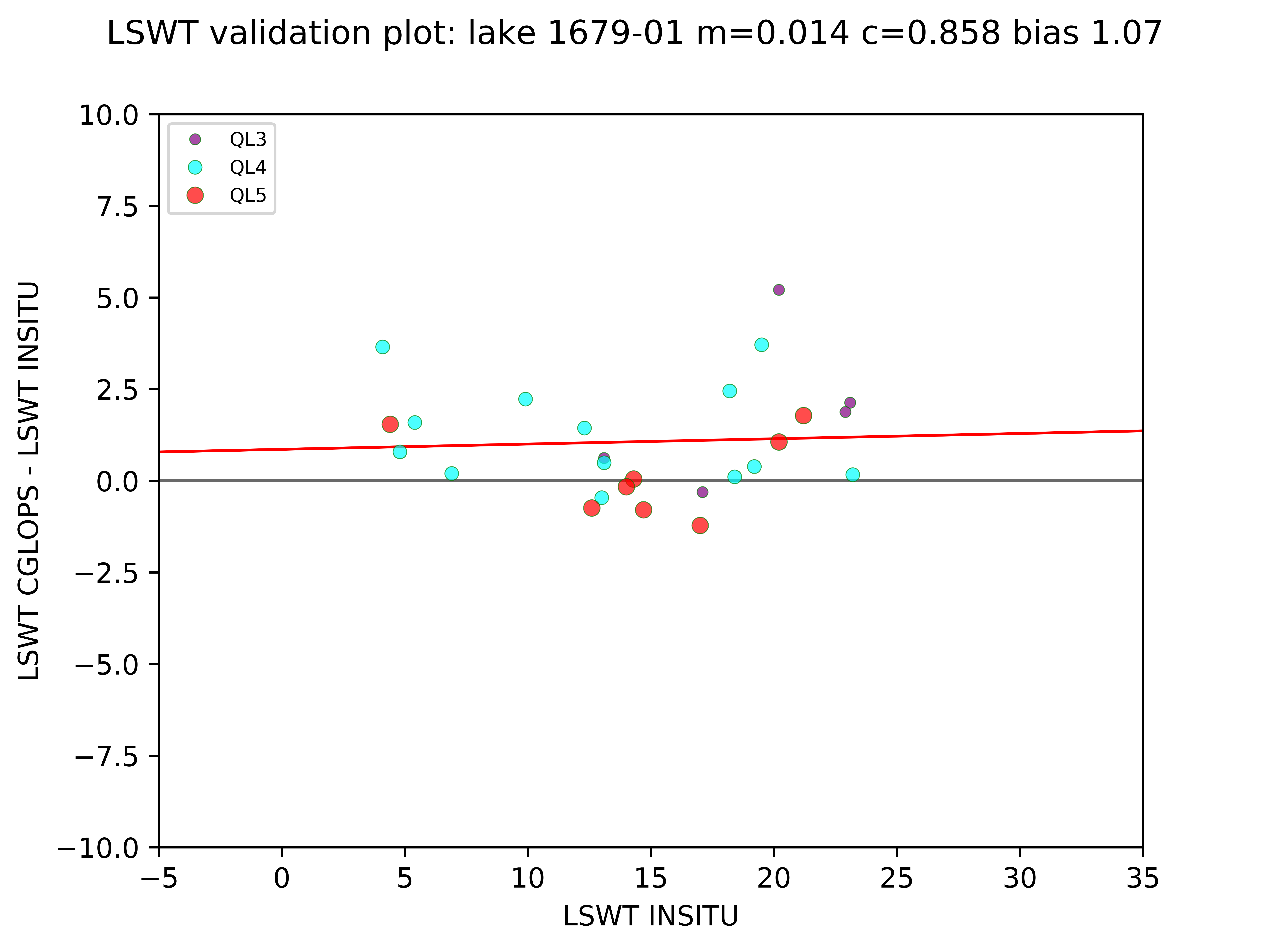

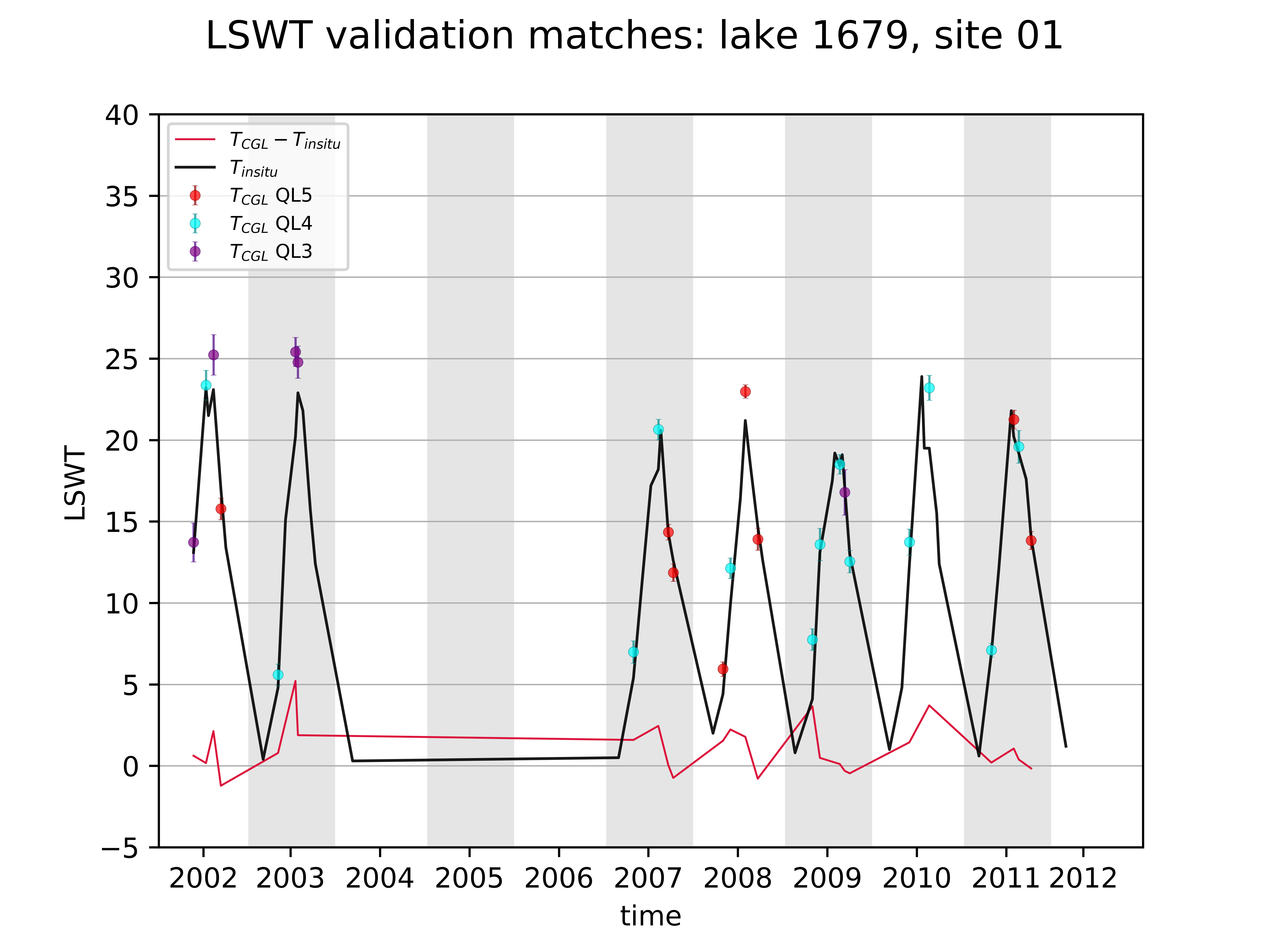

1679	Ekoln/Sweden	001679_01	59.752	17.612						26	0.705	1.40846	1.0696	1.5099

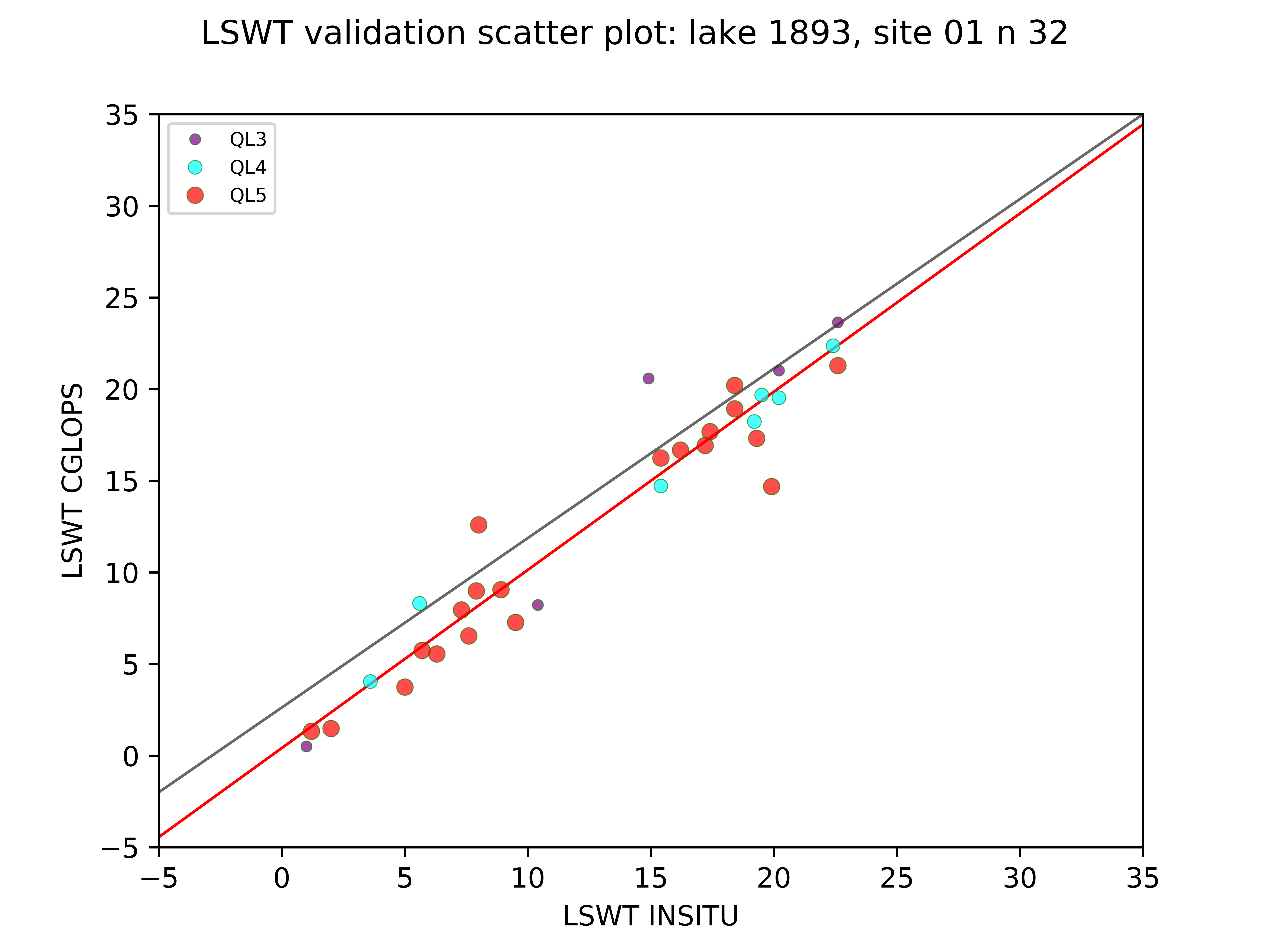

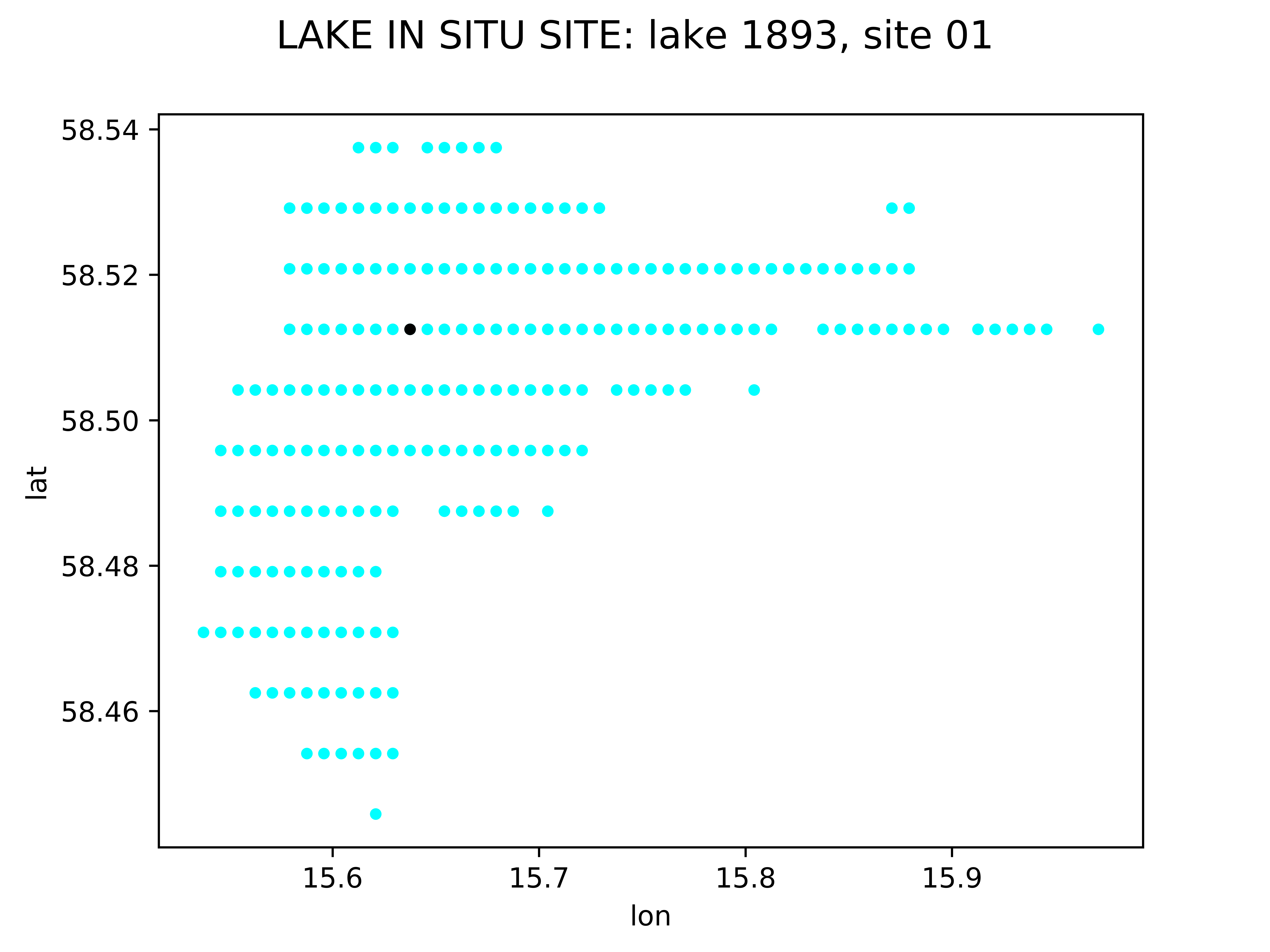

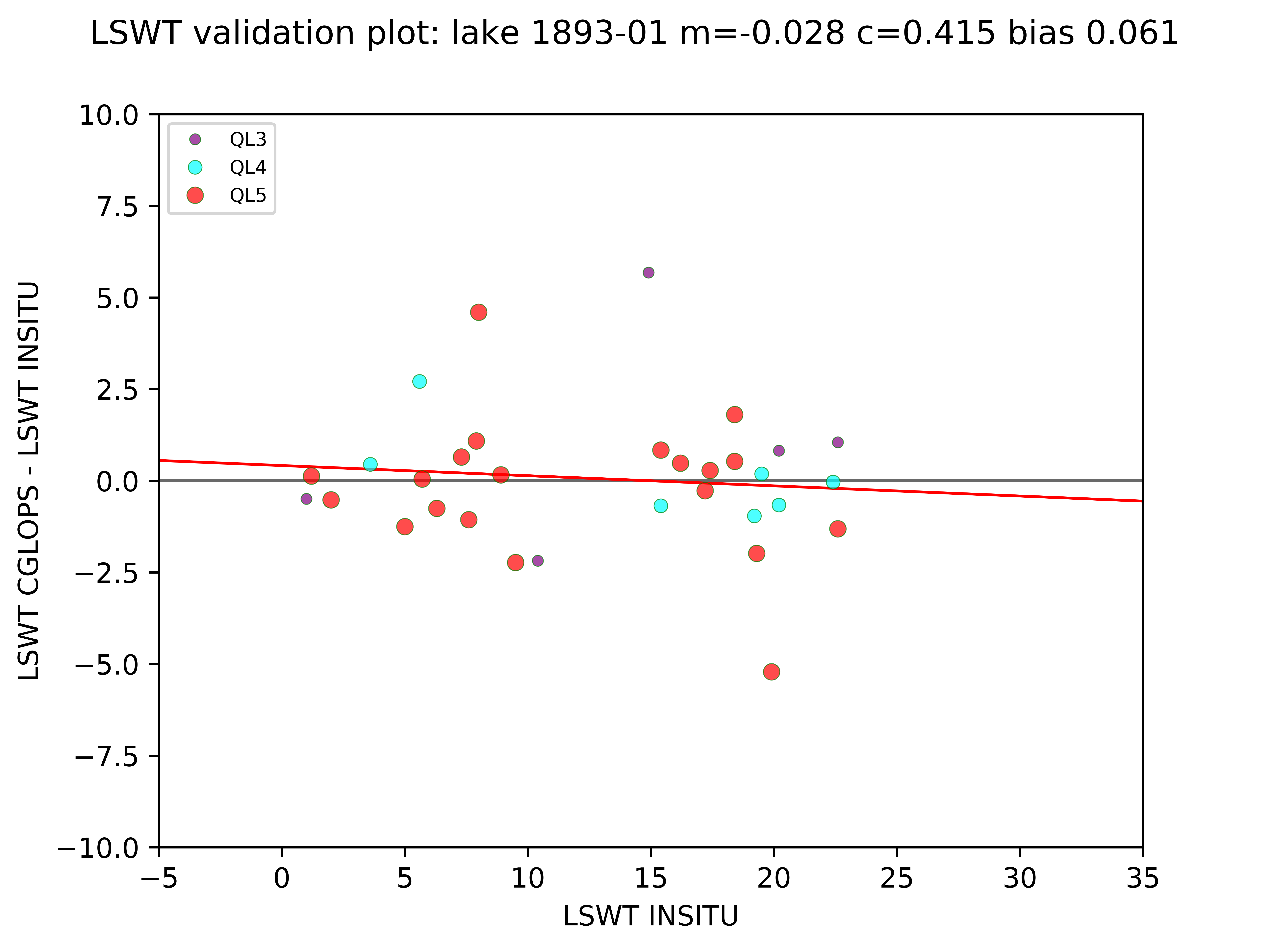

1893	Roxen/Sweden	001893_01	58.514	15.64						32	0.09	1.12677	0.0606	1.9125
